4-port poe oem industrial ethernet switch 5 port pcb board 12v 48v shenzhen outdoor fast mini hub for ruggedcom ip camera

Retailer's Choice
Feedback Ratings
  • 1-19 Pieces
    US $21.60
  • 20-99 Pieces
    US $21.00
  • 100-199 Pieces
    US $20.60
  • >=200 Pieces
    US $20.00
Est. Profit 73%| B2C retail price US $80.0/piece| 5118 sold
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Ports:
4
Transmission Rate:
10/100Mbps, 10/100Mbps
Function:
POE
Communication Mode:
Full-Duplex & Half-Duplex
Certification:
CE, FCC, RoHS, CE, FCC, RoHS
Switch Capacity:
1Gbps
Brand Name:
HORED
Model Number:
PS504
Place of Origin:
Guangdong, China (Mainland)
Mbps ports:
4+1 ports
Standard:
IEEE 802.3af
Switch capacity:
1 Gbps
Output power:
15.4W each port
Max output power:
60W(48V/1.25A)
Material:
Metal
Color:
Black
Product Name:
12V fast oem mini 4 port poe industrial ethernet switch
Product Description

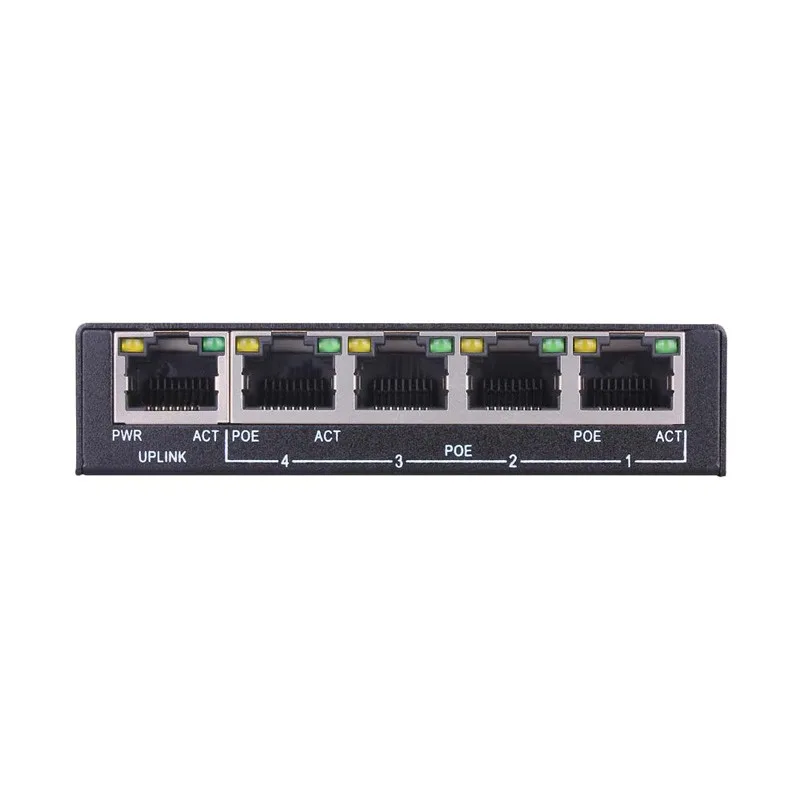

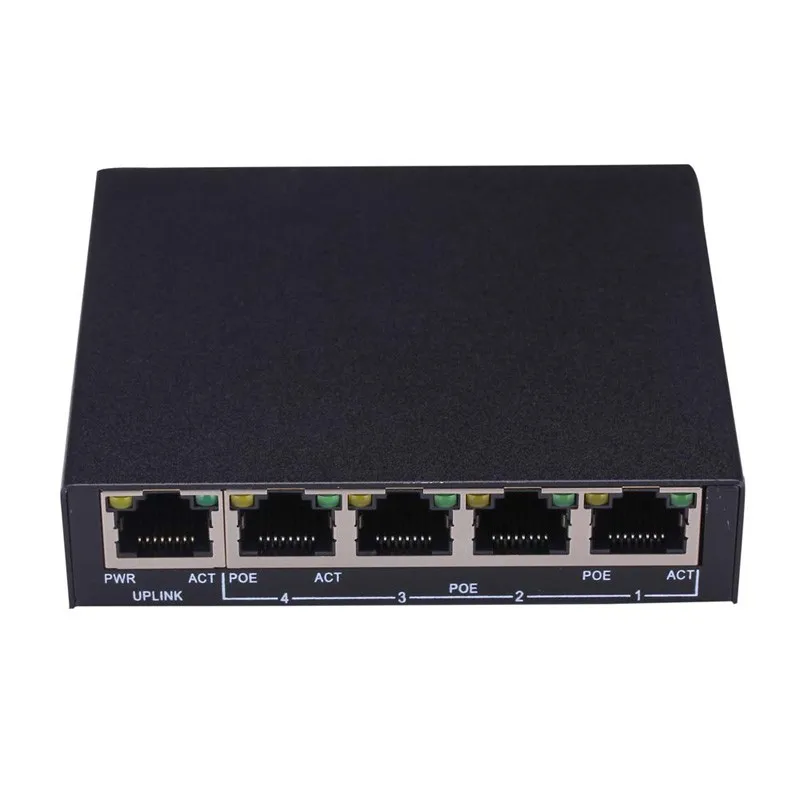

PS504, 4+1 Port 100Mbps mini PoE Switch, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This unmanaged switch offers four 100Mbps PoE port which supply 15.4 watts of power per port for devices such as high power wireless access points, and VoIP telephony systems. Auto sensing technology delivers 15.4 watts to 802.3af PoE devices. It reduces energy consumption by up to 75% when the switch is not in use. Boost office efficiency and reduce network congestion with a total switching capacity of 1 Gbps. LED indicators display device status for efficient troubleshooting. This switch comes in a sturdy metal case.

4-port oem industrial ethernet switch 5 port pcb board 12v or 48v shenzhen outdoor fast mini poe hub for ruggedcom ip camera


Feature

IEEE 802.3af Power over Ethernet standard

Supports 10/100Mbps fast Ethernet

4 x 100Mbps Auto-MDIX PoE ports

Provides up to 15.4 watts for PoE

Automatically detects the PoE class level of a Powered Device

1Gbps bandwidth

Forwarding rate: 100 Mbps / 148,800 pps; 10 Mbps / 14,880 pps

Status LEDs: System Power, PoE, 100 Mbps, and Link / Activity

Full wire-speed non-blocking reception and transmission

Store-and-forward switching method

Back pressure Flow Control for Half-Duplex mode

IEEE 802.3x Flow Control for Full-Duplex mode

Power saving technology powers down unused ports and when a connected device is in standby mode

Plug and Play

Sturdy rack mountable metal case

Easy installation and use , no need to convert by software and network protocol

1-year limited warranty

Technical Specification

Standard
IEEE 802.3 10Base-T / IEEE 802.3u 100Base-TX / IEEE 802.3ab 1000Base-T
IEEE 802.3af Power over Ethernet (PoE) / IEEE 802.3x Flow Control
Ports
4x100Mbps Auto-MDIX PoE / PoE+ 1 100Mbps RJ-45 uplink
Data Transfer Rate
Ethernet: 10/100 Mbps (Half / Full Duplex)
Forwarding Rate
100 Mbps / 148,800 pps, 10 Mbps / 14,880 pps
Switch capacity
1Gbps
Power
100-240 V, 50/60 Hz
LED indicator
Power, PoE, Link / Activity
Power Consumption
Min: 8 Watts( standby) ; Max: 60 Watts ; PoE Max: single port 15.4W
Temperature
Operating: 0° ~ 45°C (32° ~ 113°F) ; Storage: -20° ~ 90°C (-4° ~ 194°F)
Humidity
Max 90% (non-condensing)
Dimensions
92*82*22mm
Weight
0.85 kg
Certifications
CE, FCC, ROHS
Power over Ethernet
Up to 15.4 watts for PoE
PoE: pin 3,6 for power- and pin 1,2 for power+

Related Products

            PS504G(60W)

4 Gigabit + 1 Gigabit uplink

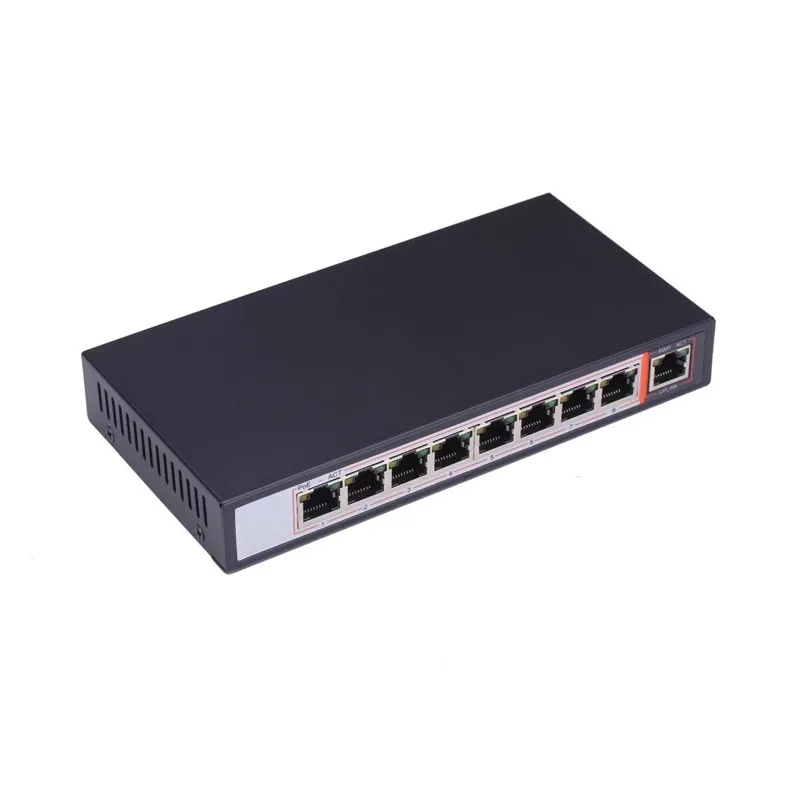

                     PS5081

8 100Mbps + 1 100Mbps uplink


               PS3016 (250W)

16 100Mbps + 2 Gigabit uplink + 2 Gigabit fiber optial(SFP)

Security Solution
Our Company

Shenzhen Fengrunda Technology Co., Ltd(Hored) is a global leader in PoE devices supply. Established in 2006, we has been committing to R&D on PoE devices and solutions, we have obtained many national patents. We offer full line products and high quality and cost-effective solutions. Besides PoE switches, produces also covers ethernet switches, power line communication, wireless access points.

Headquarter in Shenzhen, offices in home markets like Beijing, Shanghai, Guangzhou, Hangzhou, Nanjing, Chengdu, Jinan, Zhengzhou, international markets like Germany, Britain, Canada, Russia, the United States, Italy, France, Spain, Poland, Singapore, Hongkong, India, Vietnam, Australia ect., more than 20 million sets of our devices are applied in over 120 countries until the end of 2014.

We are devoted to research & design, production & processing, sales & marketing, integrating global resources to keep us a leading position. HORED is a worldwide leading brand in network and communication field.

Certifications
Packing & Delivery

Packing

With years of export experience along with excellent quality, advanced services and competitive prices, HORED has won numerous customers' trust and support.

Delivery


FAQ

A.What's the after-sale service?
a.One year warrnty or negotiable


B.Why choose Fengrunda (HORED)?
a.Prompt delivery and remarkable services
b.Competitive selling prices
c.Rich experience of OEM&ODM co-operation , accept orders according to coustomers demands
d.We have R&D team, our product has been approved by IOS9001, CE, FCC and ROHS etc.

C.How about Minimum Order?
a.To satisfy customer's requirements, we accept sample oder, even one piece
