409SHOP SURECOM SW-102 V.S.W.R. POWER METER WITH frequency counter

Feedback Ratings
  • 5-19 Pieces
    US $35.00
  • 20-49 Pieces
    US $30.00
  • >=50 Pieces
    US $28.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Ships within 3 days.
Estimated Delivery Time: 5-10 working days
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SURECOM
Model Number:
SW102-N
Measuring Current Range:
1-120W
Measuring Voltage Range:
1.00-19.9
Accuracy Class:
5%
Operating Temperature:
0℃-60℃
Dimensions:
W 76 X H 77 X D35 mm.
Frequency Ranger::
COVER:125MHz~520MHz
MAX. Power in::
1 - 120W
V.S.W.R:
1.00~19.9
Weight::
< 220 grams
Battery ::
600MAH Li-ion Battery
Impedance::
50Ω
Color::
Black
Insertion Loss::
< 0.15dB(VHF) , < 0.25dB(UHF)
Battery Voltage Display:
Yes
Interface (in and out ):
N(SL16)
Product Description
SURECOM SW-102-VU V.S.W.R. POWER METER and frequency counter

V.S.W.R. meter Introduction

VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Build in Frequency counter .
All Funtion display ( Frequency,Power , SWR,FW,RW,Battery Level)

Feature & Specification
Frequency range: 125 - 520MHz
Measurable power range: 1 - 120W(+-0.5%)
Input Frequency counter (min 0.5 W input)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery : 3.7V Li-ion Rechargeable Battery
Interface: N-J Interface
MAX. Power in 120 W (Measurable power,Radio must be ANALOG)
V.S.W.R 1.00~19.9
Frequency Ranger COVER : 100MHz~520MHz
Insertion Loss < 0.15dB(VHF) , < 0.25dB(UHF)
Temperature 0℃~60℃
Frequency counter Yes ( TX input must be minimum 0.5W + - 0.5%)
Battery Voltage Display Yes
Battery Build-in 600MAH Li-ion Battery
Auto Power Off 1-9 mins
Size 66*68*37 (mm)
Charger in 5V (micro usb)
Backlight AUTO OFF 1-9 mins
Interface (in and out ) N(SL16)
Weight 220g (include battery)

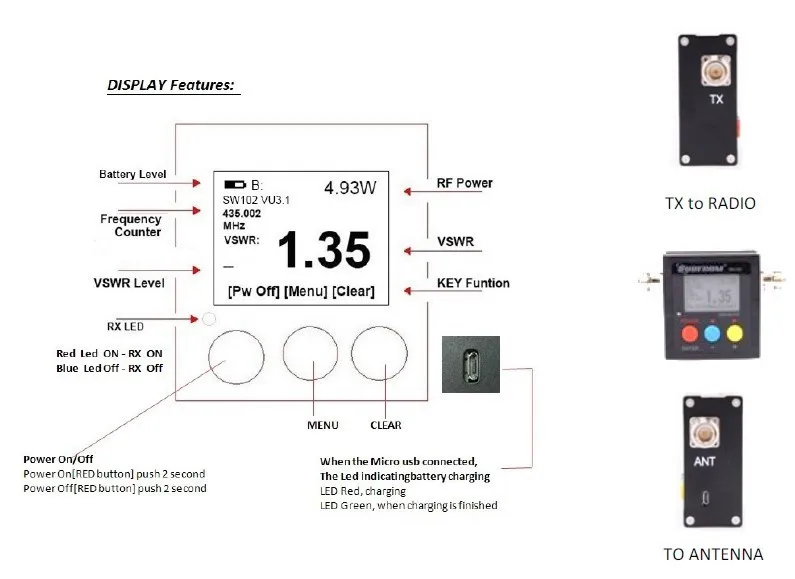

Power ON/OFF:

Press 2 second the [Red button] to power on or power off

MENU Dispaly (Note: Version for up to V3.8)
No. Mode Adj
Default Setting
Content
1 Adjustment Forward -99 to +99 0 Fine Tune Level %
2 Adjustment Reverse -99 to +99 0 Fine Tune Level %
3 Adjustment Time Base -99 to +99 0 Frequency Counter ,OSC Time Base
4 LCD DIM (Back Light Time) 0-9 1 "0" is always on, 1 min to 9 mins
5 POWER OFF 0-9 3 "0" is always on, 1 min to 9 mins

* Supplier, the product will add functionality without having to give notice


Set & Save​:

1. Press MENU [Blue button]

2. Press F1 [Red button)(Select 1-5 Funtion)

3. Press [Blue button] ( - ), [Yellow button] (+)

4. Press the [Red button ]for 2 seconds

5. Press the [Blue button] to SAVE and EXIT


How to check the S.W.R. of your Antenna :
Connect to "TX" on Radio output and Antenna to "ANT". Proper adaptor/cable is required if your device has different type of connectors.

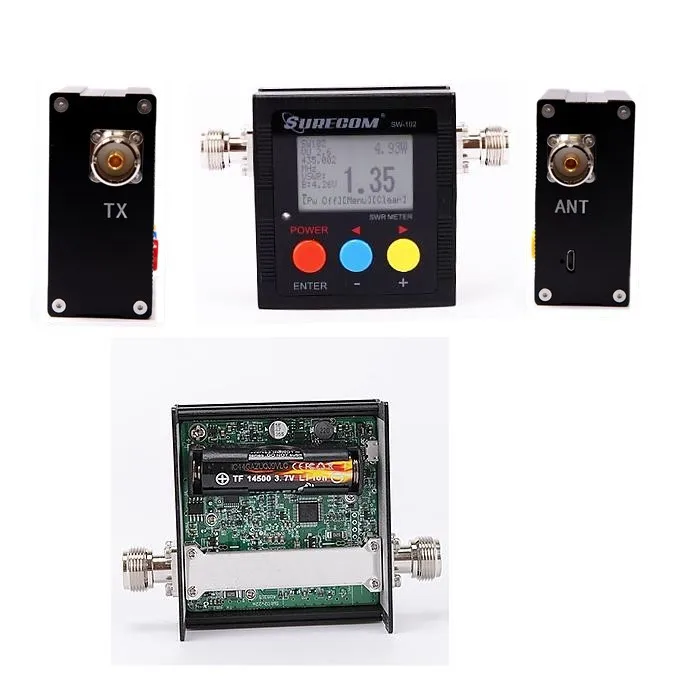

Measurement V.S.W.R. : (see Pic.1)

SW-102 TX connect Radio RF out
SW-102 ANT connect Antenna device
Radio TX , SW-102 with display S.W.R. measure data.

How to check the Output Power Watt of your transceiver :
Connect to "TX" on Radio output and dummy Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
Measurement Power: (see Pic.2)
SW-102 TX connect Radio RF out
SW-102 ANT connect 50 ohm Dummy Load
Radio TX , SW-102 display is Power measure data.
* VHF Frequency Test Point 145.000MHz
* VHF2 FrequencyTest Point 245.000MHz
* UHF Frequency Test Point 430.000MHz


***All Specifications are subject to change without notice
