50l Mini Vacuum Rotary Evaporator/rotovap With Water/oil Heat Bath With Rotary Flask With Condenser For Lab Distillation

  • 2 Sets
    $5,419.00
  • >=3 Sets
    $5,195.00
Application:
Pharmaceutical Processing
Model Number:
NRE-5250A
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
To be negotiated
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $458.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Power Source:
Electric
Process:
Rotary
Place of Origin:
Shaanxi, China
Brand Name:
TOPTION
Voltage:
220V 50/60Hz single phase
Power(W):
120W
Dimension(L*W*H):
1100 x 700 x 2200m
Weight:
260KG
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Rotation flask:
20L
Receiving flask:
10L
Lifting type:
Automatic lifting
Condenser:
vertical type, double serpentine tube
Rotation speed:
5-110 rpm
Evaporation speed (H2O):
5L/h
Bath power:
5KW
Staic temp control range & Wave:
RT~99℃ & 2℃
Motor power:
120W

Packaging & Delivery

Selling Units:
Single item
Single package size:
157X95X86 cm
Single gross weight:
180.0 kg
Package Type:
packing with standard wooden box
Picture Example:
package-img
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 5 To be negotiated
Video Description
View More

   Recrystallization filtration                  Glass reactor                        Rotary Evaporator               Spray Dryer                     >>Click to purchase                  >>Click to purchase          >>Click to purchase            >>Click to purchase

           Vacuum filter                       Wiped film evaporator                    Nutsche filter                  Molecular distillation

        >>Click to purchase                >>Click to purchase               >>Click to purchase           >>Click to purchase

Product Description

Our Roatry Evaporator Advantage

1. Easier installation than old models.
2. All seals materials are PTFE, FFKM with special treatment, with better seal effect, More corrosion resistant and durable.
3. Controlling system in one panel, more accurate, and simpler the operation steps.

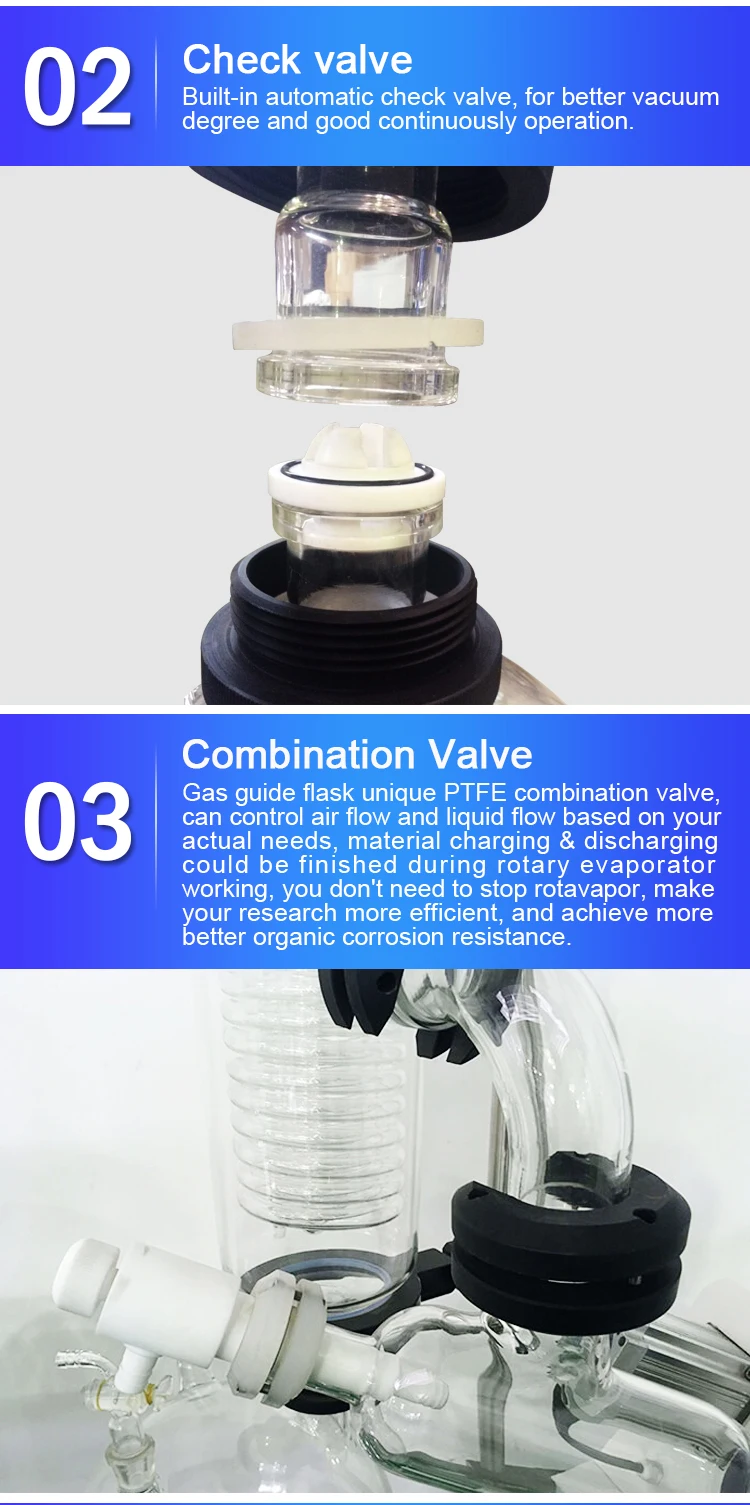

4. inside automatic check valve, easy to keep the vacuum condition and work continuously.
5. Stainless steel sheet for bath is one time stamping, vertical lift system automatically.

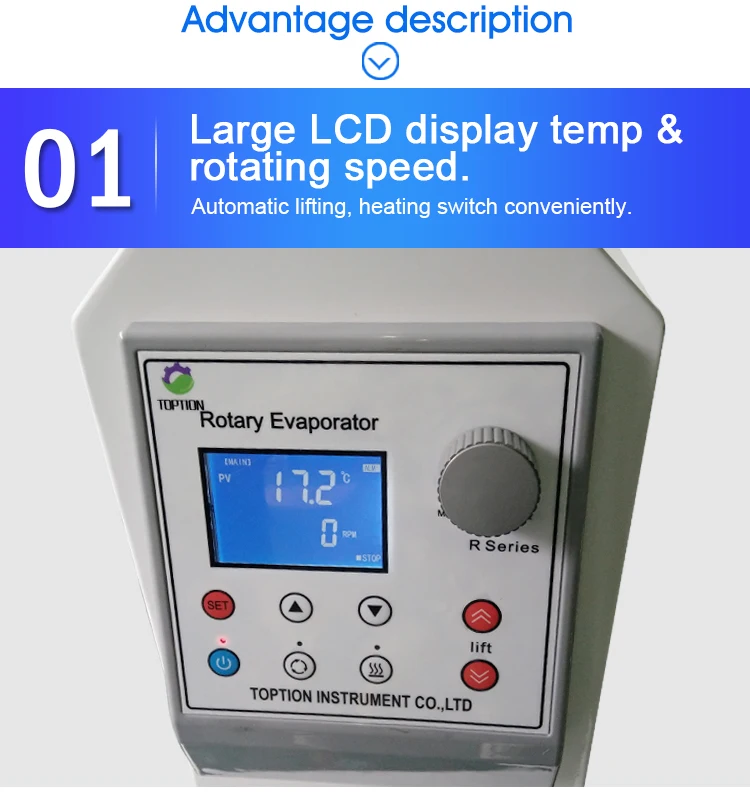

6. LCD display for temperature and rotation speed.
7. Air guide bottle is with unique PTFE combination valve (original rotary evaporator is with glass valve), can control airflow, liquid flow anyway. Feeding liquid, discharging liquid at any time when rotary evaporator is working.

8.With wheels for easy movement.

Model
NRE-5210A
Rotation flask
10L
Receiving flask
3L
Lifting type
Automatic lifting
Condenser
vertical type, double serpentine tube
Rotation speed
5-110 rpm
Evaporation speed (CH3CH2OH)
3.5L/h
Bath power
3KW
Staic temp control range & Wave
RT~99℃ & 2℃
Standard power
220V 50/60Hz single phase
Motor power
90W
Dimension
1000 x 600 x 1800mm
Display
Rotation speed and temperature are digital display
Optional
oil hath; 110V 60Hz single phase working voltage
Model
NRE-5220A
Rotation flask
20L
Receiving flask
10L
Lifting type
Automatic lifting
Condenser
vertical type, double serpentine tube
Rotation speed
5-110 rpm
Evaporation speed (CH3CH2OH)
5L/h
Bath power
5KW
Staic temp control range & Wave
RT~99℃ & 2℃
Standard power
220V 50/60Hz single phase
Motor power
120W
Dimension
1100 x 700 x 2200m
Display
Rotation speed and temperature are digital display
Optional
oil hath; 110V 60Hz single phase working voltage
Model
NRE-5230A
Rotation flask
30L
Receiving flask
20L
Lifting type
Automatic lifting
Condenser
vertical type, double serpentine tube
Rotation speed
5-110 rpm
Evaporation speed (CH3CH2OH)
5L/h
Bath power
5KW
Staic temp control range & Wave
RT~99℃ & 2℃
Standard power
220V 50/60Hz single phase
Motor power
120W
Dimension
1100 x 700 x 2200mm
Display
Rotation speed and temperature are digital display
Optional
oil hath; 110V 60Hz single phase working voltage
Model
NRE-5250A
Rotation flask
50L
Receiving flask
20L
Lifting type
Automatic lifting
Condenser
vertical type, double serpentine tube
Rotation speed
5-110 rpm
Evaporation speed (CH3CH2OH)
10L/h
Bath power
9KW
Staic temp control range & Wave
RT~99℃ & 2℃
Standard power
220V 50/60Hz single phase
Motor power
180W
Dimension
1200 x 800 x 2200mm
Display
Rotation speed and temperature are digital display
Optional
oil hath; 110V 60Hz single phase working voltage
Detailed Images
Certifications

TOPTION as a professional lab solution provider is specialized in manufacturing and selling photochemical glass reactor ,UV glass reactor system, xenon glass reactor, single-layer glass reactor,double-layer glass reactor, three-layer glass reactor,thermostatic equipment, ice maker, ultrasonic instrument, spray dryer, air dryer,extracting device and so on, who are work in chemistry, biology, pharmaceutical, environment analysis, food, academic research, etc. Regardless of the field you work in, we keep striving for the same goal: to provide you with the most suitable solutions & products, to make your research more accurate & efficient.

TOPTION has passed the "ISO9001:2008 Quality Management System"certification and most of our products have passed CE certification,the quality can be assured.

Packing & Delivery

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases
-Both neutral and customized packaging can be available
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent

Our Company

Toption Group Co., Ltd is a famous manufacturer of lab equipment, located in the central china. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, high-pressure reactor, photochemical reactor, ultrasonic dispenser/homogenizer, freeze dryer(lyophilizer), spray dryer and so on.
