7.0 Inch LCD Touch with USB Touch Display for Raspberry Pi

Feedback Ratings
  • 1-4 Pieces
    US $57.20
  • 5-9 Pieces
    US $51.50
  • >=10 Pieces
    US $48.70
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Brand Name:
Alsrobot
Model Number:
RB-05L020
Place of Origin:
China (Mainland)
Product name:
7" LCD touch screen
Item No:
RB-05L020
Display Color::
16.7M
Driver element ::
a-si TFT active matrix
Resolution definition::
800x480
Visual area (mm)::
154.08(W)X85.92(H)mm


The 7.0 inch HDMI input capacitive touch with usb touch screen specifically designed for respberry pi.it provides much better touch response, larger viewing angle, faster response time, and steady performance and low power consumption.
This guide was designed to assist you with setting up the Eleduino 7 inch capacitive touch screen HDMI Touchscreen Display and configure the hardware.
The Eleduino 7 Inch HDMI Touchscreen was designed to work with the following distributions. Each of these distributions will require the installation of some special software packages and the modification of system files. We do maintain a number of pre-built operating system images for the Raspberry Pi which are included in a later section of this guide.

  • 7.0-inch TFT Screen Display, 800x480 Resolution
  • Capacitive Touch Screen
  • HDMI Input
  • USB Touch
  • Powered by USB: 5V@1A
  • Lcd driver IC: ILI9486L
  • Refresh Rate: 60HZ

7"Inch Lcd Module parameter

Driver element :

a-si TFT active matrix

Resolution definition:

800x480

Display Color:

16.7M

Interface

Digital,parallel 8bit RGB

Visual area (mm):

154.08(W)X85.92(H)mm

Dot pitch (mm):

0.0642(W)x0.1790(H)

Visual angle (U/D/L/R):

50/70/70/70

Brightness (cd/m2):

400

Contrast:

500:1

Response time (ms):

White→ Black:10,BlackWhite:15

Operating temperature:

-20~70

Pannel  power consumption:

0.226W



  • 1 x 7 Inch Touch Display
  • 1 x Customized Shell
  • 1 x Usb Power Cable
  • 1 x Hdmi Cable

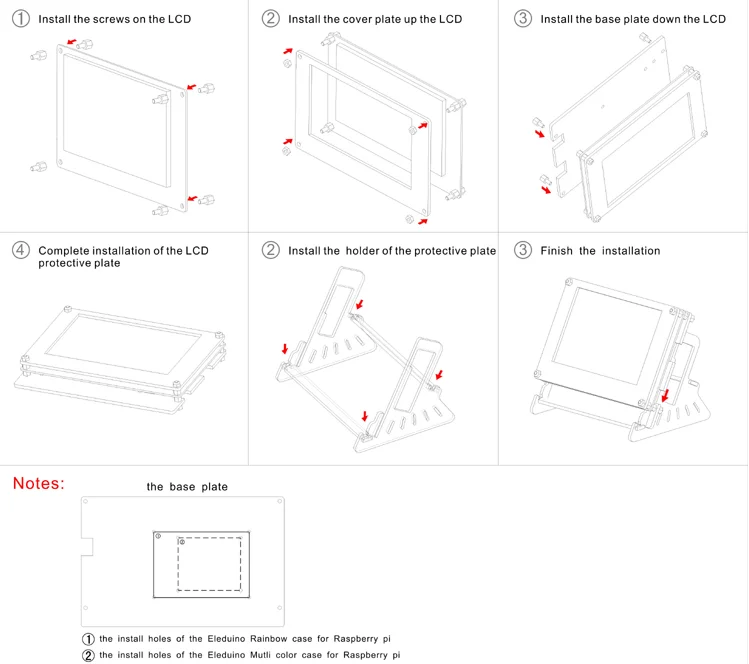

Product Installation:
