7 Inch 1000 nits Rugged tablet windows 10 industrial tablet With Fingerprint and RFID/UHF/ID Module/1D 2D Barcode

$458.00 / Piece | 1 Piece (Min. Order)
Color:
Black
Hard Drive Capacity:
64GB
$458.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
9 day(s) after payment received
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples: $458.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $458.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Tablet PC, Industrial Tablet
Place of Origin:
Guangdong, China
Brand Name:
GENZO
Model Number:
GZ-Z701
Screen Size:
7"
Weight:
0.65kg
Memory Capacity:
4GB
Processor Type:
Intel Baytrail-T(Quad-core ),Z8350
Operating System:
WIN10
Processor Main Frequency:
1.33Ghz-1.92GHz
Processor Manufacture:
Intel
Touch Screen Type:
Capacitive Screen
Display resolution:
1280x800
Camera:
Front Camera, Second Webcam, Front:2.0MP ,Rear 5MP ,Auto focus with flash
Product name:
industrial tablet
RAM:
4GB DDR3L
Flash:
64GB
WIFI:
WIFI 802.11(a/b/g/n) frequency 2.4G+5.8G dual band WIFI,
BT:
BT4.0 (BLE) class1.5 transmission distance:10m
Speaker:
Embedded 8Ω/0.8W waterproof speakerx 1
4G Network/GPS:
Built-in
Battery:
3.7V/7500mAh, Removable Li-polymer battery
1D/2D/NFC/Fingerprint:
Optional
Products Status:
Stock

Packaging & Delivery

Selling Units:
Single item
Single package size:
46X25X30 cm
Single gross weight:
4.0 kg
Package Type:

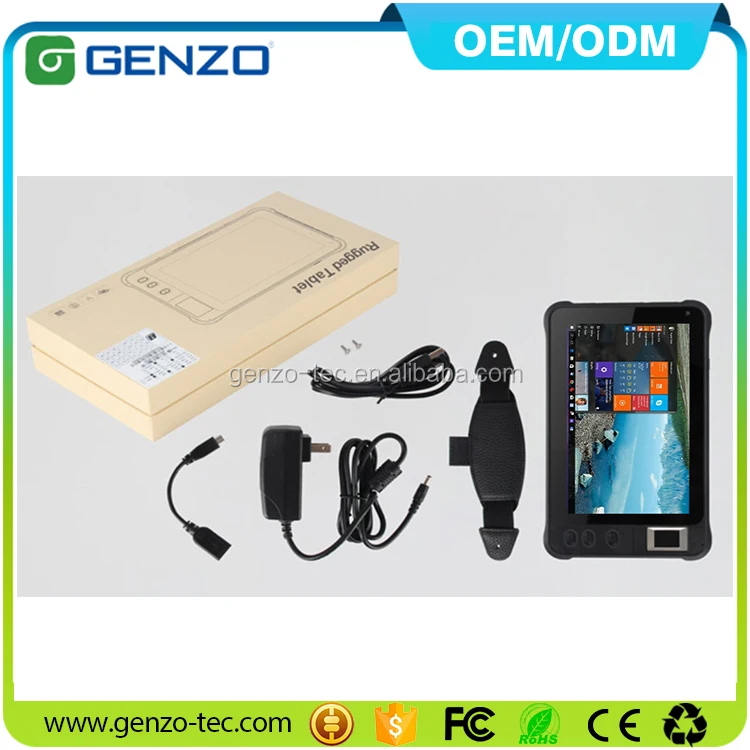

1xCharger,1xColor Box,1xUsb Cable 1:Unit size:220*143*14mm 2:Gift box size:356X185X59MM, 3:product weight:650 g/pc, 4:total weight:1450g/pc 5:10pcs/ctn,CTN Size:64*37*21cm 6:15.5KGS/CTN
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 9 To be negotiated
Video Description

7 Inch 1000 nits Rugged tablet windows 10 industrial tablet With Fingerprint and RFID/UHF/ID Module/1D 2D Barcode

Product Description

R&D,MANUFACTURE,INDUSTRY RUGGED TABLET & TERMINAL PRODUCTS SOLUTIONS PROVIDER

Features:

1.Support Win10 system;

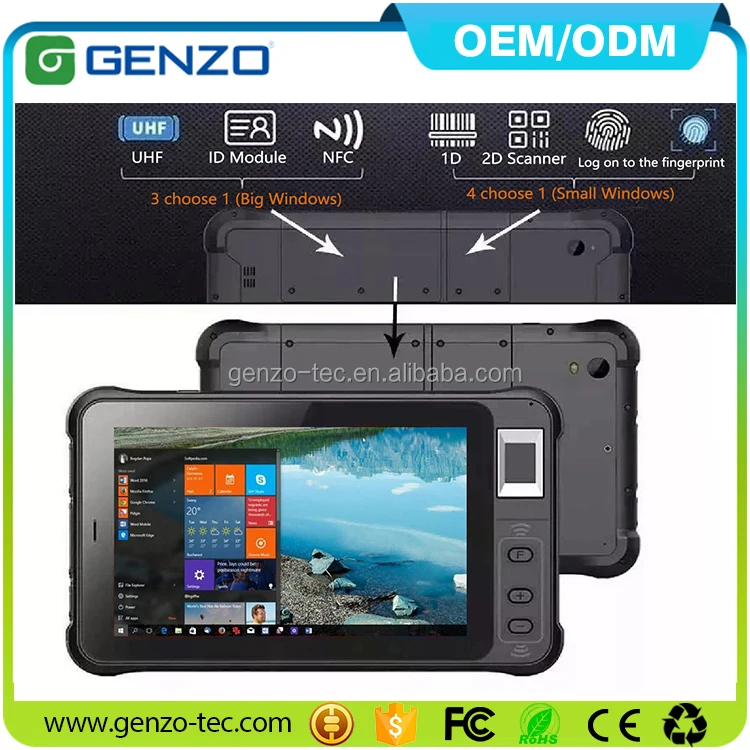

2.Support ID Module,Fingerprint,UHF,RFID,NFC,1D/2D Barcode Scanner Optional;
4.Support Docking Station Charging;Removeable Battery Design.
5.Support U-BLOX M8Q GNSS.Support GPS/Beidou/glonass;
6.Rugged IP67 protection level;
7.Support Brightness1000Nits/m2,high strength Glass Touch Panel;

8.Support Wrist Strap;



Specification
Size/Weight216.98*133.96*21.4mm, Device Unit: 680g
CPUIntel® Atom™ Z8350
OSWindows 10   (Windows 10 Pro OS Optional)
LCD8"   (16:10 1280x800 IPS) 1000Nits/m2
TPG+G 5point touch screen,Support spray/ salt mist/capacitance pen/touch gloves
RAM4GB DDR3L
Flash64GB Flash       Support SDHC/SDXC   x1  Max:128G
Wi-Fi802.11 a/b/g/n (2.4G/5.8G dual band wifi)
CameraFront 2.0MP +Rear 5MP,Auto focus with flash
BTBT4.0 (BLE) class1.5 transmission distance:10m
Battery

3.7V/7500mAH,

10hrs(default 50% volumn,default200 lumens brightnessplay 1080P HD video)

SpeakerEmbedded 8Ω/0.8W BOX waterproof speaker  x 1
SensorG-sensor,Light/Proximity sensors,gyroscope,Electronic compass, Indicator light
4GEC25-E :
LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8

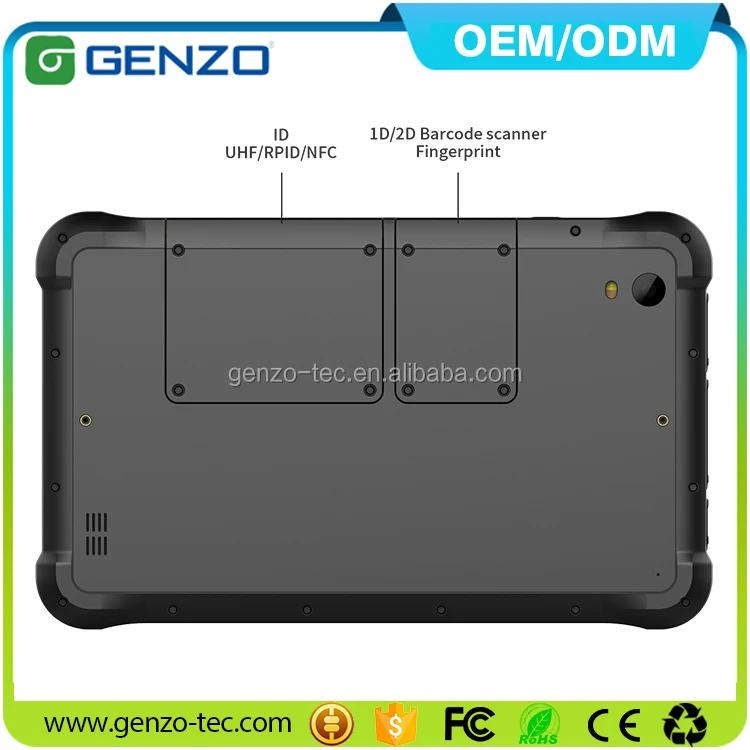

OptionalID Module,Fingerprint,UHF,RFID
NFCSupport 13.56 mhz   Optional
1D/2D 1D/2D Scanner Optiopnal
StrapsExtensible belt on the back case, convenient to hold
Writing penSupport capacitive hand writing pen
GPSU-BLOX M8Q GNSS.Support GPS/Beidou/glonass
Port

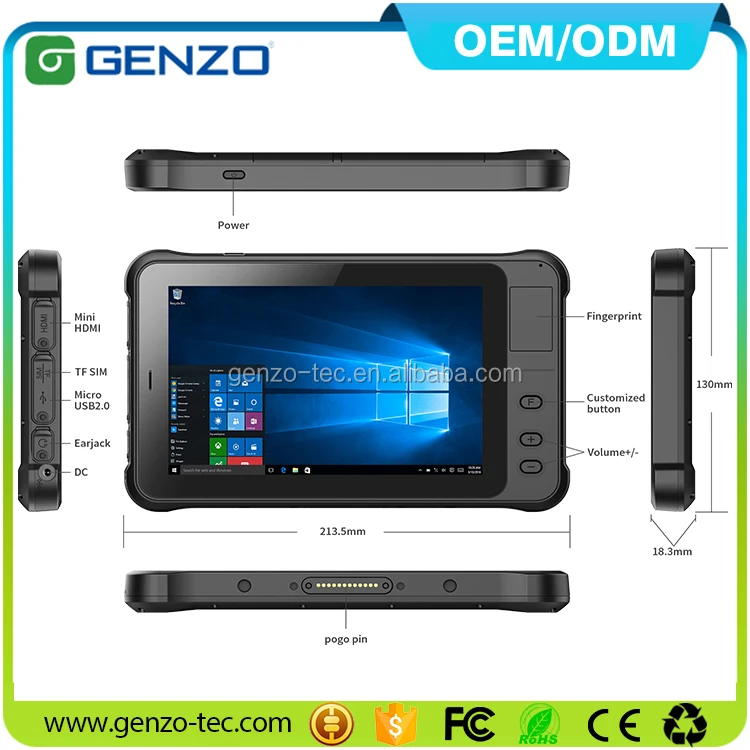

SIM card*1 ,       3.5mm  standard earphone jackx1,       DC 5V 3A 3.5mm Power connector  x1,     HDMI 1.4a  x1,      MicroUSB 2.0*1  ,    Android   OTG  x1,       12pin  Pogo Pin   x1

Key

Power key x1,Scan key x1,Volume + - x2

USB connectorMicr USB 3.0 connect to big port USB3.0
Drop Height

1.2m floors, in operation status,  Sample work well.

Operate Temperature

-10 °C to 50 °C (-20 °C to 60 °C optional)

Store Temperature

-30 °C to 70 °C,

Humidity

95% Non-Condensing

IP67

Method name:short time submerging test
test device and test condition:submerge water box.the size should make the testing sample into submerge box and after then,the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m.
Testing time: 30 min

After test,there is no water leakage in sample.

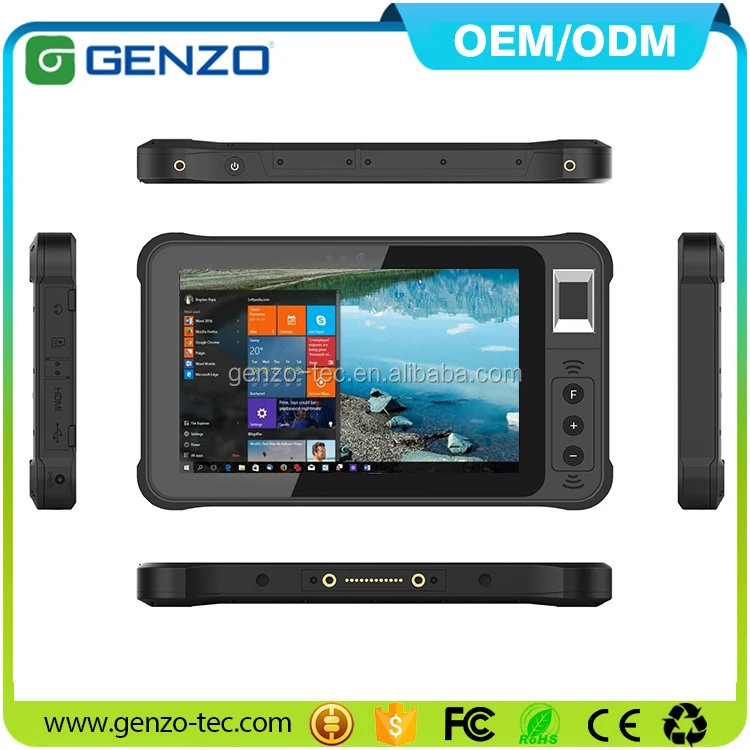

Product Pictures

432I75H()I75H()2Z701=1122MT702 Other Modles 3M-3M

Packaging Shipping






Company Pntroduction






Factory Pictures






Certificate




Our Service

OEM&ODM:

We accept OEM&ODM for customer's request. It includes:


1. Burn customer's logo name as Boot Animation name.

2. Print customer's logo on shell or do customer's logo sticker.

3. Do customer's giftbox, we can offer beautiful giftbox for customer's reference.or provide AI/CDR  file for customer's own design.

4. Usuer Manual,customer can choice different languages and put them together.

5. Customer's Master Carton design are acceptable.



6.Develop products for customers,including appearance and internal structure design,motherboard development and mold design and production.





Warranty:

For all our products,we offer 24 months warranty.After the warranty period, we will also provide necessary replacement parts and technical support.

Usual,our Production line and QC department will test all the goods one by one for more than 3 times before send out.

So,there are almost no defective.if really have,you can send back us for repair or replacement.

You send back to us, you pay the shipping cost.

We send back to you,we pay the shipping cost.

But, all this warranty does not include accident, human fault or improper use.



Why choose us?


1. We are China leading
Rugged Tablet & PDA  manufacturer.


2. Alibaba Gold Supplier.


3. Inspected by the inspection of Bureau Veritas Certification.


4. 100% QC inspection before shippment.


5. Best quality & service with competitive price.



FAQ



1.Q: Are you a factory or trading company?
    A: We are factory.we are manufacturing of Rugged PDA (4"/5"/6"), Rugged tablet    (7"/8"/10"),    Rugged and Semi-Rugged Notebook (11.6"/12.2"/14").


2.Q: Where is your factory located? How can I wisit there?
   A: Our factory is located in Shenzhen City, China. You can fly to Shenzhen airport directly, and    we will pick you up. Welcome to visit our factory.


3.Q: How can I get some samples?
   A: We are honored to offer you samples.


4.Q: How does your factory do regarding quality control?
   A: Quality is priority. We always attach great importance to quality controlling from to the end. Our factory has gained CE, FCC, ROHS,IP65,IP67 certification and so on.
