70 micron high temperature speaker grill round hole perforated aisi316L stainless steel wire mesh

  • 5 - 49 Pieces
    $14.10
  • 50 - 499 Pieces
    $13.30
  • 500 - 4999 Pieces
    $12.50
  • >=5000 Pieces
    $10.30
Wire Diameter:
0.18mm*0.10mm
Aperture:
70um
Lead Time:
Quantity(Pieces) 1 - 800 >800
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 50 Pieces)
Customized logo (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Samples:
$80.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Material:
STAINLESS STEEL WIRE
Type:
Weave Wire Mesh
Application:
Woven Wire Mesh
Weave Style:
Dutch Weave
Technique:
Woven
Model Number:
LY-SS01
Brand Name:
Longyi
Processing Service:
Cutting
Product name:
high temperature stainless steel wire mesh
Usage:
filter wire mesh
Hole shape:
square
Length:
30m/roll
Width:
1-1.6m
Certification:
SGS
Mesh:
70um
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
70 micron high temperature speaker grill round hole perforated aisi316L stainless steel wire mesh in wooden box
Port
Tianjin port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 800 >800
Est. Time(days) 15 To be negotiated
Product Description
70 micron high temperature speaker grill round hole perforated aisi316L stainless steel wire mesh
Material
 ss304, ss306, ss310, ss316, ss316L,ss430
Mest count
plain weave can be woven from 1- 400 mesh
twill weave can be woven from 2- 635 mesh
dutch wevae can be woven up to 500*3500 mesh
Hole shape
square/round hole
Wire diameter
0.018-2.03mm
Stock size
1*30m/roll, 1.22*30m/roll, 1.5*30m/roll or customized

What is 316L stainless steel wire mesh?

Type 316L or T-316L is a very low carbon stainless steel containing molybdenum for superior corrosion resistance. 316L stainless steel wire mesh screen is particularly resistant to pitting by solutions containing chloride ions, phosphoric acid, sulfuric acid, and brine solutions. The general corrosion resistance is similar to Type 316 SS, but 316L SS has superior resistance to intergranular corrosion following welding. Type 316L is used over 316 in assemblies which cannot be annealed after fabrication by welding. Can be used at temperatures up to 1600°F. Type 316L wire mesh screen is nonmagnetic in the annealed, and slightly magnetic when cold worked. Like 316 SS, 316L SS wire mesh screen is widely used in chemical, food, pharmaceutical, medical, refining, power plant, aircraft, photographic, textile, paper equipment and strainers. In salt water applications both 316 and 316L SS will show improved results over 304 and 304L SS.


Specification:

350 Pin 0.153mmX2X1150X60m,350 Pin 0.153mmX1150X60m

Mesh hole size and filtration rate can be produced as per customer's request, normal mesh width: 25mm-600mm.

Property:

with anti-acid,anti-alkali,anti-high temperature,wear-resistant properties.

Specification of Stainless Steel Square Wire Mesh
S.W.G
Mesh
Wire Dia(mm)
Aperture(mm)
Weight(kg)
34#
32
0.234
0.56
0.84
34#
36
0.234
0.47
0.95
36#
38
0.193
0.48
0.70
36#
40
0.193
0.44
0.80
38#
50
0.152
0.36
0.58
40#
60
0.122
0.30
0.45
40#
80
0.120
0.198
0.58
42#
80
0.102
0.216
0.40
42#
100
0.100
0.154
0.50
44#
100
0.081
0.172
0.32
44#
120
0.081
0.130
0.39
45#
120
0.07
0.142
0.30
45#
130
0.07
0.125
0.325
45#
140
0.07
0.111
0.350
46#
140
0.06
0.121
0.252
46#
150
0.061
0.108
0.29
46.5#
150
0.055
0.115
0.06
46#
160
0.061
0.097
0.30
47#
160
0.050
0.109
0.2
47#
170
0.050
0.09
0.213
44#
180
0.051
0.09
0.24
47#
190
0.051
0.083
0.24
47#
200
0.051
0.077
0.27
Detailed Images

Stainless steel sintered mesh filter cartridges

Food grade stainless steel wire mesh products

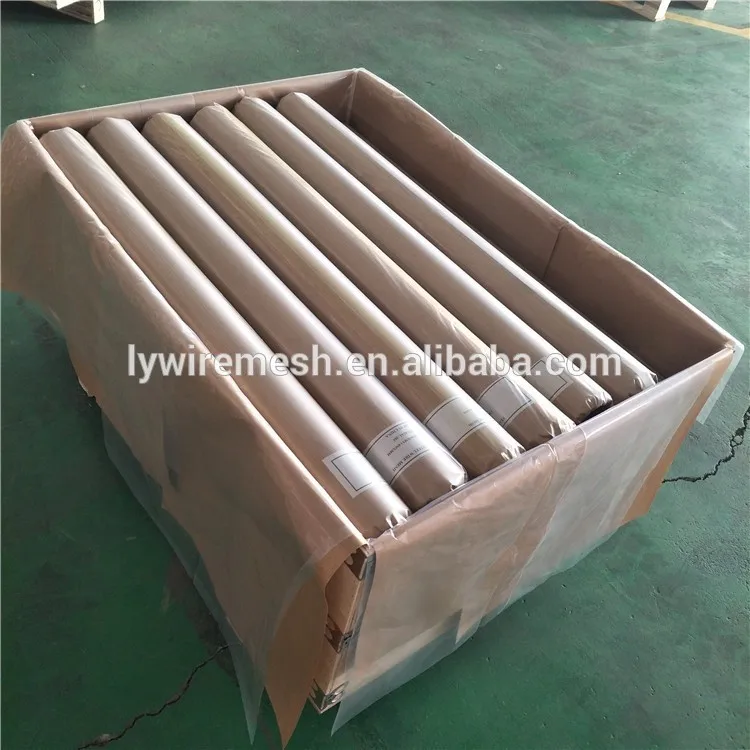

Packing & Delivery

Packing

(1)paper tube support inside , and waterproof paper , and wooden box outside .
(2)special package can be customized as per customers' request

Delivery

After receive your deposit 2-7 days.

Our Company

Company Name: Anping County Longyi Mesh Manufacture Co., Ltd.
Register Money: more than 20,000,000RMB
Factory Area: 8000sqm
Staff: 100 people
Daily output: 50000 sqm/day
ADD: Heping Street, Anping County, Hebei Province, PR China.

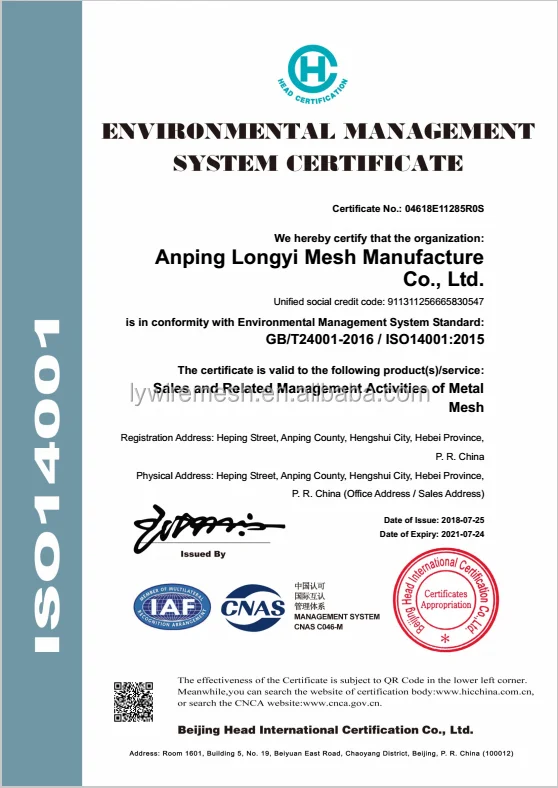

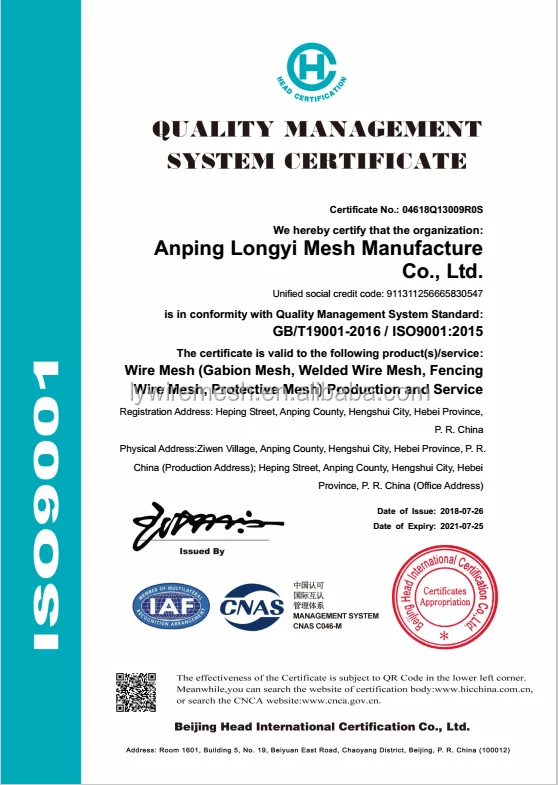

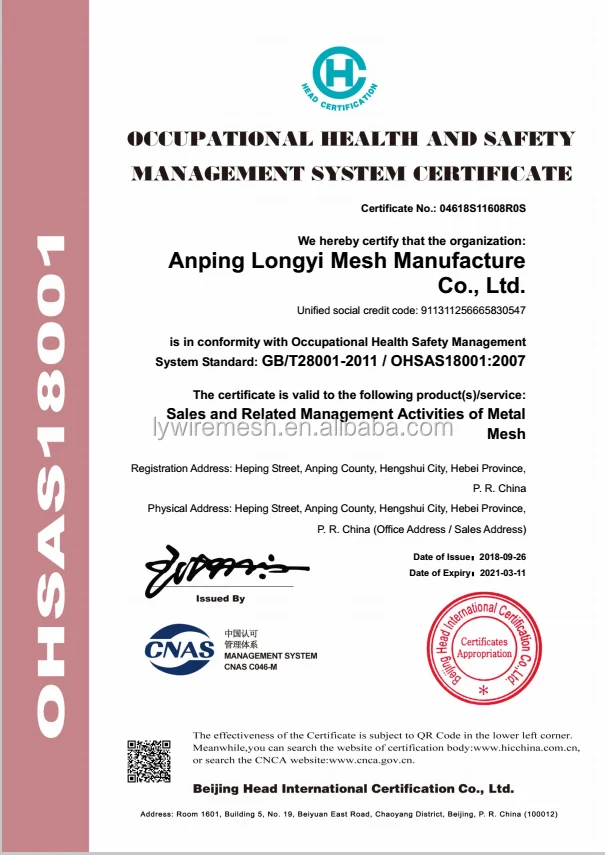

Certifications
Our Services

OEM service is welcome.
-We will provide all the details to you during the mass production.
-Customize your mould according to your need.
-Your requirements and complaints are highly respected.
-Necessary test and certification can be obtained as your request.

FAQ

-1.Q: How do I pay for my purchase order?
    A:T/T, L/C at sight, Escrow, paypal
-2.Q:How can I get samples and how long will it talke?
    A:Free sample by international express. It usually takes 5-10 days to produce a sample.
-3.Q:What's the MOQ?
    A:50 rolls or 100 sqm wire mesh.
-4.Q:What's the delivery time?
    A: Usually 15-25 days after received deposit of 30% T/T.
-5.Q:Can I have my own customized product?
    A:Yes. Your customized requirements for color, package, logo, design, etc. Are very welcome.
-6.Q:Do you have quality control?
    A:Yes. We attach great importance to quality control.
-7.Q:How about the warranty?
    A:10 years after sold out for hot dip galvanized/ PVC coated gabion wire mesh.
