The electronic shelf label (ESL) system forms out of three parts:"software","Base station" and "smart label".
Each shelf label has a Label ID, the base station can recognize the price labels and you can link them through the software too.The information is updated in the POS system then the ESL server will sync the update and transmit updated information to the labels automatically.
Meanwhile, in order to make the system easy to maintain and install the system in the " the handset" part and installation accessories section.

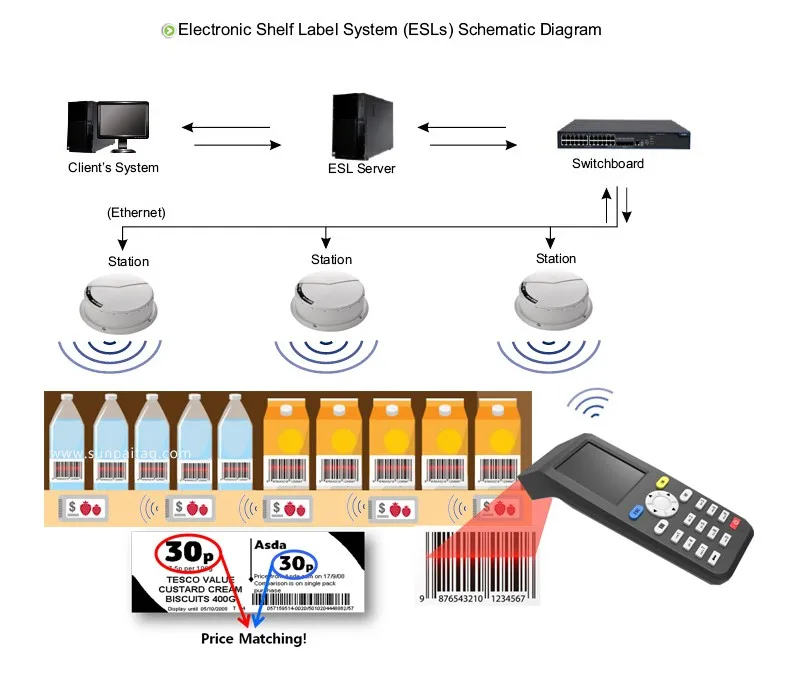

Do you have a system architect drawing /diagram we can use to understand how does the ESL interacts with the POS/DB?
1)ESL Server open a Web Service interface, customer's system can push information into ESL system by invoking the Webservice;
2) ESL server can config and synchronize customers' data. ESL Server can read the data from the Database of Customer's system;
3)Customer's system output the information to a file( csv,txt, excel ), ESL Server read and synchronize the file.
ESL server can be timed to visit & read the file or database offered by customers, and to obtain information of merchandises proactively.
Whiches are the functions of the handheld reader?
The handheld reader is mainly for quickly binding/unbinding electronic shelf label to products.The reader recognize the barcode of the product; it also recognizes the electronic Labeling ID.
(Online binding and unbinding;Goods information query;System alarm and diagnosis;Tag information paging and tag refresh)
Whiches are the functions of the Base station?
The Server provides the content to the base station. Then the base station is in charge of emitting the RF signal & content to the elabels.

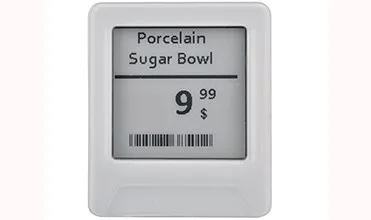

LT154 Model
E-ink screen with 28*28 mm active area.
LT154A/C
Size:1.54 inch e-ink display screen, 28*28mm
Resolution:152*152
Monochrome, Colour
Display material: epaper dotmatrix
Battery life: >5years
Battery : CR2477x1
Page: 3

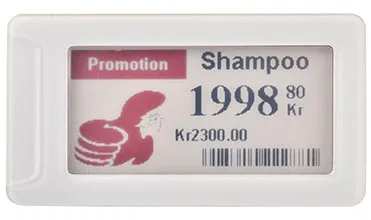

LT213 Models
LT213A
Active area: 2.1", 48.1*20.1mm
Resolution:212*104
LT213C
Screen:2.1", 48.1*20.1mm
Resolution:212*104
E-ink Display: epaper dotmatrix
Battery life: >5years
Battery : CR2450x2
Page: 3

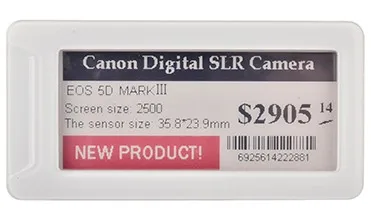

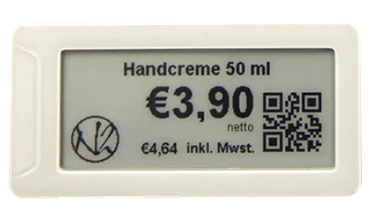

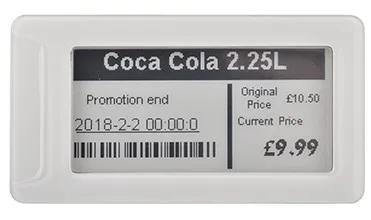

LT290 Model.
LT290A
Screen : 2.9 inch e-ink screen display, 66.9*29.1mm
Resolution:296*128
Display: epaper dot matrix
Battery life: >5years
Battery : CR2450x2
3 page funciton
LT290C

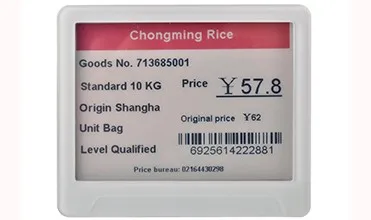

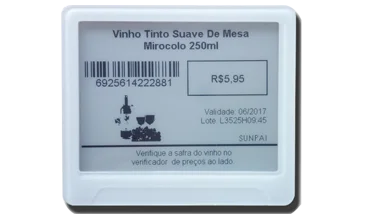

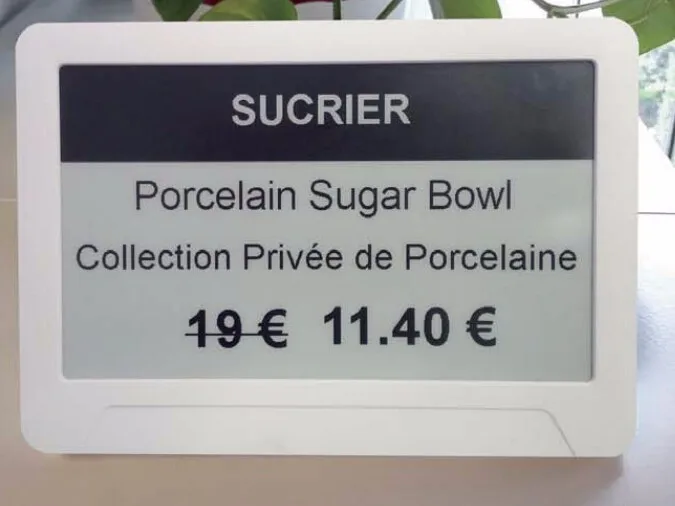

LT420 Series
LT420A
Screen size:4.2 inch, 85*63mm
Resolution:400*300
E-ink Display: epaper dotmatrix
Battery life: >5years
Battery: CR2450x4
Page: 3
LT420C

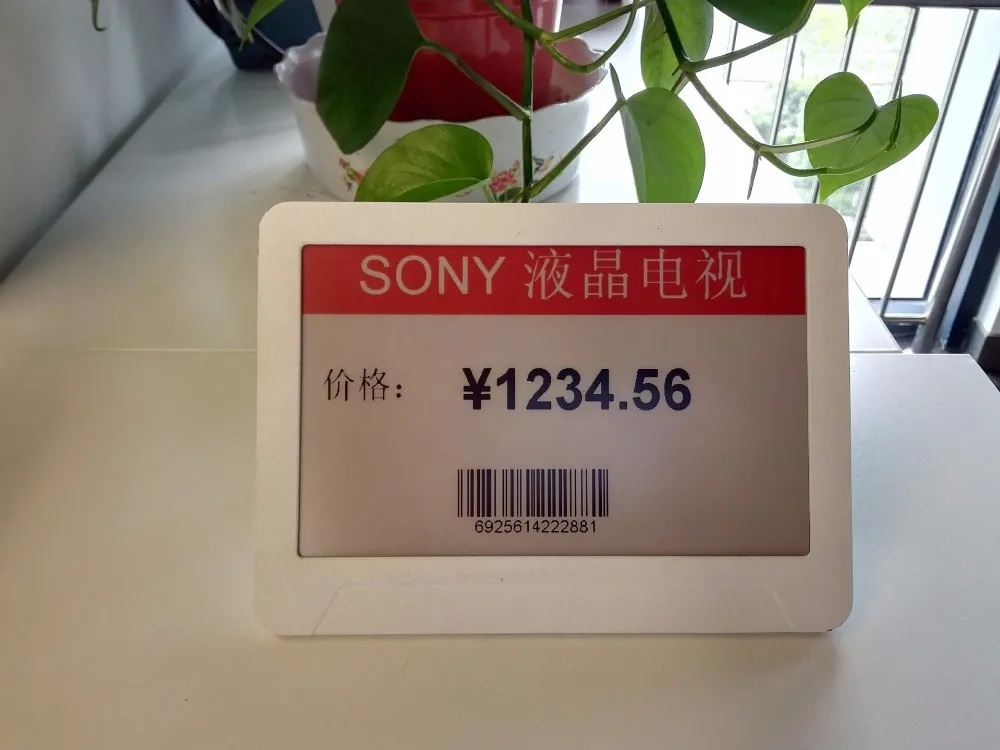

LT750 Series
LT750 mode with 7.5 inch e-ink screen. New launched by our company in Dec, 2016
LT750A Black and white color tag
Screen: 7.5 inch e-in display
Display size: 163*97mm
Resolution : 640*384
Display material: e-paper dotmatrix
Battery life: > 5 years
Battery model : Lithium battery

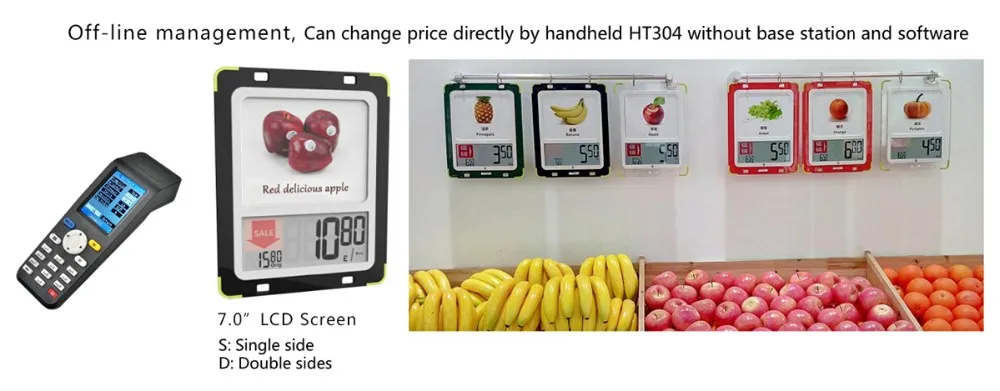

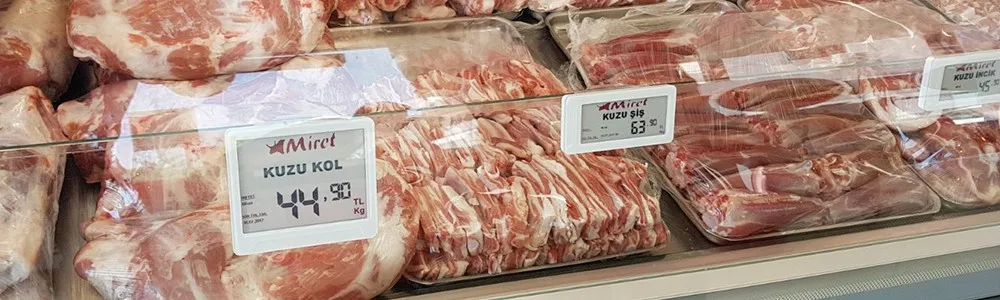

Supermarket Fresh Area electronic price tag
The electronic shelf label type is special designed for fresh area in supermarket. 7.0" LCD screen price display. Flashing promotion logo.
See how electronic shelf label offer retail signage solutions that grab your customer. The electronic shelf labeling solution replaces traditional paper price labels with connected digital price tags. Store owners can change prices instantaneously increasing store efficiency, enhancing the customer experience.

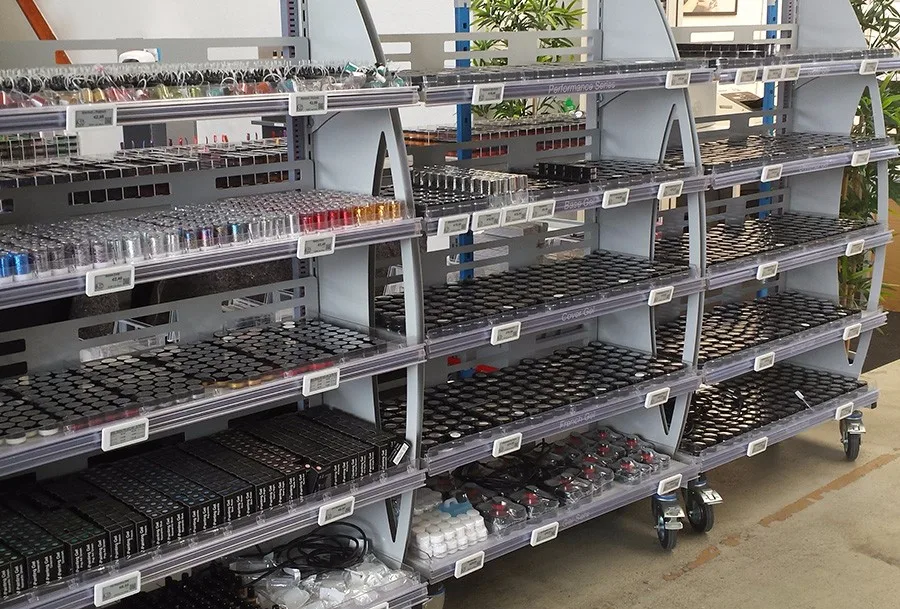

SUNPAI electronic shelf label is used by retailers to display product price and information on the shelves. They are typically attached to the front edge of a retail shelf and use an e-ink secreen to display the product information. The product price displayed on an electronic label is automatically updated whenever a price is changed.

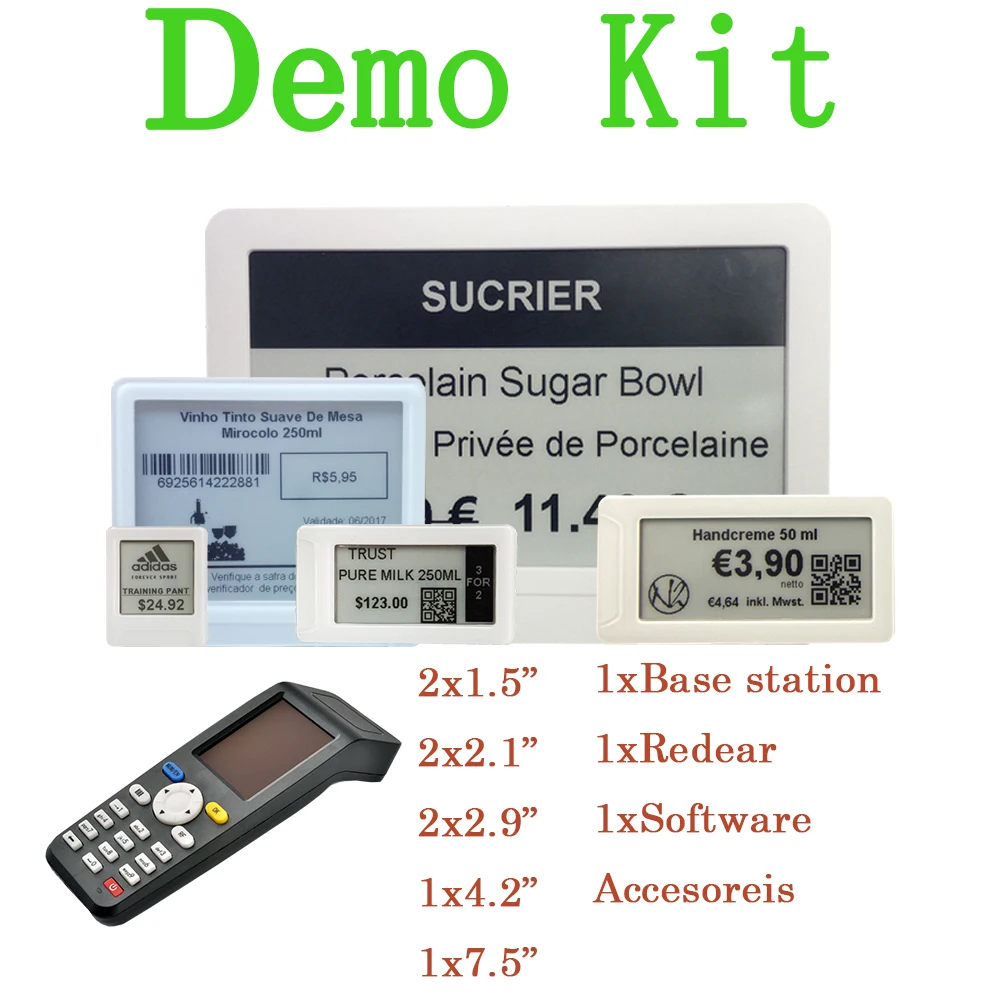

The demo kit content can be customized.
Start You business now! Get the demo kit to make a well presentation to you customers .
