A4988 Stepper Motor Driving Module For Arduino Controller 3D Printing

Feedback Ratings
US $15.20 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Alsrobot
Model Number:
RB-01C130
Product name:
A4988 Stepper Motor Driving Module
Item No:
RB-01C130
Size of fixing hole:
33x18mm
Driver IC:
A4988
Input voltage:
6-12V
Drive current:
≤1.35A
Size:
25x50mm
Weight:
9g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 KG
Package Type:
antistatic plastic bag standard box
Lead Time :
2

Description

A4988 stepper motor driving module is an easy-to-use professional stepper motor driver. It is specially designed for precise control of bipolar stepper motors from Alsrobot. When pulse signal inputted in, the motor driver rotated step by step.Every time a pulse signal is received, the stepper rotate to a fixed Angle.The module has adjustable drive current and micro-step hardware regulator. Applied to 3D printing technology,intelligent robotic car, numerical control technology and precise motion control technology.

Specifications



  • Item Name:A4988 stepper motor driving module
  • Iten No.:RB-01C130
  • Size of fixing hole:33x18mm
  • Driver IC:A4988
  • Input voltage:6-12V
  • Logic voltage: low level 0V, up level 5V
  • Drive current:≤1.35A
  • Size:25x50mm
  • Weight: 9g

Features:

  • High precision potentiometer
  • 4P Terminal Connection
  • A4988 Driver IC,heat dissipation design of welding disc
  • DIP switch support steps of 1,1/2,1/4,1/8,1/16
  • Led power supply indicator
  • Anti-slip joint,enhanced service life
  • Overheat, over current and short circuit protection

pictures

A4988 Stepper Motor Driving Module For Arduino Controller

A4988 Stepper Motor Driving Module For Arduino Controller-Back side view

A4988 Stepper Motor Driving Module For Arduino Controller-Details

A4988 Stepper Motor Driving Module For Arduino Controller-Size:25x50mm

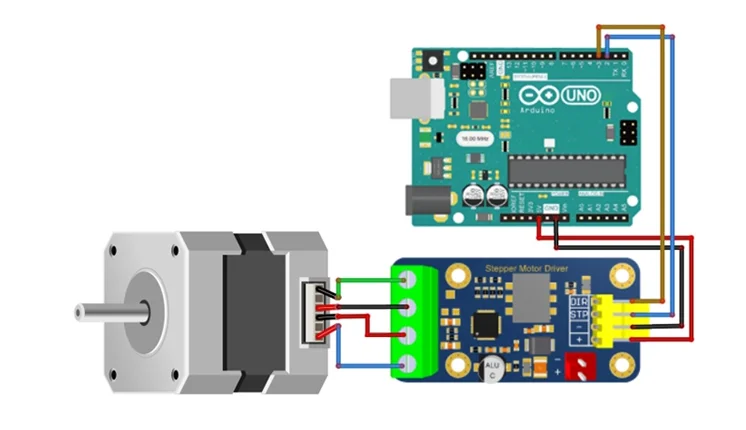

A4988 Stepper Motor Driving Module- Sketch map
