ALSRobot Ceramic Piezoelectric Vibration Sensor for avr arduino microcontroller

Feedback Ratings
US $2.30 / Piece | 2 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-02S082A
Usage:
Vibration Sensor
Theory:
volatage
Output:
Analog Sensor
Working Voltage:
3.3V or 5V
type:
for arduino micro controller

Packaging & Delivery

Selling Units:
Single item
Single package size:
13X8X9 cm
Single gross weight:
0.5 kg
Lead Time :
2
Video Description

Description

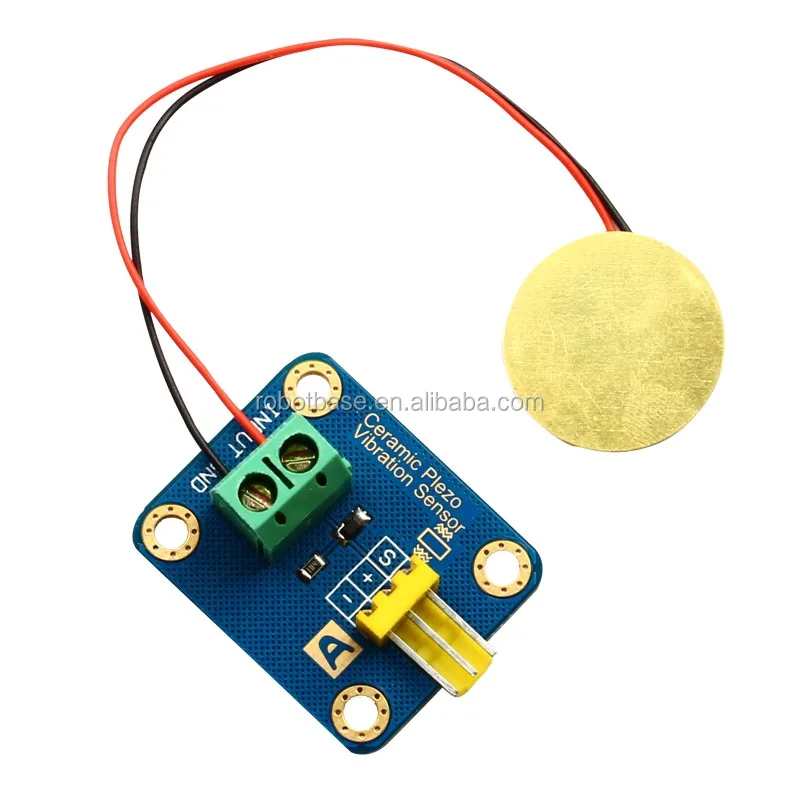

This ALSRobot Ceramic Piezo Vibration Piece Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is propotional with the strength of vibration.So you can know the extent of vibration. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vibration.

When the piezoelectric ceramic shocking will generate an electrical signal, Arduino Controller analog port can be perceived slight vibration signals, Also can be realized with vibration interactions related works, such as electronic drums. Marking "A" represents the module is a Analog Sensor, the other side graph represents function of the sensor. Easy identification!

Specifications

  • Working Voltage: 3.3V or 5V
  • Working Current: <1mA
  • Operating Temperature Range: -10 ℃ ~ + 70 ℃
  • Interface Type: Analog Output
  • Item Size: 30mm x 23mm
  • Item Weight: 5g
  • GPIO:  S; signal output, +; power supply (VCC), -; ground (GND)
  • Input: Positive electrode of the piezoelectric ceramic
  • Gnd: Negative electrode of the piezoelectric ceramic
  • S-port is connected with the controller's analog input pin
  • 5V and GND are respectively connected the power supply of + 5V and GND

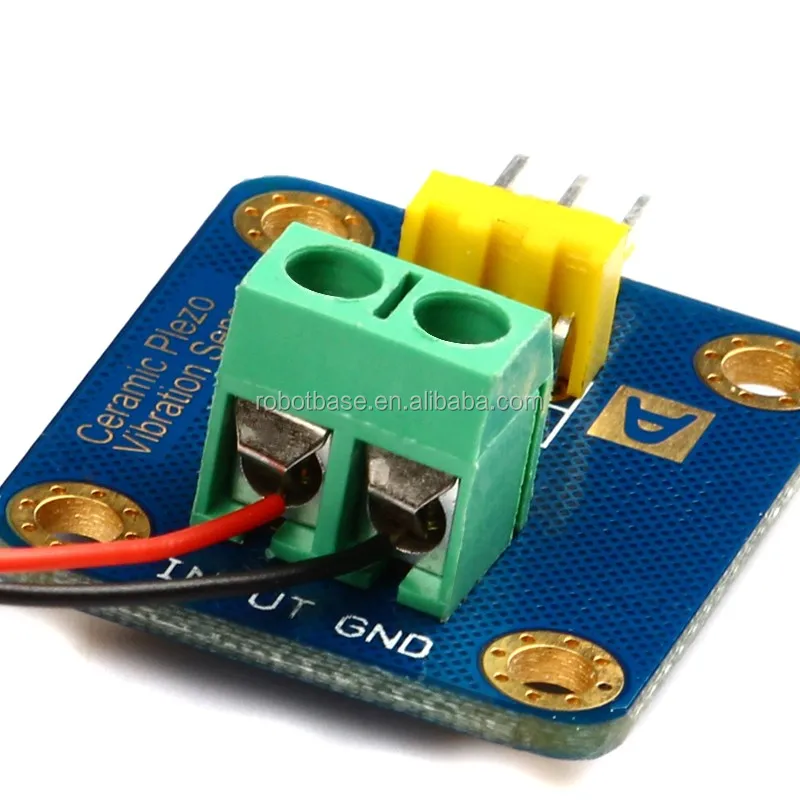

  • Input and Gnd are already connected with the piezoelectric ceramics' positive and negative

pictures

RB-02S082A-VibrationSensor(4)RB-02S082A-VibrationSensor(2)RB-02S082A-VibrationSensor(5)RB-02S082A-VibrationSensor(6)



For more information, please click the home page:

http://robotbase.en.alibaba.com

Please feel free to contact us if you have any inquires.
