ALSRobot Recorder Sensor Module for Arduino ISD1820P Sound Sensor

Feedback Ratings
US $11.50 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Alsrobot
Model Number:
RB-02S094
Usage:
Recorder Sensor
Theory:
Ultrasonic Sensor
Output:
Digital Sensor
Product name:
Recorder Sensor Module for Arduino ISD1820P Sound Sensor
Item No:
RB-02S094
Data Types:
Digital Input
Operation voltage:
+5v
Signal Type:
Digital signal
Dimensions:
45mm x 25mm
Weight:
8g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 KG
Package Type:
antistatic plastic bag standard box
Lead Time :
2

Description

Recorder module is based ISD1820P chip, adjusting the oscillation resistor ROSC terminal can record from 8 to 20 seconds. The default resistance value is 100K, it can record 10 seconds, other resistance is in attached table. It provides single-chip audio storage.modules can be controlled by the keys on the board and the programme of the controller,operation is easily. The data interface of the product adopts prevented to be anti-plug, both sides of the interface separately with the letter "D",which represents the signal into a digital signal type, and "Record" logo represents the module type, the ad hoc fixing four M3 mounting holes, easy to adjust the direction of the fixed easy to use.

ALSRobotbase's new recorder module can be in a variety of micro-controller applications, especially in the Arduino controller easier,and plugged into the Arduino special sensor expansion board by DuPont line, it can be achieved with environment awareness work-related very easily.

Specifications

  • 1.Product Name:Recorder Module
  • 2.Product Number:RB-02S094
  • 3.Data Types:Digital Input
  • 4.Pin Definitions:PL:Play(Press) RE:Recorder(Press until LED is off)  -:Power Ground  +:Power Positive Electrode
  • 5.Operation voltage:+5v
  • 6.Dimensions:45mm x 25mm
  • 7.Signal Type:Digital signal
  • Weight: 8g

pictures

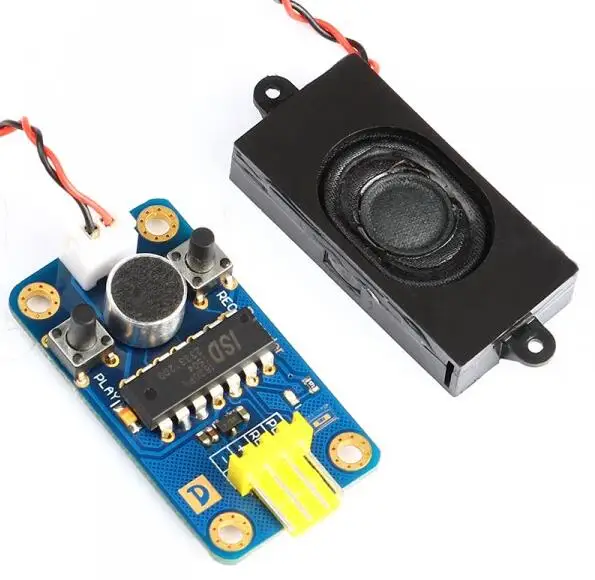

RB-02S094-Recorder(4)

ALSRobot Recorder Sensor Module for ArduinoRB-02S094-Recorder(6)

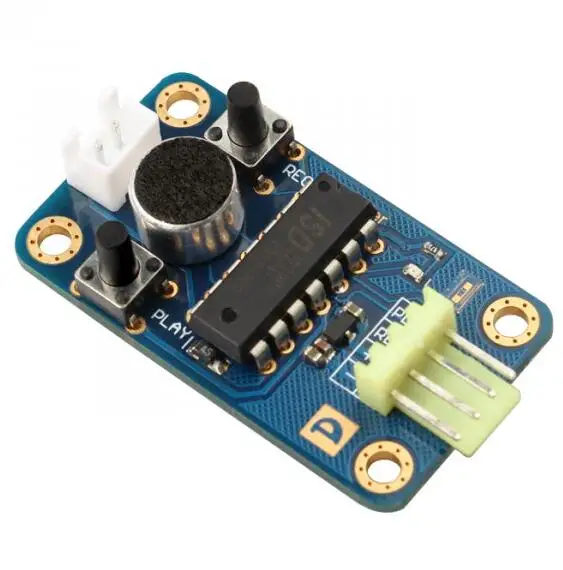

ALSRobot Recorder Sensor Module for Arduino-ISD1820P

RB-02S094-Recorder (1)

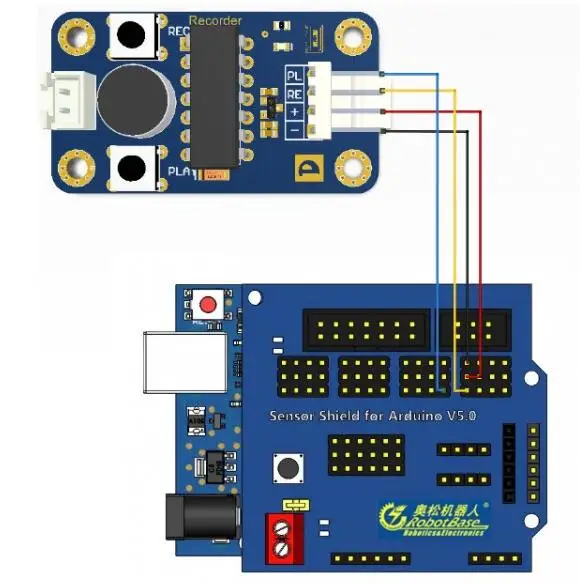

ALSRobot Recorder Sensor Module for Arduino-Sketch map
