Best IP68 ATEX UL DLC SAA five years warranty explosion-proof lamp

Feedback Ratings
  • 1-4 Cartons
    US $300.00
  • >=5 Cartons
    US $290.00
Quantity:
- + Cartons available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Flood Lights
LED Light Source:
USA Bridgelux/Cree/Genesis
Input Voltage(V):
100-277
Lamp Power(W):
100
Lamp Luminous Flux(lm):
18500
Lamp Luminous Efficiency(lm/w):
200
CRI (Ra>):
70
Color Temperature(CCT):
Cool White
Beam Angle(°):
120 degree
Working Temperature(℃):
-40 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP68
Certification:
C-tick, CCC, CE, CQC, EMC, FCC, LVD, PSE, RoHS, SAA, UL
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-J
Product Name:
explosion-proof lamp
water proof:
ip68
Material:
Die cast aluminum alloy
Power driver:
Meanwell HLG driver ( The best)
Efficacy:
90-100lm/w
Application:
hazardous area lighting
certification:
UL844/ CUL/DLC/Atex/PSE/SAA/CE/Rohs
color:
white, grey, olive green, yellow



Product Description

Best IP68 Atex/UL/DLC/CUL/PSE/SAA five years warranty explosion-proof lamp



Why CESP?





1. For hazardous area lighting products, it is fairly important to choose specialized manufacturer because the security for hazardous area lighting is essential.



2. CESP is a specilized LED EXPLOSION PROOF LIGHT manufacturer since the establishement in 2007,  with CE/ROHS/UL/CUL/DLC/SAA/PSE certification, and most important, ATEX and CNEX explosion proof certification.



3. UL844(class 1 division 2) explosion proof certification, which means we are the only manufacturer who owns these qualifications at the same time.



4. By now we have a whole series led EXPLOSION PROOF LIGHTS (CES-J), including 20W-185W wide power range and various installation brackets, and also customizable product color. can satisfy most of the hazardous area lighting applications.









 Key features;



-Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.

-Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.

-IP 68, highest rating of protection.

-Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.

-5 year warranty.

-Best driver: Meanwell HLG driver.



Main Technology

LED Chips:

BridgeLux LED chips packaged professionally ensure the light source kept in optimum performance; mirror surface processed technology collect and reflect the invalid light into efficiency; use of lens controls the horizontal and vertical beam angle actively.

Power Supply:

To use world’s leading brand MeanWell power supply ensure the fixture works in stableness with better performance and enjoy its long life; power supply is CE RoHS TUV CB certificated.

Housing

 High pressure intergrated die cast aluminum, perfect protection







Specification:











Item No

Product Specification

Certificate for

Europe

Certificate for

US&Canada

Rated Power

Size(mm)

With reflector(RF) or not

Beam

IP

Angle

Rating

CES-J200

185W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL/DLC

CES-J150

150W

400*400*185mm

NO

120°x120°

IP68

CE/ROHS

UL/CUL

CES-J120

120W

400*400*185mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J100

100

300*300*175mm

NO

120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC

CES-J80

80W

300*300*175mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL

CES-J40S

40W

200*200*270mm

Optional

60°x30°(RF)
/120°x120°

IP68

ATEX/CE/ROHS

UL/CUL/DLC







LED Specification

Driver  Specification

Item No.

LED QTY

Lumens

Lumen

CCT

CRI

Input V

Input

Current

PF

THD

Type

Lm/W

CES-J200

156 pcs

16550

90Lm/W

Cool White:

5700-6500K

>70

AC100-277V

350mA

>0.98

<10%

HLG MEANWELL driver

with IP68 protective

Aluminum Housing

CES-J150

144 pcs

13500

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J120

96 pcs

10800

90Lm/W

Natural White:

3700-4500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J100

84 pcs

9000

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%

CES-J80

60pcs

7200

90Lm/W

Warm White:

2700-3500K

>70

AC100-277V

350mA

>0.98

<10%

CES-J40S

24pcs

3600

90Lm/W

>70

AC100-277V

350mA

>0.98

<10%





Product image:



UL844(only our company have in China)/DLC/Atex/PSE/SAA certifications, it can use for the hazardous locations, include the  large refineries, chemical processing factories, pesticide factories, and factories where dust is a concern for combustion.

















Certification:

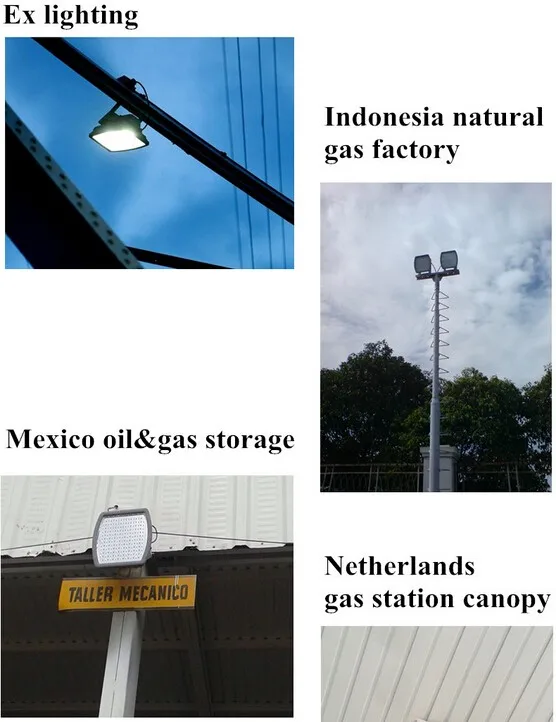

Application:







UL844(only our company have in China)/DLC/Atex/PSE/SAA certifications, it can use for the hazardous locations, include the  large refineries, chemical processing factories, pesticide factories, and factories where dust is a concern for combustion.














Company Information







Factory show:



Best IP68 Atex/UL/DLC/CUL/PSE/SAA five years warranty explosion-proof lamp
