Bluetooth 4.0 ibeacon support ios and Android system BLE Ibeacon module advertising indoor ibeacon

Feedback Ratings
US $8.00 / Piece |3 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
China
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
IBeacon
iBeacon Name:
MiniBeacon
Case Color:
white, pink , Green
Battery model:
1*CR2477
Battery lifttime:
1.5 years
Transmission range:
100 meters
Size:
36*16mm
Net weight:
21.0g
Certification:
CE&FCC RoHS
Supports:
iOS 7 and Android 4.3 above
Product Description

Compatibility

-  Supported iOS 7.0+ and Android 4.3+ system

Long Battery lifttime

-  12 months, with the default settings;

-  LED will be flashing when battery low;

Long Range

-  The max. Range 100 meters in the open space;

OTA and J-Link

-  Supported upgrade via Over-The-Air

-  Reserved J-Link port on the board for programming;

Configurable Parameters
-  UUID, Major, Minor, Device Name, Password etc.
-  Special Configuration APP;

Security
 8 characters password (Lock/Unlock parameters);

Mounting
-  3M branded adhesive for direct mounting to wall;



Product Parameter

ItemValueRemarks
ChipsetnRF51822From Nordic
Battery Model1x CR2477Coin battery, 1000mAH, 3.0V
Operate Voltage1.8V-3.6VDC
Transmisson Circuit10.5mA ( Max. )Tested at 0dBm transmission power
Transmisson Range100 metersMax value in open space measurement
Antenna50ohmOn board / PCB Antenna
OTASupported upgraded via Over-The-AirNull
Net Weight21.0gwith battery but without package box
Size36x16mmNull
Case AvailableWhite, pink and green

Other colors could be customized

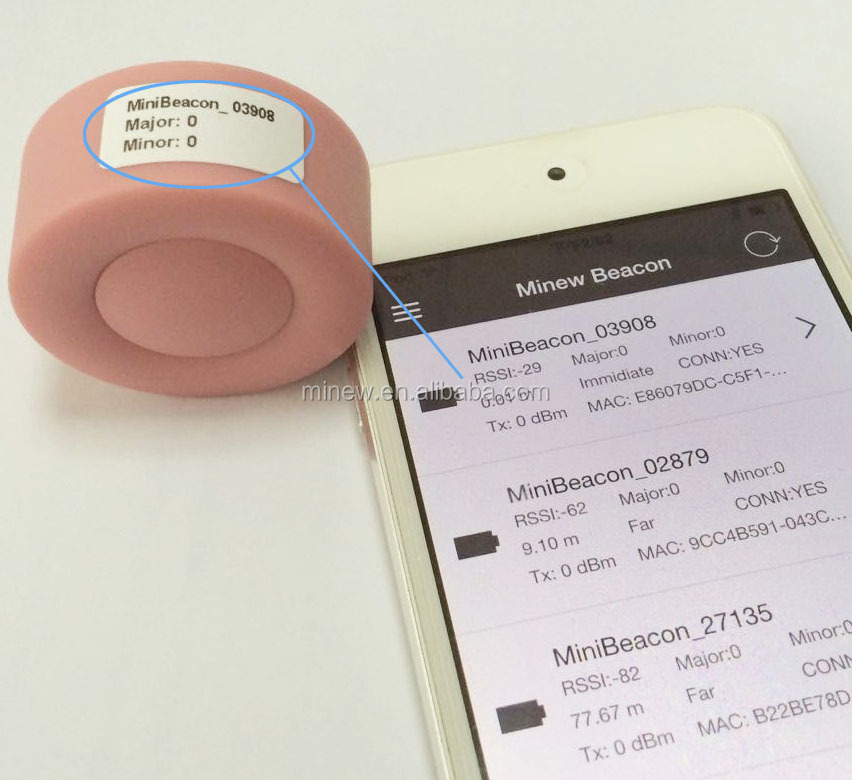

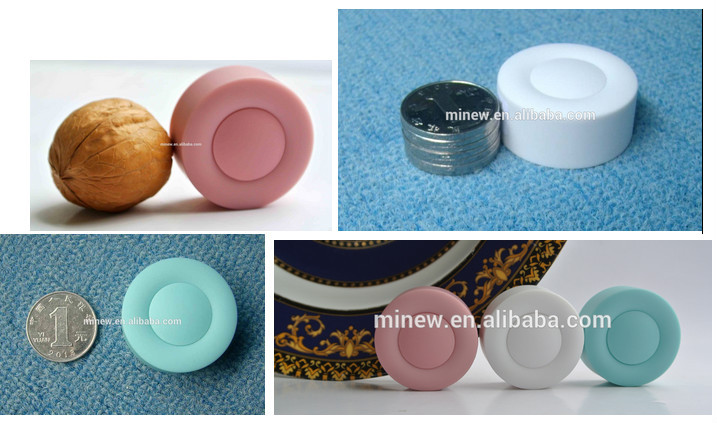

> Mini Bluetooth ibeacon show:



Minew Beacon APP

 iBeacon Testing Support:

>  Download " BeaconCFG" from App Store or Download " iBeaconCFG " in Google Play.

> UUID, Major, Minor, Measured Power, Transimisson power, Password, Broadcasting Interval, Serial ID, iBeacon name, Connection Mode all could be configured by our special configuration app.



Packaging & Shipping

Packaging Details:  Standard paper package box.

Delivery Detail:   within 48 hours for samples shipment.

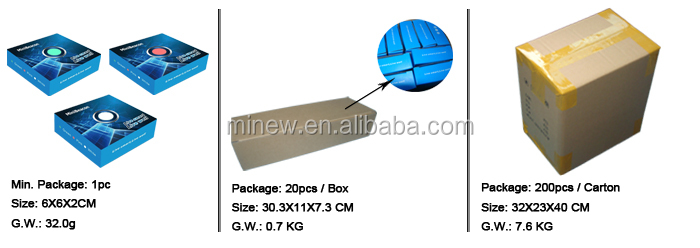

> The details of Min. Package:







Minew can make the beacon looks more beautiful with your logo







FAQ

Do you provide the technical support to the developers?

Re: SURE. The following technical data and documents will be provided to developers.

       1. SDK    2. API    3. Demo APP    4. Configuration APP  5. Instructions

Can I change the password?

Re: Yes,you can change what you want to set.

Do you have SDK or the source code?

Re: Yes,we will provide you after sample was arrived.

Does MiniBeacon comply with Apple's iBeacon standard?

Re: Yes,MiniBeacon has been licensed by Apple ibeacon program with contact No.iBC-14-00582.

Any other more questions,pls contact us to know more.

Re: Skype: Juliet.Minew
