Bluetooth Nordic nRF51822 MS49SF2 ble module

Product Description
The MS49SF1 Bluetooth 4.0 low energy module is a SMD package module basis Nordic nRF51822 chip; it is a smart module with cost-effective, ultra low power, true system-on-chip (SoC) for Bluetooth low energy
applications. It enables robust BLE master or salve nodes to be built with low total bill of material costs.

The MS49SF1 smart BLE 4.0 module combines an excellent RF transceiver with an ultra low energy
ARM Cortex0, in-system programmable 256KB flash memory and many powerful supporting features and peripherals.
It is suitable for systems where ultra low power consumption is required.
Features
- Bluetooth low energy technology compatible
- Excellent link budget (up  to 97dB)
- Enable long range applications
- Accurate digital RSSI
- Compatible with CE and FC  regulation
- Ultra low energy ARM core  chip
- Battery monitor and temperature sensor



 Electronic Parameters



ItemTest dataRemarks

Operation Voltage

1.8~3.6V

DC

Operation Frequency

2400-2483.5MHz

Programmable

Frequency Error

+/- 20KHz

---

Transmission Power

-30~+4dBm

Adjustable

Antenna

50ohm

---

Receiving Sensitivity

-93dBm

---

Receiving Current

13mA

Standard mode

Transmission Current

16mA/7mA

@+4dBm/@-8dBm

Sleep consumption

0.4uA

Power mode 3, connection-less state

Transmission distance

50 meters

BER<0.1%, Open space



Pin Description

Pin Symbol
Definition
Description
Remark
VDD
--Negative of power supply
--
P0.01
CMDData/CommandData=1,Command=0
P0.02
SLPSleep/WakenSleep=1,Waken=0
P0.03
BTXSent the data to external MCUMS49SF2’s TX
P0.04
BRXReceive the data from external MCU
MS49SF2’s RX
P0.08
LED1Connection status indication
Active Low
P0.12
LED2Command status indication
Active Low
P0.15
RSTResetActive Low



 Application

- 2.4GHz Bluetooth low energy systems
- Mobile phone accessories
- Sports and leisure equipment
- Consumer electronics
- Human interface devices (keyboard, mouse, remote control and etc.)
- USB dongles
- Healthcare and medical

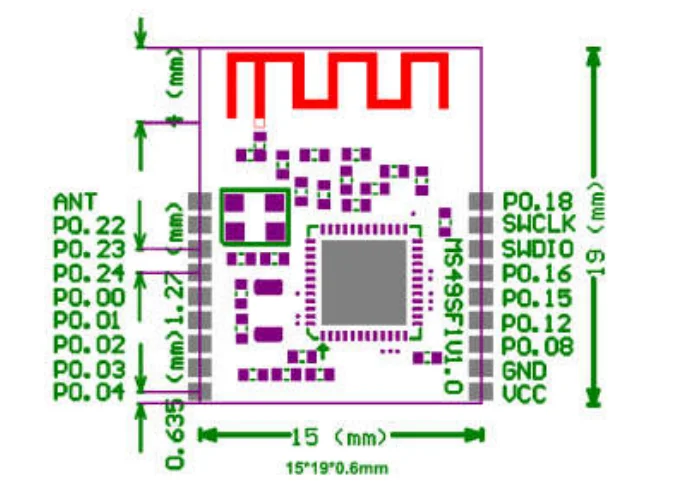

Mechanical Footprint (Unit: mm)



Specification
  • Default Setting
    Role of Module: Slave; Module Name: Minew;
    Baud Rate: 9600bps, 8N1; Broadcasting time: 1 Second;
    Minimum circle of connection: 7.5mS; Maximum circle of connection: 60mS;
    Transmission Power: 0dBm; Ma
    ximum disconnection time: Disable

            Command Format

        Format: Head (1 byte) + Data Length (1 byte) + Command code (1 byte) + Data
        Head: 0x88, it is a fixed value.
        Data Length: It doesn’t include the length of head, data length and command code.
        Data: All the parameters’ value
