CCD Nuts Color Sorting Machine / CCD Seeds Color Sorter / CCD Mung Bean Color Sorter

Feedback Ratings
US $14500.00 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZRWS
Model Number:
6SXZ-136
Type:
Grain Processing Equipment
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
nuts color sorting machine
Carryover ratio(bad:good):
10:1
Capacity(T/H):
0.8-1
Sorting precision(%):
99%
Voltage:
220V/50HZ
Power(kw):
1.2-2.0
Service:
24 Hours
Warranty:
12 Month
Color:
ZRWS Color or customized
OEM:
Welcome
Video Description
Product Description

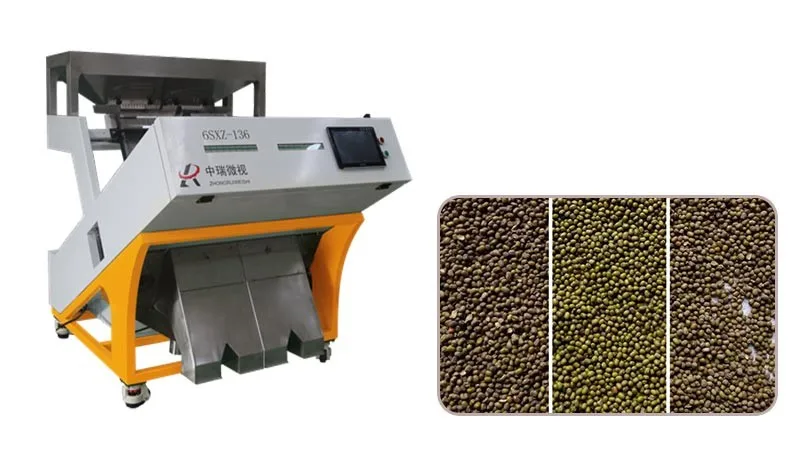

CCD Nuts Color Sorting Machine / CCD Seeds Color Sorter / CCD Mung Bean Color Sorter

Application

ZRWS grain color sorter has the ability to sort out all the visible defects,such as dirty,moldy,spotted,stone,shrivelled. Make homogeneous appearance of final products.

SPECIFICATIONS
Type

6SXZ-136
Carryover ratio(bad:good)
10:1
Capacity(T/H)
0.8-1
Sorting precision(%)
99%
Voltage
220V/50HZ
Power(kw)
1.2-2.0
Air Pressure(Mpa)
0.5-0.7
Air Consumption(L/min)
≤1800
Advantages

5388 pixel high-resolution line scan CCD image sensor allows to identify any defects with subtlest color variation.

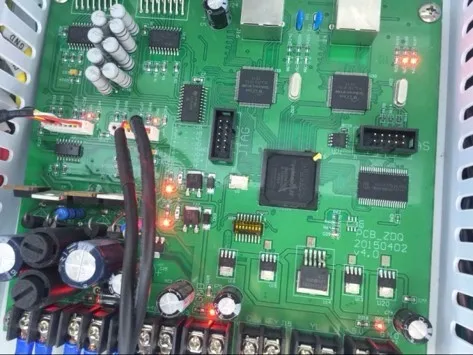

Intelligent algorithms colors shapes,digital information processor decicated for powerful industrial control,high intelligent image processing algorithms dedicated for color sorter.High-speed capture,high-speed processing,which improves the consistency of the signal path and stability and reliability of the system,thus to ensure the sorting effect.


Wireless Panel PC remote Operating system. 12 inch panel PC and android 4.4 operating system. Humanized operation screen is user-friendly.

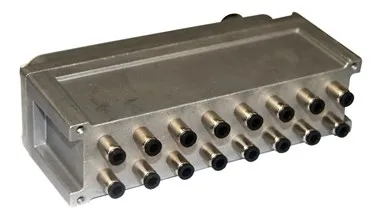

Use High-quality,high-frequency,up to 1200 HZ per second. The fastest response time within 0.6 ms .long service life ejector ,service time 5-10 billion. excellent rejection output .


Special customized aluminum alloy materials , non-toxic, harmless ,which meets the standard of international food safety .Rust proof material is unique for materials, super-wide design, feed smoothly and reduce materials waste, sort more precisely and larger capacity.


Shadowless LED lighting system allows the most precise focusing of the beam on the inspection line.The LED white light be able to apply to all the materials.

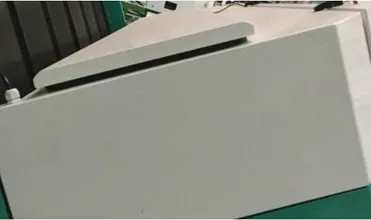

Tilting optical boxes,to allow an easy internal access for maintenance operation.


Automatic cleaning system,with adjustable frequency and duration.


Interactive remote control


Reject & Accept
Operation

1.Product in-feed hopper
2.Vibrating plate
3.Sloping chute
4.full-color RGB CCD cameras
5.Reflector panel
6.Ejector
7.Control box
8.Discharging hopper for sorted product
9.Reject products discharging hopper.
10.DPS


Input product is loaded into the in-feed hopper (1), it moves along the vibrating plate (2), until it flows on to a sloping chute (3), where it is individually checked at 360° and sorted by RGB-Full color cameras (4) . Depending on the signals received by the optical device, the sorter software controls the pneumatic device (6), which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper (8). The rejected products are instead deviated by a jet of compressed air produced by the relevant ejector and discharged in the front side hopper (9). In automatic resort versions, the sorted or rejected product to be conveyed to another section of the machine to undergo an identical process.

Packing & Delivery
Packaging
Size
1390 (L) * 1610 (W) * 1870(D)
Weight
540KG


Packaging Details
Export wooden packing.
About Us

We specialize in color sorter R&D and production basis on independent technology development,having the leading technology in intelligent color sorter. Located in XinLong industrial park ShaJing town,BaoAn district,ShenZhen China,with an area of 16,000 square meters. As the largest color sorter equipment manufacture base in south China, we have the top-level color sorter technical team worked in Europe and America for years. We make great efforts to explore and lead the development of color sorter technology.
At present,our products include rice color sorter,grains color sorter,nuts color sorter,cereals color sorter ,beans color sorter, seeds color sorter ,tea color sorter, Color Sorters for Industrial products and Belt Color Sorter .Our products meet the demands of color sorting in many industries
