CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting

Feedback Ratings
  • 1-99 Sets
    US $252.00
  • >=100 Sets
    US $245.00
1 Sets
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Explosion-proof Lights
LED Light Source:
Bridgelux,Cree
Input Voltage(V):
AC100-240/277V
Lamp Power(W):
120
Lamp Luminous Flux(lm):
12000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Working Temperature(℃):
-40 - +50
Working Lifetime(Hour):
100000
IP Rating:
IP68
Certification:
BV, C-tick, CCC, CQC, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL
Emitting Color:
Cold White
Base Type:
E39
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CESP
Model Number:
CES-J120
Lamp Body Material:
ADC12 Die Cast Aluminum Alloy+ 4mm tempeled glass
reflector:
optional
product size:
400*400*185mm
Beam Angle:
120°*120°/ 60°*30°
Power Factor:
0.98
THD:
<10%
power supplier:
meanwell HLG with protective Aluminum Housing
Warranty:
5 years
package carton size:
460x460x240mm
G.W/N.W:
12.50kgs/11.50kgs

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
46X46X24 cm
Gross weight per batch:
12.5 KG
Package Type:
1set/carton in formed foam and cartons
Lead Time :
2
Specification

CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting

Product Specification
Item No.:
CES-J120
Max Wattage:
120W
Material of Shell:
Die Cast Aluminum,Temper Glass,Anti-Dust,Water-proof,PCB Heat Index 2.0
Work Temperature:
 -40℃ to 50℃ (Rated at T6 @ Max 25° C)
Product Size:
400*400*185
Reflector:
Optional
Beam Angle:
120°*120° / 60 °*30°
IP Rating:
IP68
LED  Specification
LED Brand:
96 pcs LM80 Certify 3535
Lumens:
12000
Lumens/W:
100lm/w
CCT:
6500k
Power Specification
Input Voltage:
AC100-240/277V
Power Factor:
98%
THD:
<10%
Power Brand:
HLG Meanwell driver with protective Aluminum Housing

Key features:

1) Die-cast aluminum by 1800 Ton of pressure to make the body strong enough.
2) Powder Coated (similar to vehicles coating) and holder are cover with a thin layer of Zink, color can be ---customizable.
3) IP 68, highest rating of protection.
4) Anti- flame, high quality water proof silicon, 4MM super-strength tempered glass.
5) 5 year warranty.
6) Best driver: Meanwell HLG driver.

7) With the fullest anti-explosive certification,including UL844 for North America, Atex for Europe and CNEX for China.

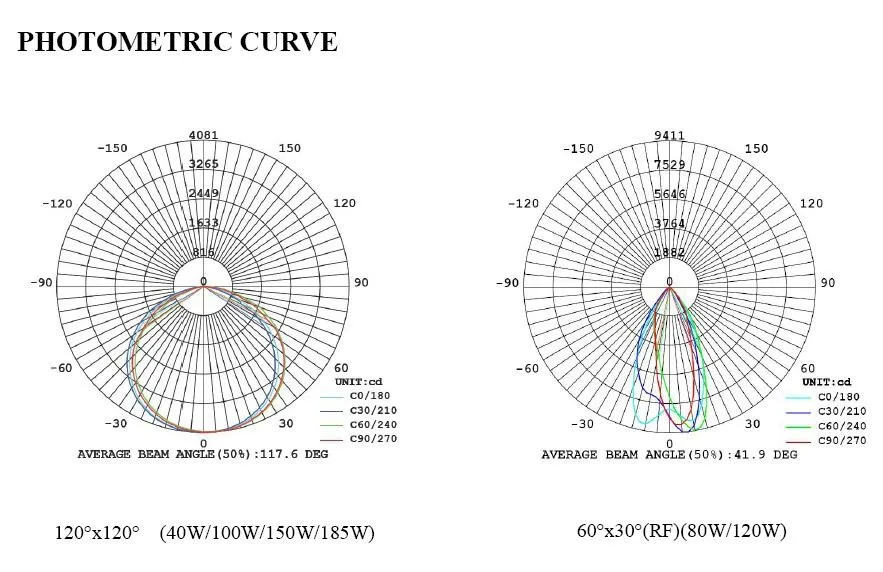

Photometric design

CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting

Without refelctor,the beam angle will be 120°*120°

             With reflector, beam angle will be 60°*30°

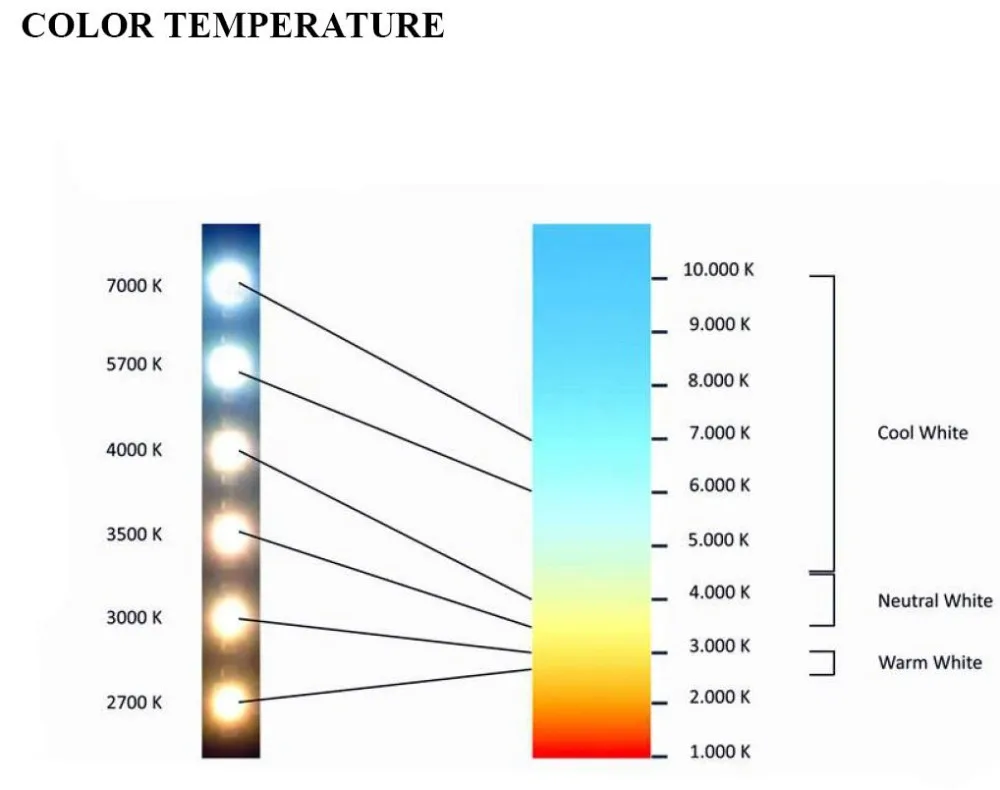

Color temperature: from warm white(2500K-3000K), nature white(3000K-4500K) to cool white(4500K-10000K), all be at your choice.

CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting

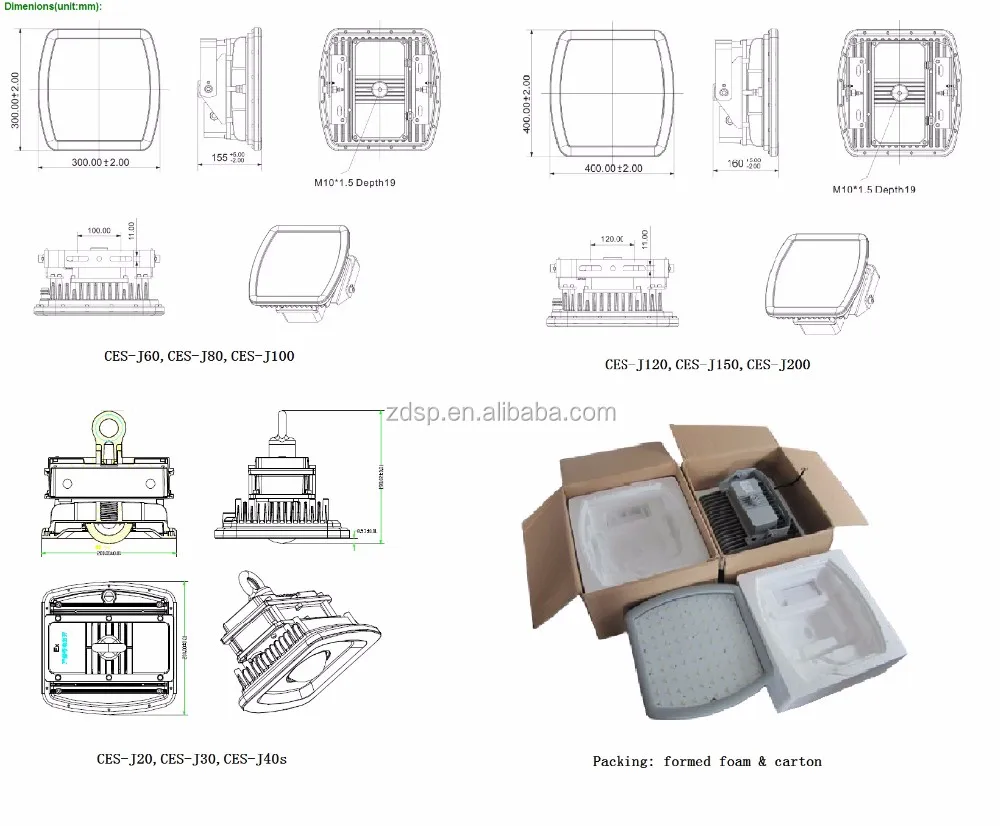

Package Information
Item
Product Size(mm)
Packing Size(mm)
G.W. / N.W.(kgs)
CES-J20,CES-J30,CES-J40s
200*200*270mm
360x250x200mm
4.5kgs/4.0kgs
CES-J60,CES-J80,CES-J100
300*300*175mm
370x370x240mm
8.5kgs/7.5kgs
CES-J120,CES-J150,CES-J200
400*400*185mm
460x460x240mm
12.5kgs/11.5kgs

CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting

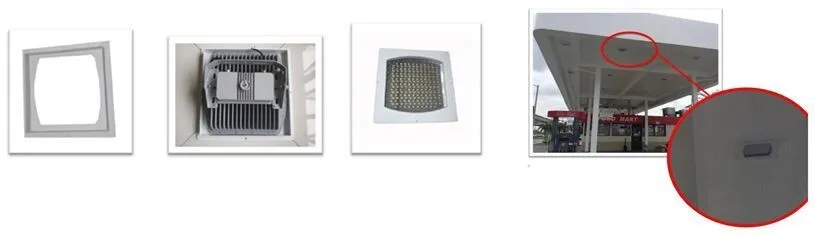

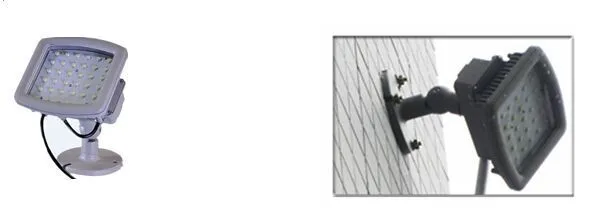

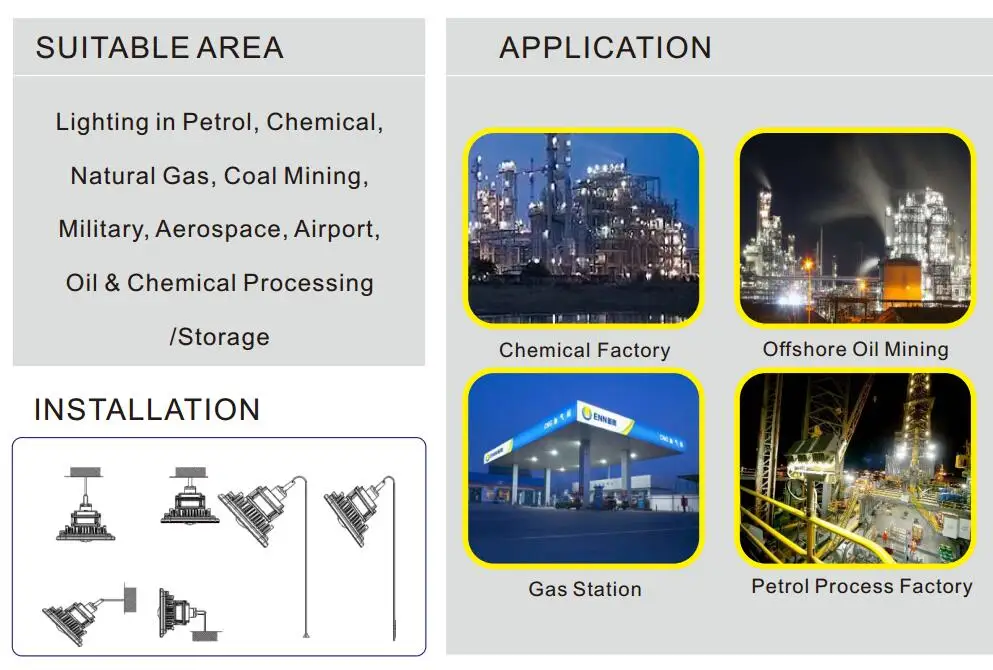

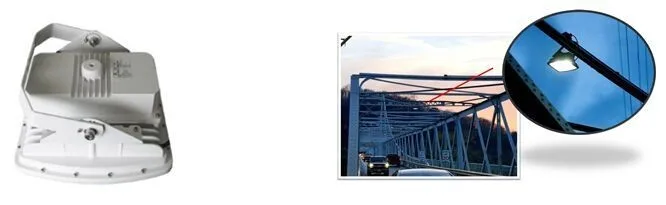

Installation Process

1. U-bracket(M10 screws needed)

2. Adjustable Wall / Celling Mount (M10 screws needed)

3. High Bay Mount Hook

4. Recessed Mount holder

CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting

Applications

CE RoHS UL DLC Shenzhen new meanwell led lighting power supply product 120watt explosion proof led lighting , airport, gas station, petrol station, army base, led ightings,chemical,natural gas,coal miming,military,aerospace,,oil&chemical processing&storage,warehouse,offshore oil mining use led anti-explosive fixture.

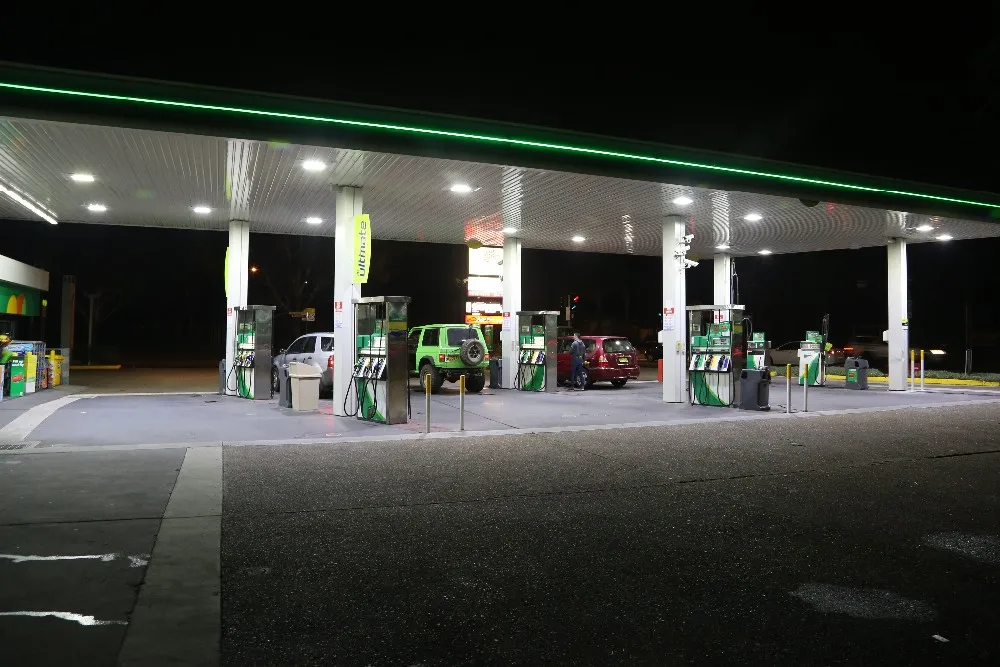

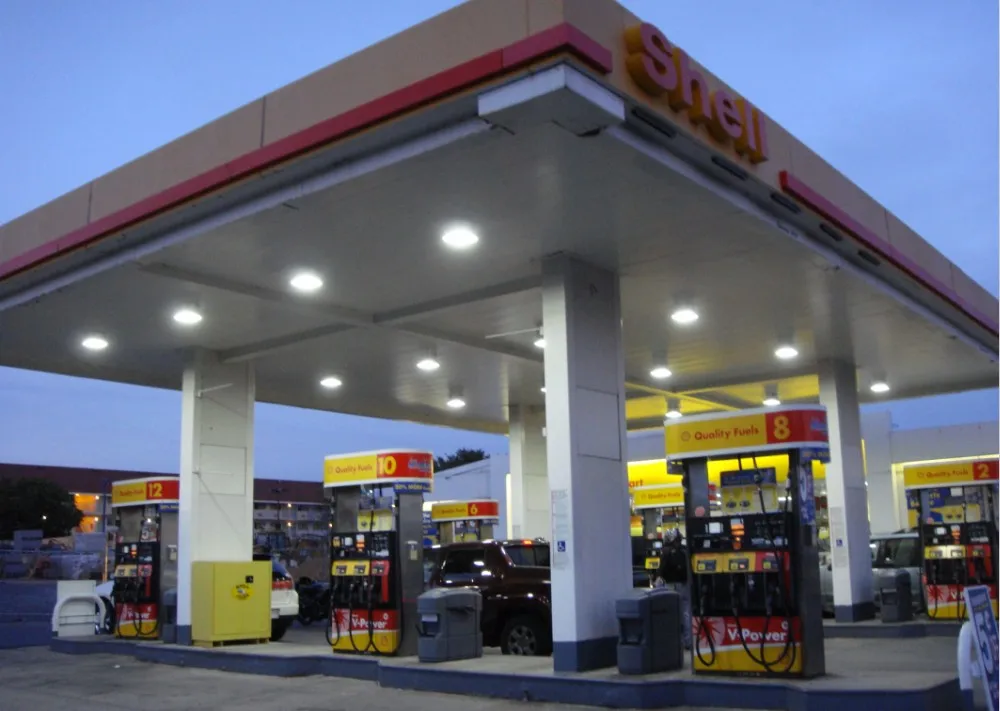

Successful Cases

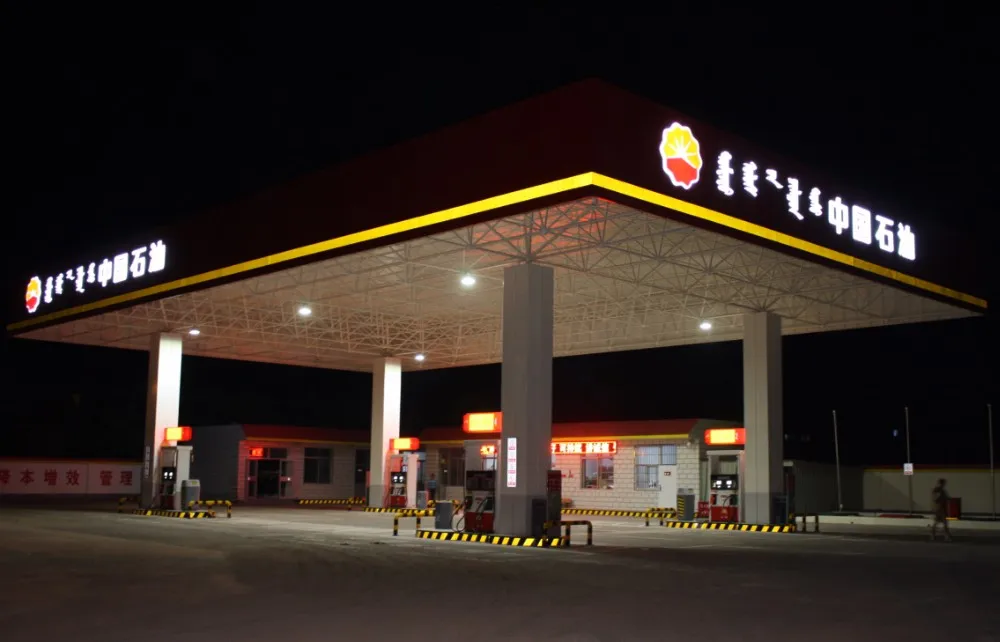

Inner Mongolia-China Petro

Australia- gas station 120w to replace 400W HPS

Compressed Natural Gas Station in Indonesia

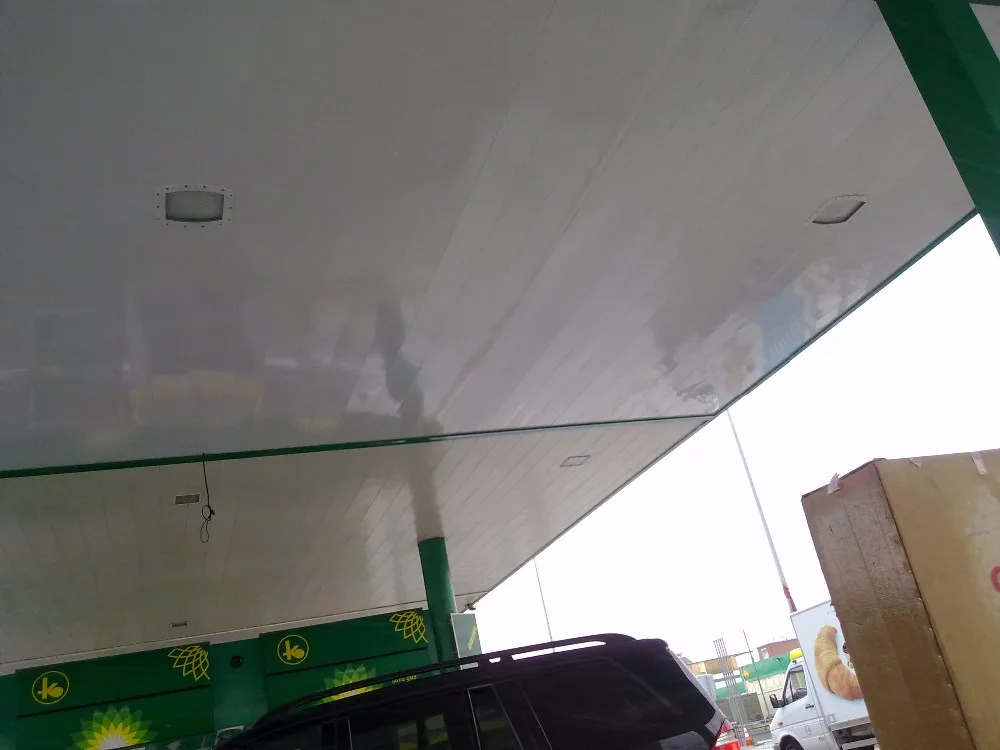

                 Greece-kkoil gas station

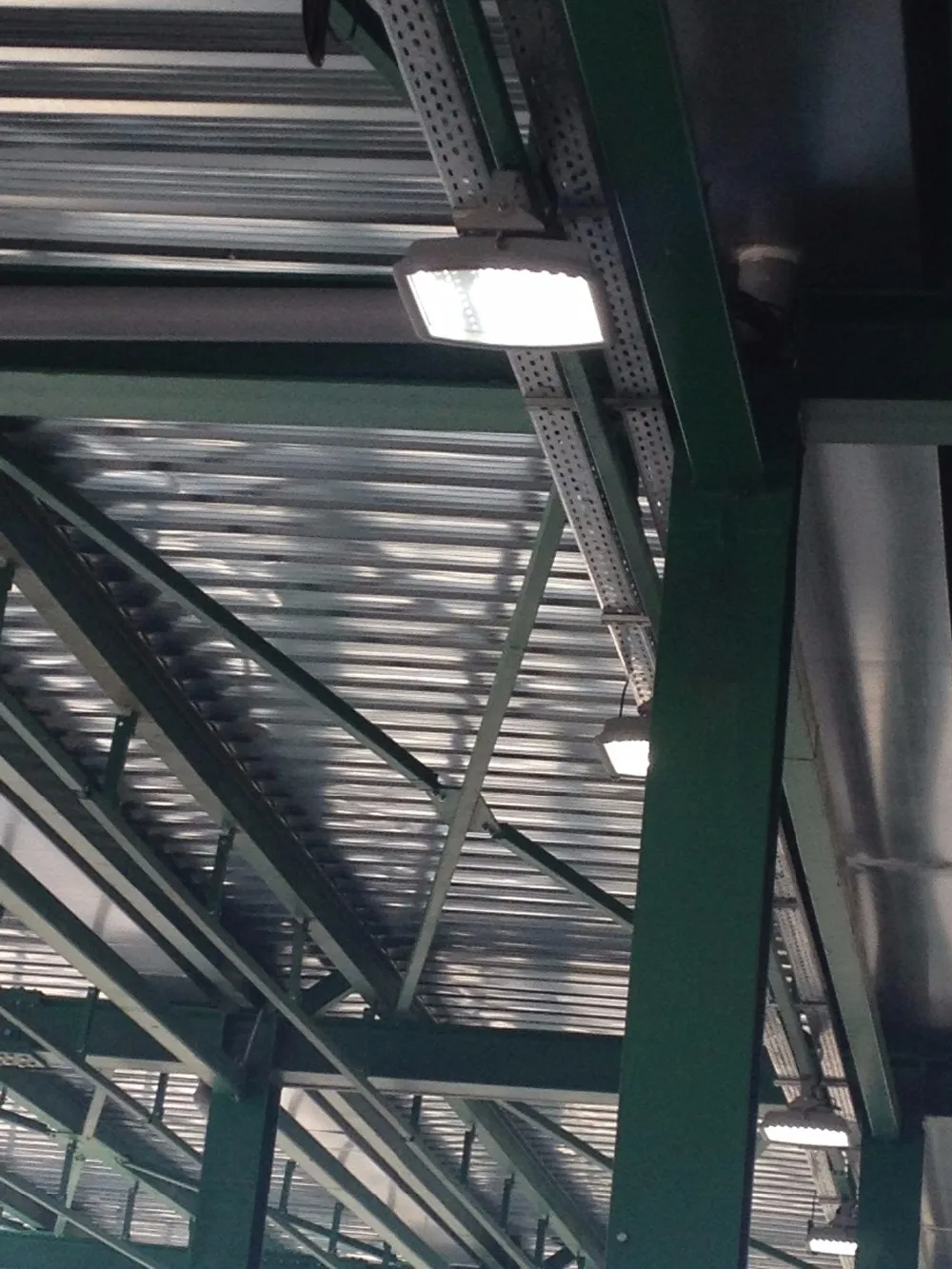

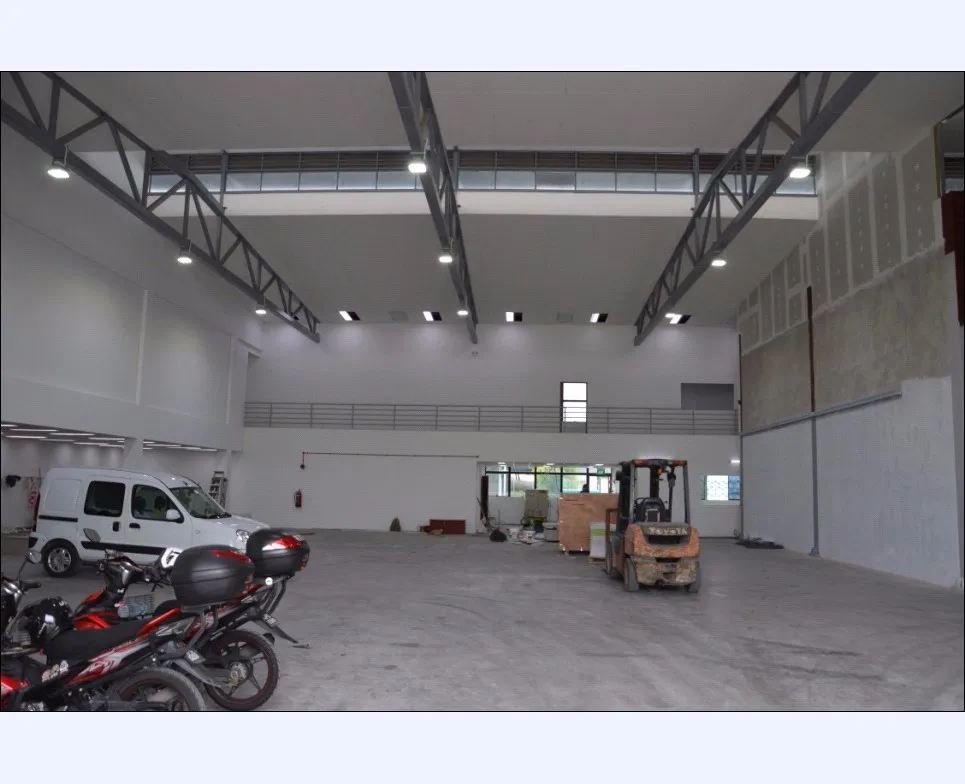

                            Singapore factory

USA gas station CES-J60

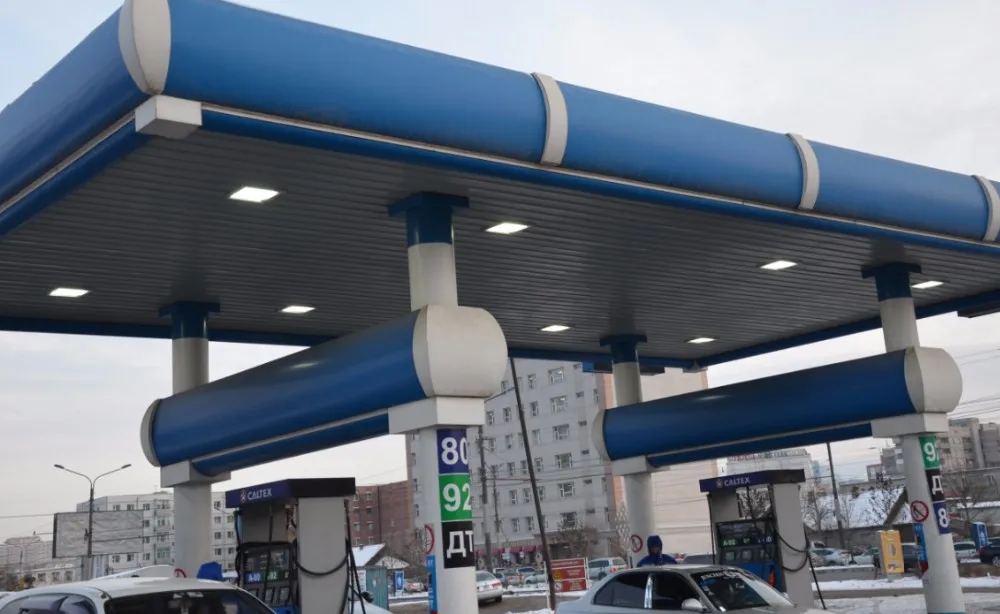

Outer Mongolia petrol station

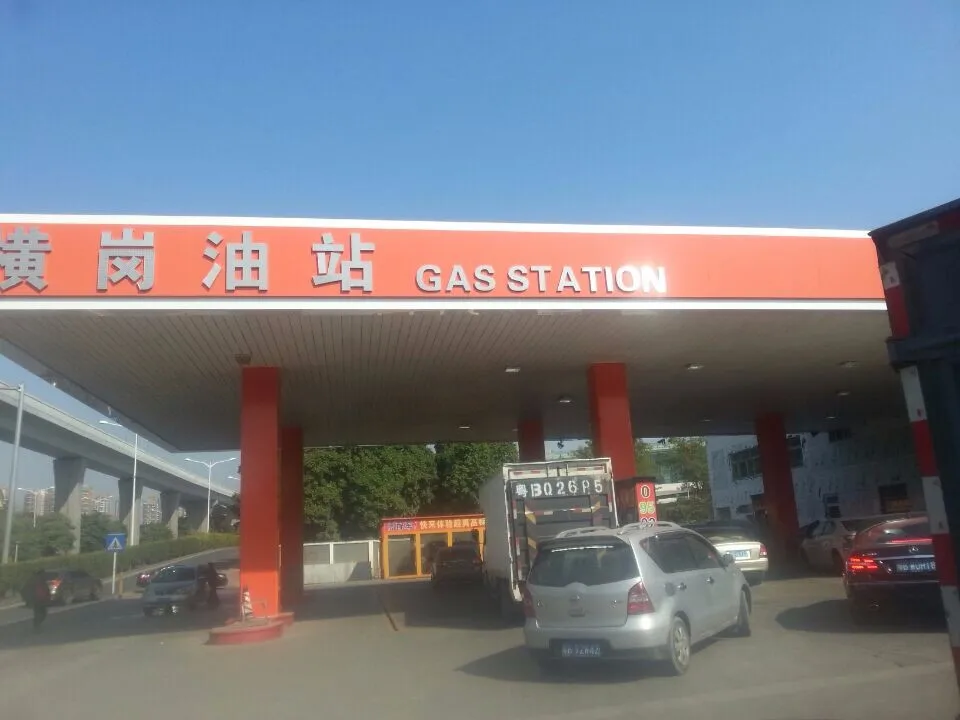

Henggang gas station in Shenzhen China

Certifications

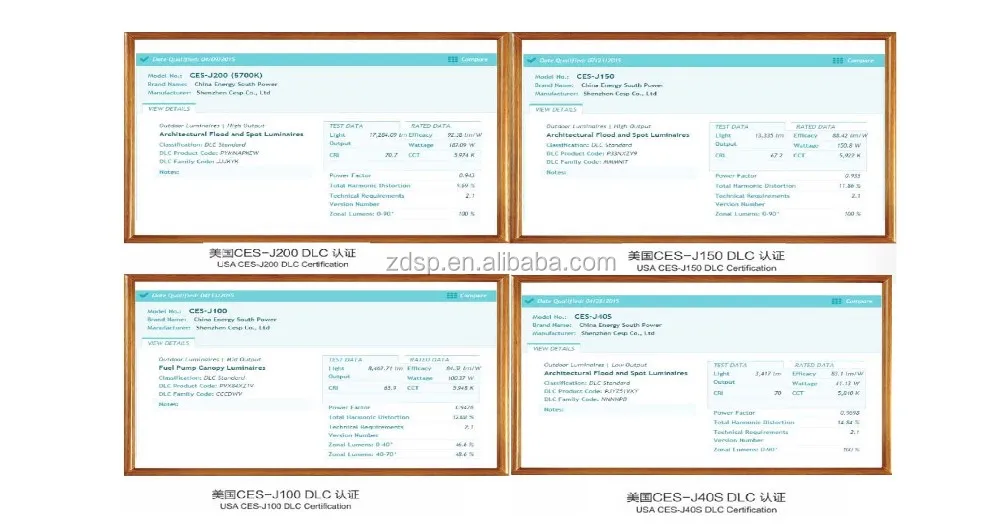

Europe market: CE,RoHS,Atex; North American/Canada market: cUL1598,cUL844,DLC,LM79,LM80,Energy Star; Japan market: PSE; Australia market: SAA,C-tick; China market: CCC,CQC,CNEX

Company Information

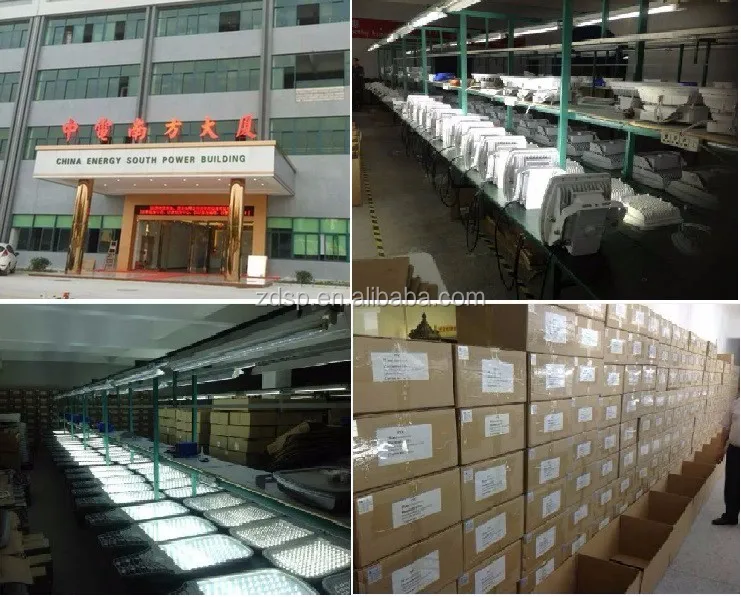

Company Intro:

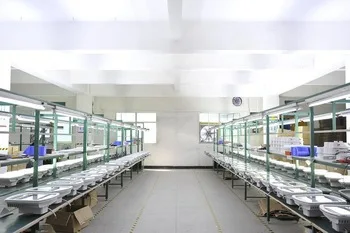

            Shenzhen Cesp Co., Ltd (formally ChinaEnergy South Power Equipment (Shenzhen) Co., Ltd), is a national high-techenterprise. With registered capital of 50 Million RMB, and subsidiary company in Dongguan, Shenzhen CESP Equipment (Dongguan) Co., Ltd, China's largest production base for Explosion Proof Lighting Fixtures, with 4 specialized production lines and aging facility for the Explosion Proof LightingFixtures and more than 20,000 square meters of modern manufacturing facility, 200production workers and a series of Specialize Equipment, including Injection Molding,Cast Aluminum facility, Intelligent Vacuum Detection Facility for Waterproofing test, Photometric Tester for IES, Hi-Temperature Simulated Facility, Salt Spray Corrosion Facility Vibration Testing Facility, Lightning Protection Testing Equipment, Dust-proof & Oil-proof Testing Equipment, as well as other Advanced Detection Equipment.
          Shenzhen Cesp Co., Ltd had passed the ISO9001Quality System Certification and ISO14001 Environment System Certification. ShenzhenCesp Co., Ltd is also one of China's National High tech Enterprises, with Chinese Explosion-Proof Certification; CNEX, European Explosion-Proof Certification;ATEX and CE, ROHS certification. North American HazLoc Certification (UL844,Class 1 Div 2), UL, CUL, DLC, ETL, CETL, LM80, LM79 certification. Australia SAA, C-Tick Certification.

Service CESP provides:
1) Before and after sales in time service 7/24.
2) Professional Lighting solution suggestions, dialux/oyxtech simulation available.
3) Payment terms: Paypal, TT, LC, DP etc.
4) Shipment terms: FOB, CIF, CFR
5) Short Lead time: 5-7 working days for sample order and orders less than 100units.
6) NO MOQ required, sample testing welcome.
