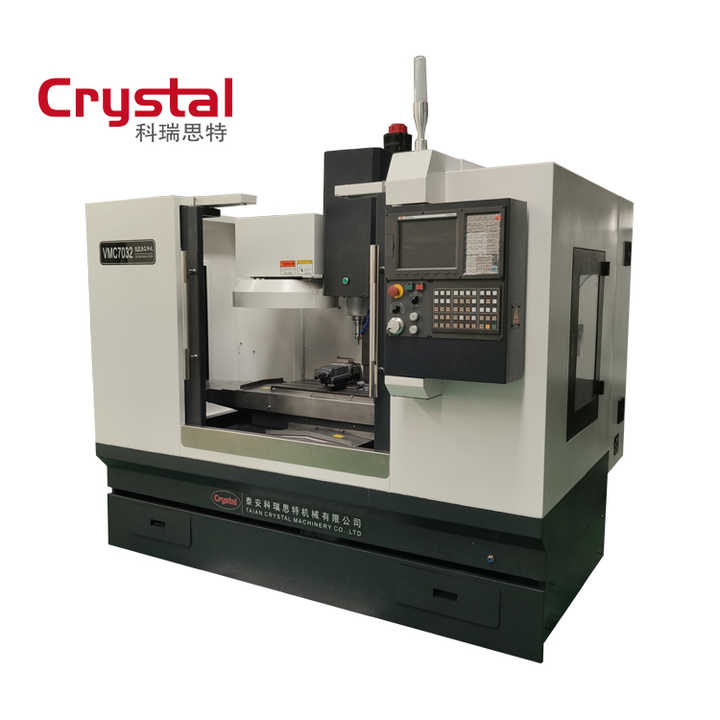

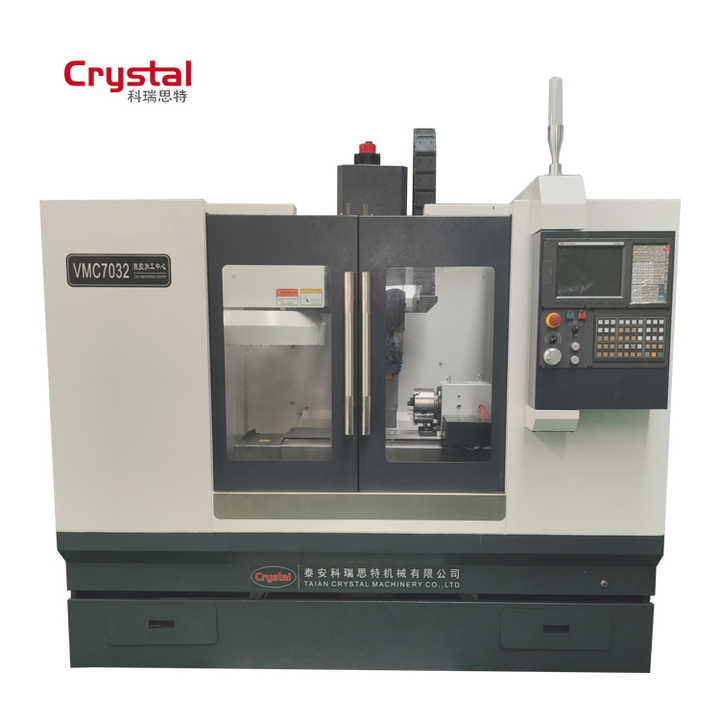

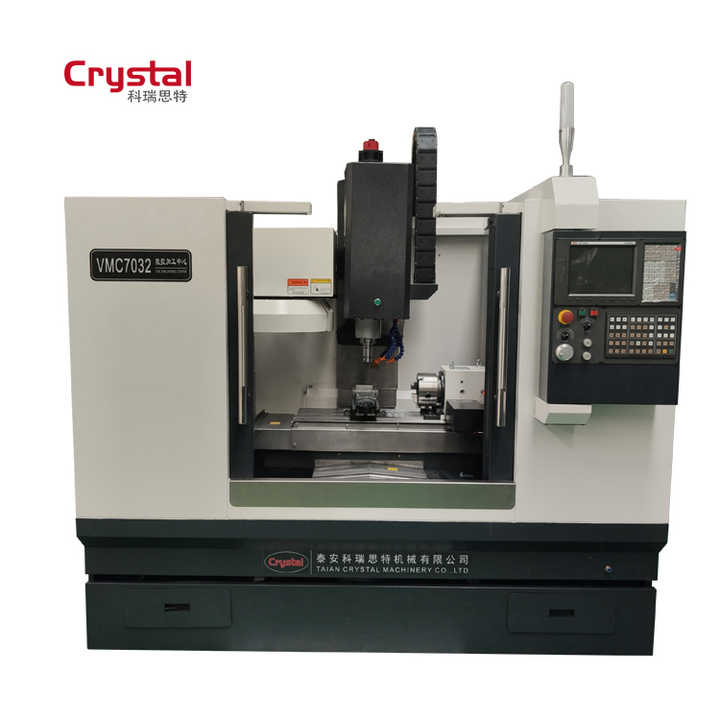

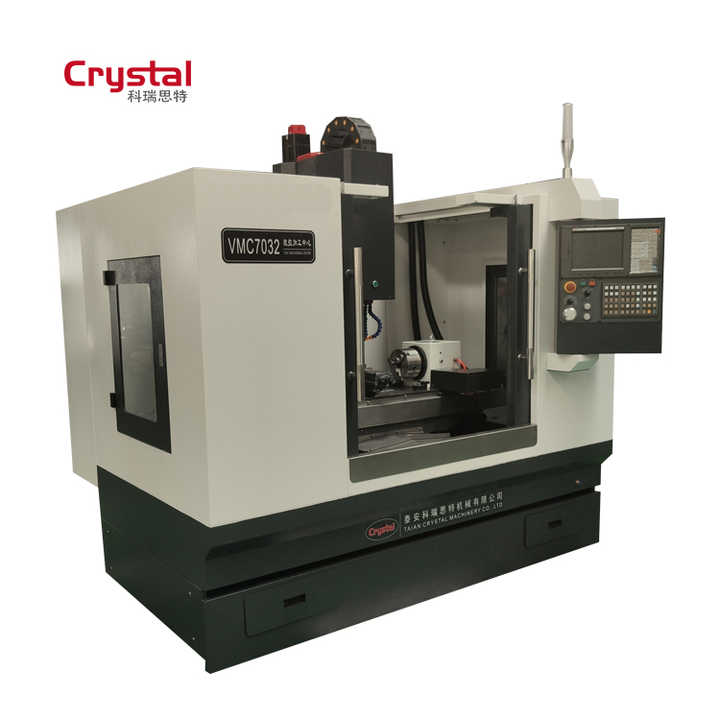

CNC Milling Machine With Automatic Tool Changer VMC7032
No reviews yet
Other recommendations for your business
Key attributes
Industry-specific attributes
table travel (x) (mm)
610 mm
table travel (y) (mm)
320 mm
table travel (z) (mm)
400 mm
Other attributes
type
VERTICAL
range of spindle speed(r.p.m)
50 - 8000
number of axes
3
no. of spindles
Single Phase
machining capacity
Heavy Duty
spindle taper
BT40
positioning accuracy (mm)
0.008
repeatability (x/y/z) (mm)
±0.004/±0.004/±0.004
voltage
as your request

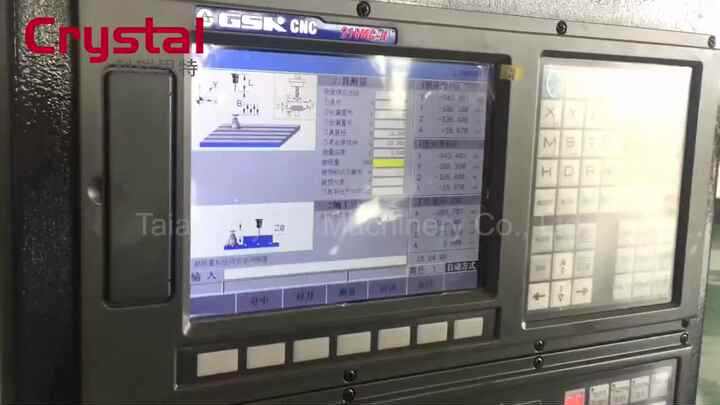

cnc control system
KND
weight (kg)
2900
warranty
One year
max. table load(kg)
400 kg
place of origin
Shandong, China
brand name
Crystal
model number
VMC7032
dimension(l*w*h)
2280X1760X2200
key selling points
High-accuracy
machinery test report
Provided
video outgoing-inspection
Provided
Table size
1000X320mm
Max. travel of table ( X, Y, Z )
610X320X400mm
Distance of spindle head to table
130-550mm
Spindle speed
8000rpm
ATC
16 tools
Spindle taper
BT40
Center distance
100mm
Rapid feed of X/Y/Z
1000 mm/min
Max. Tool weight
8 KG
Power (kW)
5.5
Packaging and delivery
Selling Units:
Single item
Single package size:
2280X1760X2200 cm
Single gross weight:
3000.000 kg
Lead time
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more
Minimum order quantity: 1 set
$24,000.00Variations
Select nowtable size(1): 800*320
800*320
spindle motor power(kw)(1)
5.5
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
