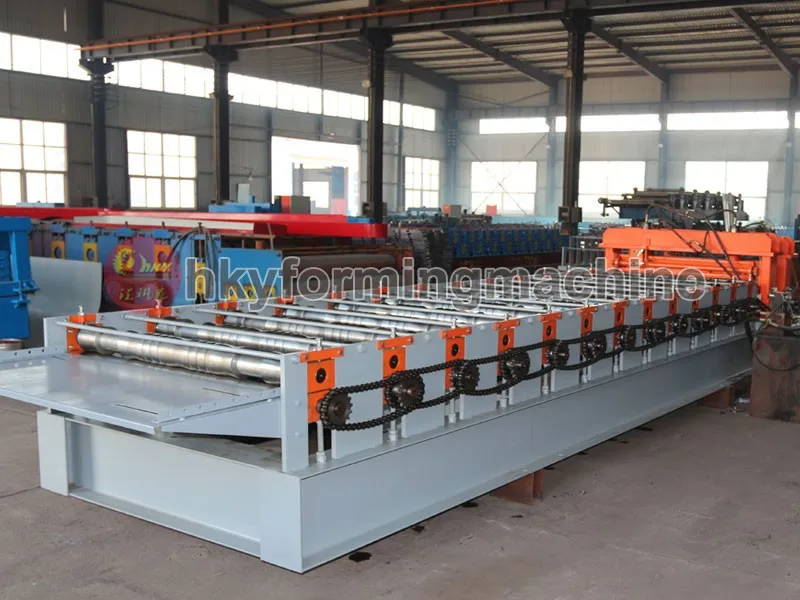

Chinese color steel roofing panel tile cold roll forming machine equipment line with High speed and high quality

  • 1-4 Sets
    $12,800.00
  • 5-9 Sets
    $11,800.00
  • >=10 Sets
    $10,800.00
Model Number:
760-35
Power(W):
5.5KW
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
2years
Type:
Tile Forming Machine
Production Capacity:
15m/min
Certification:
CE
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Manufacturing Plant, Farms, Construction works
Condition:
New
Tile Type:
Colored Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
HKY
Voltage:
380V
Dimension(L*W*H):
9.2X1.5X1.4M
Weight:
6.6T
Key Selling Points:
Easy to Operate
colour:
blue
CERTIFICATION:
CE
BRAND NAME:
HKY
CONTROL SYSTEM:
PLC
quality system:
iso9001:2008
use:
roof
material:
color steel
type:
roll forming machine
life time:
10 years

Packaging & Delivery

Selling Units:
Single item
Single package size:
650X150X150 cm
Single gross weight:
4000.0 kg
Package Type:
Exporte Standard package for container
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

The roof & wall panel forming machine is rolled or cold-rolled strip steel, metal plate, galvanized plate, color steel as raw materials. Light metal profiles of different section shapes are obtained by bending at room temperature. Production of color steel products with different sections, production flexibility, easy to use, strong adaptability, save a lot of manpower and material resources, so the world's industrial developed countries are very seriously.

Manual Un-coiler
◊ Max Capacity: 5000kgs                                                                                                                               ◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
Leveling Device
◊ Ensure the material level and straight
◊ The width can be adjusted

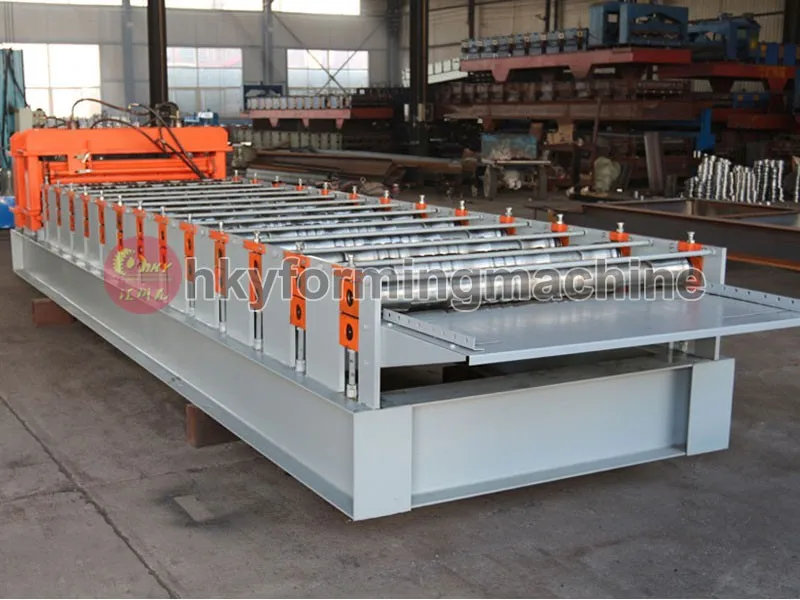

Auto Main Forming System
◊ Max Feeding width:1220 mm
◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm
◊ Forming station: Upper level 12 stations.
◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
Run-out Table
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc

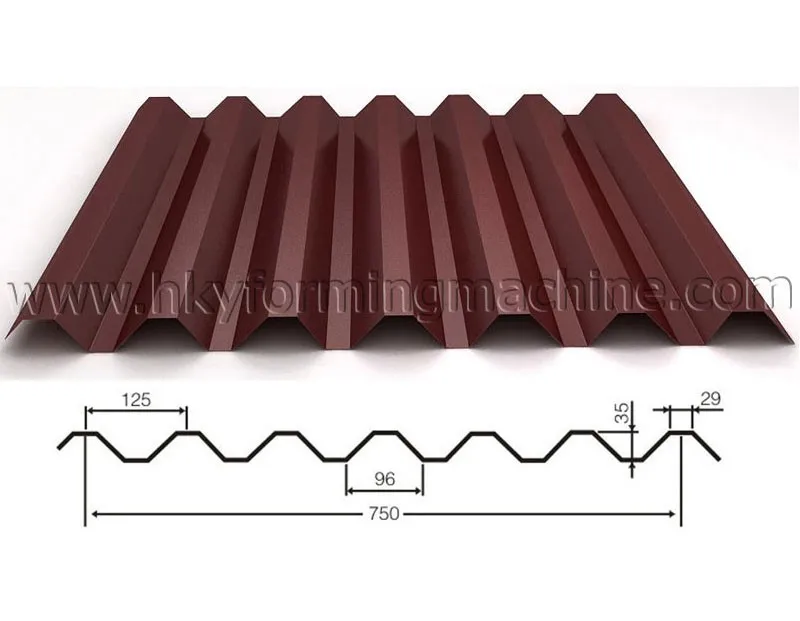

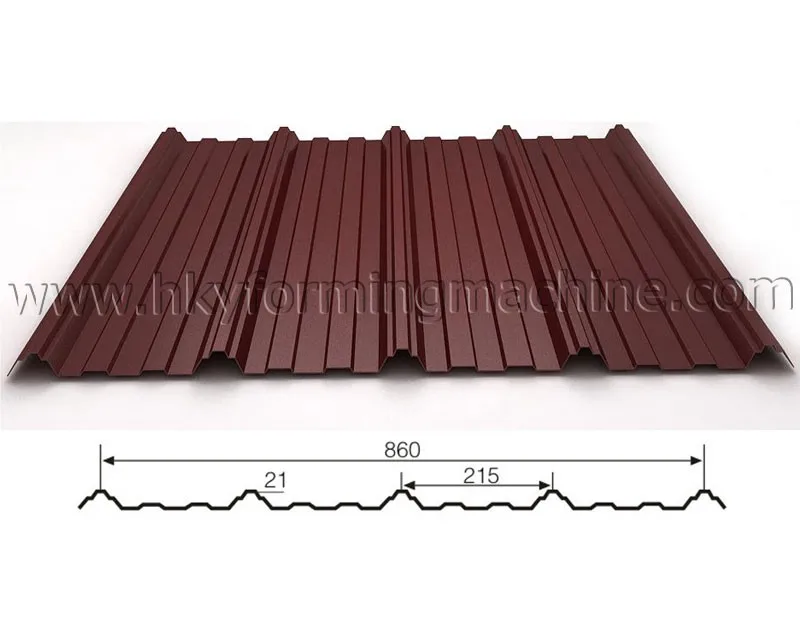

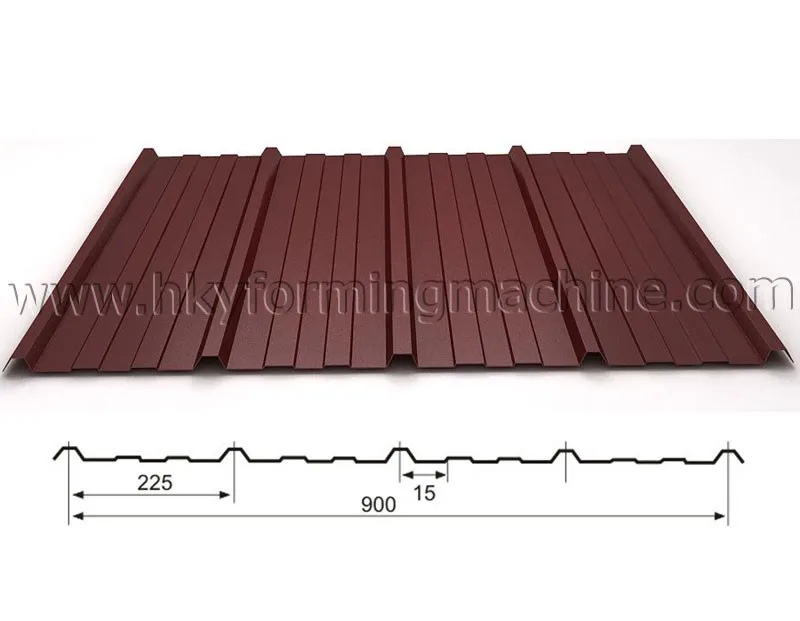

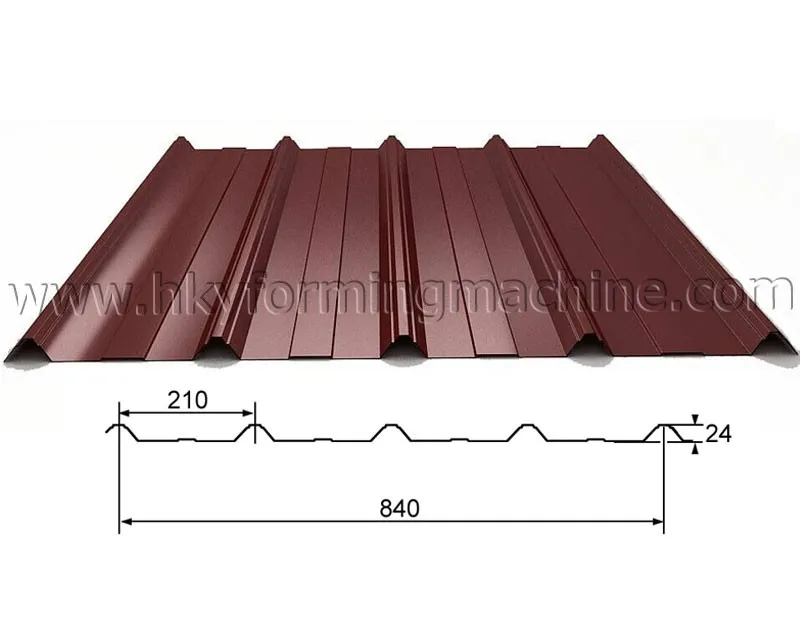

Products Show
Detailed Images

Guide four column type

The guide four column type high speed fine structure, pressure cylinder and die by the guide sleeve binding in 120 mm four solid oriented hydraulic prop, the mold under the vertical operation, will not produce the vertical deviation, especially on the tile die vulnerability, to absolute protection, but also greatly prolong the service life of the die

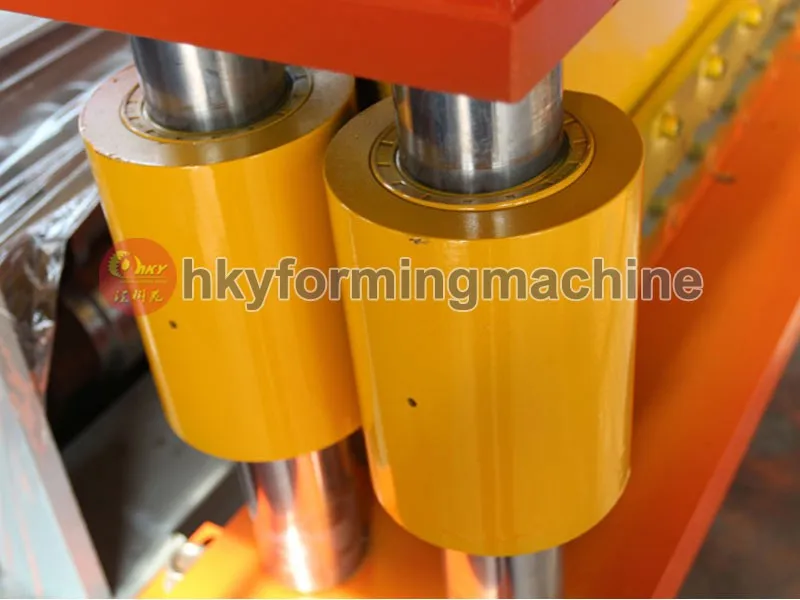

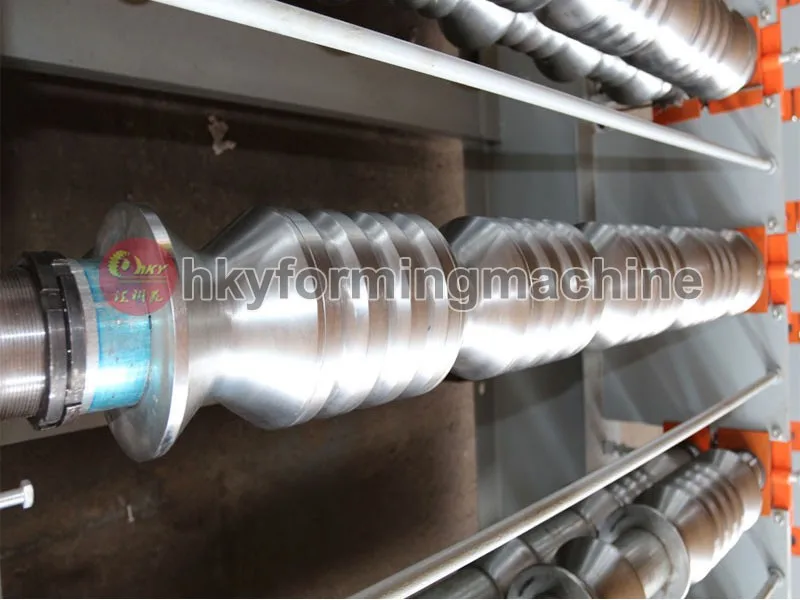

Rollers

High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

Using high quality 95mm thick shaft, the strength is more durable.

Machine body

The main body of the body without welding, all the use of cast steel, the whole machine will not produce stress and lead to the host body deformation.

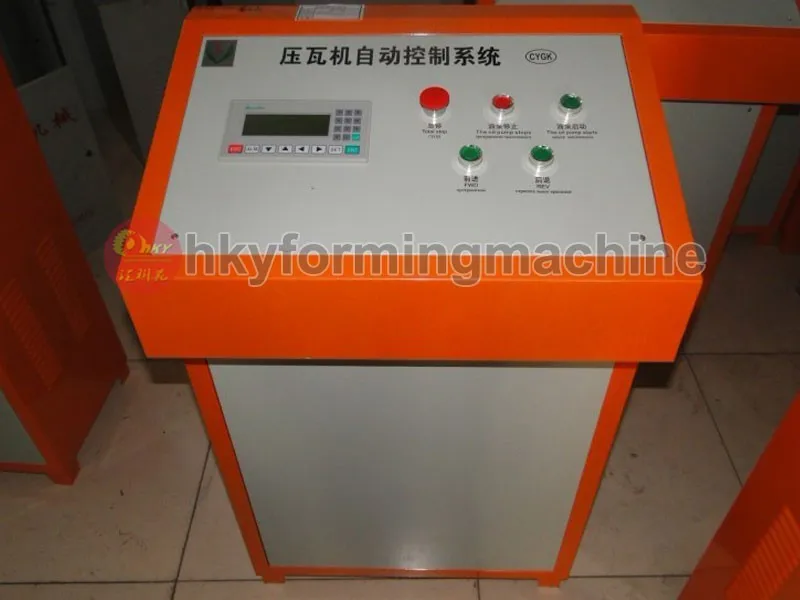

PLC Control System

Usually we prodvide the Delta PLC control system, but we can make that according to your need. You need which brand, then we send to you which brand.But the long life of that will bring you great benefit .

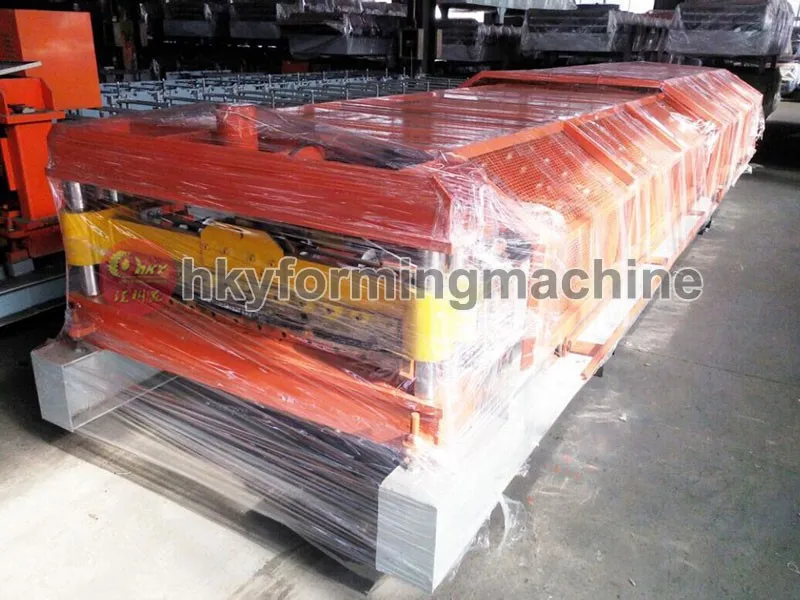

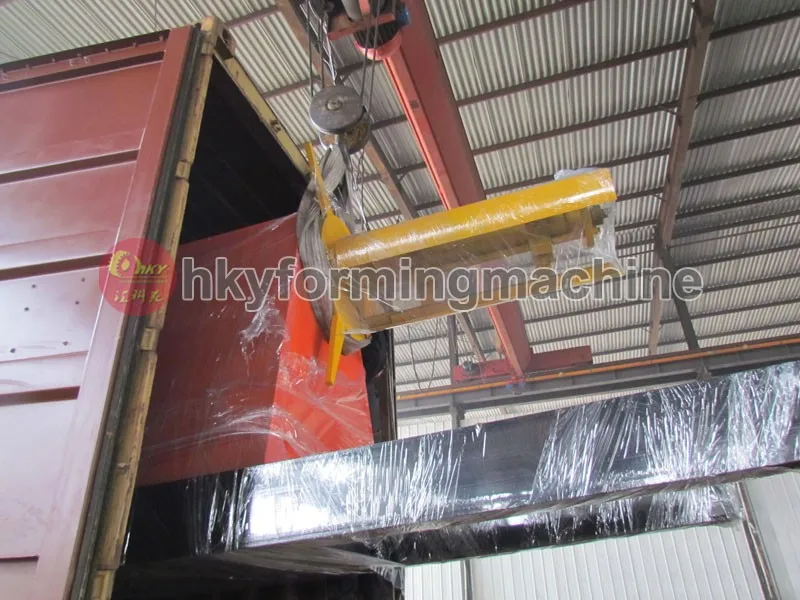

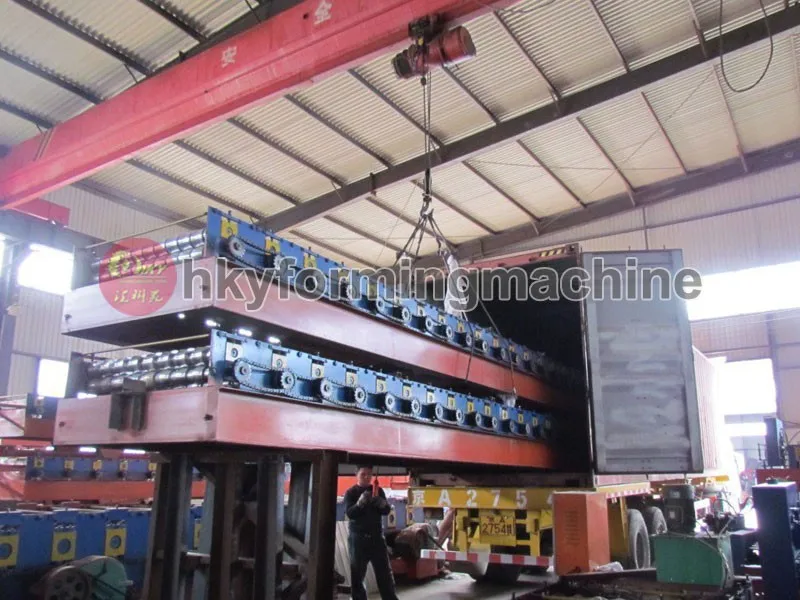

Packing & Delivery

1. Shock bubble film

2. Suitable carton size

3. Shock bubble film

> Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.

>By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.

Our Company

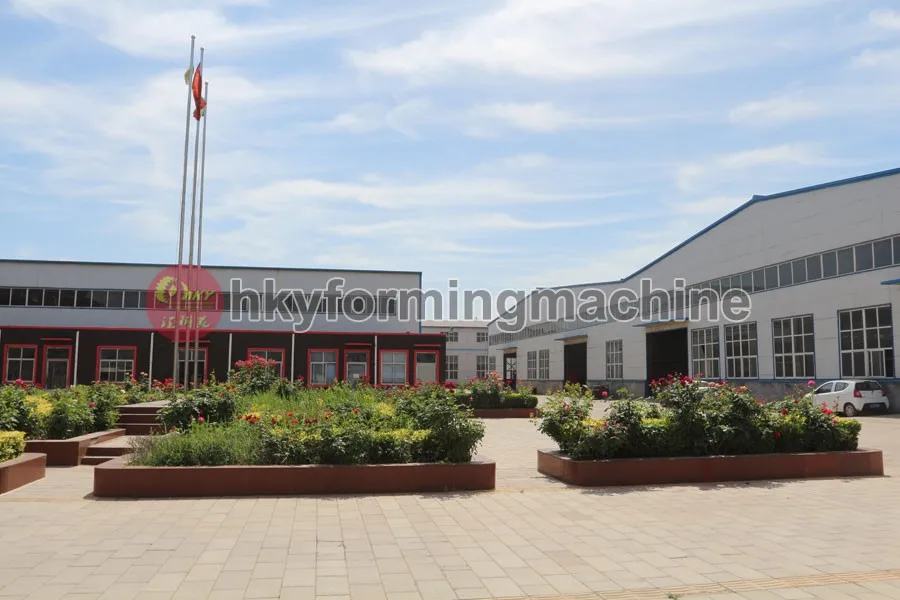

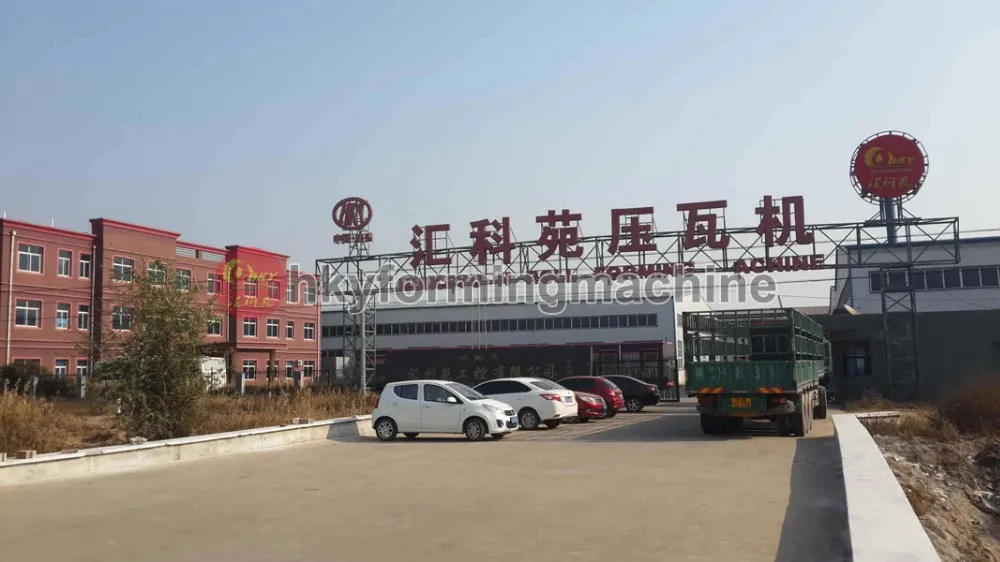

Our Factory

Our Exhibition Hall

Our Reception

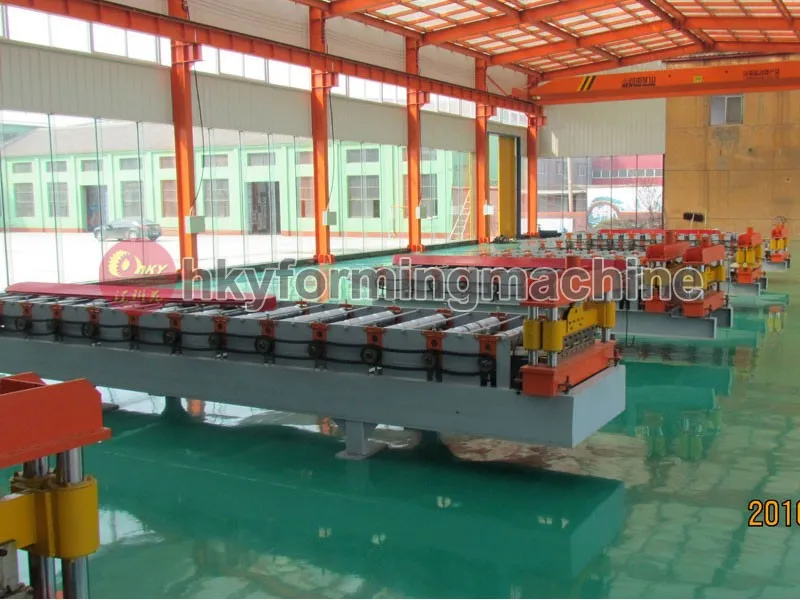

Our Workshop


Botou Huikeyuan Engineering Control Co.,Ltd was founded in 1989 and has become a recognized leader in the manufacture of Cold Roll forming machines and equipments

Our excellent reputation for sound and innovative engineering and 20 years of experience have brought us recognition for offering our customers the ultimate in efficiency for roll forming equipments and toolings


Why choose us?
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

Our customers

HKY, as a well known brand name of a roll forming equipments manufacturer in China, has exported its equipments and machines to more than 60 countries and areas over the world, such as Russia, India, UK, Australia, USA, KZ, TJK, Malaysia, Nigeria, Romania, Albania and it has received excellent reputation. In the future, we are committed to better equipments and sales service and meeting customers' requirements when and where they need.

FAQ

Q: How can I contact you?

A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you

Q: What is the status of After-sale Services for customers and machineries?

A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.

Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Q: How many years since you have been in this field?

A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.

Our Service

> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.

>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: good for 30days
