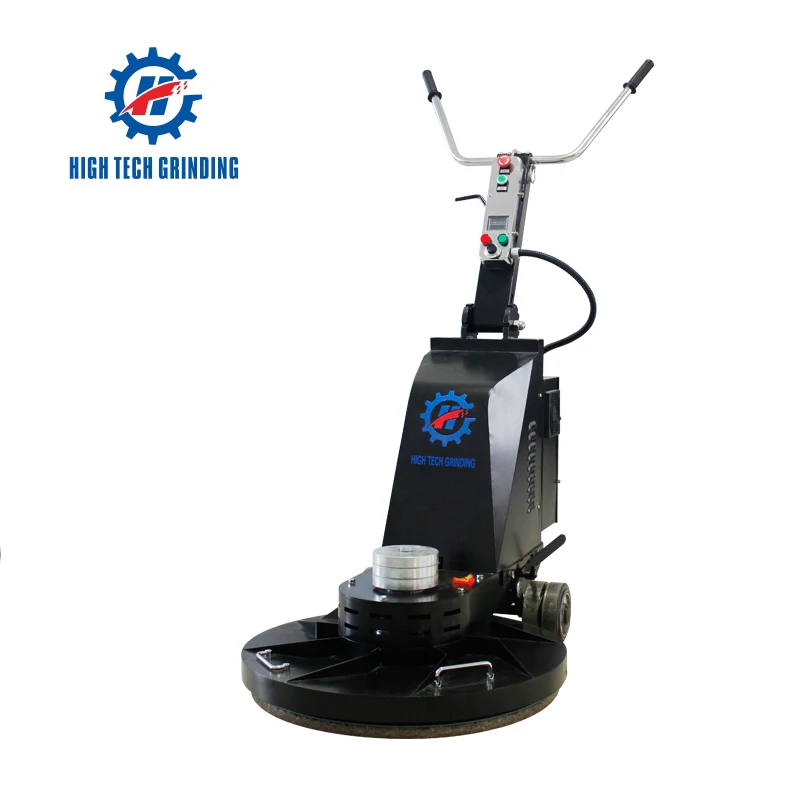

Concrete floor grinding polishing machine

Custom Branding
Feedback Ratings
  • 1-4 Sets
    US $12980.00
  • >=5 Sets
    US $11800.00
Quantity:
- + Sets available
Custom branding options are available:
Custom branding options are available when you order at least 1 Sets.
Place brand on package US $50.0 / Set
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Automatic Grade:
Semi-Automatic
Place of Origin:
Fujian, China (Mainland)
Brand Name:
High Tech Grinding
Model Number:
HTG-800-4A
Voltage:
220-240V/380-440V
Power(W):
15KW/20HP
Dimension(L*W*H):
87*142*132cm
Weight:
555KG
Certification:
CE SGS ISO9001
Warranty:
3 Year
After-sales Service Provided:
Overseas service center available
Property:
Super Concrete machine
Grinding disc:
256mm*4
Rotating speed:
450-1950rpm
Inverter:
25HP
Water Proof:
2.55m
Water Tank:
24L
Add Weight Iron:
25kg*2
Motor:
20HP
MOQ:
1set
OEM:
yes
Video Description
Manufacturing Center

 Xingyi Factory had developed for 19 years,Awarded 123 patents for inventions.Helping our clients finished many kinds of floor  maintance grinding  polishing projects.

Product Description

800-4A is used to grind, coarse grind, prepare and polish concrete, natural stone and terrazzo floors or other materials specified in this manual

Features and Advantages:

1.Reduce the labor force greatly ( Machine can walk by itself and operator only needs to join when turn around )

2.Walking at setting speed with long battery life ( Machine can walk at setting speed at upward or downgrade slope. For example, if you make setting 10meter/min, machine will proceed base on the program instruction)

3.Built-in battery for easy handling.

4.Long battery life ( Charge 7 hours can walk 25 hours )

Technical Parameters:

ModelHTG-800-4A
Voltage220-240V/380V-440V, 3Phase
Input Power15KW(20HP)
Inverter18.5KW(25HP)
Current 29.3/50.5AMP
 HZ50/60HZ
Work Area800mm
Disc Speed450-1590RPM
Disc Diameter256mm*4
Water Tank24L
Extra Weight2*20KG
Weight

521kg

L*W*H150*85*218cm



Machines shows



1. Operating handle: The position of the hand when operating

2. Sponge sleeve (handle): Make the operation more comfortable

3.Operating handle adjusting pin: Pull out the pin, the handle can be free to rotate to the appropriate location to operate the machine.

4. Manual control emergency stop switch: When the machine is in danger or need urgently stop, through the emergency stop switch off the power, stop the operation of equipment to achieve the protection of personal and equipment safety.



Our Services

 Xingyi Polishing Machine Co.,Ltd is proud to be one of biggest system integrators that providing full-floor polishing products and service in China.

Our Certifications

 Our company has more than 100 patents for inventions and 39 offices and has won certifications.

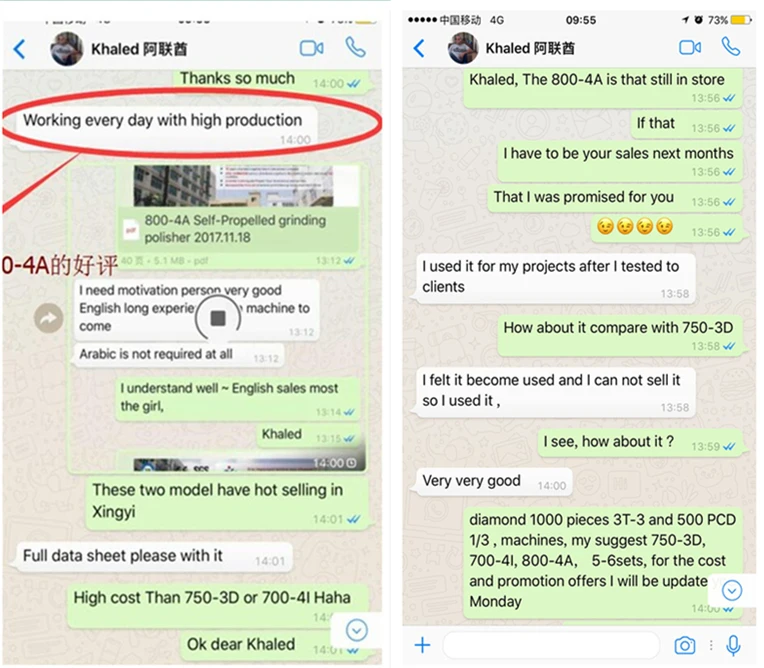

Customer Evaluation

Packing & Delivery

Packing Dteails:Each floor grinding machine packed in strandard  wooden case.
                          Delivery Time:Shipped in 7 days after payment.



FAQ

Q: Are u the manufacturer ?
A: Yes of course, we are the manufacturer ! we welcome clients to visit our factory to inspect our
produce process at any time.Our factory is located in Jinjiang, China ( Xiamen airport, Xingyi pick up )

Q: How long your product's warranty ?
A: One year warranty .

Q: What is your MOQ ?
A: 1 set

Q: What is your packaging ?
A: We package in Plywood case.

Q: What is your payment method ?
A: 100%^Or 50% T/T advance, the balance should be pay off before shipment.

Q: Do your machine can be custom-made ?
A: Yes, we can design and produce according to client’s requirements.

Q: What is your delivery time ?
A: 7~20 days ( according to the total quantity )

Company Information

1.We are the one of the biggest system integrates which providing Full-floor polishing products and service in China.

2.Not only we are a factory,but also have our own engineering company.

 Any questions about the machines or projects,we can give you a free  technical guidence.

3.We have a 34 foreign offices across the global so that we can provide an extremely  details and customer support.

4.Our annual international floor treatment seminar is more and more popular among famous connoisseurs.
