D006 2.8inch OLED Modules 256x64 Graphic Display screen

FOB Reference Price:Get Latest Price
  • >=1
    US $19.48
Supply Ability:
1000 Piece/Pieces per Month
Port:
dalian
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
good display
Model Number:
GDO0280B
Outline Dimension:
84.00(W)x25.80(H)x2.00(T)mm
Visual Area:
71.104x19.264mm
Active Area:
69.104(W)x17.264(H)mm
Display Format:
256x64 Dots
Interface:
SPI
Appearance:
Blue on Black
Viewing Angle Range:
Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
Operating Temperature:
-30℃~85℃
Storage Temperature:
-40℃~90℃
Power Supply:
2.8V
Packaging & Delivery
Packaging Details
TBD
Delivery Time
7 days
General Description

Introduction

GDO028B is the graphic OLED display module made of 256x64 individual,blue OLED pixels,diagonal is only 2.8 inch.The controller ic SSD1322, communicates via 6800/8080 8-bit parallel and 3-wire/4-wire serial interface. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc is the connector type,we offer optional zif connector(fpc connector).

Parameters & Drawing

Main Parameters:

2.8inch OLED Modules 256x64 Graphic Display screen

Part Number
GDO0280B
Outline Dimension
84.00(W)x25.80(H)x2.00(T)mm
Visual Area
71.104x19.264mm
Active Area
69.104(W)x17.264(H)mm
Display Format
256x64 Dots
Interface
SPI
Appearance
Blue on Black
Display Type
OLED
Viewing Angle Range
Left:80.0 , Right:80.0 , Up:80.0 , Down:80.0 degree
Operating Temperature
-30℃~85℃
Storage Temperature
-40℃~90℃
Power Supply
2.8V

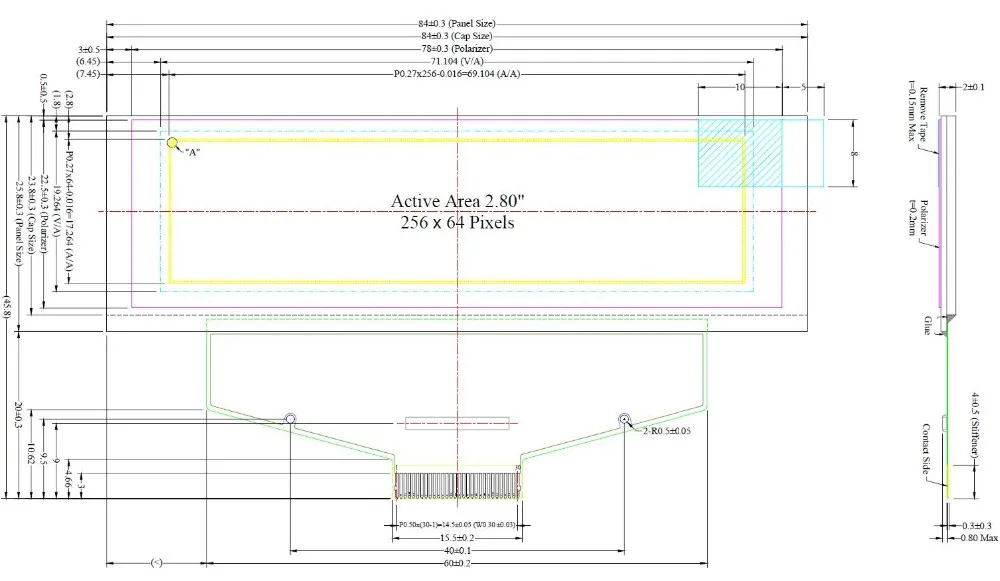

Simple Drawing:
