DC 12V smd 5050 rgb+w/ww rgb+cct 60leds/m ip20 indoor color temperature CCT multicolor 5M flexible rgbww led stripe

Feedback Ratings
  • 5-499 Meters
    $3.20
  • 500-1999 Meters
    $3.10
  • 2000-9999 Meters
    $3.00
  • >=10000 Meters
    $2.90
Support Dimmer:
Yes
Wattage:
14.4W/M
Emitting Color:
RGBWW
Model Number:
IX-60NFS5050RGB+CCT
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized packaging (Min. Order: 1000 Meters)
Customized logo (Min. Order: 1000 Meters)

More

Graphic customization (Min. Order: 1000 Meters) Less
Contact Supplier
Samples - $3.20 /Meter, 1 Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V ( DC24V available )
Lamp Power:
14.4W/M
Lamp Luminous Flux(lm):
20-22lm/LED
CRI (Ra>):
80
Working Temperature(℃):
-25 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CE, EMC, LVD, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
INLUX
Light Source:
LED
Product Name:
SMD5050 Flexible LED Strip
LED Quantity:
60 LEDs/m
Application:
Decorative Lighting
LED Type:
5050RGB+5050CCT 2in1
PCB Color:
White PCB
IP Rating:
IP20 ( IP65/IP67/IP68 available )
Length:
5M/Reel
Warranty:
3 years
PCB Width:
10mm
Beam Angle:
120 Degrees
Item Type:
Light Strips
Emitting Color:
RGBWW
LED Light Source:
SMD5050
Color Temperature(CCT):
RGB+WW+CW

Packaging & Delivery

Selling Units:
Single item
Single volume:
192 cm 3
Single gross weight:
0.02 kg
Package Type:
RGB+CCT flexible LED strip light packed with 5m/reel, Anti-static foil bag and Carton box.
Lead Time :
Quantity(Meter) 1 - 500 501 - 2000 2001 - 10000 >10000
Est. Time(days) 5 7 15 To be negotiated
Product Description

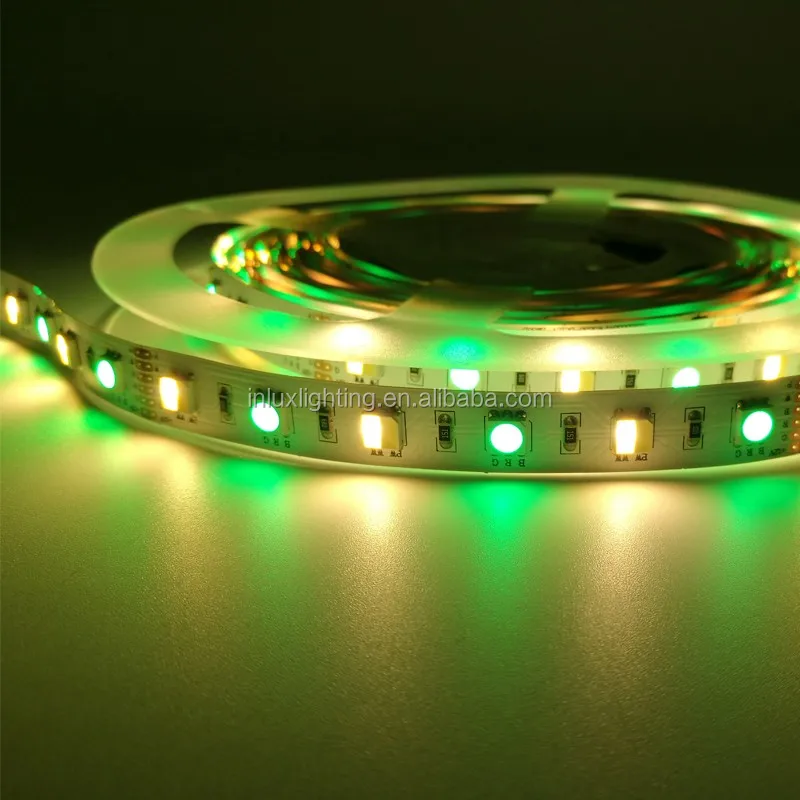

DC 12V smd 5050 rgb+w/ww rgb+cct 60leds/m ip20 color temperature CCT multicolor 5M flexible rgbww led strip light

RGB + CCT warm white and white 2in1 5050 RGBWW 60LEDs/meter flexible strip light provides more colorful and changeable lighting effect.

Different types of SMD5050 RGBW 4in1 RGB+W led strips and RGB+CCT RGBWW led strips for options: 30LEDs/M, 60LEDs/M, 120LEDs/M, 42LEDs/M, etc. 5050 SMD flexible LED strip is currently one of our popular LED strips available. We offer a Color Rendering Index (CRI) over 80/90/95, and high CRI flexible 5050LED strip light is an ideal solution for both commercial and domestic lighting applications.

Model Number
IX-60NFS5050RGB+CCT
LED Typ&Qty
5050RGB+5050CCT 2in1 60LEDs/M
Working Volatge
DC12V( DC24V available )
Power
14.4W/M
Luminous Flux
20-22lm/LED
Colour
RGB + WW&CW changeable
PCB Size
10*5000mm(W*L)/Reel
IP Rating
IP20 ( IP65 , IP67, IP68 available )
Beam Angle
120°
Cuttable Unit
6 LEDs per 100mm
Features

LEDs, as the lightsource of LED strip lights, are strictly selected according to the above parameters.

We only use LEDs made up of pure gold wire and pure copper bracket which provide good heat sink, low luminous flux decay and longer lifespan.

Flexible PCB: FPC is made up of 2Oz, 3Oz or 4Oz thick double-layer oxygen-free copper flexible PCB, excellent for electrical conductivity and heat-sink.

1. Original 3M double-sided adhesive tape high strength, permanent bonding and thermal conductive, 9495LE/300LSE, GTM720, GTM725, 55280 and VHB 5952, etc available.

2. Quality silicone tube and silione gel are used for waterproof craft, ensuring high transparency and no yellow with age.

3. Original RALEC lead-free and halogen-free thick film chip resistor with F(±1%) or F(±5%) with precise control of electrical current to protect optoelectronic components.


Color Temperature Tolerance
Color temperature tolerance by MacAdam 5 step and 3 step are available. Normally the tolerance is ±100K by MacAdam 5 step and ±50K by MacAdam 3 step.We only use the same bin for each color temperature range under the precise test by integrating sphere, which ensures the same lighting color for different deliery batches without chromatic aberration.


Color Rendering Index
Color rendering index (CRI) of lighting sources is a quantitative measure of its ability to reproduce the colors of various objects faithfully in comparison with an ideal or natural light source. High CRI is important because high CRI lighting sources can reproduce the colors of various objects faithfully in comparison to a natural light source such as the sun. For example, Art galleries and clothing stores require high CRI lights to show the real colors of objects naturally and vividly. Therefore, we produce high CRI such as 80Ra, 90Ra, 95Ra LED strip lights.


Waterproof

IP20: Non-waterproof for indoor use.


IP65: Silicone gel coating, preventing multi-directional and low-pressure water jets for damp and moist areas use


IP67: Silicone hollow tube covered, protected from water immersion between 5.9 inches and 39.37 inches within 30

          minutes for indoor and outdoor use.


IP68: Silicone tube + silicone glue filling, is suitable for continuous immersion in water under conditions for indoor, outdoor and underwater use.

Accessories

              LED Aluminum Profile

                    LED Controller

Our Company
Application
Packing & Delivery
FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 10,000 meters

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
