DN15 1/2" motorized motor operated ball valves mini electric valve

Feedback Ratings
  • 1-9 Pieces
    US $19.50
  • 10-99 Pieces
    US $19.00
  • >=100 Pieces
    US $18.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
electric valve
Material:
Brass
Temperature of Media:
Low Temperature
Media:
Water
Port Size:
DN15 1/2''
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
electric valve
Brand Name:
Tonhe
Application:
General
Type:
with indicator
Certificate:
CE, NSF61,Rohs, IP67
Body material:
brass
Color:
Customer's Request
Torque:
2 N.m
Voltage:
DC5V
Working current:
≤500MA
Open/close time:
≤5 Sec
Seal Material:
EPDM & PTFE
Product name:
DN15 1/2" motorized motor operated ball valves mini electric valve

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X8X9 cm
Single gross weight:
0.4 KG
Package Type:
6pcs/carton, 10pcs/carton
Lead Time :
2
Product Description



DN15 1/2" motorized motor operated ball valves mini electric valve

Size  1/2''
Material Brass
Fields of applications Water
Maximum working pressure 1.0MPa
Rated VoltageDC5V
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment



Specifications:

Model: T15-B2-CR201-C

Size: 1/2''

Internal diameter: 15mm

Rated Voltage: DC5V

Working current: less than 80MA

Open/close time: less than 5S

Wiring control: CR2-01

Life time: 70000 times

Manual override: Yes

Indicator: Yes

Max. working pressure: 1.0MPa

Actuator material: Engineering Plastics

Sealing material:EPDM & PTFE

Body: Brass

Max. torque force: 2 Nm

Cable length: 50cm

Actuator rotation: 90 degree

Liquid temperature: 2 Celsius-90 Celsius

Environment temperature: -15 Celsius-50 Celsius

Protection class: IP67



 DN15 1/2





Application

Water meter , water leak detection system and water treatment etc equipment

HAV and fire works. Automatic drain system

Irrigation ect small control equipment




Pls confirm the above different versions of actuators

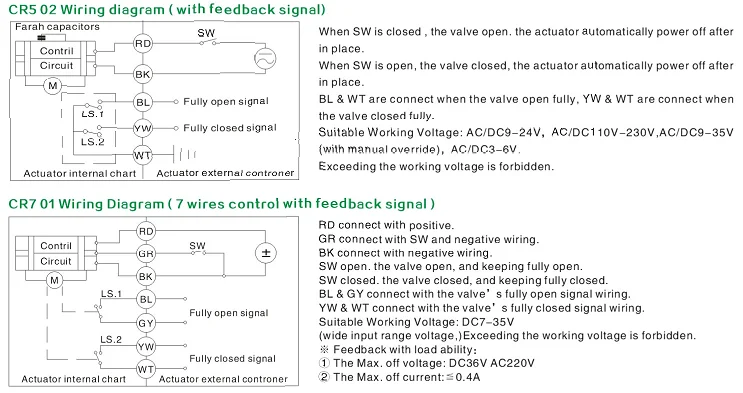

 Wiring Diagram

DN15 1/2DN15 1/2DN15 1/2

DN15 1/2

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


DN15 1/2

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


DN15 1/2


DN15 1/2
DN15 1/2

DN15 1/2
DN15 1/2

Packaging & Shipping


DN15 1/2



DN15 1/2
FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.

DN15 1/2



Packaging Details
