DN20 3/4" 9-24V SS304 Eletric Timer Controlled automatic water ball valve

Feedback Ratings
  • 1-99 Sets
    US $38.00
  • 100-499 Sets
    US $35.00
  • >=500 Sets
    US $33.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Straight Through Type
Pressure:
Medium Pressure
Power:
Electric, Electric,Motor
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
3/4"
Place of Origin:
China (Mainland)
Model Number:
A20-S20-S2-C
Brand Name:
Tonhe
Application:
Automatic drain water
Rated Voltage:
AC/DC9-24V,
Life Time:
70000 Times
Protection Class:
IP67
Certification:
CE, NSF61
Name:
automatic drain valve
Open/closed time:
≤ 7

Packaging & Delivery

Selling Units:
Single item
Single package size:
11X8X8 cm
Single gross weight:
0.55 KG
Package Type:
carton
Lead Time :
3



 TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/2”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.Our company also approved SGS ISO9001 in 2013 .



Product Description

3/4'' DN20 AC/DC 9-24v time controlled water motorized/electric ball valve with timer

Size

NPT/BSP 3/4", Please chose one thread and remark it.

Material 304 stainless steel
Fields of applications Water
Maximum working pressure 1.0MPa
Rated VoltageAC/DC9-24V
Packaging Standard export package or Customized
PaymentL/C,D/P,T/T
DeliveryNingbo Port,3-20 days after payment












For occasions

1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection.

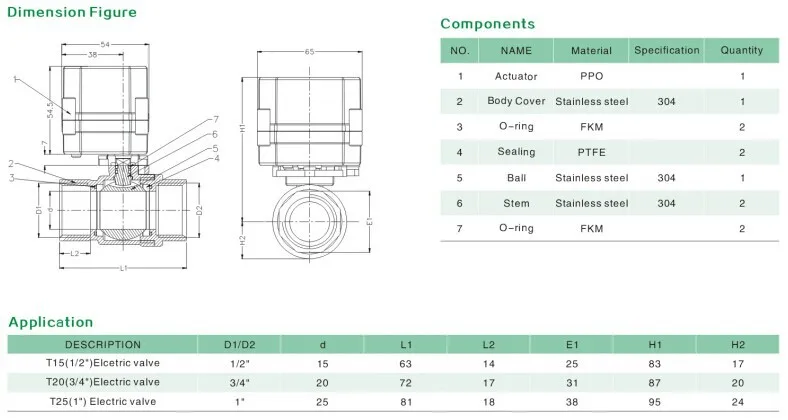

Detailed information

.jpg

  DN20 3/4"  9-24V SS304 Eletric Timer Controlled automatic water  ball valve

Technical Parameters:

Valve size -------------------  3/4“

Valve Body material -------  304 Stainless Steel

Actuator material ----------  Engineering Plastics

Sealing material ------------  EFKM & PTFE

Rated voltage --------------  DC/AC9-24V

Working current -----------  ≤500MA

Life time  -------------------  70,000 times

Protection class  -----------  IP67

Open/close time    --------- ≤7 S

Actuator rotation  ---------- 90°

Max. torque force  --------- 3Nm

Cable Length --------------  0.5m, 1.5m (Optional)

Manual override   ---------- No

Indicator   ------------------ Yes

Maximum working pressure --------- 1.0MPa

Circulation medium -------------------  Fluid, Air

Environment temperature ----------  -15℃~50℃

Liquid temperature ------------------   2℃~90℃

Time control range:0 H:0 M:S-- 99H 59M 59S

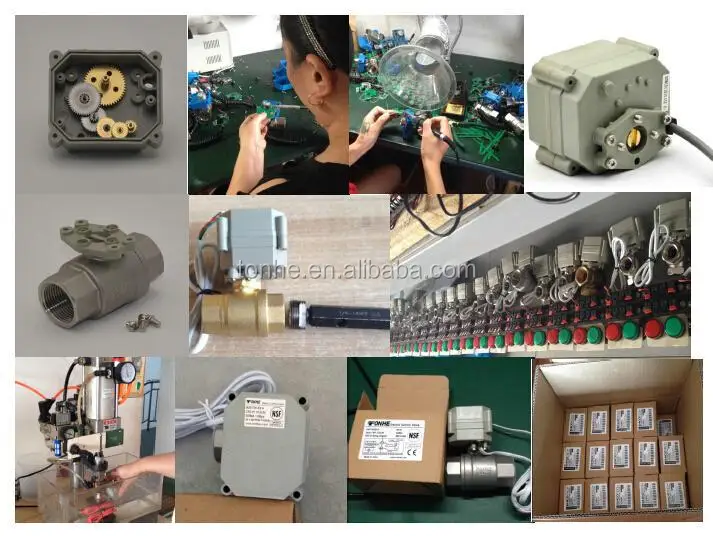

 WORK SHOP

electric actuator valvepackage





   CUSTOMER SHOW

4





Business Steps:

When you inquiry the product , pls confirm below technical info:

1, valve size , material ,

2, working voltage

3, time preseting

4, cable length

Q

Q. what is your payment term?

 A: Paypal and T/T , payment in advance or 50% down payment,  pay off before shipment.

Q: Can I get samples from your factory?

A: Yes,you can order some samples for test.Usually 3 to 7 days.We shipping it as your require,like TNT,UPS,

FedEX and so on.

Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: If products have some quality problem, how would you deal with?

A: One year warranty, Lifetime technical service .We will responsible for all the quality problems, and buy PICC insurance for our products in 2016.
