DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control spring return motorized ball valve

Feedback Ratings
  • 1-9 Units
    US $91.50
  • 10-99 Units
    US $90.50
  • >=100 Units
    US $86.70
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1 Units)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Power:
Manual
Material:
Stainless Steel
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
2 inch
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
A100-T50-S2-C
Brand Name:
Tonhe or OEM
Application:
General
Type:
Normal Colse
Certificate:
CE, NSF61,Rohs, IP67
Body material:
stainless steel
Color:
Customer's Request
Torque:
10N.M
Voltage:
DC/AC9-35V
Working current:
≤800MA
Open/close time:
≤15 Sec
Seal Material:
EPDM & PTFE
Product name:
DN50 2 inch stainless steel electric control motorized ball valve

Packaging & Delivery

Selling Units:
Single item
Single package size:
24X24X10 cm
Single gross weight:
2.2 kg
Package Type:
8pcs/carton
Lead Time :
2
Product Description



DN50 2 inch 2 way CR2 021 DC12/24V SS304 stainless steel electric control spring return motorized ball valve

Product size NPT/BSP 2" (Optional)
Maximum working pressure1.0MPa
Circulation mediumFluid, Air
Rated voltageAC/DC9-35V

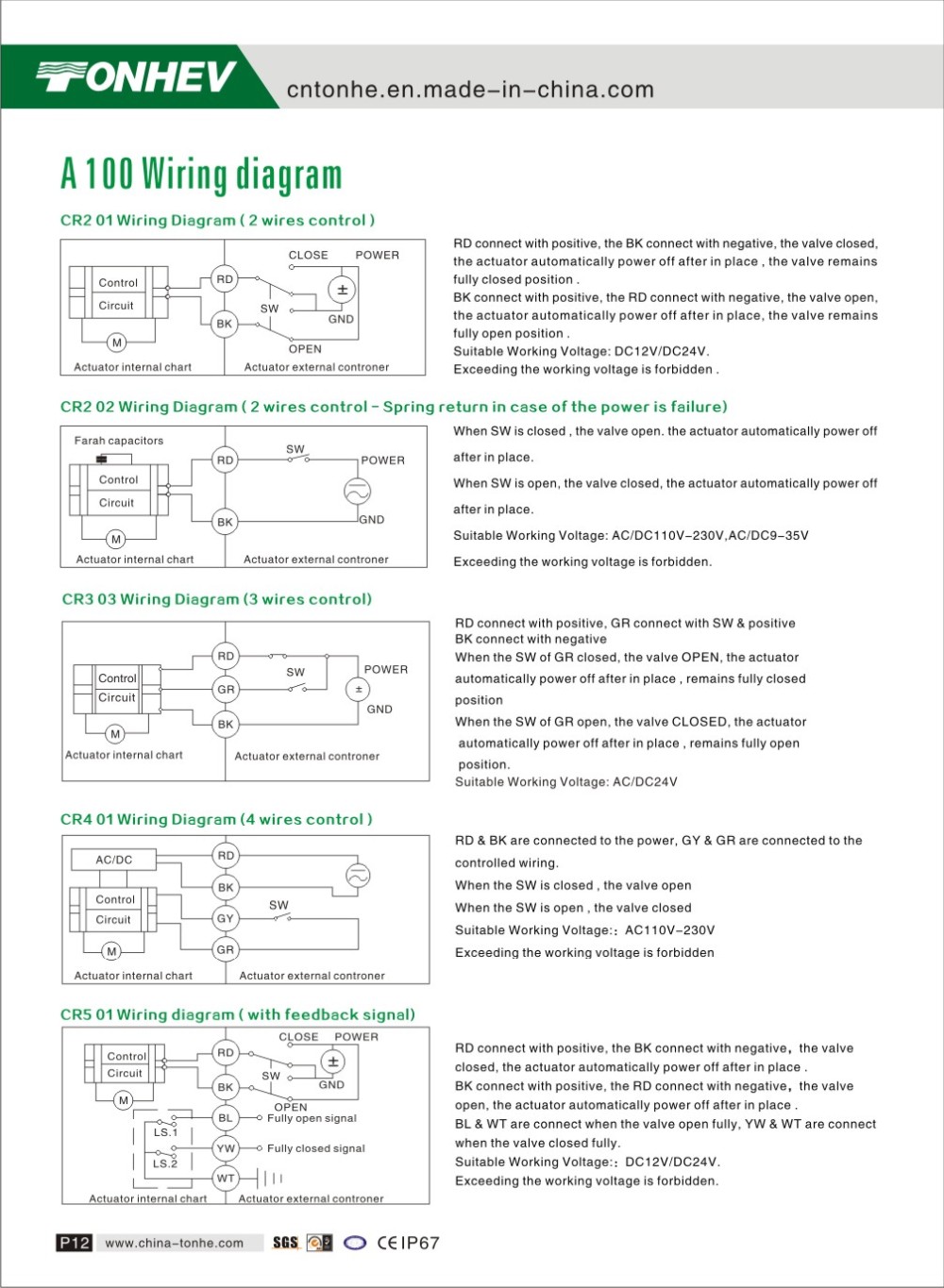

Wiring control methods

CR2-02 Normally closed

Working current≤ 800MA
Open/close time≤ 15 Sec
Life time100000 times
Valve Body materialStainless Steel 304
Actuator materialEngineering Plastics
Sealing materialEPDM & PTFE
Actuator rotation90°
Max. torque force10 Nm
Cable Length0.5m,1.5m (Optional)
Environment temperature-15℃~50℃
Liquid temperature2℃~90℃
Manual overrideNO
IndicatorYes
Protection classIP67


Specifications:

ModelWiring controlWorking voltageMax. torque
T50-S2-CCR2 01

DC12V, DC24V

10Nm
T50-S2-CCR2 02AC/DC9-35V10Nm
T50-S2-CCR3 03DC12V, DC24V10Nm
T50-S2-CCR4 01AC110-230V10Nm
T50-S2-CCR5 01DC12V, DC24V10Nm
T50-S2-CCR5 02AC/DC12-24V10N.M
T50-S2-CCR7 03DC12V, DC24V10N.M
T50-S2-CCR7 04AC110-230V10N.M



 15




 DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve

DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve





Application

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.




Pls confirm the above different versions of actuators



When you inquiry the valve, pls confirm the detail  technical data :

1, valve size , materail

2, working voltage

3, wire control

5, actuator cable 0.5m or 1.5m?


DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve

Pre-sale service

1.We have full stock and can deliver within short time.

2.OEM and ODM order are accepted, Any kind of logo printing or design are available.

3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.

4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose:

1. We will count cheapest shipping cost and make invoice to you at once.

2. Check quality again, then send out to you at 1-2 working day after your payment

3. Email you the tracking no., and help to chase the parcels until it arrive you.

After-sale service

1.We are very glad that customers give us some suggestion for price and products.

2.If you have any question,please contact us freely by E-mail or Telephone.


DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .


DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve
DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve

DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve
DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve


DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve

Packaging & Shipping

 DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve

DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve



FAQ

Q. what is your payment term?

 A: T/T 30% down payment, balance to be paid before shipment. or L/C.



Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe



Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.



Q: Can I get samples from your factory?

A: Yes, Samples can be provided.



Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.

DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve
DN50 2 inch 2 way DC12/24V SS304 stainless steel electric control motorized ball valve
