E-compass Sensor HMC5883L Module of Digital Compass For Arduino

Feedback Ratings
US $6.50 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Alsrobot
Model Number:
RB-02S112
Product Name:
E-compass Sensor HMC5883L Module
Item No:
RB-02S112
Type:
digital sensor
Operating voltage:
5V
Interface type:
KF2510
Operating temperature:
-25℃~+85℃
Products size:
30x25mm
Weight:
3g

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 KG
Package Type:
antistatic plastic bag standard box
Lead Time :
2

Description

A new E-compass also named digital compass from Alsrobot is widespread used as navigating instrument and attitude sensor. This is a triaxial digital compass with I2C serial bus interface and Honeywell HMC5883L IC to achieve high precision and migration inhibition. The feature of this E-compass is 12 ADC, Low noise, self-detection, low voltage operation and wide magnetic field range, with built-in drive circuit and I2C digital interface, so it is small volume, portable and easy operation. This item is widespread used in area of mobile phones, laptops, consumer electronics, car navigation systems, and personal navigation devices.



Specifications



  • Item name:E-compass sensor
  • Item No.: RB-02S112
  • Type: digital sensor
  • Operating voltage: 5V
  •  PIN:
     SDA:I2C bus of USB pin
     SCL:2C bus of clock signal pin
     -:GND
     +:VCC
  • Interface type:KF2510
  • Operating temperature: -25℃~+85℃
  • Weight: 3g
  • Size of fixing holes: 23x18mm
  • Products size: 30x25mm

pictures

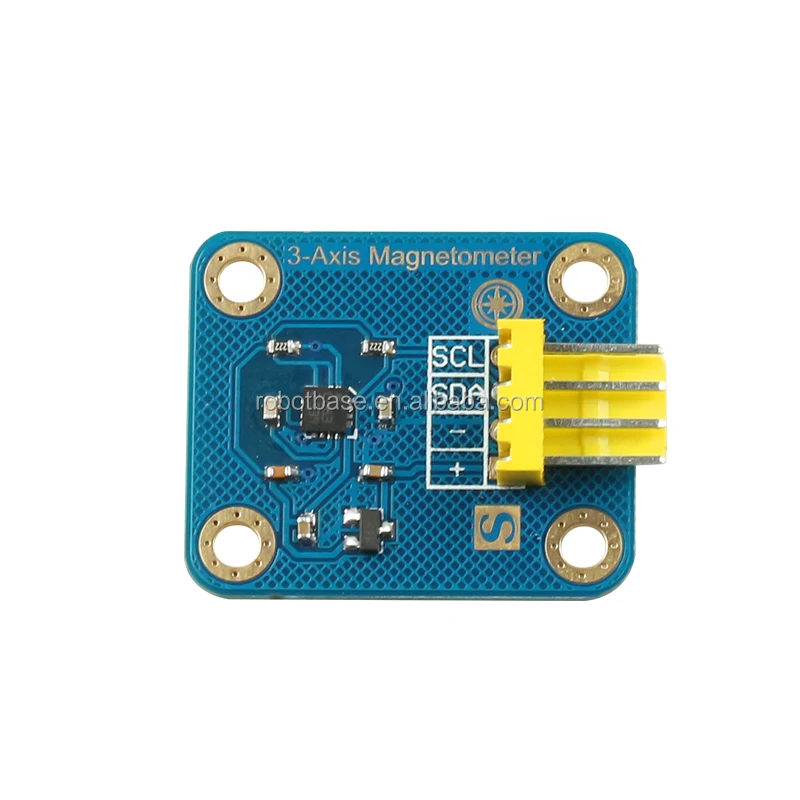

E-compass sensor(Module)-2
