ESP8266 WiFi Module Serial WIFI Wireless Transceiver Module Model ESP-07

Feedback Ratings
US $9.83 / Piece | 1 Piece (Min. Order)
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Quick Details
Brand Name:
Model Number:
Place of Origin:
Guangdong, China (Mainland)
Product name:
ESP8266 WiFi Module
Item No.:
WLAN Standard:
802.11 b/g/n
Frequency range:
2.4GHz-2.5GHz (2400M-2483.5M)
Operating voltage:
Operating current:
average 80mA
TCP Client:
50mm X 25mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X20X10 cm
Single gross weight:
0.5 kg
Package Type:
antistatic plastic bag standard box
Lead Time :

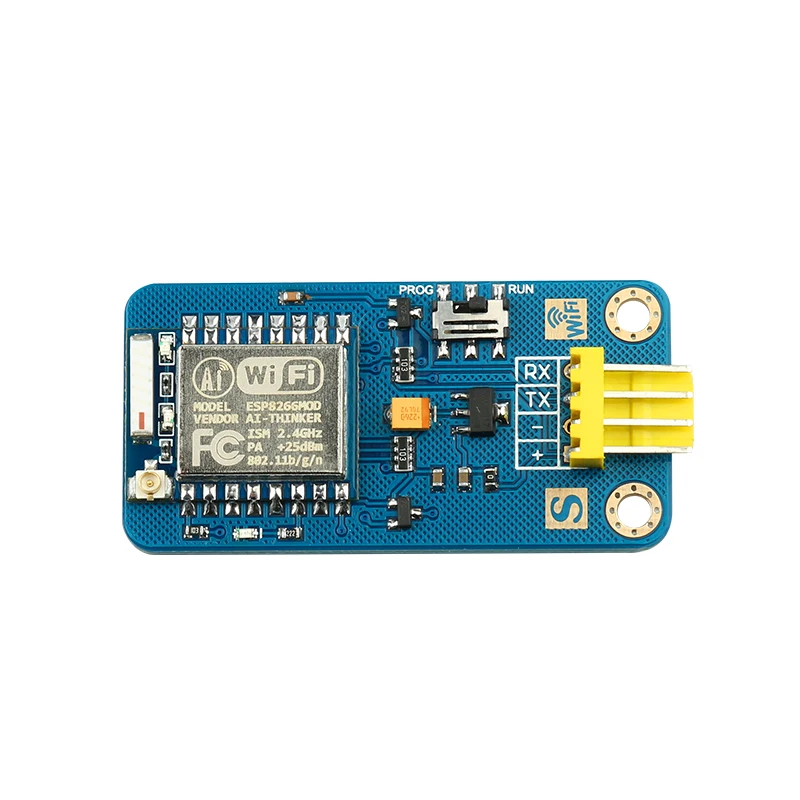

WiFi Module(ESP-07) is a module which carry ESP8266-07 and a low-power UART - WiFi transmission module. It's specially designed for mobile devices and Internet Apps. Connect your physical device to a wi-fi wireless network for Internet or LAN communication and then achieve networking capabilities. In the smaller package ESP8266 integrates industry's top-ranked function of Tensilica L106 low power consumption, 32-bit MCU and with 16-bit condensed mode. Basic frequency supports 80MHz and 160MHz, support RTOS, integrate Wi - Fi MAC/BB/RF/PA/LNA, on-board antenna.Esp8266-07 antenna adopts IPEX interface. This module supports the standard IEEE802.11 b/g/n protocol, complete TCP/IP protocol stack. You can use this module to add networking capabilities to existing devices or to build standalone network controllers. The interface of this module is the serial port, which can realize the data transmission of the serial communication with the controller.

  • 802.11 b/g/n
  • Built-in Tensilica L106 low power consumption 32-bit MCU, basic frequency supports 80MHz and 160MHz, support RTOS
  • Built-in 10 bit high precision ADC
  • Built-in TCP/IP protocol stack
  • Built-in TR switch, balun, LNA, power amplifier and matching network
  • Built-in PLL,voltage regulator and power management components, 802.11b module+20 dBm output
  • A-MPDU,A-MSDU polymerization and 0.4s interval of protection, WiFi @ 2.4 GHz,support WPA/WPA2 safe mode
  • Support AT remote upgrade and cloud OTA upgrade
  • Support STA/AP/STA+AP
  • Support Smart Config(including Android and iOS devices)
  • HSPI,UART,I2C,I2S,IR Remote Control,PWM,GPIO
  • Deep sleep maintains a current of 10 uA, and the cut-off current is less than 5 uA
  • Wake up within 2ms, connect and transfer packet
  • Standby state consumption power is less than 1.0 mW (DTIM3)

  • WLAN Standard: 802.11 b/g/n
  • Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
  • Digital interface: UART/HSPI/I2C/I2S/Ir Remote Control
  • Operating voltage: 3.3V-5V
  • Operating current: average 80mA
  • Operating temperature: - 40 ℃ to 125 ℃
  • Storage temperature: room temperature
  • Interface type: UART serial port
  • Transmission rate: 110-921600bps
  • TCP Client:5
  • Wireless network mode: station/softAP/SoftAP+station
  • Security mechanism: WPA/WPA2
  • Encryption Type: WEP/TKIP/AES
  • Upgrade Firmware: Local serial burning/cloud upgrade/mainframe download burning
  • Networking protocol: IPv4, TCP/UDP/HTTP/FTP
  • User Configuration: AT+instruction set, cloud service, Android/iOS APP
  • Size: 50mm X 25mm
  • Weight: 6g
  • PIN
    TX:serial port transmission
    RX:serial incept

Application fields:

  • Serial port CH340 switches WiFi
  • Industrial penetration of DTU
  • Wifi remote monitoring/control
  • Integrated management of fire fighting and security
  • Smart card terminal, wireless POS machine, wi-fi camera, handheld device, etc

ESP8266 WiFi Module  Serial WIFI Wireless Transceiver Module Model ESP-07

RB-03T048 WiFi Module(ESP-07) connection schematic diagram
