RF2401F20 2.4G High Integrated RF Module With Nordic's RF Chip nRF24L01 2.4ghz rf amplifier transmitter module
Include in the package:
1pcs RF2401F20 module in 2.4G
1pcs red cable Antennas
2.4G Wireless Transceiver Module RF2401F20 Can Be Certified by CE,FCC,ETSI
RF2401F20 Module is a high integrated wireless module,which worked in 2.4GHz of ISM band. RF2401F20 adopts Nordic’s RF chip nRF24L01+ and high efficiency RF amplifier.The feature of high data rate (maximum 2Mbps ), good sensitivity (-102 dBm) and high output power (+20dBm ) but low harmonic and low unexpected radiation extend the range and improve the link performance.
Maximum power output: 20dBm
Sensitivity up to: -102dBm@250Kpbs
GFSK Modulation, 126 Channel
Ultra low power off mode
Support functions of frequency hopping
Timing wake-up function
Internal integrated voltage regulator
perating voltage range:1.9-3.6 V
Operating temperature range: -40~+85°C

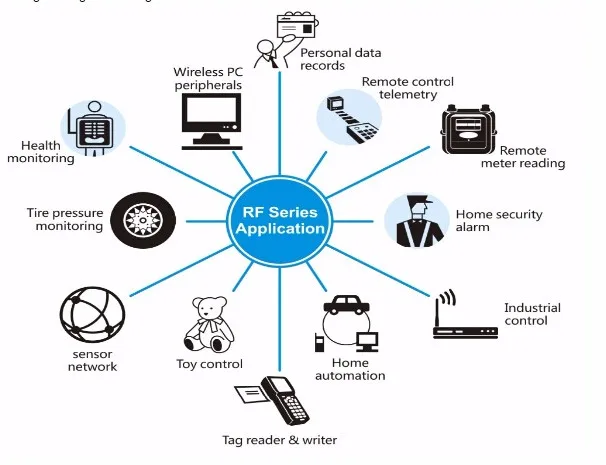

Wireless remote control
Tire Pressure Monitoring
The typical schematic circuit is as below:
1) Master Mode: Send 1 packet per second, and waiting for the acknowledge;
2) Slave Mode: Stay in Rx mode to wait for the data from the master, it will send back the acknowledged signal after
received the data from the master.
3) Tx Test Mode: RF module continuously transmit signal;
4) Rx Test Mode: RF module is always in Rx mode;
5) Standby Mode: RF module is always in standby state.
1) [SET] Button
Press the [SET] button to enter into setting mode; Or press the [SET] button to be out of the setting
mode upon the last parameter is done.
2) [UP/Down] Button
In setting mode, press the [UP/Down] button to increase/decrease the value of flash icon.
Note: The DEMO board has FLASH memory inside, all the setting parameters will be saved automatically and
keep unchanged even power-off.
