GSM/GPRS+GPS+Bluetooth version Module SIM808,lower cost gsm gps module,SIM808, instead of SIM908

Feedback Ratings
  • 5-99 Pieces
    US $8.00
  • >=100 Pieces
    US $7.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SIMCOM
Model Number:
SIM808
Install Style:
SMD
Weight:
3.3g
Supply voltage range:
3.4V ~ 4.4V
GPRS mobile station:
Class B
Dimensions:
24mm*24mm*2.6mm
Interface to external:
SIM 3V/1.8V
AT commands:
via GSM/GPRS serial interface
Embedded:
SIM card IC optional
Three separate antenna connectors:
for GSM/GPRS & GPS & Bluetooth
GPS Receiver:
20 channels, L1 1575.42 MHz

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X2X1 cm
Single gross weight:
0.005 KG
Lead Time :
3



GSM Module Quad Band Bluetooth Version SIM808 Module



Product Description
                                                             Key  Features
ProductFrequency BandsData SpeedDemensionOther Features
SIM808

GSM/GPRS:

850/900/1800/1900MHz

Max.DL:85.6kbps

Max.UL:85.6kbps

24*24*2.6mm

*Control via AT commands

*TCP/UDP/FTP/HTTP

*USB,GPIO,ADC,etc

*GPSSIM808 Module

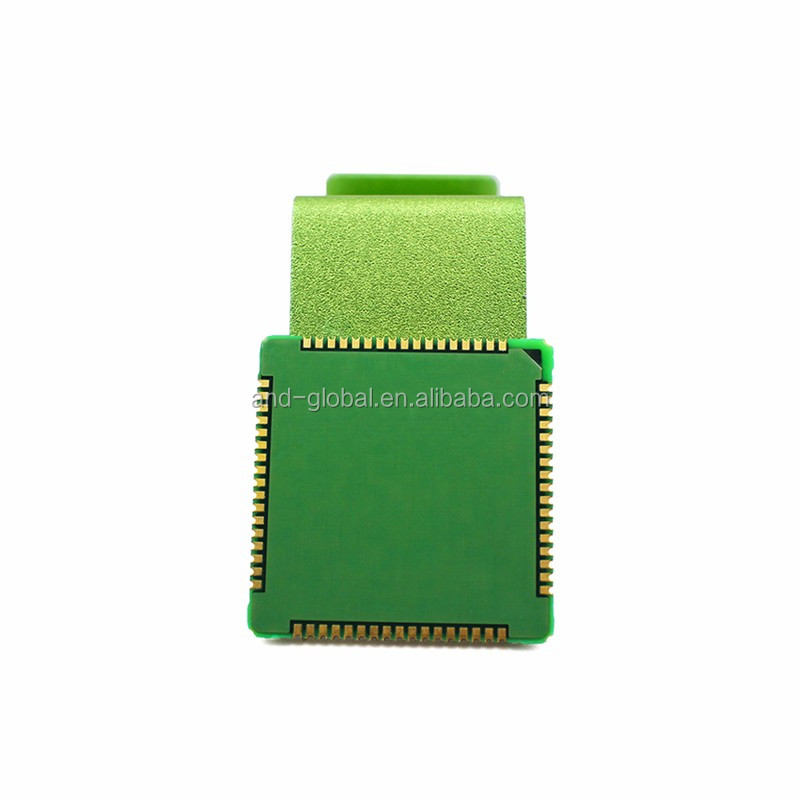

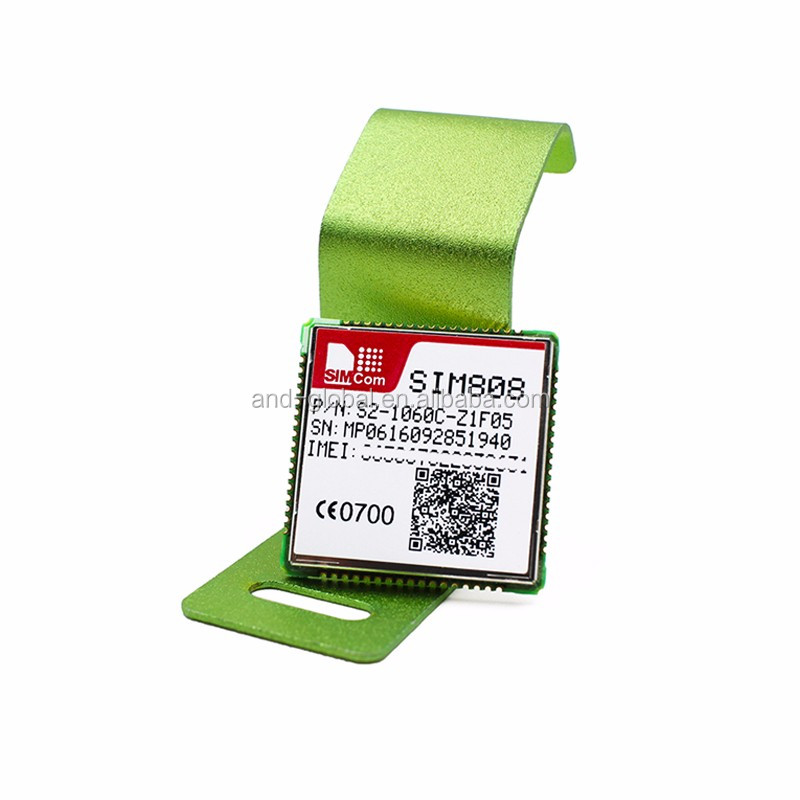

SIM808(BT) (1).jpgSIM808(BT) (2).jpg

More inoformation of SIM808 module

General features

GPRS multi-slot class 12/10

GPRS mobile station class B

Compliant to GSM phase 2/2+

– Class 4 (2 W @850/ 900 MHz)
– Class 1 (1 W @ 1800/1900MHz)

Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)

Low power consumption

Software features

*0710 MUX protocol
*Embedded TCP/UDP protocol
*FTP/HTTP

*MMS

*E-MAIL

*DTMF

*Jamming Detection

*Audio Record

*TTS(optional)

*Embedded AT(optional)

*Bluetooth3.0(optional)

Interfaces

*68SMT pads including
*Analog audio interface
*PCM interface(optional)
*SPI interface (option)

*RTC backup
*Serial interface

*USB interface

*Interface to external SIM 3V/1.8V
*Keypad interface
*GPIO
*ADC
*GSM Antenna pad
*Bluetooth Antenna pad

*GPS Antenna pad

Specifications for GPRS Data

*GPRS class 12: max. 85.6 kbps ( downlink/uplink )
*PBCCH support
*Coding schemes CS 1, 2, 3, 4
*PPP-stack

*USSD
*Non transparent mode

Specifications for SMS via GSM/GPRS*Point to point MO and MT
*SMS cell broadcast
*Text and PDU mode
Specifications for Voice

*Tricodec
 – Half rate (HR)
 – Full rate (FR)
 – Enhanced Full rate (EFR)
*AMR
 – Half rate (HR)
 – Full rate (FR)

*Hands-free operation(Echo suppression)
