Henan Mine 12 ton overhead crane/25 ton mobile crane/100 ton mobile crane

Feedback Ratings
  • 1 Sets
    US $1200.00
  • >=2 Sets
    US $1000.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Feature:
Bridge Crane
Condition:
New
Application:
Widely
Rated Loading Capacity:
20t
Rated Lifting Moment:
different
Max. Lifting Load:
20t
Max. Lifting Height:
30m
Span:
7.5-22.5m
Place of Origin:
Henan, China (Mainland)
Brand Name:
Kuangyuan
Model Number:
LDA Overhead Crane
Certification:
CE GOST ISO SGS
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Crane feature:
Easy Operated Girder Bridge Crane
Control method:
Wireless Remote Control or cabin control or pendant control
Type:
Hoist Single Girder Bridge Crane
Lifting mechanism:
Eliectric Hoist
Color:
Clients' Requirments
Power Source:
3 Phase 380V 50hz or according to your demand
Main electrical parts:
Schneider Brand
Crane type:
key words
Item:
Bridge Launching Girder
Product Description

LDA model top running single girder overhead bridge crane is designed and improved on basis of LD model, compared with LD model; it is equipped with the features of reasonable structure, strong rigidity, and light dead weight of whole set, which could effectively save your factory space and investment cost, its particular and special travelling structure is your best choice. The whole set is used with CD1 and MD1 model electric hoist, a kind of light type crane equipment. It consists of four components: the girder, end carriage, electric hoist and electric control equipment. The Girder adopts the welding structure of U-shaped groove and structure with the I-steel. This transmission system has strong overloading power, suited to frequent starter with simple structure, convenient installation, use and maintenance, low cost, suitable for general lifting of the goods.

This crane is applicable to transfer, assembly, check and repair as well as load and unload various goods at mechanic processing workshop, warehouses, factory, stuff yard and other material handling situations, esp. applied to material handling that need precise positioning, large components precise assembly situations. It is forbidden to use the equipment in flammable, explosive and corrosive environment.

It is operated by ways of ground control, wireless remote control and cabin control. There are open and closed styles for driver’s cabin; it could be divided into left and right installation according to practical situations. Entrance direction adopts profile and top entering to satisfy different needs of customer's choice.


Advantage:
1). First class quality with competitive price

2). Compact design, optimal use of the size of work areas

3). Reasonable structure, favorable performance

4). Control the load easily and position the load exactly

5). Smooth starting and stopping

6). Superior safety and reliability

7). Low noise, commodious cabin and good view

8). Minimum& Easy maintenance, excellent exchangeability for parts and components

9). Saves electricity specifications

10). “One-Stop Shop” for your crane and hoist needs

Safety features:

1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.

2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.

3. Control Method: Room control or remote control to avoid any injure to the operation staff

4. Main lifting motor: with thermal protection and currency protection.

5. Hooks with latch

6. Rubber buffers

7. Protective earthing

8. Crane switch and travel end switch

9. Sub-assemblies characteristic are tested before assemly.

10.All cranes must be preassmebled and tested before leaving factory and offer the certification of test.

Design and construction rules:

All the standards which is required for the crane is the Chinese standard.

You can also give us the layout of the place where the crane will be used, that we can recommend the right one for your reference!

Painting:

Primer and finishing paint

Color: according to your demand.

Average thickness: about 100 microns.

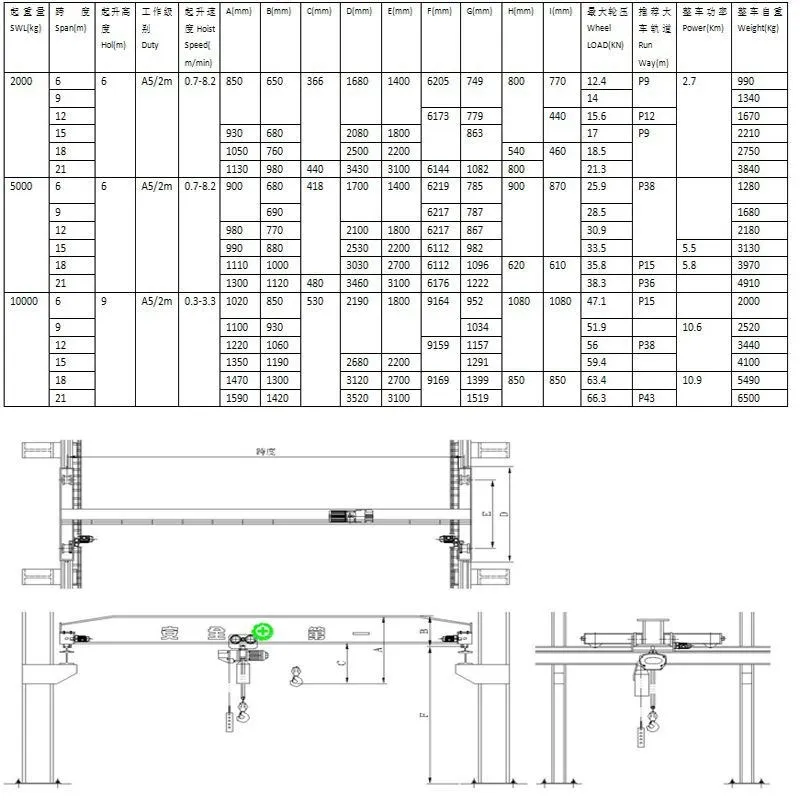

Detailed Image
Packing & Delivery
Our Company

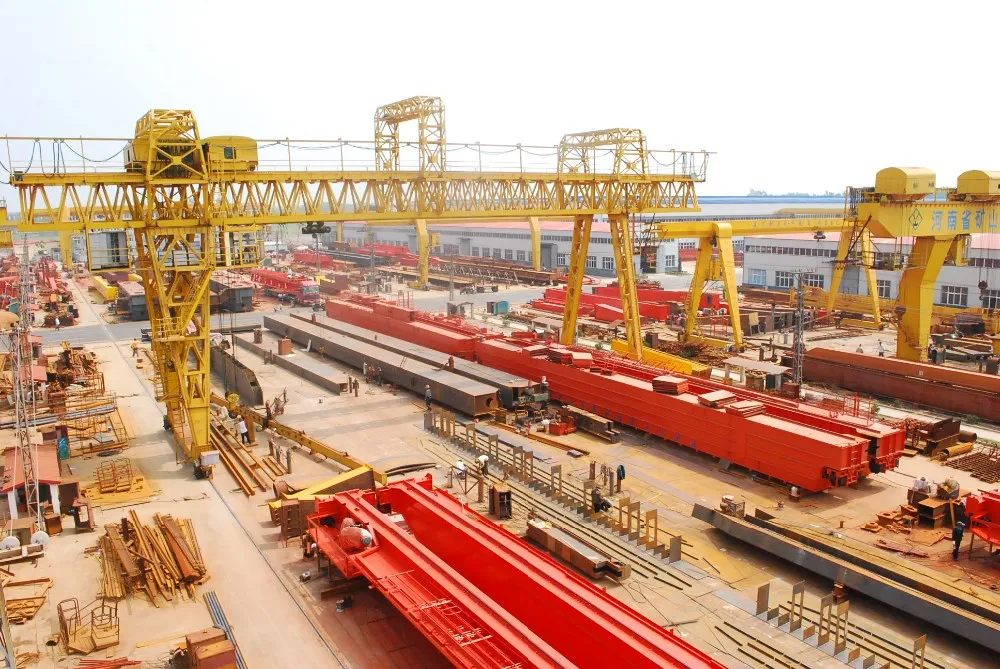

Factory
