High Cost Performance Vacuum Transformer Oil Filter Machine, Dielectric Oil Purifying, Filtering System Model ZY-100(6000LPH)

Feedback Ratings
  • 1 Sets
    US $3500.00
  • >=2 Sets
    US $3000.00
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Suction Filter
Structure:
Vacuum
Place of Origin:
Chongqing, China (Mainland)
Brand Name:
ZN
Model Number:
ZY-100
Power(W):
53Kw
Weight:
550Kg
Dimension(L*W*H):
1600*1000*1800mm
Certification:
ISO9001
Warranty:
1 Year, 2 years
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
ZY-100
Flow rate:
100L/min
Vacuum degree:
-0.06~-0.098MPa
Working pressure:
</=0.5MPa
Breakdown Voltage:
>/=70Kv
Water content:
</=4PPM
Gas content:
</=0.1%
Power supply:
380V, 50Hz, 3P or as requested
MOQ:
1set

Packaging & Delivery

Selling Units:
Single item
Single volume:
2 cm 3
Single gross weight:
300.0 KG
Package Type:
Wooden cases
Lead Time :
2

High Cost Performance Vacuum Transformer Oil Filter Machine,  Dielectric Oil Purifying, Filtering System Model ZY-100(6000LPH)

2018 Hotsale



Application

It is applied to treat various unqualified insulating oils, including aging transformer oil, mutual inductor oil, switch oil etc.



We supply high efficient purification solution for transformer oil.

Dehydration solution: Dewatering filer combined with vacuum tank and add duplex stereo-evaporation technology, fast and completely remove the water and gas from oil.
Impurities-removing solution: Network filtration combined with high polymer filtration, effectively guarantee oil cleanness.
Heating system: Carbon fiber infrared system can effectively protect oil quality and avoid bad oil quality.
Oil Pump system: Use brand oil pump to guarantee oil quality and effectively avoild generating other impure gas.

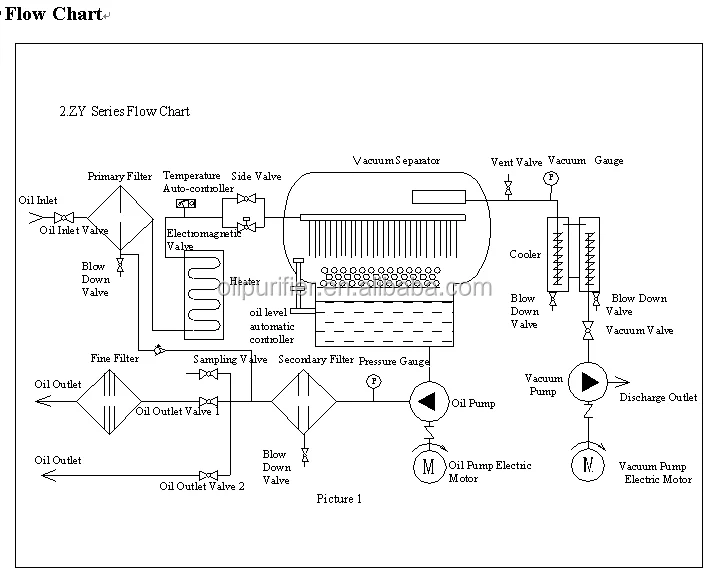

 ZY-1.pngZY-2.png 033.png



What does this machine do?

1. Effectively dewatering and degassing with help of Bi-infrared liquid Duplex 3D stereo-evaporation technology.

2. Compelety remove the impurities by filtering through double FH trapezoidal network and absorbing by high polymer without mechanical power .

3. Automatic testing the oil dielectric strength and printing out teh result.

4, Work as the vacuum oiling machine or vacuum dying machine to the power equipment, Like transformer.



Competitive Advantages

1. It is a new type of high effective vacuum oil purifier with the duplex 3D stereo-evaporation technology and G technology.

2. The whole filtering process do not apply mechanical power and do not damage the oil properties.

3. It's five to eight times more effective than the common vacuum oil purifiers. The comsuption of energy is low and it doesn't require other wearing materies.



Technical Data

Item

Unit

ZY-20

ZY-30

ZY-50

ZY-100

ZY-150

ZY-200

Flow Rate

L/min

20

30

50

100

150

200

Vacuum Degree

MPa

-0.08 ~-0.095

Working Pressure

MPa

≤0.3

≤0.5

Temperature Range

10 ~80

Power Supply

380V, 3PHASE, 50HZ (Or as needed)

Working Noise

dB(A)

≤75

≤75

≤75

≤80

≤80

≤80

Heating Power

kW

18

24

30

45

60

72

Total Power

kW

22

28

35

50

68

80

Inlet (outlet) caliber

mm

25

25

32

42

50

50

Dimension

mm

1500×900×1550

1600×900×1650

1600×900×1700

1600×950×1700

1600×950×1800

1700×1000×1900

Weight

Kg

400

450

600

800

850

900

Breakdown Voltage

kV

≥70

Water Content

PPM

≤5

Gas Content

%

≤0.1

Particles Size

μm

≤1~5(Without Free Carbon)

Cleanliness                                         ≤NAS 1638 Grade 6

Dimensions will be changed if any special type required.

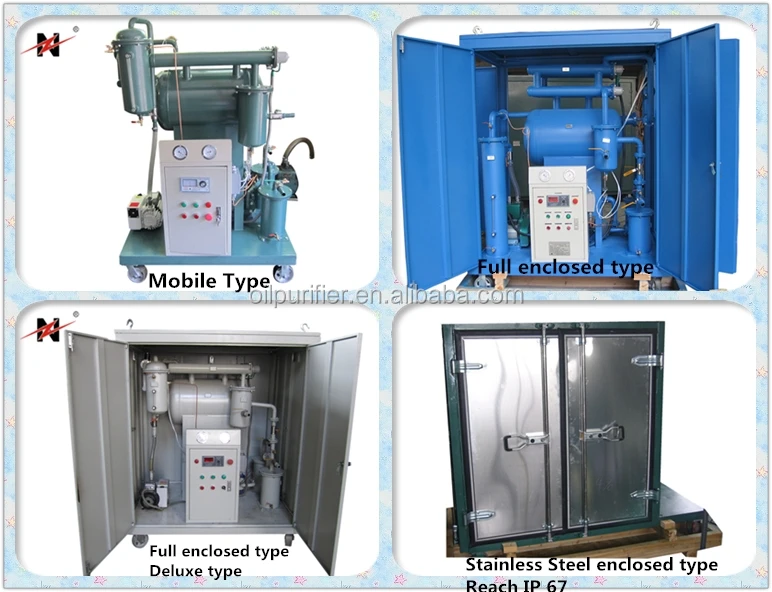

More Choices
1. ZY-A Automatic Vacuum Insulating Oil Purifier Machine (with PLC control system);
2. ZY-M Enclosed Mobile Vacuum Insulating Oil Filtration Plant (with trailer);
3. ZY-RD Vacuum Insulating Oil Regeneration System;
4. ZY-WP Enclosed Weather-proof Vacuum Insulating Oil Purifier Machine.
.jpg

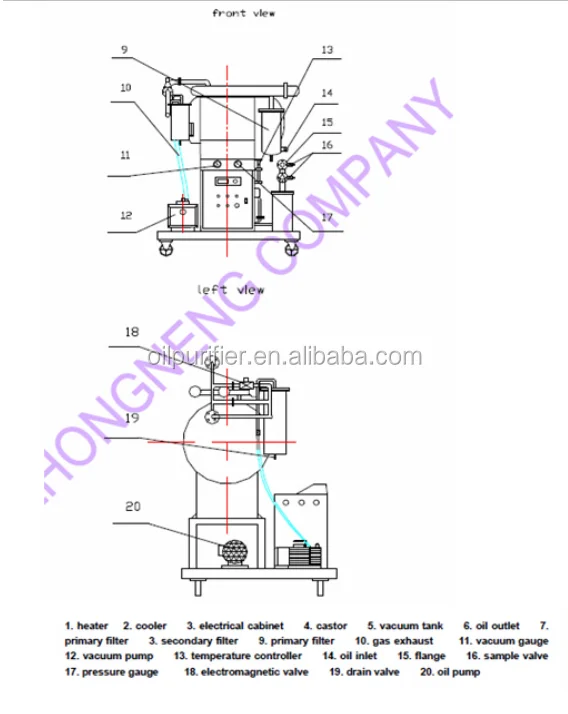

Structure Diagram

Our purifiers also can be used in these fields.





Pre-sales service                                             After-sales service

  • Inquiry & consulting support                                                     Technical training support
  • Sample testing support                                                              Engineers available to service machinery overseas.
  • View factory support

For more info, Please Inquiry us!

Our team is availble to provide service for you!



We are offering practical and functional products with competitive Price!!
If you have any question, Please Contact with us directly!!



Email:sales(at)zhongnengcq.cn
Tel:+86-23-68060921
Web:www.zhongnengcq.com
www.zhongnengcq.cn
POST by Cindy
