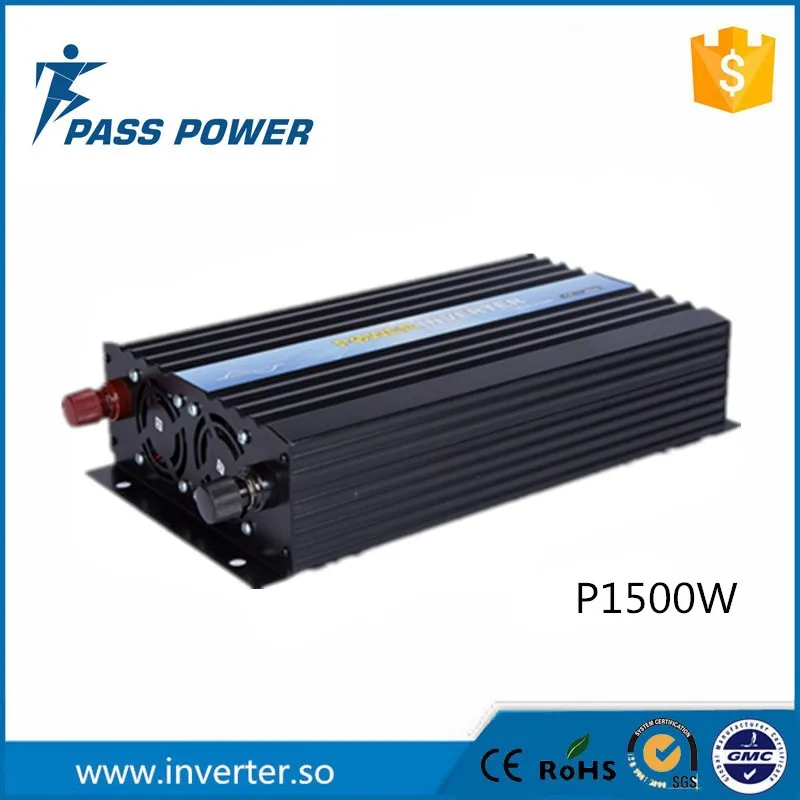

High Frequency DC/AC Inverters Type and Single Output Type Pure Sine Wave Off Grid Power Inverter 1500W

Retailer's Choice
Feedback Ratings
US $143.00 / Piece |1 Piece (Min. Order)
Sign in to view Reseller discounts
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
PASS POWER
Model Number:
P1500W power inverter
Output Power:
1500W
Output Type:
Single
Size:
368*199*78mm
Weight:
4.3KG/PC
Input Voltage:
12v/24v/48V
Output Voltage:
100VAC/110VAC/220VAC/230VAC
Type:
power inverter 1500w
Output Frequency:
50Hz/60Hz
Output Current:
6.5A-15A
Item Name:
power inverter 1500w
Start:
Soft-start
Efficiency:
86%~90%
Grid type:
Off-grid power inverter 1500w
Peak power:
3000W (within 5ms)
Output waveform:
Pure sine wave power inverter 1500w
THD:
<3%
Warranty:
One year warranty
Sockets:
Plugs can be customized various countries
Certificate:
ISO9001/CE /RoHS/ TUV / SGS/ IP30

High Frequency DC/AC Inverters Type and Single Output Type Pure Sine Wave Off Grid Power Inverter 1500W

Product Description

 Features for power inverter 1500w

1. High conversion efficiency,fast start

2. Pure sine wave output

3. Soft start function

4. Strong load adaptability and stability

5. Provide over current and short circuit protection,to avoid electrical appliances

6. Temperature control cooling fan,safe and effective

7. Built-in fuse,safe and reliable

8. One year warranty provided

9. DC 36V,DC 72V,DC 96V,DC 110V/AC 120V,AC 200V can be customized

10. The plug can be customized various countries



 Technical data for power inverter 1500w

Model

P1500-12-110

P1500-24-110

P1500-48-110

P1500-12-220

P1500-24-220

P1500-48-220

Rated Power

1500W

1500W

1500W

1500W

1500W

1500W

Peak power

3000W(wihin 5 millisecond)

DC input voltage

12V

24V

48V

12V

24V

48V

AC output voltage

110VAC±10%

220VAC±5%

No-load current

<1.6A(DC13V)

<1.05A(DC26V)

<0.75A(DC52V)

<1.6A(DC13V)

<1.05A(DC26V)

<0.75A(DC52V)

AC Output frequency

50HZ±1%/60HZ±1%

AC Output wavaform

Pure sine wave

Waveform distortion

THD<3%(Linear load)

Full load efficiency

>86%(DC13V)

>88%(DC26V)

>90%(DC52V)

>86%(DC13V)

>88%(DC26V)

>90%(DC52V)

DC input voltage range

10.6V~15.5V

21.6V~30V

43.2V~63V

10.6V~15.5V

21.6V~30V

43.2V~63V

Low  voltage alarm

10.5±0.3V

21±0.6V

41.8±1.2V

10.5±0.3V

21±0.6V

41.8±1.2V

Low voltage shutout

9.5±0.2V

19±0.3V

38±0.4V

9.5±0.2V

19±0.3V

38±0.4V

Over voltage protection

16±0.5V

31±1V

65±2V

16±0.5V

31±1V

65±2V

Low volatge recovery

11.8±0.3V

23.6±0.4V

47.2±0.8V

11.8±0.3V

23.6±0.4V

47.2±0.8V

Over voltage recovery

15.7±0.3V

31.8±0.4V

63±1V

15.7±0.3V

31.8±0.4V

63±1V

Over-load protection

113%~120%

Protective function

Low voltage:LED red light turn on,buzzer warning, automatic recovery

Over voltage:LED red light turn on ,automatic recovery

Over-load: LED red light on,machine locked, need to be rebooted

 Over temperature:LED red light turn on,buzzer warning, automatic recovery

Short circuit(within 2 seconds):automatic recovery

Input reverse connection :Fuse burn-out

Work temperature

–10℃- +50℃

Storage  temperature

–30℃- +70℃

Humidity

20%~90%RH without condensation

work altitude

Less than 1200m

Size

368*199*78mm

Net weight

4.3±0.05kg

Package size

455*260*170mm(1pc);520*260*30.5mm(2pcs)

Gross weight

5.7±0.05kg/1pc

5.5±0.05kg/1pc

5.38±0.05kg/1pc

5.7±0.05kg/1pc

5.5±0.05kg/1pc

5.38±0.05kg/1pc

11.1±0.1kg/2pcs

10.6±0.1kg/2pcs

10.5±0.1kg/2pcs

11.1±0.1kg/2pcs

10.6±0.1kg/2pcs

10.5±0.1kg/2pcs



 Detailed pictures for power inverter 1500w

Universal plug for power inverter 1500w

Amercian plug for power inverter 1500w

Germany plug for power inverter 1500w

the plugs can be customized various countries

cables are free

quality is our culture

 Application for power inverter 1500w



1, consumer electronics/portable stereo, TV, amplifier, high fidelity equalizer;
2, computer/mobile office: fax machines, laptops, monitors and CD-ROM;
3, adapter/battery charger, phone charger, rechargeable drill, camera adapter;
4, lamp/ordinary working lamp, ordinary incandescent desk lamp, spot light, low spot;
5, motor pump/spray air pump, motor, air compressor;
6, electric tool/machine, electric saw, electric drill, grinding sand volume sawing, grinding, welding torch, circular saw, vacuum cleaners, electric;
7, household/mixer, processing machine, dryer, toaster, washing machine, air conditioner, electric kettle, coffee pot






Packaging & Shipping



 Packing & Delivery

1) packing way: by standard carton box,with bubbles outside and foams inside for protection.

     packing size: 455*260*170mm/pc;455*260*305mm/2pcs

     packing weight: 5.7/1pc; 11.1kg/2pcs





2) delivery time: delivery goods with 7-28 days after received the deposit for bulk order,sample order: 2-3 days



 Shipping Way

1) by international express to your door house,such as SF,DHL,UPS,Fedex,TNT and EMS.

2) by air transpotation,to your local airport

3) by sea transpotation,to your local seaport (FOB/CNF/CIF)

4) if you have your own shipping agent,is also welcomed



Company Information

 Company Profile

Suzhou Maili Electrical Appliance Co. LTD is a professional manufacture and exporter in the field of inverter, battery charger power supply for more than 10 years.

It is integrated the inverter production, R&D, and sales team together

It is located in the National advanced technology development zone of Yangtze river delta

Maili has developed into the modern science and technology enterprise, owing to the convenient location, strong industrial foundation, the advantageous talents teams.



 Pass Power Products Range







Our Services

 Pass Power Service



1. Samples

Samples are Available for Testing and Market Test.



2. Warranty of  Pass power Products

Pass Power provides one year warranty



3. Guides and After-service Consultancy

Pass Power Team will offer these guides below.

  A. Need an Accessory?             B. Products Repair?

  C. Power Problems to Solve?    D. Power Protection Solutions, etc.?



4. OEM Service



 Certificates





Exhibitions

FAQ

 FAQ

1. How to choose suitable inverter ?

If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter. For example: fans, precision instruments, air conditioner, fridge, coffee machine, computer, and so on. Modified wave can be started with some inductive loads, but effect for load using life, because capacitive loads and inductive loads need high quality power.



2. How to choose the power of the inverter?

Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.

Notice: resistive load: you can choose the same power as the load.

Capacitive loads: according to the load, you can choose 2-5 times power.

Inductive loads: according to the load, you can choose 2-6 times power.



3. Why use a short cables when inverters connecting to the batteries?

We usually believe that cables connecting battery terminal to inverter shorter is better. If you are just standard cable should be less than 0.5M, but should correspond to the polarity of the batteries and inverter-side outside. If you want to lengthen the distance between battery and inverter, please contact us and we will calculate the recommended cable size and length. Due to long distances using a cable connection, there will be a reduced voltage, which means that the inverter voltage would be far below the battery terminal voltage, this inverter will appear under voltage alarm conditions.



4. Maybe you will say WHY price of other suppliers is cheaper than ours?

Quality is our culture.Our inverter's components are very high quality.We adopt high&new technology, use American, Japanese origial packing material, European standard.we use material 100% pure copper transformer , NOT Copper-clad aluminun.

Continuous power of our inverter are FULL power. inverter of other suppliers are not enough, even though only half of power marked.



A good supplier can let you half the work with double results!

=================================================
