High Performance Infrared Thermal Imaging Camera Thermography

Feedback Ratings
  • 1-9 Pieces
    US $759.99
  • >=10 Pieces
    US $739.99
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
XEAST
Model Number:
DT-980
Usage:
Industrial
Theory:
Infrared Thermometer
Accuracy:
0.2%
Temperature range:
50~350 °C
Tempe.Range:
-20 °C to 300 °C(-4 °F to 572 °F)
Resolution:
60 * 60
FOV:
20*20
Thermal Sensitivity:
0.5 °C
Shortest Focal Length:
0.5m
Measuring Mode:
Thermopile
Image Storage:
SD card(4G)
Battery Type:
4 * 1.5V AA
Battery Life:
6 Hours
Auto Power-off Time:
12 Mins

High Performance Infrared  Thermal Imaging Camera  Thermography



What is the Details of High Performance Infrared  Thermal Imaging Camera  Thermography??



Specifications

DT-980

DT-982

Imaging and optical data

IR resolution

80×80 pixels

120×160 pixels

Focal Plane Array (FPA) / Spectral range

Uncooled microbolometer / 8–14 µm

Focal length

9mm

9mm

Field of View (FOV)

17°x17°

19°x 25°

Minimum focus distance

0.5m

0.5m

Spatial resolution

3.78mrad

2.78mrad

Thermal sensitivity/NETD

< 0.1°C @ +30°C (+86°F)/ 100mK

< 0.1°C @ 30°C (86°F) / 100 mK

Image frequency

50Hz

Focus

Manual

Zoom

1-32x continuous, digital zoom

Image presentation

Image modes

IR image, visual image, picture in picture

Picture in Picture

IR area on visual image

Color palettes

Iron/rainbow/grey/grey inverted

Measurement

Object temperature range

–20 to 150°C (–4 to 302°F)

–20 to 150°C (–4 to 302°F)

0 to 350°C (32 to 662°F)

0°C to 350°C (32 to 662°F)

Accuracy

±2°C (±3.6°F) or ±2% of reading

Measurement analysis

Spot

Center Spot, Auto hot or cold markers

Set-up

laser

< class2

Language selection

English, Chinese, French, German, Spanish

Storage of videos/images

Inside Memory

100M bytes, About 80pictures or one minute video record

Storage media

8Gbytes Micro SD card

Video storage format

Standard MPEG-4, 1280x960@30fps, on memory card > 60 minutes

Image storage format

Standard JPEG, including measurement data, on memory card > 6000 pictures

Digital camera

Built-in visible light digital camera

5 Megapixels

Built-in digital lens data

59°

Data communication interfaces

Interfaces &Video out

USB-mini, audio, HDMI

USB

Data & Live video transform between camera and PC or smartphone

Power system

Battery / Input voltage

Li-ion battery, 4 hours operating time / DC 5V

Charging system / Power management

In camera (AC adapter) /Automatic shutdown

Size (H x W x D): 224mm x 77mm x 96mm    Weight: 500g

Accessories: Infrared camera with lens, Earphone(Optional), Battery, software CD-ROM, wrist strap, micro SD card, Adaptor, USB cable & HDMI cable (Optional), Gift box.

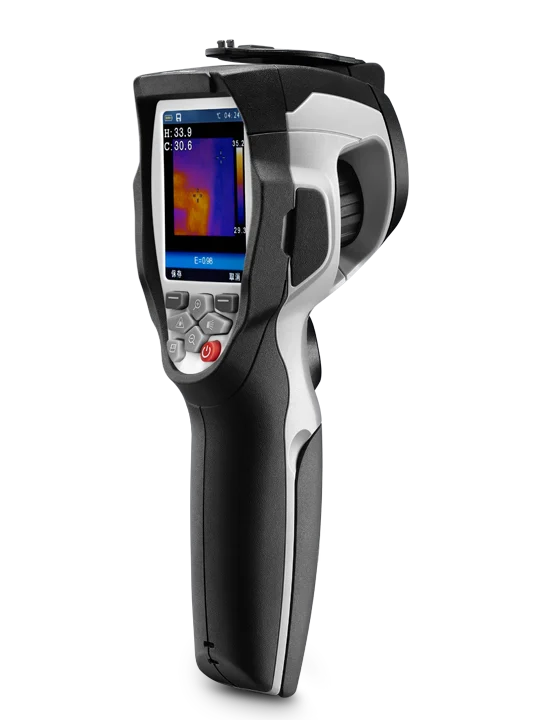

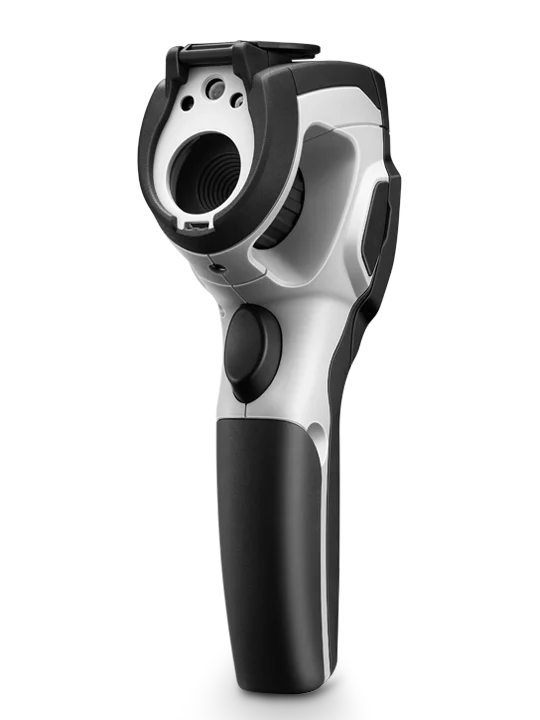

Product Picture

Product Pictures


Product Features



Related Items

XE-02,HT-02

What is The Product Features of High Performance Infrared  Thermal Imaging Camera  Thermography?





High Performance Thermal Imagers
DT-980 (80x80), DT-982 (160x120) Thermal Imagers are designed to make your work easier, more productive and effective. 160 × 120 resolution at 50 Hz for real-time capture, temperature range from -20°C to 350°C (-4°F to 662°F), 32X continuous zoom, picture-in-picture, voice comment recording and text annotation on images. Hot/Cold spot marker automatically finds the hottest and coldest spots. It includes memory card, Lithium polymer battery & power supply, and USB cable. Wi-Fi connectivity allows the Infrared Thermal Camera to send images and data to mobile devices.
1/2.8" LCD Display; 2/Annotate images with Voice; 3/Picture-in-Picture; 4/32X Continuous Zoom; 5/Megapixels Digital camera; 6/iOS and Adriod APP support;
