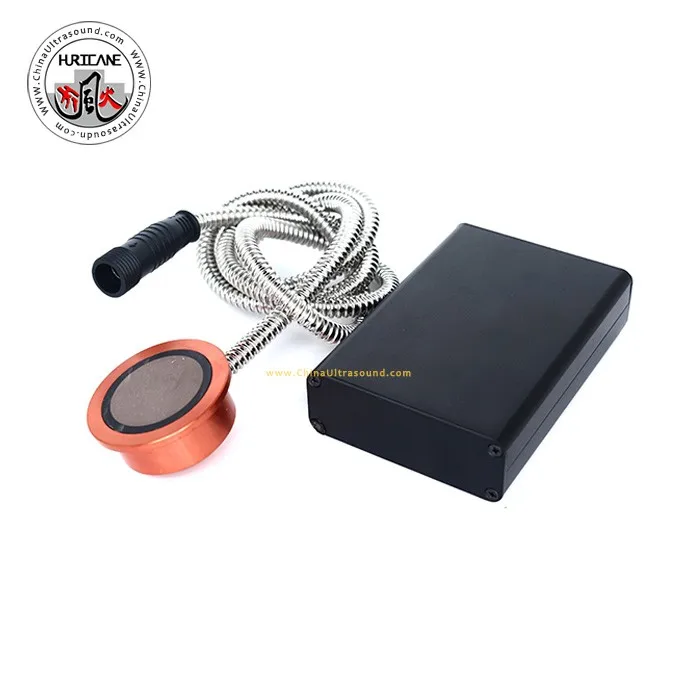

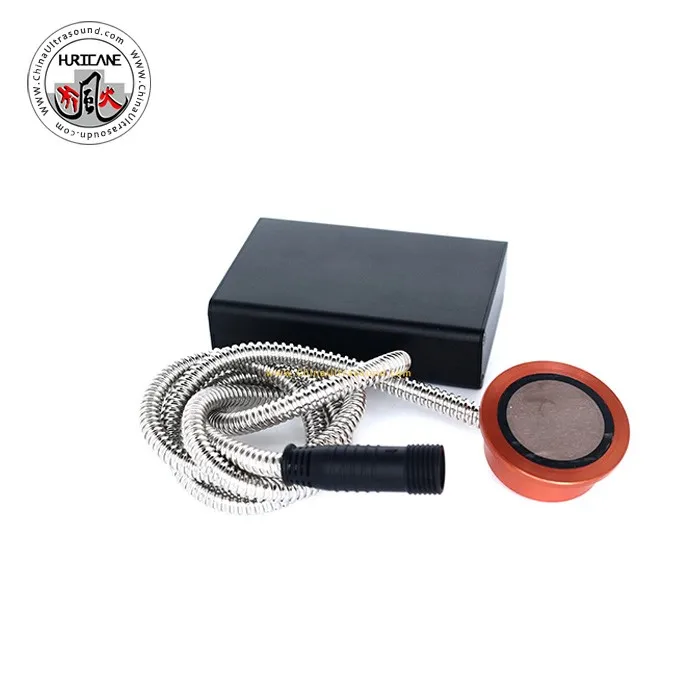

High quality fuel level detect sensor oil tank heavy vehicles

Feedback Ratings
  • 1-19 Units
    $255.00
  • 20-99 Units
    $242.00
  • >=100 Units
    $230.00
Quantity:
- + Units available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $255.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Hurricane
Model Number:
B-ULM-30
Power Supply Voltage:
9-36VDC,100-230VAC
Unusable area:
20cm
Measurement Range:
3m
Transducer Installment:
BOTTOM MOUNT
Output:
RS232,4-20mA ,RS485,TTL
Accuracy:
1%
IP Protection of Transducer:
PI68
Working Temperature:
-40~ +80℃
Working Humidity:
5~95%
Checkpoint Of the Tank Thickness:
Less than 10 mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
15X13X10 cm
Single gross weight:
1.5 kg
Package Type:
The normal package is paper box
Lead Time :
Quantity(Unit) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description

Introduction

        Ultrasonic fuel level sensor models provide continuous, contactless measurement, making them ideal for measuring fluids found in machine tools, like oil or hydraulic fluid, that cannot be tainted by the introduction of foreign materials.Our ultrasonic fuel level measurement modules can be programmed to account for oscillations and turbulence that could otherwise lead to incorrect readings. Measurement clear to the bottom of the tank can be realized. Ultrasonic tank level sensors feature an extremely broad operating temperature range. They can operate in outdoor applications or extreme environments like commercial car washes or outdoor fuel generators with no loss of performance or accuracy.

Technical characteristics
Power Supply Voltage
9-36VDC,100-230VAC
Transducer Installment
BOTTOM MOUNT
Measurement Range
3m
Output
RS232 (Default),RS485,4-20mA,TTL(optional)
Accuracy
1%
Measurement Liquid
Water
Diesel
Gas
LPG
Others(consult with our sales person)

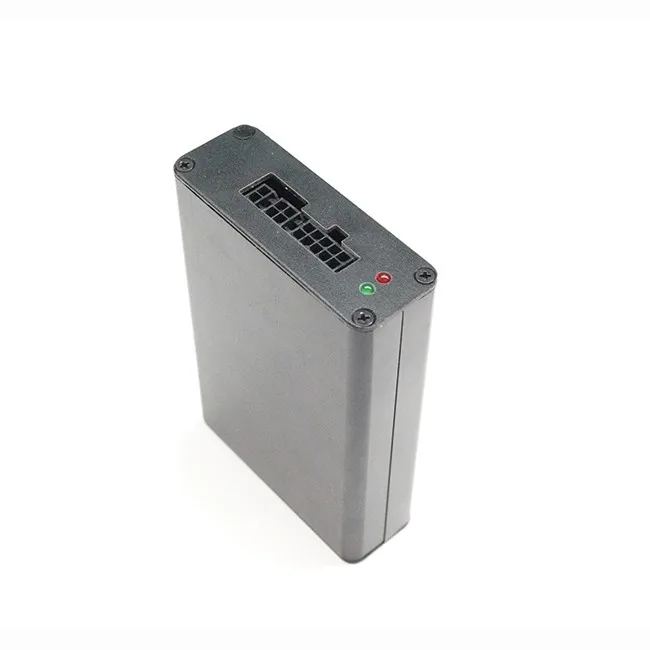

Connection Port
Power(The port to connect with power)
Transducer(The port to connect with Transducer)
Output Interface(Data output/debug)
Indicator(Red, Blue)
Red: Power Indicator
Blue: Signal Indicator
IP Protection of Transducer
IP68
IP Protection Of Transmitter
IP61
Working Temperature
-40 ~ +80 C
Storage Temperature
-45 ~ +85℃
Working Humidity
5~95%
Galvanic Isolation (1A)
Yes
Patent
Yes

Main Features

Bottom installment/non-contact with the measurement objectives
Easy to Install and Configure
Various ranges to 25mm to 0.8 meters (choose from different models)
9-36V Power Supply
RS-232 serial Data Interfaces(RS485 optional)
LoRa, LoRaWan, NB-IOT and M-BUS Wireless Output are Optional
Note: Our A-ULM is also can be customized according to customer need. Such as, It should be working in the environment of high pressure and high temperature resistant, light, small diameter, small blind area and other special applications.

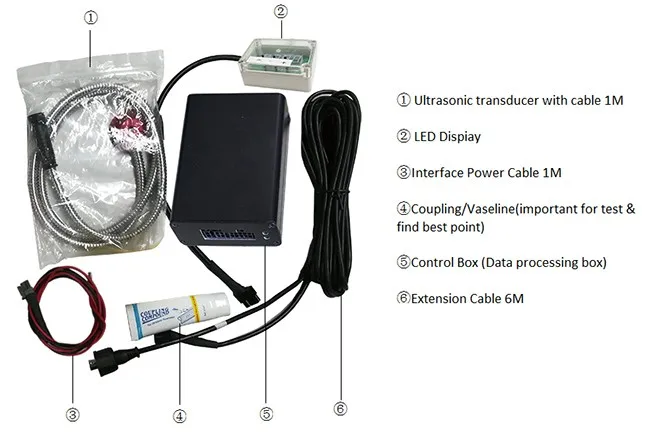

Detailed Images

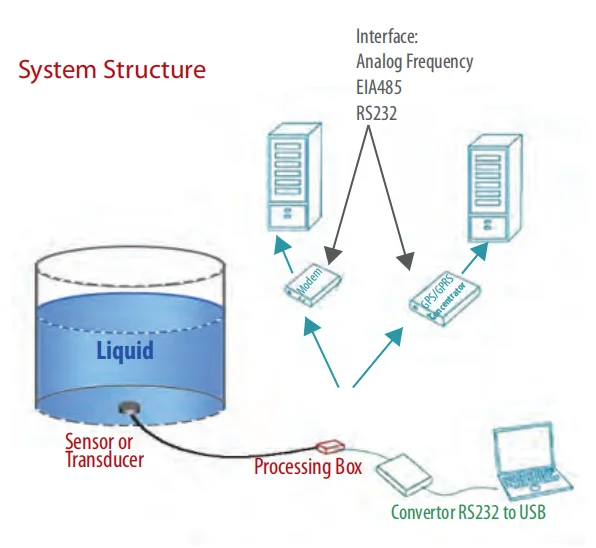

installing on tank.

Steps:
1.The radiator (Transducer) is installed at the bottom of the tank
2.The radiator(Transducer) is connected with the processing box(transmitter)
3.The processing box(transmitter) is connected with PC/Server by 485/RS232 Converter
4.View the Measurement result on PC.

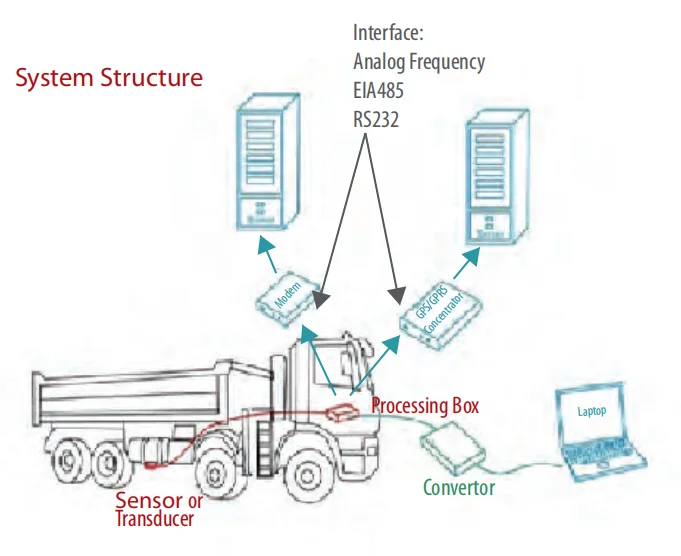

installing on vehicles.

Steps:
1.The Transducer is installed at the bottom of the tank
2.The Transducer is connected with the processing box(transmitter)
3.Connection to the Local Server
3.1.The processing box(transmitter) is connected with Local Server by 485/RS232 Converter
3.2.1. The GPS/GPRS tracker collect the data from the processing box(transmitter), and transfer the data to Cloud Server by GPRS.
3.2.2. If it takes LoRa, LoRaWan, NB-IOT, M-BUS wireless technology, The B-ULM will be connected to a LoRa/LoRaWan/NB-IOT/M-BUS module, and then connected with the Concentrator through the module. The Concentrator collects data and transfer it to the Server by GPRS.
4.View the Measurement result on Server.

Any Liquids could be measured by B-ULM

Fuel;
Oil;
LPG;
Water;
Diesal;
Petrol;
Liquid food;
Chemical;
and other liquids;
The B-ULM be installed at the bottom of / away from the objectives to measure the liquid level / objectives position.

Applications

Static Fuel Tank;
Fuel Tank on Vehicle;
Liquid assets inventory;
High or low level alarms;
Input to telemetry systems;
Remote monitoring;
Irrigation control;
Process batch monitoring & control;

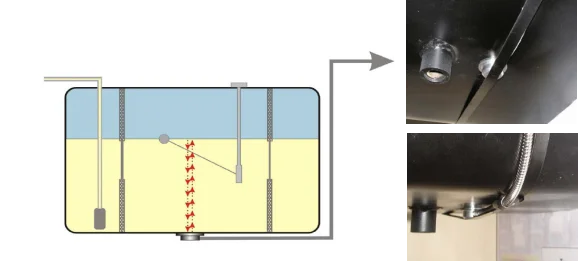

Installation
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

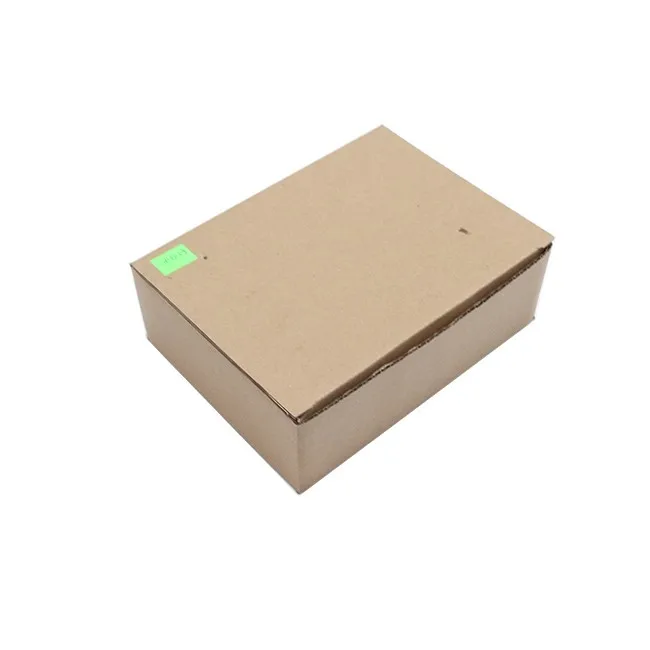

Packaging
Size
100 (L) * 71 (W) * 25.5 (D)mm
Weight
1.5 kg

Packaging Details
The normal package is paper box(Size: L*W*H). Or we will pack it according to customers special request.
