IP66 waterproof night vision 720P hd car camera

  • 1-29 Pieces
    $17.00
  • >=30 Pieces
    $15.30
Memory Capacity:
None
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
KOPDA
Model Number:
KD-010IR-720
Warranty:
1 Years
IR LED:
10PCs F5
IR distance:
10Meters
Lens:
3.6mm
Waterproof:
IP66
item:
car camera

Packaging & Delivery

Selling Units:
Single item
Single package size:
10X8X7 cm
Single gross weight:
0.6 kg
Package Type:
one piece per color box
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Video Description
Product Description

Specification:

Use 1.0MP progressive scan CMOS, capture motion-free images
Support coaxial HD output, clear and exquisite images
Illumination, 0.1Lux @ (F1.2, AGC ON), 0LUX with IR
Support IR-CUT switch, CDS external control, day and night surveillance
Support OSD menu control for user-defined settings
Support for digital WDR
Adaptive digital noise reduction, 2D-DNR
Aviation connector


Technical Parameters:
Parameters: 1.0MP HD surveillance cameras in 1 coaxial module


Module Parameters
Sensor Type: 1/4 "OV9732 + V20E (FH8532E)
System format: PAL / NTSC
Effective pixels: 1280 (H) x720 (V)
Minimum illumination: 0.1Lux @ (F1.2, AGC ON), 0LUX with IR
IR LED:10PCs F5
IR Distance: 10Meters
Lens:3.6mm
Shutter: AUTO
Day and night modes: External Control (default) / Auto / color / B & W
Synchronization: Internal synchronization
Frame rate: 720P @ 25fps / 720P @ 30fps
Video Output: AHD / TVI / CVI / CVBS switchable


Menu Control
Came to light: brightness / exposing mode / gain
White Balance: ATW / manual white balance
Day & Night: IR / Internal Auto / color / B & W
Video settings: contrast / sharpness / saturation / DNR / video format / digital WDR
Language: Chinese / ESPANOL / Traditional Chinese / ITALIANO / ENGLISH
reset
General Specifications
Operating temperature: -20 degrees Celsius to 60 degrees Celsius
Humidity: relative humidity less than 90%
Power - Current: DC12V (± 20%) - 50MA
Size: 32 * 32/38 * 38 (mm)
Menu Switch Mode: The factory default AHD signals:
Top: AHD: CVI Left: TVI Right: CVBS (press 5 seconds release the switch).

Standard switching:
PAL / NTSC switch directly inside the menu.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

chipset
1/4 "OV9732 + V20E
lens
3.6mm
resolution
720p
ir led
10pcs
Detailed Images
Related Products

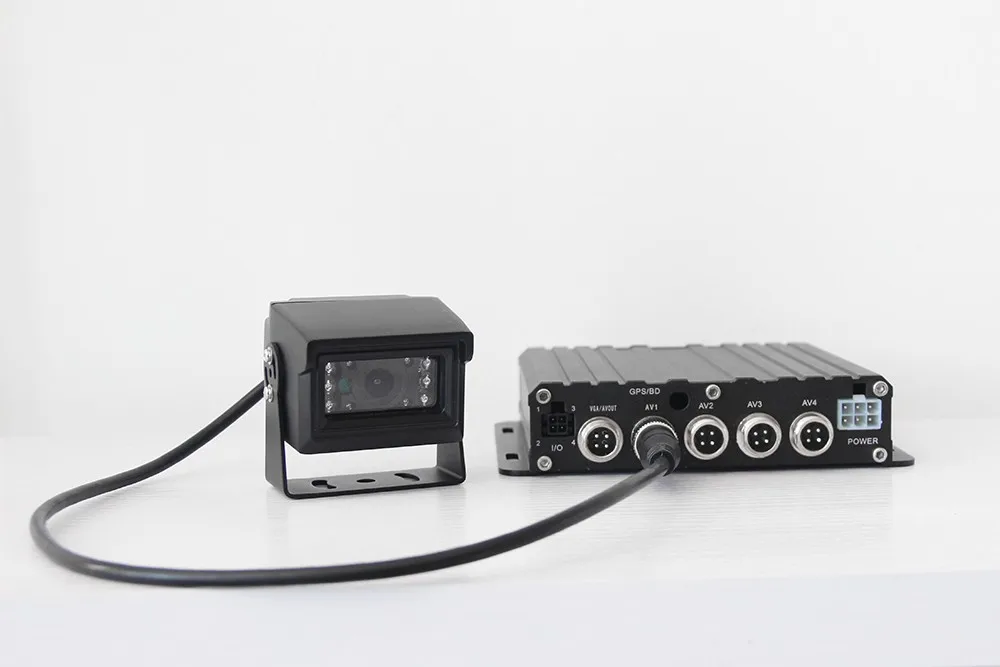

Dual SD card recording mobile DVR

4ch AHD/TVI/CVI 720P+1ch IPC mobile DVR

Dual SD card up to 256GB total

camera horizontal vertical mirror setting
Build in G-Sensor
Reversing Assist

Waterproof IR car camera

2.8mm lens wide angle

18PCs IR LED,15 Meters IR distance

AHD 960P high resolution

IP66 waterproof

aviation connector and AV connector optional

use for vehicle
