JQ Laser FLT-6016L laser tube/pipe laser cutting machine with shortest tailing

$43,000.00 / Set | 1 Set (Min. Order)
Model Number:
JQ6016L
Power(W):
1000w
$43,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
20 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Online support, Field maintenance and repair service
Applicable Material:
Metal, Stainless steel tube
Laser Type:
Fiber Laser
Cutting Area:
16mm-160mm,L≤6500mm
Cutting Speed:
It depends on the thickness of the pipe
Graphic Format Supported:
AI, PLT, DXF, BMP, DST
Application:
Laser Cutting
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Advertising Company, Workshop
Condition:
New
Cutting Thickness:
0.5-10mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cyptube3000C
Place of Origin:
Shandong, China
Brand Name:
JQLASER
Certification:
CE, SGS, FDA
Warranty:
2 Years

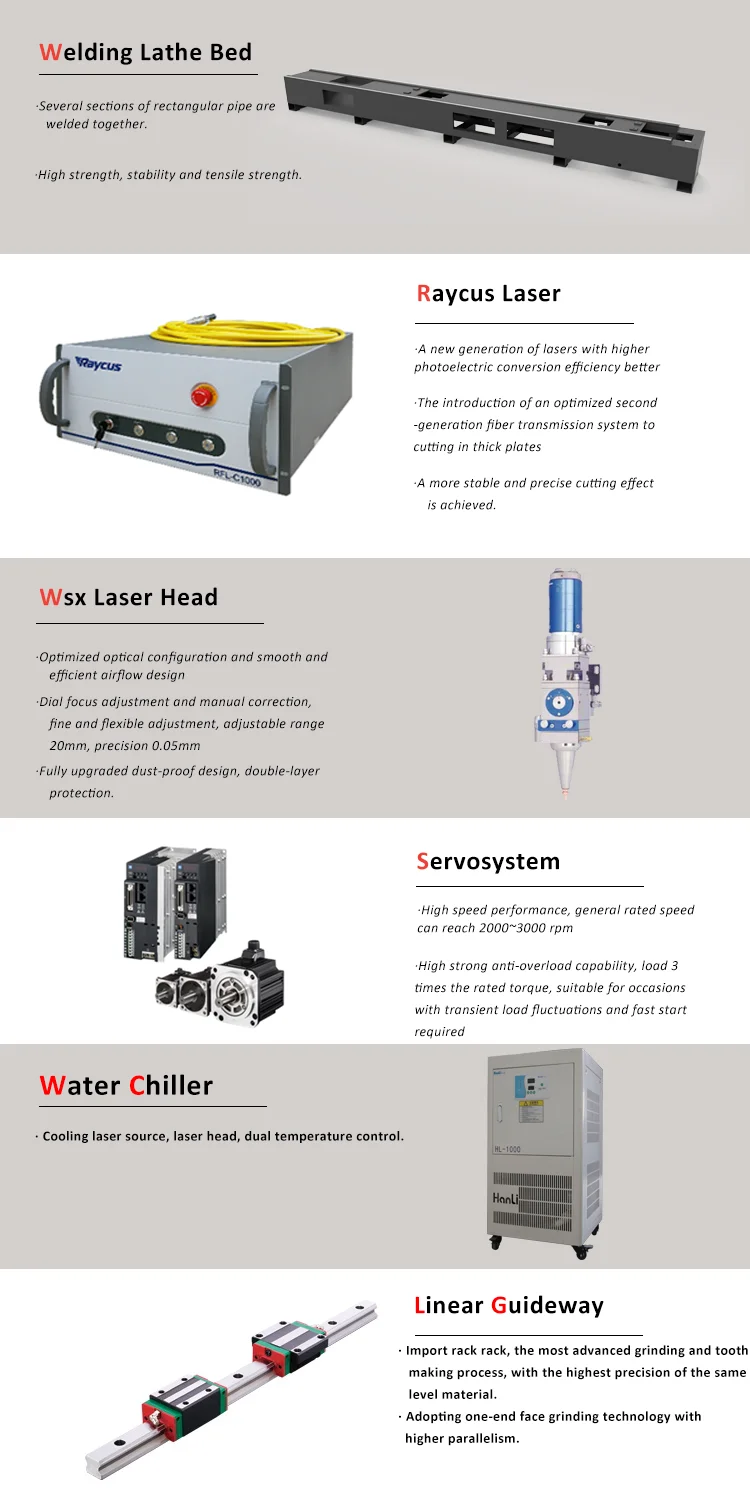

Laser Source Brand:
RAYCUS
Laser Head Brand:
WSX
Servo Motor Brand:
FUJI
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Key Selling Points:
The tail is short
Pipe processing dimension:
16mm-160mm,L≤6500mm
X,Y positionaI accuracy:
±0.05mm/m
X,Y repeated positioning accuracy:
±0.03mm/m
X,Y maximum speed:
80m/min
X,Y maximum acceleration:
1.5G
Maximum speed of chuck:
150rpm
Numerical control system:
Fscut Cyptube3000C
Leftover material length:
≥70mm(It will be slightly different depending on the pipe)
Voltage/power:
380V/50HZ/14KW(1kw laser)
Dimensions (length*width*height):
8900mm*1300mm*1700mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
890X130X170 cm
Single gross weight:
4500.0 kg
Package Type:
FCL container load
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description

JQ Laser FLT-6016L laser tube/pipe laser cutting machine with shortest tailing

Product Description



Model nameFLT6016L
Pipe processing dimensionΦ16mm-φ160mm,L≤6500mm
X,Y positionaI accuracy ±0.05mm/m
X,Y repeated positioning accuracy±0.03mm/m
X,Y maximum speed80m/min
X,Y maximum acceleration1.5G
Maximum speed of chuck150rpm
Maximum cutting speedIt depends on the thickness of the pipe
Numerical control systemFscut Cypetube3000C
Leftover material length≥70mm(It will be slightly different depending on the pipe)
Voltage/power380V/50HZ/14KW(1kw laser)
Dimensions (length*width*height)8900mm×1300mm×1700mm
Packaging & Shipping

Package :

Every machine is packed with great care and tough material.

It is packed with cling films first and then film bags.

At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom

With this kind machine, all our laser machine can protect well during long trip by sea or by train.



We can transport machine by boat or by training, according to your requirement.

Container & Package

Our Services

Guarantee and after sale service:

* 2 year guarantee for whole machine; 8 months for laser tube and mirrors

* 24 hours technical calling or e-mail service for any technical questions of our machine

* We offer detailed User Manual for machine installation, operation, and also for Software



Company Information



FAQ



-What is the payment terms?
Western Union,Cash,Trade Assurance,T/T

-How long is the delivery date?(After getting the deposit)
Delivery time is 5-7 working days.

-How about the shipping ways?
By sea or by air

-Where is your factory located? How can I visit there?
Jinan City, Shandong Province, China, about 2hours train from Beijing and Shanghai.

-Can I arrange sample for cutting test?
Yes, always welcome.

-How about your laser machine package?
Standard export wood package with free fumigation

-How about the quality guarantee period?
Two Years for whole machine

-How can you guarantee the production quality ?
We have 15years experience of QC team; strictly quality control system in our production process.
