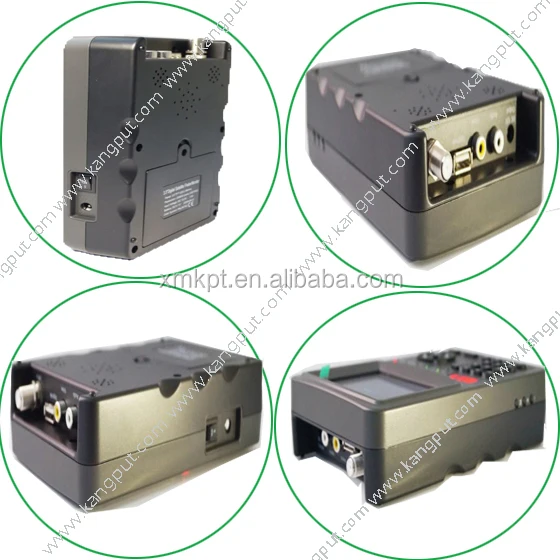

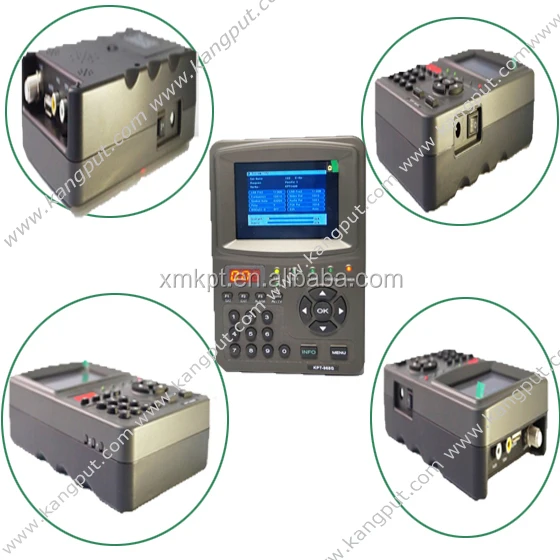

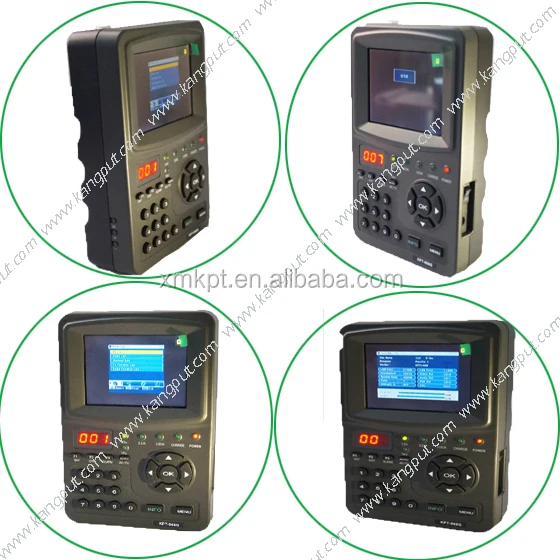

KangPut KPT968G support dish dvb s2 hd receiver satellite finder meter with satellite alarm

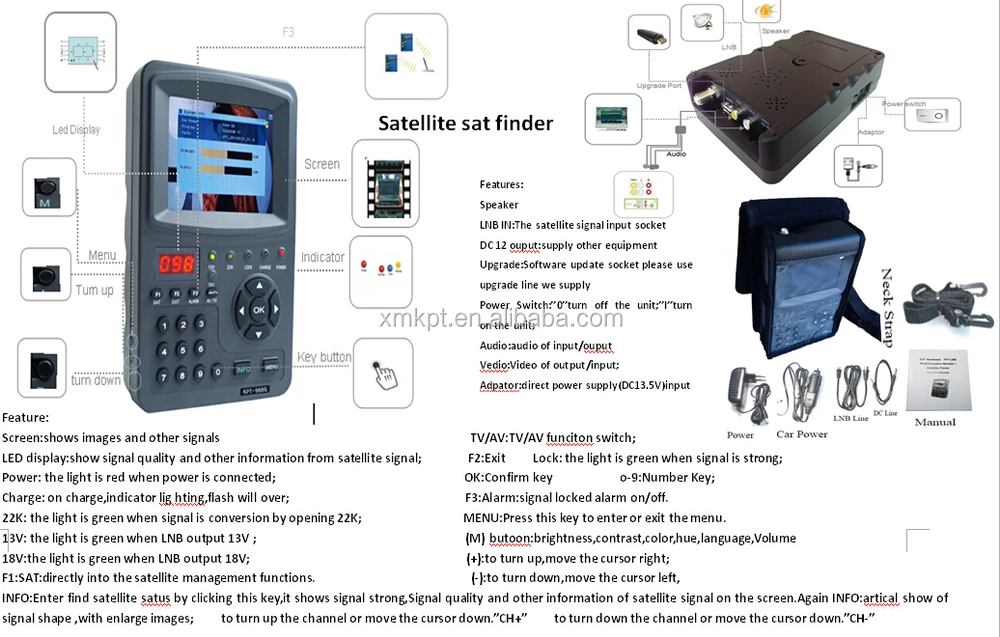

That's what makes us unqiue 1.,LED display and easy check the signal display and quality 2.:Signal Alarm:Fast signal locked alarm on/off when locked signal 3.F1 and SAT:fast scan.directly into the satellite management functions 4.Signal test :DVB-S/S2,MPEG-4,ABS-S,signal alarm & signal fast test 5.Our PCB is specific engineer design with clealy and extend our machine life.
The Main parameter
Display screen:TFT LED 3.5"230400 pixels
Video decode:ISO/IEC13818-ZMP @ML NTSC/PAL
A/V output/input: Audio RCA channel
Input impedance: 75 Ω (F type)
Input frequency: 950~2150MHZ
Input signal level: -65~-25dBm
LNB power: 13/18V,max400mA
LNB switch: 22KHz
DiSEqC: 1.0 or1.2 edition
EB/O Threshold: 4.5dB
Demodulation chip:QPSK(SCPC and MCPC compatible)
Symbol rate:2-45MbaudsMCPC, SCPC Compatible
System processor:32bit processor(200MHz)
Video:MPEG-2 Main Level
Satellite Signal/Video: DVB-S
Satellite SignalTest:ABS-S/CBS-2/DVB-S2 Signal Display&Alarm
Sampling rate: 32,44.1 and 48KHz
Image analysis: 720*576,720*480
Audio decode:ISO/IEC 13818-3Layerl & 2
output voltage: 12 V
Input voltage: DC13.5V 1.5A
Weight: 447g(with battery)
If you need to add satellite information onto our satellite finder, please follow bellowing steps:
1st: Pressbutton[MENU], select “Add satellite”and press [OK], setup satellite name, Local frequency, DisEqC and 22K according to your LNB, DisEqC and 22K. Please refer to step “Add satellite” on manual.
2nd: then enter "Add channel", find the satellite name you setup before by pressing right/left key, then input TP Frequency, symbol rate and type of polarization. Please refer to step "Add channel" on manual.
3rd: Connect LNB well, adjust the direction of antenna until finder alarms, press "OK" key to search programs.

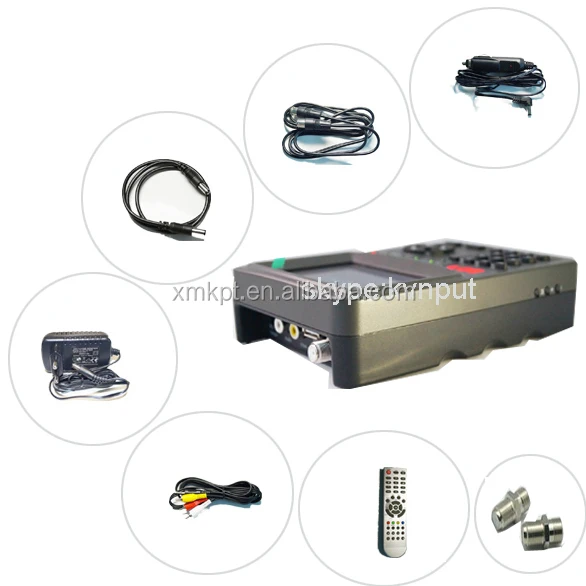

1. DC13.5V 1.5A adapter 1piece
3. F fast line 1piece
4. Car Power 1piece
5. DC line 1piece
6. BNC to RCA (optional) 1piece
