L298 Dual H-Bridge DC Motor Driver Stepper Motor Driver Controller for Arduino

Feedback Ratings
US $11.60 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
D/C:
RB-01C025
Package:
RB-01C025
Model Number:
RB-01C025
Type:
robot driver
Brand Name:
ALSRobot
Place of Origin:
Guangdong, China (Mainland)
DC Motor Driver:
L298N dual H-bridge motor driver
Motor Driver Power Supply:
+5V~+46V
Motor Driver Current Io (max):
2A
Logic power supply output Vss:
+5~+7V (internal supply +5V)
Motor Driver Logic Current:
0~36mA
Motor Driver Dimension:
60mm*54mm
Motor Driver Weight:
40g
Motor Driver Application:
Electric Robot, robot car



LKV-HM3.0 Dual H-bridge motor driver uses ST typical L298N dual H-bridge motor driver chips to drive DC motors or bipolar stepper motors. Small in size, light in weight and excellent in performance, with peak current up to 2A and voltage up to 46V, this motor driver also has a free-wheeling diode to protect the chip from damage caused by high voltage produced when the power’s turned off. Although the chip will automatically stop working when overheated, the heatsink helps to lower the temperature and achieve more stable capacity.
-2 current sense ports
-Inner logic power supply selection switch
-4 pull up resistor switches
-2 DC motor/ 4 pin dual-phase stepper motor output
-Motor direction indication LED
-4 standard mounting holes
This motor driver fits for MCU controlled vehicles, mobile robots, etc., and can be applied with a wide range of controllers; it’s going to be a best option for robot DIY fans.



1. Driver: L298N dual H-bridge motor driver
2. Driver power supply: +5V~+46V
3. Driver current Io (max): 2A
4. Logic power supply output Vss: +5~+7V (internal supply +5V)
5. Logic current: 0~36mA
6. Controlling level:
Low -0.3V~1.5V, high: 2.3V~Vss
7. Enable signal level:
Low -0.3V~1.5V (control signal invalid), high: 2.3V~Vss (control signal valid)
8. Max power consumption: 25W (Temperature 75°C)
9. Working temperature: -25°C~+130°C
10. Dimension: 60mm*54mm
11. Driver weight:~48g
12. Other extensions: current sense ports, controlling direction indicator, pull-up resistor switch, logic part power supply.

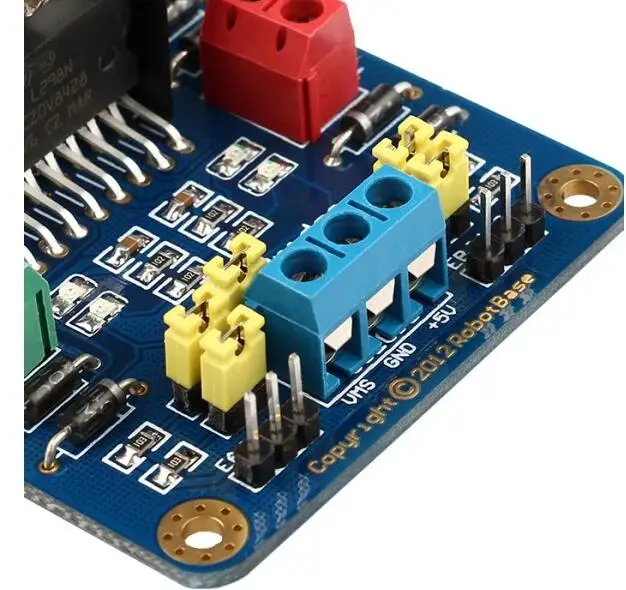

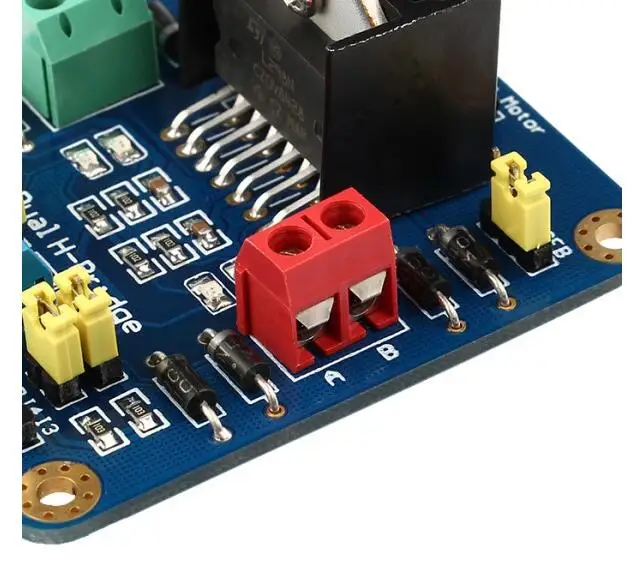

L298 Dual H-Bridge DC Motor Driver Stepper Motor Driver Controller for Arduino

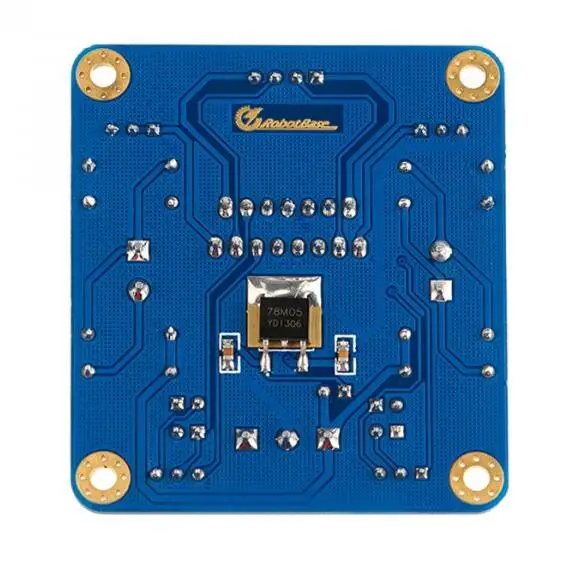

L298 Dual H-Bridge DC Motor Driver Stepper Motor Driver Controller for Arduino-back side

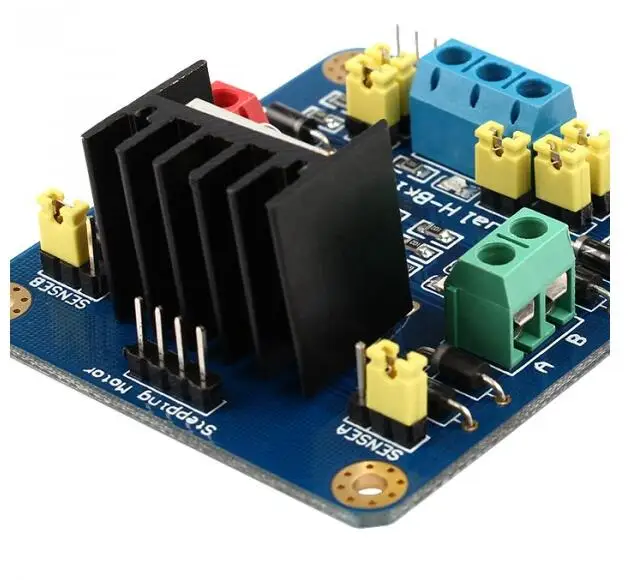

L298 Dual H-Bridge DC Motor Driver Stepper Motor Driver Controller for Arduino-details
