LED Backlit Lcd Digital Signage Wall Mount Advertise Bar Lcd Display

Feedback Ratings
  • 10-49 Pieces
    US $464.00
  • 50-99 Pieces
    US $448.00
  • >=100 Pieces
    US $406.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TYALUX
Model Number:
TYL-HGM286
Type:
TFT
Application:
Indoor
Panel Size:
698.40*200.85mm (16:4.5)
Max Resolution:
1920*550
Viewing Angle:
180/180
Pixel Pitch:
0.4845(H)*0.4845 (V)
Color:
8bit-16.7M
Contrast Ratio:
5000:1
Brightness:
500cd/m2 (Max.800cd/m2)
Response Time:
6ms
Input Voltage:
AC100V~240V 50/60Hz
Power Supply:
AC100V~240V 50/60Hz
contrast:
5000:1
Viewable area:
698.40*200.85mm (16:4.5)
Backlit:
LED
RAM:
1G
Response time:
6ms
Operating system:
Android 4.4.2
CPU:
MStar + ARM Cortex A7 (4 cores) + MALI 450 MP2 GPU
Product name:
LED Backlit Lcd Digital Signage Wall Mount Advertise Bar Lcd Display
Keyword:
Wall Mount Advertising
Product Description

Features description

● Based on Android 4.4.2 system, all the android application Apk,software automatic restoration supported.

● Updating programs (video, pictures, texts, PPT etc.) through the Internet supported.

● Auto power on/off, electronic clock & date supported.

● Split screen and fixed template display setting supported.
● Setting IP address, working time and working day supported.

● 550P full HD programs display supported.

● WAN & LAN long-distance setting play/sleep/reboot etc. function supported.

● Display contents cryptographic protection supported (selectable)

● Cable network, wifi, touch screen, motion senor and inner camera setting supported.(selectable)

Application

Workstation & desktop monitors
Display terminals for AV application products
Monitors for industrial machine
 Industrial control system
Indoor/ outdoor kiosks
Automobile DVD navigation
Advertisement machine
 Medical and healthcare kiosks
 ATM/ POS/ Arcade gaming/ kiosks/ GPS/ Gas station/ self service thermal

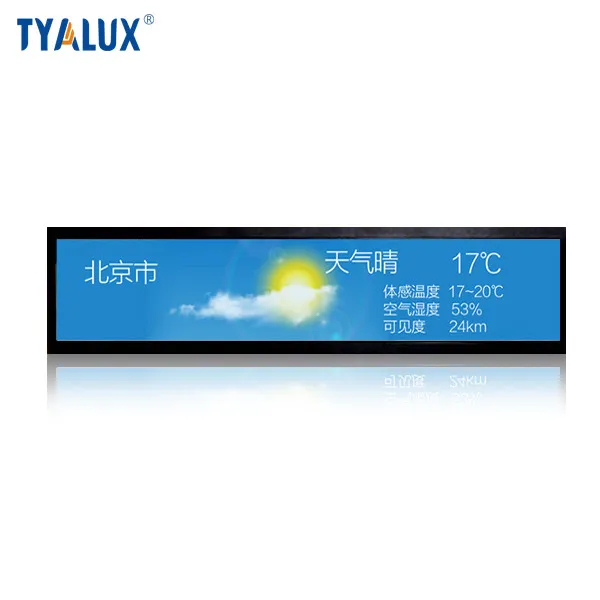

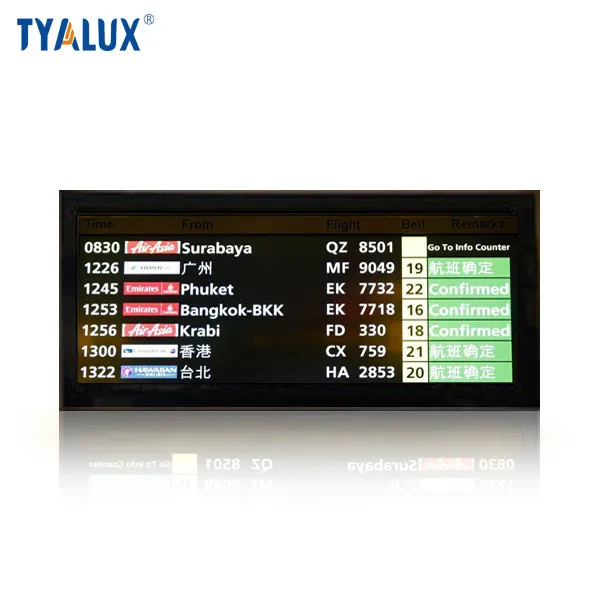

28.6" Digital Advertising Bar LCD
Parameter for panel
Parameter for Andriod board
Screen size
28.6" TFT LCD Panel (LED backlit)
CPU
MStar + ARM Cortex A7 (4 cores) + MALI 450 MP2 GPU
Touch screen
Optional
RAM
1G
Max.Resolution
1920×550
Internal Memory
Emmc4Gbyte/8Gbyte(TOSHIBA)
Viewing angle
178°(H):178°(V)
External Memory
USB flash drive/SD card/CF card/SATA etc.
Color
16.7M
Operating system
Android 4.4.2
Brightbess
500cd/m2 (Max.800cd/m2)
Play mode
Circulation, timing, inter-cutting etc.
Contrast ratio
5000:1
Video format
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Response time
6ms
Picture format
BMP, JPG, JPEG, PNG, GIF
Viewable area
698.40*200.85mm (16:4.5)
Network
Ethernet, wifi, 3G(LAN/WAN)
Working power
AC 100-240V 50/60Hz
Networking protocol
TCP/IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP
Speaker power
10W
Ethernet
1X RJ45, 10M/100M optional
Max power
60W
LVDS output
1X direct drive 50/60Hz LCD panel
Standby power
0.3W
HDMI output
1X 1080P siginal output
Working temperature
0℃-40℃
AV output
CVBS AV output and left and right channel output
Working humidity
10%-90%(Without dew )
VGA output
1X VGA image output
Storage temperature
-20℃-60℃
SD/TF port
1X
Remarks
USB2.0 port
2X USB HOST external mouse, keyboard, touch screen, camera
Installation version
Horizontal & Vertical available
Real time clock
Yes


Accessory
User Manual *1
Timing switch
Yes
Remote control *1
Remote control
Yes
CD *1 with software
System upgrade
USB upgrade and network upgrade supported
Wall mounted kits and power plug
Working temperature
0℃-40℃
Certifications

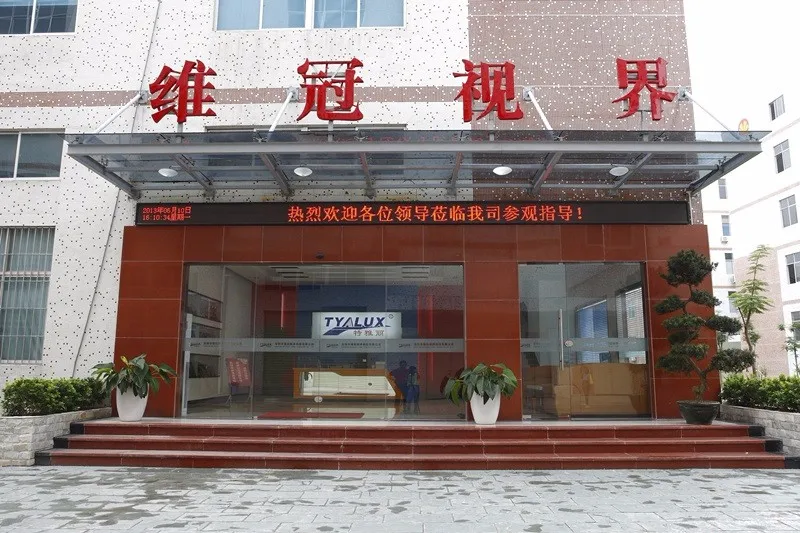

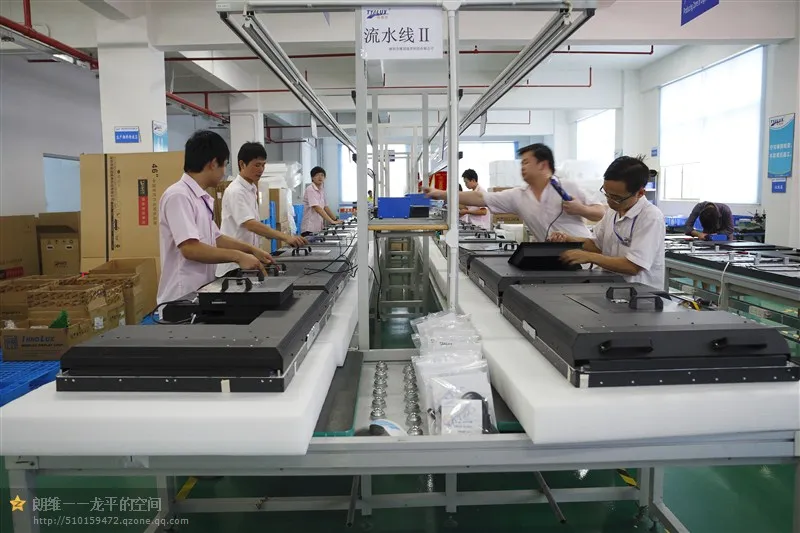

company information
Packing & Delivery
FAQ


1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in producing LCD displays since 2003.
2. Q:How long is the warranty?
A:Our officially promised warranty time is 12 months from the date of delivery.
3. Q:I would like to ask you if it's possible to have my logo on the product.
A: TYALUX (our brand), neutral appearance, customized logo, all are available if you like.
4. Q:what brand of screen are you using?
A: Samsung and LG screen are normally used for the digital signages and video walls, while customized screen is also supported.
5. Q:I haven't done business with you guys before, how can I trust your company?
A: Advertising displays received CE, RoHS, ISO9001, CCC etc; Our company is golden supplier for 10 years; what’s more, our company became a listed company in NEEQ in 2016.
