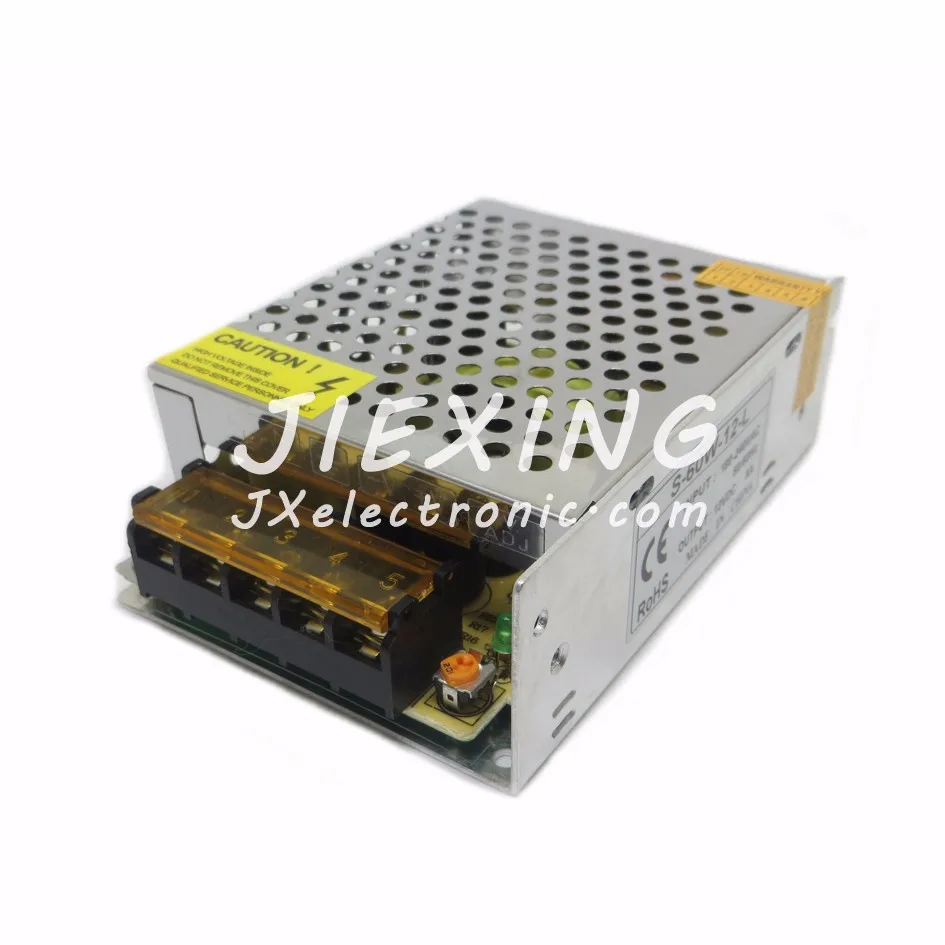

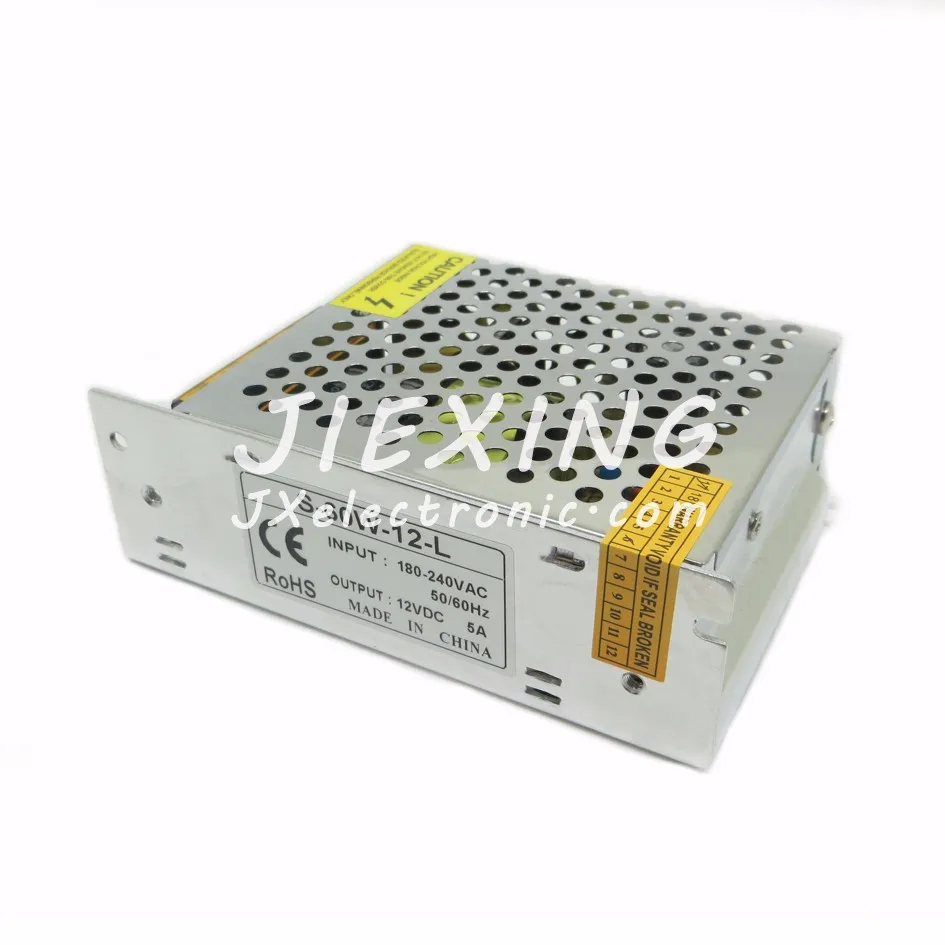

LED Switching Power Supply 60W 12V 5A 110V/220VAC input

Feedback Ratings
  • 1-99 Pieces
    US $3.00
  • 100-999 Pieces
    US $2.50
  • >=1000 Pieces
    US $2.30
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Ships within 7 days.
Estimated Delivery Time: 5-10 working days
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
JIEXING
Model Number:
S-60W-12
Type:
Other
Application:
Audio & Video
Gender:
Male
Product Details

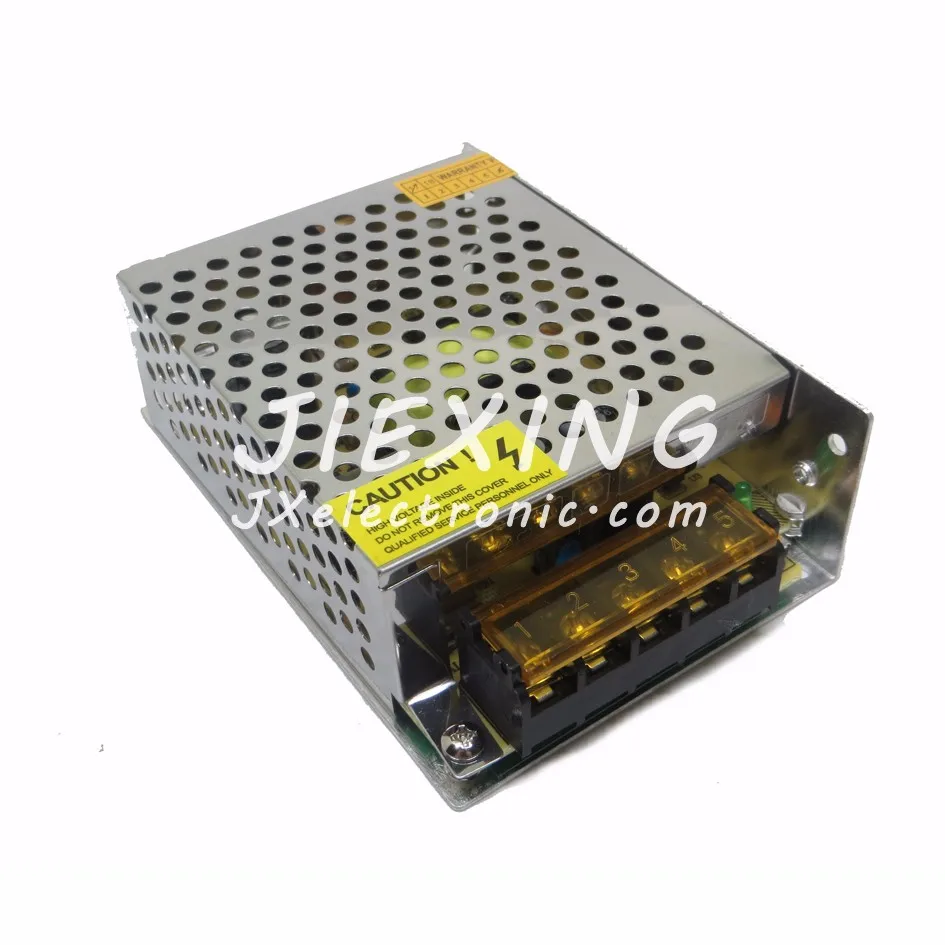

LED Switching Power Supply 60W 12V 5A 110V/220VAC input

1.Non-waterproof
2.Universal full range AC input
3.Protection short circuit,overload;over voltage
4.Nature wing cooling
5.Led indicator for power on
6.100% full loaded aging
7.No-load power consumption <0.5W
8. All 105°c long lifespan electrolytic capacitor used
9. Can suffer 300V AC surge input for 5 seconds
10. Working temperature reaches 60 °c
11.Suffer 5G vibration testing
12. High reliability, low cost
13. 2 years warranty
14. CE & RoHs certificate

We accept OEM order, Welcome to discuss cooperation!

Model
JX-60W-12V
Input
Input Voltage(V)
180VAC~264VAC
Input Current (A)
0.57A Max
Frequency (Hz)
50Hz–60Hz
Efficiency
82% Typ(230VACFull Load)
Inrush current(A)
Cold star <40A/230VAC
Leakage current(mA)
<3mA/240VAC
Output
Output Voltage(V)
+24VDC
Voltage Regulation
+3,-2%
Output Current(A)
5A
Current  Range (A)
0  ~  5A
Rated Power(W)
60W
Start time, hold-up time(ms)
Ton≤1000ms,Td≥20ms @230Vac Full Load
Rise time(ms)
Typ:20ms @230Vac Full Load
Ripple/Noise(mVp-p)
120mVp-p
Environment
working Temperature (°C)
0°C - +40°C(refer derating curve)
Storage Temperature(°C)
-20°C - +60°C
Humidity(%)
20% - 90% RH non condensing
Safety/ EMC
Withstand voltage(VAC)
I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,OP-FG:0.5KVAC 1min
Safety  Standard
EN/UL60950-1,GB4943
EMC  Standard
EN55022 Class B,EN61000-4-2,3,4,5,6,8,11 GB17626.5 Level3
Protection
Over voltage Protection
>115%-135% Rated output voltage
Over load Protection
>105%-150% Auto recovery
Short circuit Protection
Latched
Over Temperature Protection
No
Others
Sise    L*W*H(mm)
110*78*38mm L*W*H
Weight
 220g/pcs
