LED linear light

Feedback Ratings
  • 1-999 Pieces
    US $38.00
  • >=1000 Pieces
    US $37.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Light Source:
LED
Item Type:
Tube Lights
LED Light Source:
SMD2835
Warranty(Years):
3
Input Voltage(V):
AC85-265V
Lamp Power(W):
36
Lamp Luminous Flux(lm):
4680
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
78
Color Temperature(CCT):
Pure White
Working Temperature(℃):
5 - 65
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum
IP Rating:
IP54
Certification:
EMC, LVD, RoHS, VDE
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HSK
Model Number:
HSE-LRT6-36W
Product Name:
Led Linear Light
Application:
Supermarket
Length:
1200mm
Power:
36W
Name:
Led linear light 36W
Usage:
Commerical Lighting
Material:
Alumimum + PC Cover
Beam angle:
90 Degree
Item:
HSE-LRT6-36W
Cover:
Clear Cover

LED Linear Light

Introduction



Led linear light’s ornamental value reflects in its special, simple and representative appearance and integrating modern architecture with Lamp skillfully



Feature



Aborative selection: Adopting 0.5w power per piece of 2835 LED as light source; applying particularly simple-mode source with integrated form of some chips; Choosing import and high lumen semiconductor chip; and possessing the characteristics of high thermal conductivity, low decline, pure color, and no double image.



Long Lifespan:Distinct heat sink design combines with electrical box perfectly so that heat can be conducted and diffused effectively. Guarantee the life span of light source and driver effectively by lower the temperature of internal light. Anodizing anti-corrosive processing on the surface of heat sink, but structure is still compact and artistic.



   Enviromental protection: without lead, mercury, and other pullution elements, so no any pollution to environment.



More Real: High index to the color of object, and kinds of CCT for different circumstances, Eliminating repression for higher or lower color temperature from traditional lamps,thus more comfortable visual sense, more efficient on work.

More Stable To be controlled by constant current and voltage, adaptable wide voltage, and overcoming the power grid caused by ballast, noise pollution, and light instability.

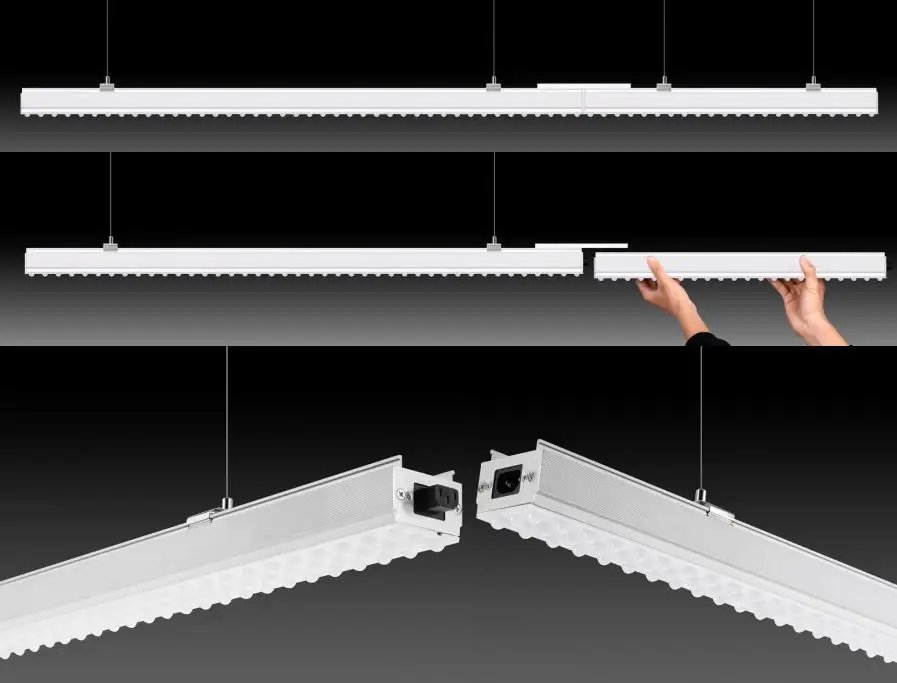

Convenience:Excellent decorative effect, Special surface treatment, novelty appearance, easy installation, convenient dis-assembly, and wide application

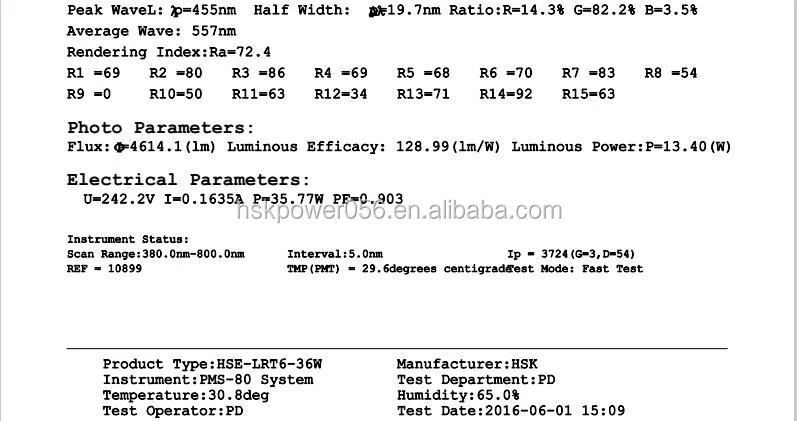

TEST Report.

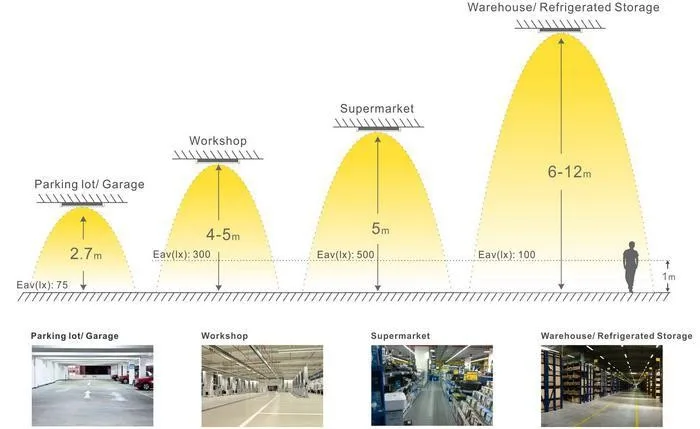

 Application

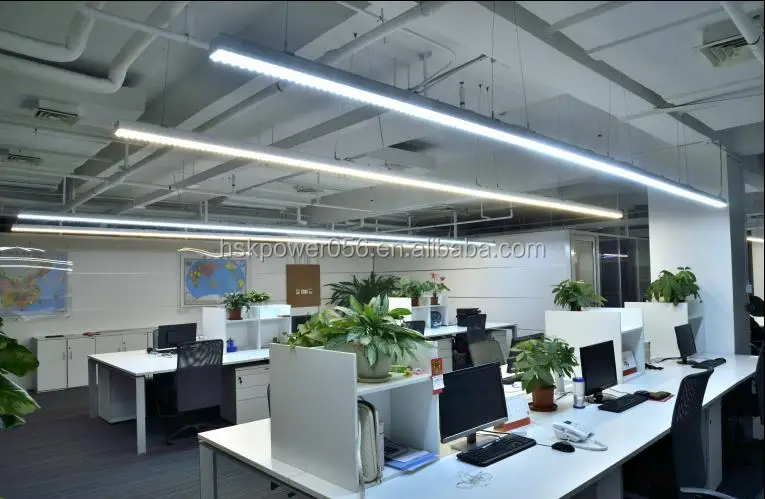

LED linear light is widely applied in office, hospital,workshop, factory, warehouse, highway toll station, gas station, supermarket, exhibition hall, gymnasium and other public places.
