Quick Details
Model Number:
GSM Modem Q24PL001
Brand Name:
Place of Origin:
Guangdong, China
Product name:
gsm modem module
Modem Module:
Wirless Modem Type:
Frequency Bands:
Interface Type:
RS232 or USB
Vending Machine, POS, ect
Overall Dimensions:
76 x 54 x 25mm
Working Temperature:
-20~55 degrees
Industrial Design Aluminum

Packaging & Delivery

Selling Units:
Single item
Single package size:
20X10X10 cm
Single gross weight:
0.5 kg
Package Type:
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated

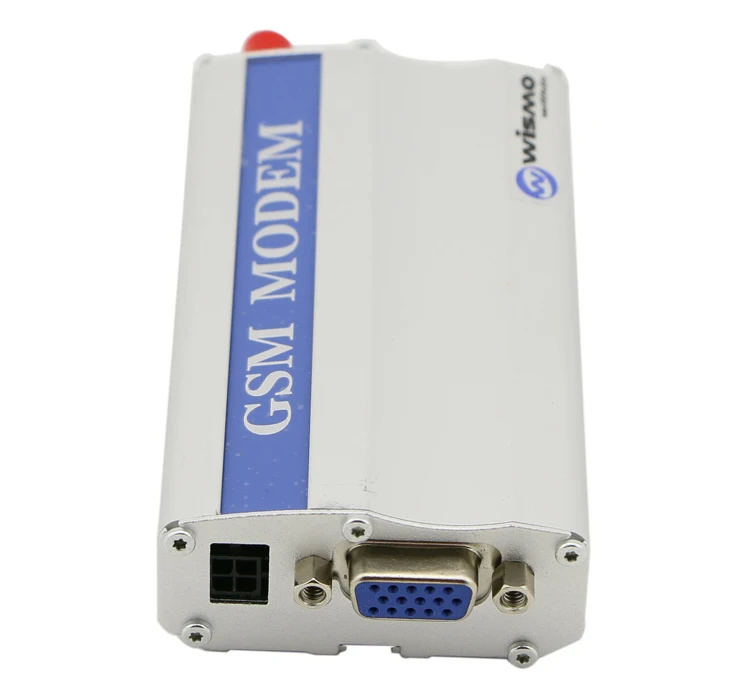

_02.jpg Low power multiple ports bulk receiving gsm modem module

gsm modem module

-Modem Module: Wavecom Q24 Plus Q24PL001

-Interface: RS232 DB9 (with RS232 DB15 or USB interface optional)

-Power adapter: please kindly specify when ordering this modem.


General Features


 Industrial design aluminum casing

 Wireless access to internet

 Based on Wavecom module Q24 Plus with TCP/IP stack

 Internet Services: PPP,TCP, UDP, HTTP, SMTP, POP3

 Open AT

 Flash memory 32MB,



 3V SIM card slot

 DB9 RS232 interface (with RS232 DB15 or USB interface optional)

 SIM Application Toolkit

 Double tone multi-frequency function (DTMF)

 Send and receive data, e-mail, SMS

 GPRS Class 10

 Antenna with high sensitivity Always on-line

 Comply with ETSI GSM Phase2+ standard Output Power:

 Class 4(2W @ 850/900MHz)

 Class 1(1W @ 1800/1900MHz)

 Input voltage:5V-36V DC

 Input current:1A-2A

 Standby current: 56mA

 Working current: 100-140mA

 Working temperature :-20~55 degrees

 Storage temperature:-25 ~70 degrees



 Accessories: AC/DC adaptor, RS232 cable, antenna, 2 mounting plates, CD


Specification for data

 GPRS Class 10 max.85.6kbps(downlink)

 PBCCH support

 Coding schemes CS 1,2,3,4 CSD up to 14.4kbps


 Non-transparent mode

 Transparent mode


Specifications for SMS via GSM/GPRS

 Point to point MO and MT SMS cell broadcast

 Text and PDU mode


Specification for Fax

 Group 3, class 1,2
