NDS3542A 4 SDI to dvb-c encoder modulator

Feedback Ratings
US $2105.00 / Piece |1 Piece (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
DEXIN
Model Number:
NDS3542A
design:
1U with 2 module slots
input:
4* sdi in, 1*ASI in, 1*RF in
RF output:
DVB-T RF out
output:
RF, ASI, IP
certificate:
CE, FCC
management:
LCD/WEB NMS
modulation:
MER≥42dB

NDS3542A 4*SDI to DVB-C RF Encoder Modulator



Product overview



NDS3542A series products are DEXIN’s new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD/SD, MPEG-4/AVC H.264 HD/SD) and modulating to convert V/A signals into Digital RF output. It has equipped with 4 HDMI (4 SDI optional) channels input and 1 ASI input and output with 2 ASI ports and 1 UDP IP (4*SPTS) port.

The latency problem has been greatly reduced to achieve an extremely low value from the encoding progress to the decoding terminals.

It adopts inner drawer-type structural design which greatly facilitates the change of encoding modules (HDMI/SDI /…) as needed.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by DVB-C TVs or STBs and etc.



Key Features



n Huge video buffer (for SDI interface), free to switch video sources

n MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0(Optional)audio encoding

n Up to 1920*1080@50P/60P (MPEG4 AVC/H.264)

Up to 1920*1080@50I/60I (MPEG2 HD)

n 4* HDMI/SDI input

n 1*ASI input for re-mux; 1*RF input for mix

n Support CC (closed caption ) for SDI interface (Optional)

n Simultaneously encoding each channel more than 10Mbps

n DVB-C/DVB-T/ATSC-T/ISDB-T RF out

n Support 4 * SPTS or 1 MPTS output

n Extremely low latency

n LCN support (Logical Channel Number)

n Excellent modulation quality MER≥42dB

n RF Frequency range 30Mhz~960Mhz

n LCD display, Remote control and firmware

n Web NMS management; Updates via web

n Lowest cost per channel

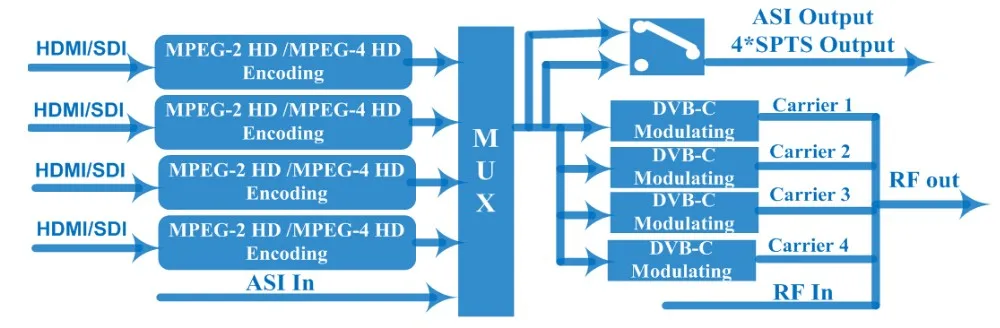

Principle chart







Specification

Encoding section

Video



Encoding

MPEG2, MPEG4 AVC/H.264

Input

HDMI*4 (or SDI*4)

Resolution

1920*1080_60P, 1920*1080_50P,

 (-for MPEG4 AVC/H.264 only)

1920*1080_60i, 1920*1080_50i,

1280*720_60p, 1280*720_50P

720*480_60i, 720*576_50i

Low delay

Normal, mode 1 mode 2



Audio

encoding

MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0(Optional)

Sample rate

48KHz

Bit rate

64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps

 Modulator Section

DVB-C

Standard

J.83A , J.83B, J.83C

MER

≥42dB

RF frequency

4 carriers combined output;

30~960MHz, 1KHz step

RF output level

-30~ -10dbm(77~97 dbµV), 0.1db step

Symbol rate

5.000~9.000Msps adjustable

J.83A



Constellation

16/32/64/128/256QAM

bandwidth

8M

J.83B



Constellation

64QAM/ 256QAM

bandwidth

6M

J.83C



Constellation

64QAM/ 256QAM

bandwidth

6M



DVB-T





Standard

EN300744



Bandwidth

6M, 7M, 8M



Constellation

QPSK, 16QAM, 64QAM,



Code rate

1/2, 2/3, 3/4, 5/6, 7/8.



Guard Interval

1/32, 1/16, 1/8, 1/4



Transmission Mode:

2K, 8K



MER

≥42dB



RF frequency

30~960MHz, 1KHz step



RF Out

COFDM DVB-T out



RF output level

-30~ -10dbm (77~97 dbµV), 0.1db step



ATSC





Standard

ATSC A/53



MER

≥42dB



RF frequency

30~960MHz, 1KHz step



RF output level

-26~-10dbm (81~97dbµV), 0.1db step



Constellation

8VSB



ISDB-T





Standard

ARIB STD-B31



Bandwidth

6M



Constellation

DQPSK,QPSK, 16QAM, 64QAM



Guard Interval

1/32, 1/16, 1/8, 1/4



Transmission Mode

2K, 4K, 8K



MER

≥42dB



RF frequency

30~960MHz, 1KHz step



RF output level

-30~ -10dbm (77~97 dbµV), 0.1db step



System

Local interface

LCD + control buttons

Remote management

Web NMS

output

ASI out (BNC type);



4*SPTS or MPTS out (RJ45, 100M)

NMS interface

RJ45, 100M

Language

English



General

Power supply

AC 100V~240V

Dimensions

420*400*44mm

Weight

4.5 kgs

Operation temperature

0~45℃





About Dexin Digital Technology Co.,Ltd
