English, French, Spanish, Russian, French, German, Portuguese, Korean
Black and White and Red E-ink display
Packaging & Delivery
Single package size:
Single gross weight:
SUNPAI e-ink display ESLs Electronic shelf label is used in retail replacing outdated paper labels and is a quickly is required. It allows the price on the ESL to be the same as that on the POS system file or database. E-ink display ESLs Electronic shelf label promotes retail pricing management to a new level by allowing more dynamic pricing and promotional sales.
Electronic Shelf Label System Overview:

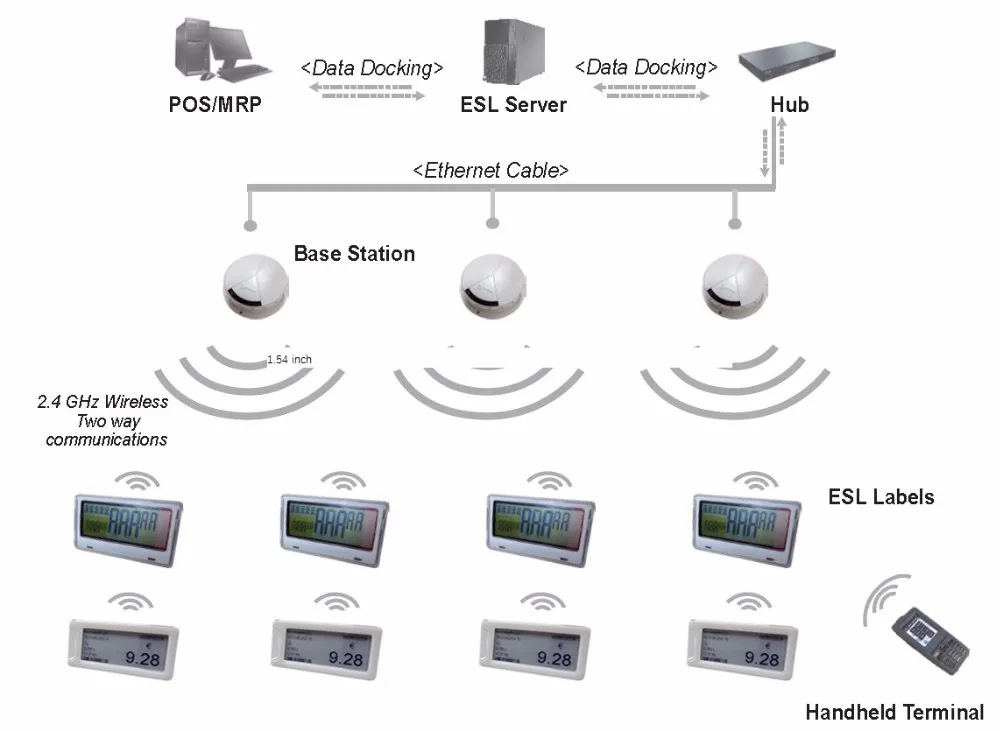

An electronic shelf label system (ESLs) consists of electronic shelf labels, ESL server, switches, base stations, Handset and software.
The product information in the database will be copied from the host computer to the electronic shelf label system application software; then updated prices or other information will be sent via Ethernet (or serial port) to the Base Stations which will then deploy the update throughout the entire store via 2.4GHz wireless transmission.
Each part is described below

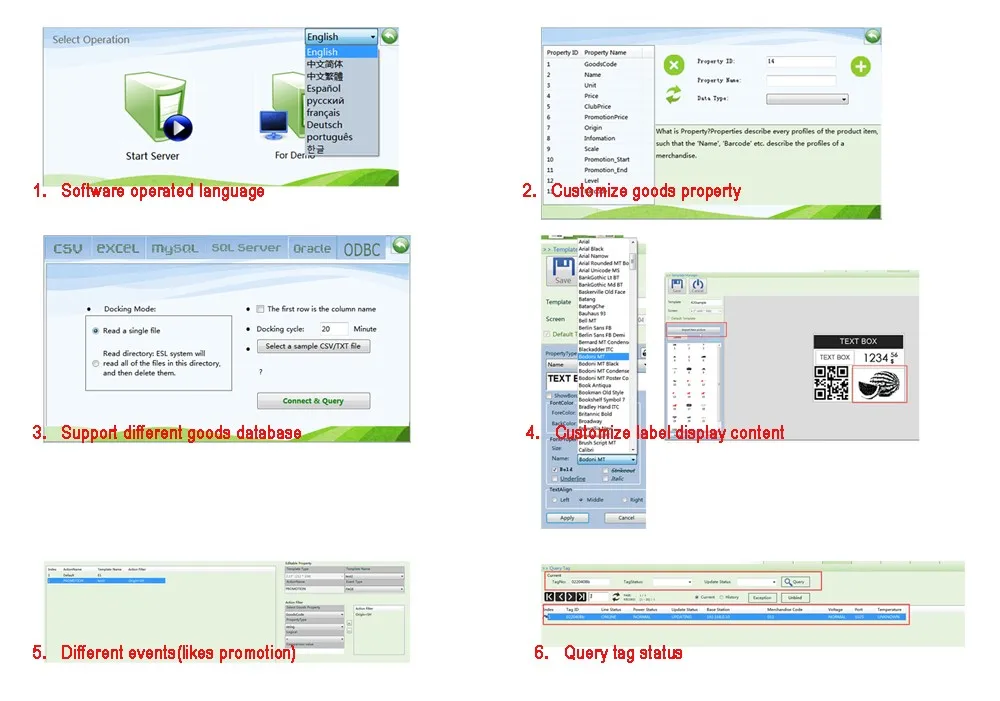

Running ESL System
For data exchange between the base station and the server
For data exchange between the ESL and the

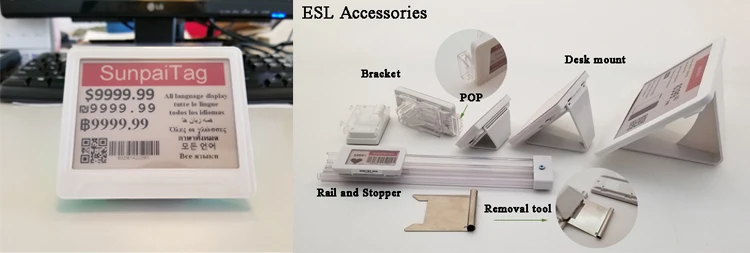

Electronic Shelf Label
Updatable display for stored server information
Used to bind labels to merchandise and for administration
Base Station DB316
140mm x 38mm
-10°C to +55°C (14°F to +131°F)
20% to 95%
AC/DC Adapter. Base Station Input Voltage 6VDC, 2.5A
2.4 to 2.4835GHz
15m to 50m
TCP / IP connection with ESL server, 2.45GHz ISM with ESL labels
Supports 802.3af POE Power Supply
10/100M Ethernet UDP Protocol
10/100M Ethernet expansion port for a single Base Station extension
Maximum communication distance
30-50 meters (Line of Sight and open environment)

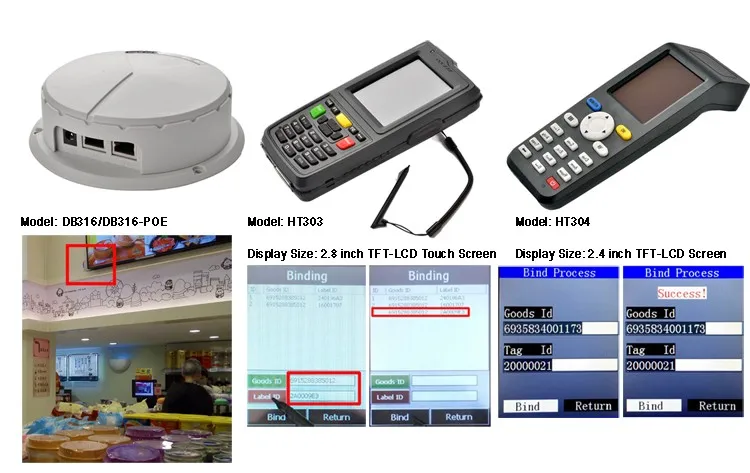

Difference between the HT303 and HT304 Handheld Reader:
1. HT303 has query properties function and touch screen. Quicker for large quantity tags binding when first time be used by customer. Better for distributor to service customers.
2. HT304 can change price on fresh LCD price labels directly, good for changing price of fresh food. Simple and enough to occasional binding and unbinding. Lightweight, Economical. Distributor can suggest it to customers to use after first time large quantity binding
Easy to use it
Where is it from
SUNPAI INDUSTRIES LIMITED, our company was established in May of 2004 and has plants located in Jiangsu.
With years of export experience along with excellent quality, advanced services and competitive prices, Our tag or label is leading in the e-ink display ESLs Electronic shelf label industry. Sunpai has won numerous customers' trust and support.
Welcome to contact us for questions and suggestions.
