OEM ODM Developer customization support GPS WiFi LBS location Senior smart watch 2018

  • 100-999 Pieces
    $45.00
  • 1000-2999 Pieces
    $43.00
  • >=3000 Pieces
    $41.00
1 batch = 100 Pieces
Color:
Black
Size:
L
Bundle:
Bundle3
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
30 day(s) after payment received
Customization:
Graphic customization (Min. Order: 100000 Pieces)
Functions customization (Min. Order: 100000 Pieces)

More

OEM/ODM (Min. Order: 100000 Pieces)
New project customization (Min. Order: 100000 Pieces)
Total solution (Min. Order: 100000 Pieces) Less
Samples: $49.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $49.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Brand Name:
OEM ODM
Model Number:
W5
Place of Origin:
Guangdong, China
Display Type:
TFT
Screen Resolution:
128x128
Screen:
< 2", Transflective screen
Display Color:
Black / White
Feature:
GPS Navigation, WiFi
Operation System:
Linux
Camera:
No Camera
Design:
Bar
Movement Type:
Electronic
Band Material:
Resin
Case Material:
Plastic
Function:
Alarm Clock, Answer Call, CALENDAR, Countdown, Fitness Tracker, Heart Rate Tracker, Speed Measurement
OEM ODM:
Develop according to requirement
Network:
2G
CPU:
MT2503
Frequency:
GSM 850, 800, 1800, 1900 MHz
Band:
Silicone
Pulse rate monitor:
Support
Location:
GPS+LBS+WIFI
APP and Platform:
Support
Customization:
Support one stop service

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
50X50X50 cm
Gross weight per batch:
15.0 kg
Package Type:
Gift box OEM ODM Developer customization support GPS WiFi LBS location Senior smart watch 2018
Picture Example:
package-img
Lead Time :
Quantity(Piece) 1 - 100 101 - 1000 >1000
Est. Time(days) 30 45 To be negotiated
Product Description

OEM ODM Developer customization support GPS WiFi LBS location Senior smart watch 2018

Below specification can be downloaded from www.smartnre.com

No. Type Specification
1 Size Dimension: 42.30*45.10*13.0mm
2 Charging USB Charger
3 Display 1.54" transflective screen supports white and black color. When in standby status, the clock will display all 24hours.
4 Resolution 128*128 pixels
5 Screen Not touch screen
6 Case material Plastic

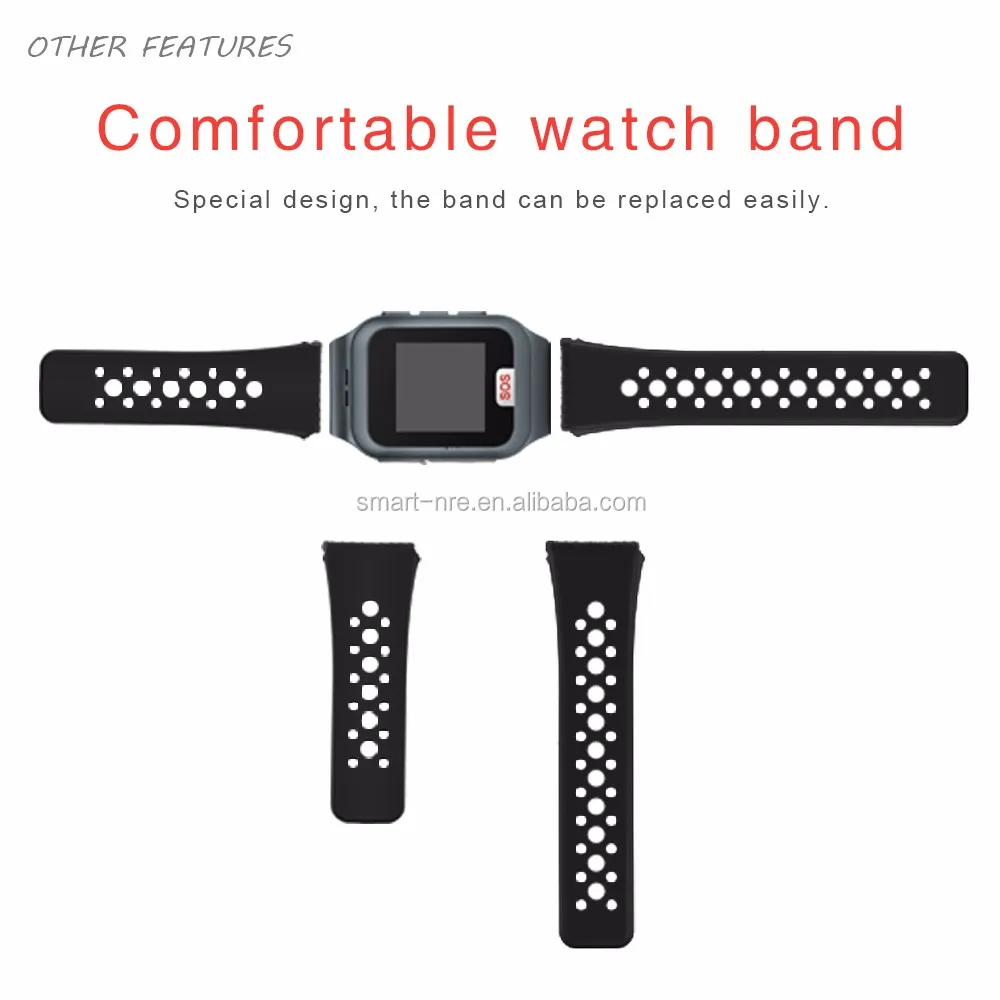

7 Band Silicone, the band can be replaced
8 Battery capacity 450mAh
9 Standby time 100hours
10 G.W 80g/pc
11 Color Black

12 Waterproof IP64


No. Type Specification
1 CPU MTK2503D
2 Memory 128Mb+64Mb
3 Audio In-built K class
4 Touch IC 8858
5 Heart rate Light sense style with motion compensation algorithm
6 Pedometer MC3210, 3-axis gravity direction sensor (6 )
7 GPS MTK333


No. Item Description
1 Network 2G Network (GSM850, 800, 1800, 1900MHz)

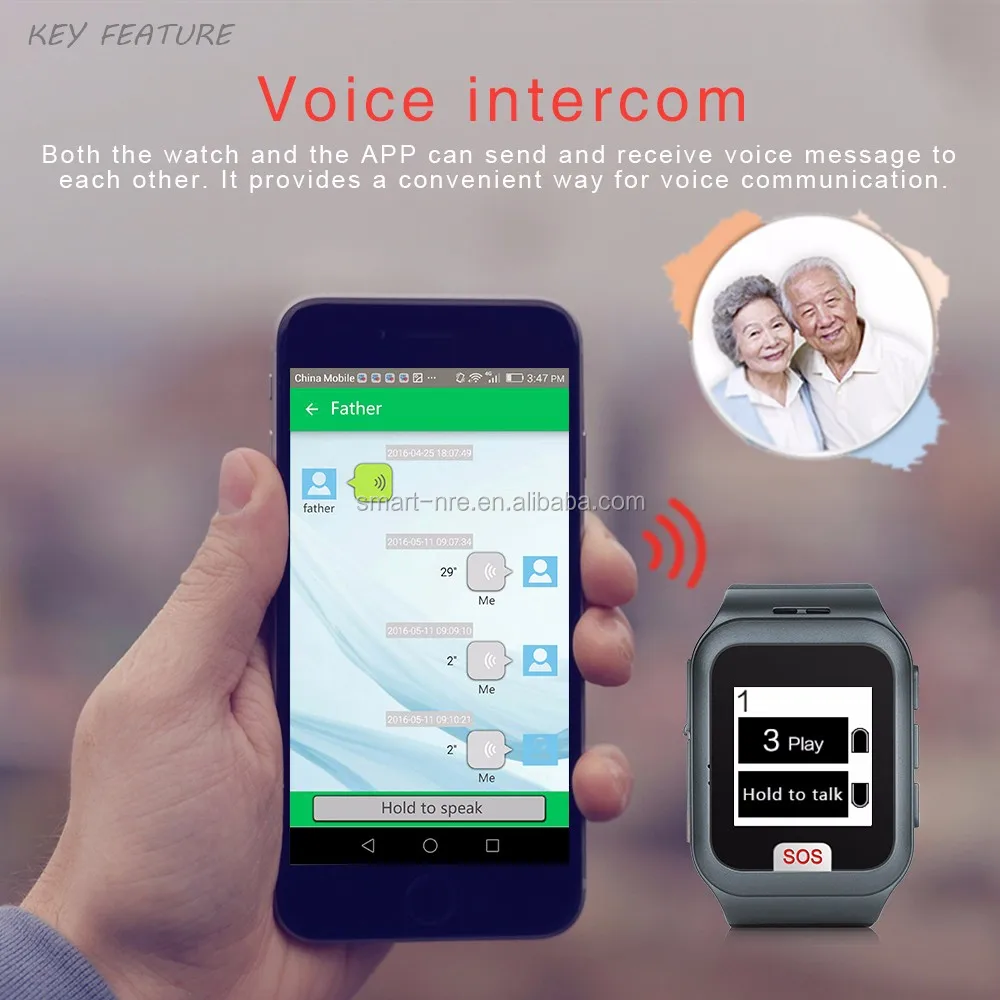

2 Communication Two way communication

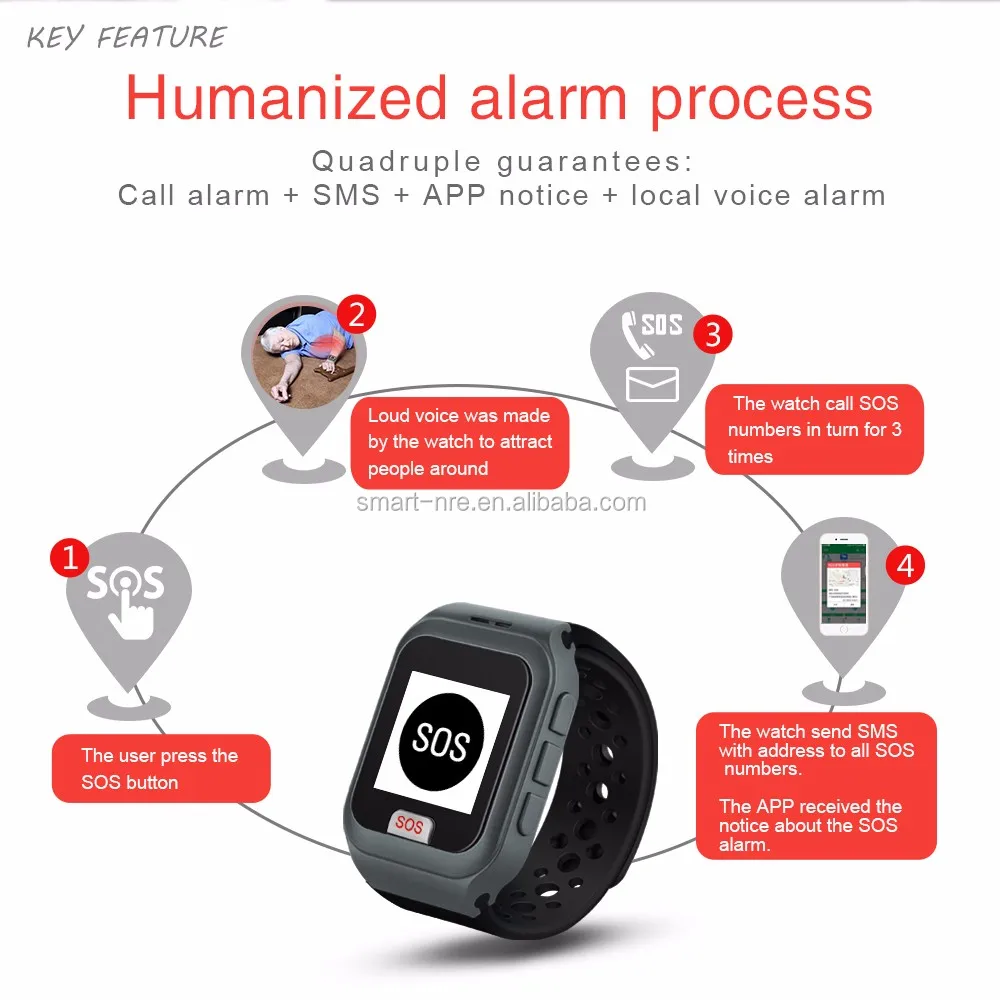

3 SOS Press the button for 3 seconds to send out the SOS alarm. User generated SOS alert can be sent to three preset contacts.
4 Pulse rate monitor Will monitor the pulse rate on schedule and upload to cloud server

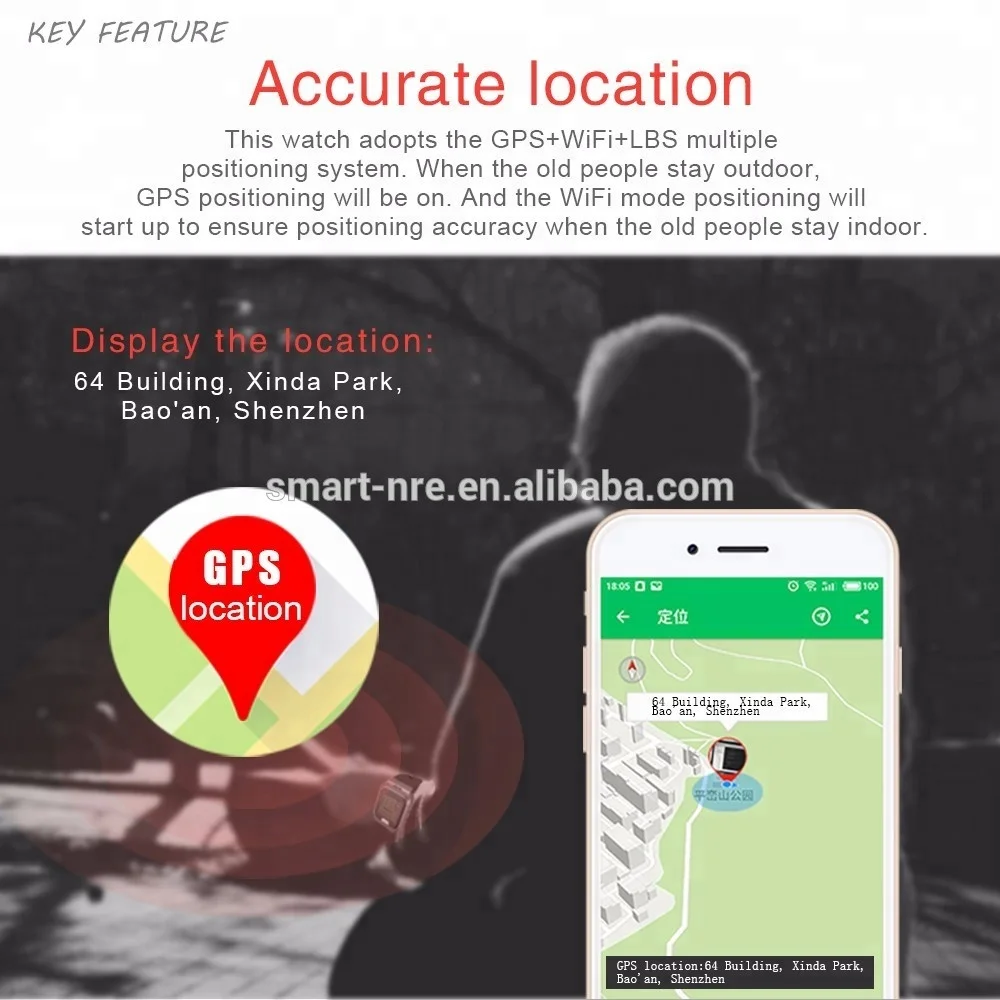

5 GPS+LBS+WIFI location Detect the location of the user.

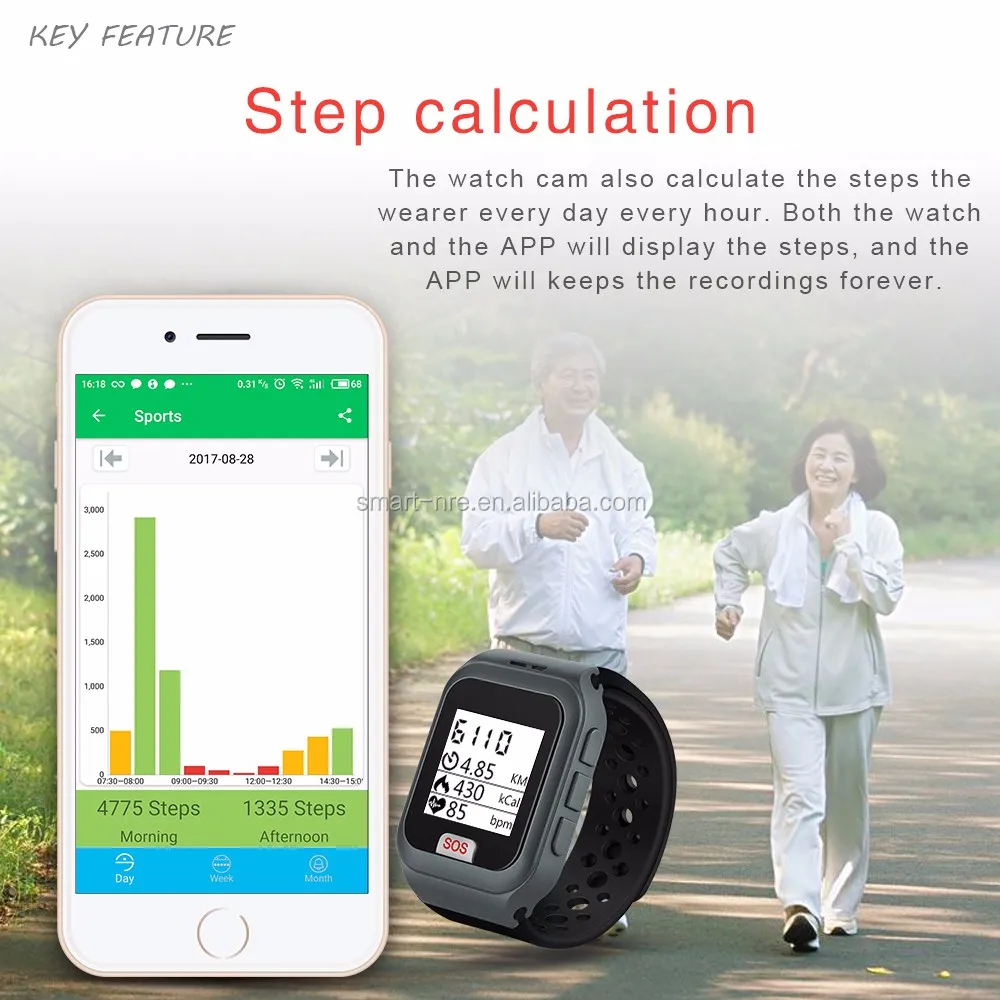

6 Pedometer Detect how many steps the user walks every hour in every day
7 Applications Above IOS 7.0 and Android 5.0
8 Cloud Server Provide the branch account system to distributors


No. Item Description
1 Package Size 15*8*6 cm
2 Package G.W. 0.16kg/pc
3 Carton info 42*36*32cm (60pcs) 11kg/carton

Detailed Images
Our business model

1, We provide the developed module and SKD for your second-development. Technical support about this module will be provided.

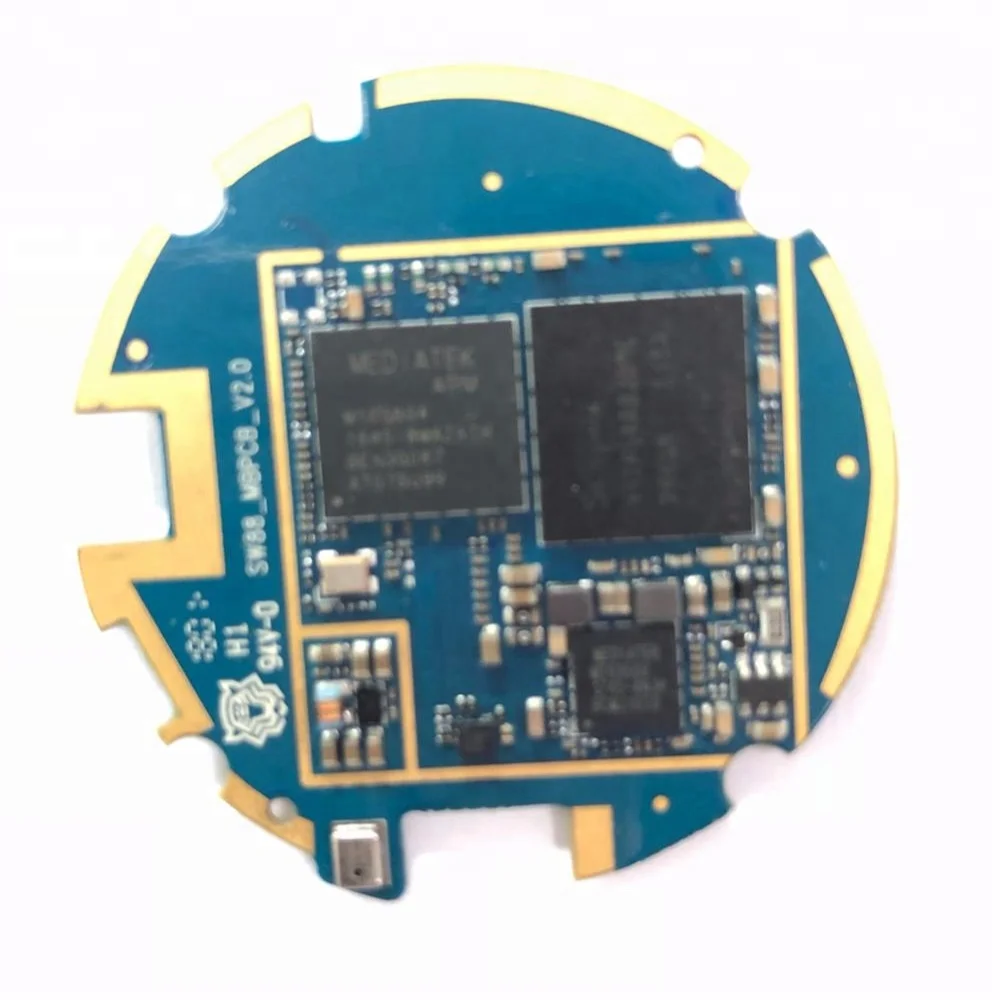

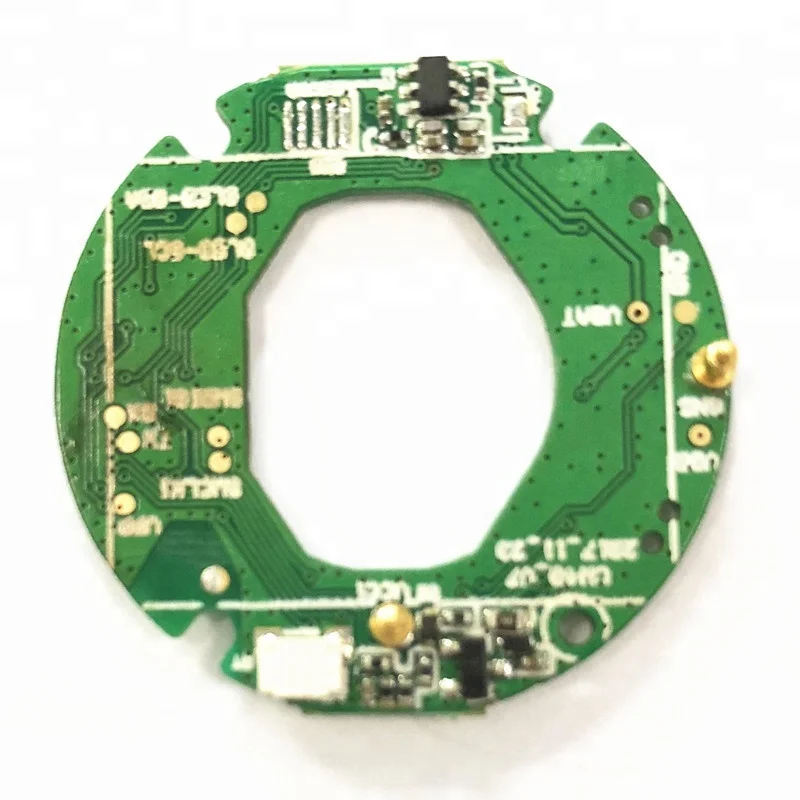

2, We design the PCBA according to your requirements. We provide the PCBA with this module, you take charge of the cover and other parts of this product.

3, We provide the total solution for your project. Total solution includes the PCBA research and development, Interface design, Mechanical design, prototyping, moulding production, small quantity trial production and bulk quantity production, shipping. Applications for Android / IOS and Cloud server platform can also be made in our company (Our client usually take charge of APPs and platform software by themself).

In summary, we provide the long range service, from the basic R&D of the module, to one-stop total solution.

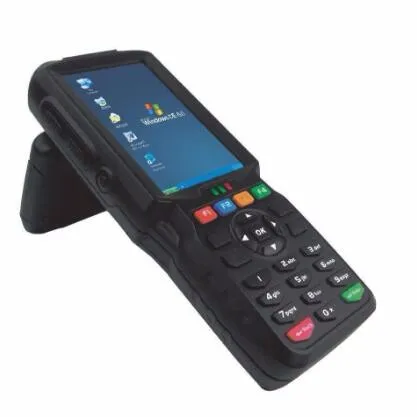

Below are some projects we made for clients:

How to start

A) For module providing only:
1, Tell us the product and requirements of your product.
2, We suggest the suitable module and offer price.
3, Client pay for the SDK cost, and get some pcs of development board.
4, After the development finished, we provide the module in quantity. The SDK cost will be returned when order achieved 100k pcs.

B) For PCBA development or total solution:
1, List all of the features and functions of your product.
2, Describe the usage case of this product, make sure we understand your requirements.
3, We confirm these functions and features, offer the solution including the main technology we will use, the expense and the lead time.
4, Client arrange the payment and we start to develop.
5, We provide the PCBA or total samples for testing.
6, After the testing confirmed, we provide the PCBA or finished products in quantity. The development cost will be returned when order achieved 100k pcs.

About us

Smart NRE:

NRE means "Non-Recurring Engineering".

Smart NRE company develops and manufactures smart products, such as GPS phone, 3G GPS smart watch, Bluetooth products, Android system devices and tracking devices.

We have several years of design and development experience and manufacturing.
Our company was the first company which started to develop the Bluetooth smart watch in Shenzhen;
We developed the Bluetooth dialler for ZTE, it was the first Bluetooth solution which supported two-way communication.

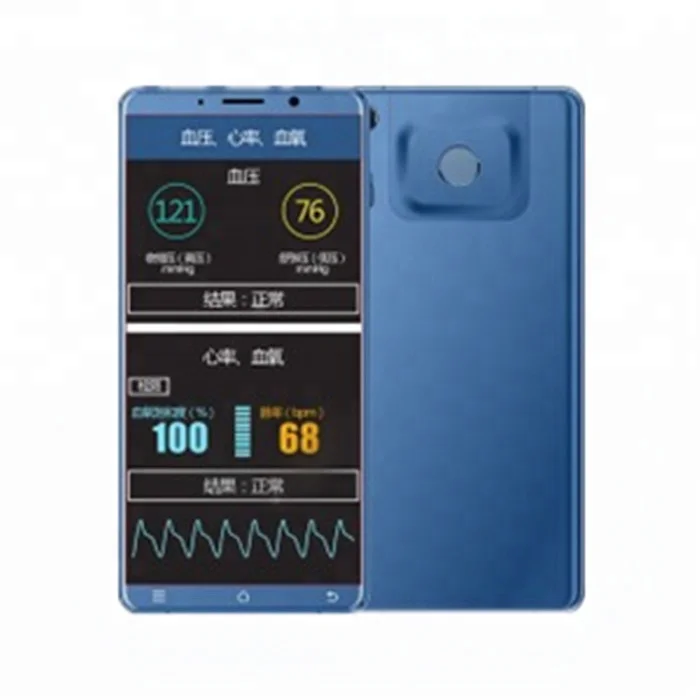

In 2016 we delivered the first feature phone with FDA standard heart rate monitor and pulse oximeter functions. This has been patented and the product is being shipped to a few countries in Europe and the Far East.

In 2017 we developed the round 3G GPS watch for AT&T operator in USA, this watch has the special mechanical design and wireless charger.


An application for tracking has been developed for IOS and Android phone. A service platform on PC for elderly service also be supplied.

We can handle OEM/ODM projects from PCBA design, APP design, software design, hardware design, ID&MD design, cloud server development. We can manufacture prototypes, small production series and bulk production.

In a contracted project we generally design and prototype at cost with the prerequisite that we do the manufacturing for you. Let us know your requirements, you will have a total solution in 48 hours.


Contact info:
Sales manager: Anna Kedwin
Email: admin(@)smartnre.com
Skype: anna.kedwin
Tel & Wechat: +86 13923870899
