Phone Screen 2D Arduino Fix Mounted Barcode Scanner Module for ATM

FOB Reference Price:Get Latest Price
  • 1 - 9
    US $135.00
  • 10 - 49
    US $125.00
  • >=50
    US $110.00
Supply Ability:
1000 Piece/Pieces per Month 1 sample can be available
Port:
Shenzhen Port
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
COM, USB, RS232
Max Paper Size:
A4
Optical Resolution:
2500
Scan Speed:
up to 300 scans/sec
Brand Name:
RAKINDA
Model Number:
RD4500R
Place of Origin:
Guangdong, China (Mainland)
Item name:
Phone Screen 2D Arduino Fix Mounted Barcode Scanner Module for ATM
Depth of Scan Field:
40 mm ~ 235 mm
Symbologies:
1D, 2D[QR Code, PDF41T, DM]
Scan Mode:
Sense Mode
Dimension:
84mm(L) X74mm (W) X 50mm(H)
Weight:
300g
Operate Temperature:
-10℃ to + 50℃
image sensor:
752 x 480 CMOS
scan window:
38.3mm*60.4mm
Notification:
Beep
Packaging & Delivery
Packaging Details
barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only).
Delivery Time
Within 5 working days
Product Information

Product name: Phone Screen 2D Arduino Fix Mounted Barcode Scanner Module for ATM

Item number: RD4500R



Bar codes are increasingly popular as a way to link mobile users with in-store product information or campaign-related content from a poster or print ad. However, bar codes are also increasingly being used to enable mobile payments, often giving merchants and consumers a quicker and easier path to mcommerce than near-field communications.



Probably the best example of how powerful bar codes can be in terms of enabling mobile payments is the Starbucks Card Mobile app, which has reportedly processed 42 million payments via mobile bar codes that are delivered to the app and scanned at retail. PayPal is also testing a new app in Britain that enables users to make purchases via a unique bar code linked to their account.



RD4500R is a fixed mount barcode scanner module that delivers outstanding performance with easy integration. Enclosed by ruggedized housing, its aggressive reading capability is guaranteed even in the harshest environment. Both RS232 and USB configurations are also available to fulfill industrial connectivity requirements.

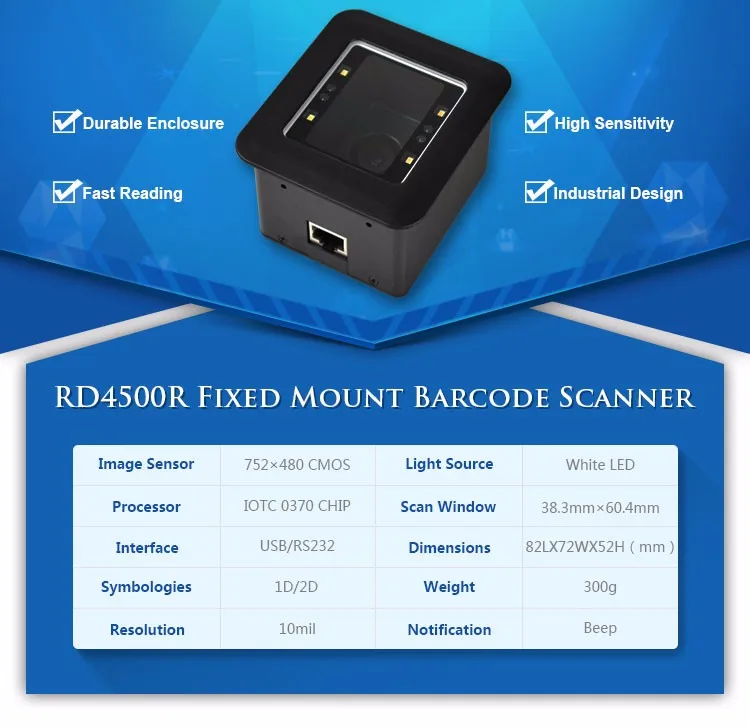

Product Shows

Phone Screen 2D Arduino Fix Mounted Barcode Scanner Module for ATM



Technical Specifications
 Product name Fixed Mount Barcode Scanner
 Item number RD4500R
 Processor  IOTC 0370 CHIP
 Interface RS-232 (9.6~115.2Kbps); USB 1.1 ( HID-KBW, HID-POS )
 Image Sensor  752× 480 CMOS
 Symbologies 2D: PDF417, Data Matrix, QR Code
 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
       Codabar, Code 128, Code 93, ITF-6, ITF-14,
       Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
       Matrix 2 of 5, GS1 Databar (RSS-Expand,
       RSS-Limited, RSS-14), Code 39, Code 11,
       MSI-Plessey, Plessey
 Scan Mode   Sense mode
 Resolution  10mil
 Light Source White LED
 Scan Window 38.3mm*60.4mm
 PCS  ≥ 30%
 FOV

 Diagonal: 85°,

 Horizontal: 63.7°

 Vertical: 70°

 Ambient Light 0 ~ 100,000 LUX
 Power Consumption 1.75W (max.)
 Power Adapter

 Output: DC5V, 0.5A,

 Input: AC100~240V, 50~60Hz

 Notification  Beep
 Dimensions  84mm(L) X 74mm (W) X 50mm(H)
 Weight  300g
 Operating Temperature -10 ℃ to + 50 ℃
 Storage Temperature -20 ℃ to + 60 ℃
 Humidity 5% - 95% ( non-condensing )
Certification FCC Part15 Class B, CE EMC Class B
