Notice: This link's price is barebone system price, doesn't include ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

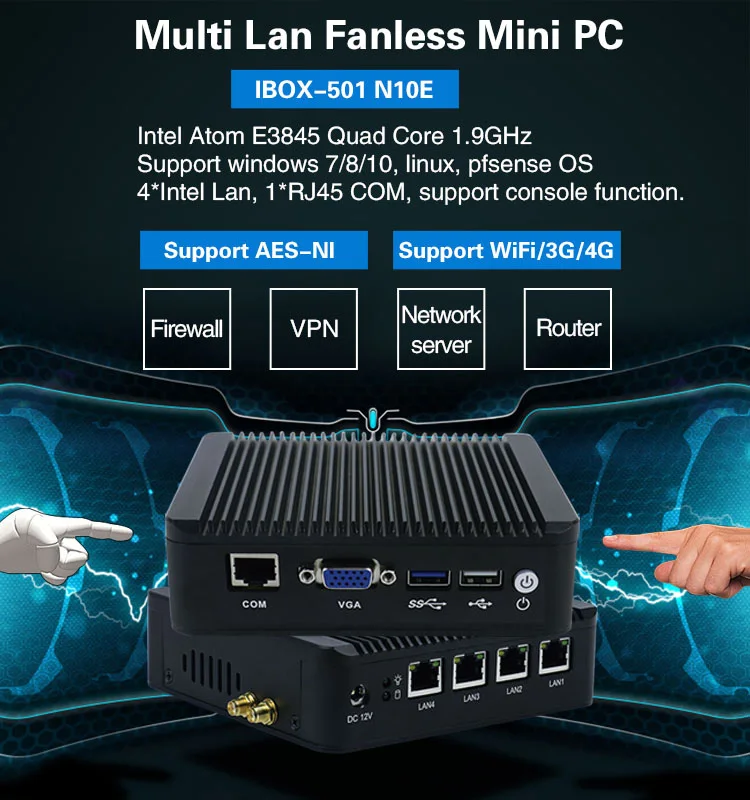

Price include carriage mini server Intel Atom E3845 4 lan linux pfsense aes-ni firewall appliance pc support 3G/4G console COM
1) Intel Atom E3845 quad core 1.91GHz and intel chipset, Support AES-NI
2) 1*VGA+1*USB2.0+1*USB3.0+4*LAN+1*RJ45 COM+1*Power switch
3) AMI 64MB Flash ROM .support RPL/PXE diskless boot, electricity boot, WDT
4) High-quality Fanless pure aluminum Case
5) 1*MSATA,1*mini-PCIE, support wifi / 3G/4G
6) 4*WG82583 1000M lan card, support wake on lan
7) DC-IN 12V power supply and AC power adapter
8)Applied in Firewall, Network Server, Network Security, VPN Router etc .
| Specification | |
| Model | IBOX-501 N10E |
| Material of case | High-quality pure aluminum |
| CPU | Intel Atom E3845 quad core 1.91GHZ, support AES-NI |
| Chipeset | Intel express chipset |
| Mainboard | 120*120mm Nano ITX mainboard |
| Usable system | Windows 10, win7, win8, linux, pfsense |
| Memory | 1*SO-DIMM DDR3, support Max 8G |
| Lan | 4*Intel WG82583 10/100M/1000M Lan |
| Graphic card | Integrated HD Graphic card |
| HDD | 1*MSATA, 1*MINISATA, 500G(optional 500~1T) |
| SSD | 16G/32G/64G/128G/256G optional |
| BIOS | AMI 64Mbit Flash ROM |
| I/O | 1*usb2.0,1usb3.0 |
| 1*DC-IN 12V | |
| 4*RJ-45 lan | |
| 1*RJ45 COM | |
| 1*VGA | |
| 1*HDD LED | |
| 1*Power LED | |
| 1*Power Switch | |
| 2*WiFi Hole | |
| buit-in I/O | 1*NB / Chassis Fan connector |
| 1*Mini-SATA 3Gb/s connector | |
| 1*SIM slot | |
| 1*SATA port | |
| 1*Mini-PCIE connector | |
| expansion slot | 1*Mini-PCIE (support wifi/3G/4G) |
| Application | Firewall, Network Server, Network Security, VPN Router |
| Operation Temp | -10 ~ 60 °C |
| Power supply | DC12V-IN power supply and AC power adapter |
| Dimension | 134*124*36mm |
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box, ten neutral box for one carton.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-basedenterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED.controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED.has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Question: Can you put my brand name (logo) on these products?
Vincent: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Vincent: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Vincent: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Vincent: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Vincent: 1-3 days for one sample, 15 working days for a large quantity.
