Raspberry Pi Zero W, for short RPi Zero W,it is new coming from Raspberry Pi family, with mini size,1GHz, single-core CPU,512MB RAM,BCM2835 (same as Pi 1),support Mini HDMI,USB On-The-Go ports and micro USB power port, at the same time RPi Zero has HAT-compatible 40-pin header,Composite video and reset headers,CSI camera connector,so it is 40% faster than Raspberry Pi 1
BCM2835 (same as Pi 1) but up-clocked to 1GHz, so 40% faster 512MB RAM Mini HDMI USB On-The-Go port Micro USB power HAT-compatible 40-pin header Composite video and reset headers CSI camera connector 802.11b/g/n Wireless LAN Bluetooth 4.1 Bluetooth Low Energy (BLE) Dimensions: 65mm x 30mm x 5mm
CPU: Broadcom BCM2835 RAM: 512MB Power: 5V, supplied via micro USB connector, drawing 160mA (even when connected to an HD display). Video & Audio: 1080P HD video output. Audio output via mini-HDMI connector. Operating System: Linux, installed via NOOBS.

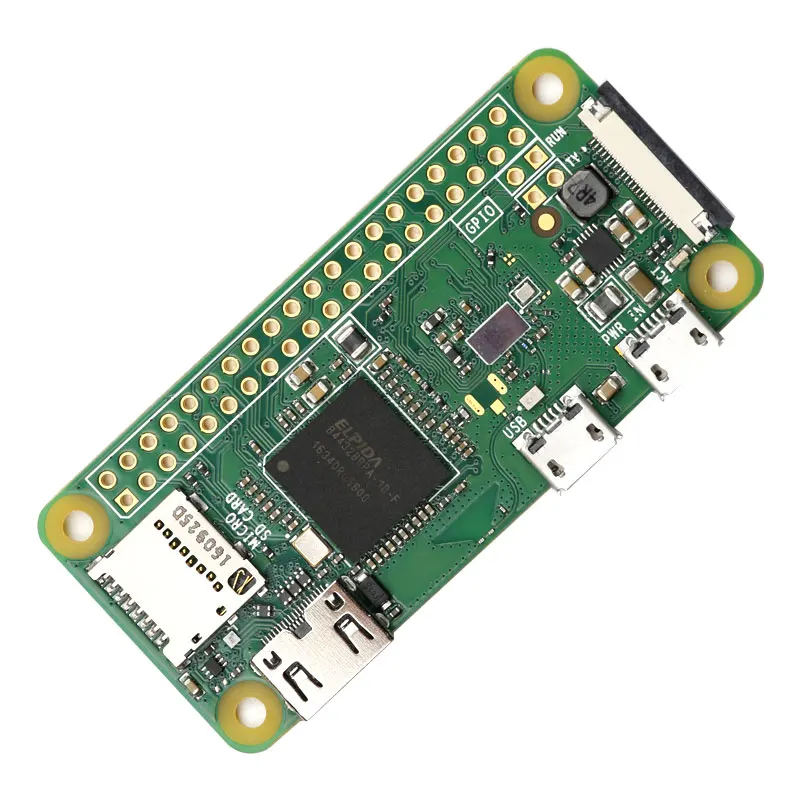

Raspberry Pi Zero W Board 1GHz CPU 512MB RAM

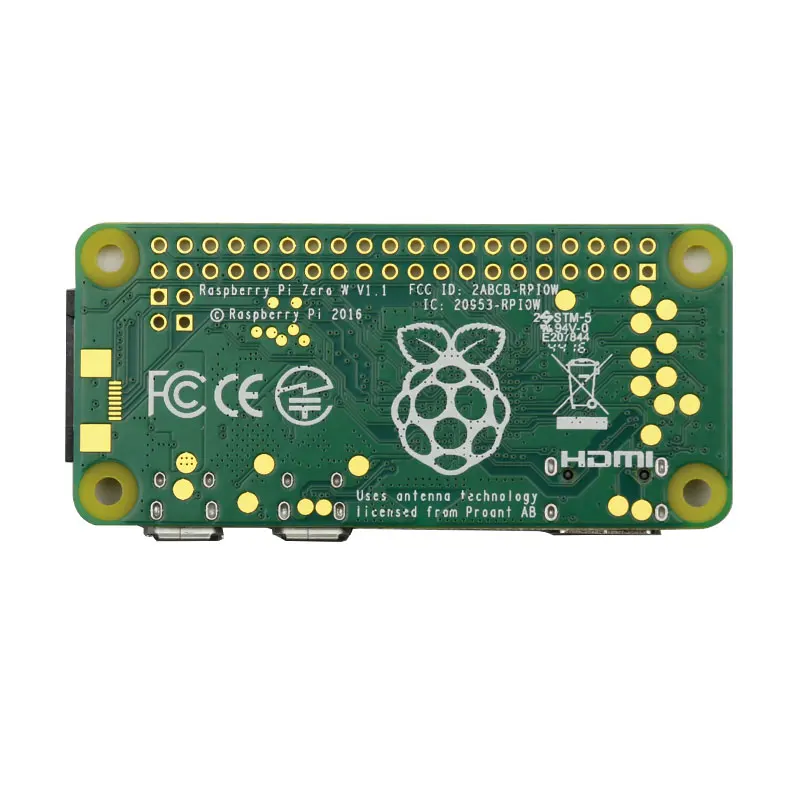

Raspberry Pi Zero W Board 1GHz CPU 512MB RAM-Back side

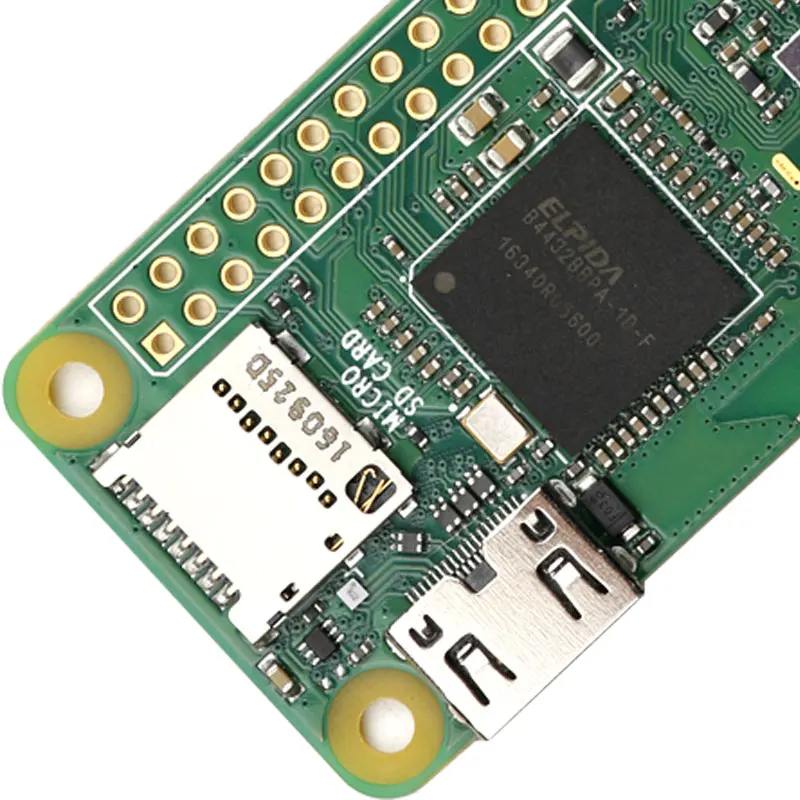

Raspberry Pi Zero W Board 1GHz CPU 512MB RAM-Details
