Richpeace Automatic Sewing-Perforation Machine

$40,000.00 / Set | 1 Set (Min. Order)
Model Number:
RPAS-PS-1-1200X800-B-2-HM,LH
$40,000.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
35 day(s) after payment received
Contact Supplier
Samples - $0.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Max. Sewing Thickness:
50mm
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Tianjin, China
Brand Name:
Richpeace
Stitch Formation:
Lock Stitch
Mechanical Configuration:
Flat-Bed
Max. Sewing Speed:
1500rpm
Stitch Length:
0.6-12.7mm
Feed Mechanism:
Walking Foot
Certification:
CE certificate
After-sales Service Provided:
Engineers available to service machinery overseas

Packaging & Delivery

Selling Units:
Single item
Single package size:
2000X1800X1500 cm
Single gross weight:
2000.0 kg
Package Type:
vacuum film + wooden case
Picture Example:
package-img
Lead Time :
Quantity(Set) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

Product Application

Richpeace Automatic Single color Perforation and Sewing Machine is intelligent and multi-function "process center", mostly used at aerospace, car interiors and home furniture, etc.

Main Features

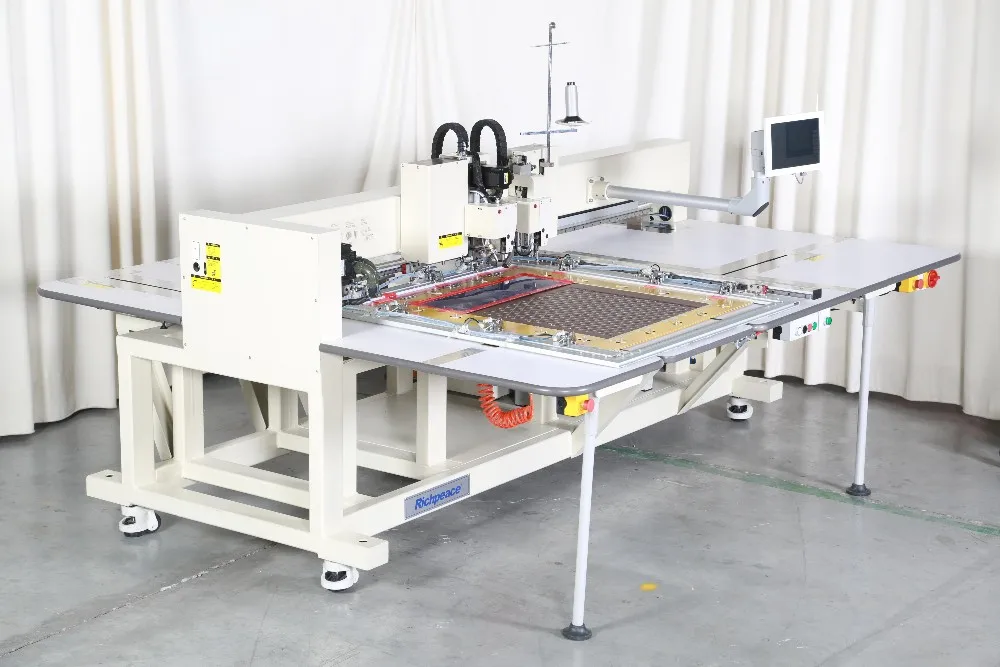

Richpeace Single color Automatic Perforation and Sewing Machine
Rotary hook automatic oil supply function
Needle cooling function
Fully automatic computer control system, replacing the mode of one person for one machine.
Realize sewing and punching in one, with the punching point controlled by computer and achieve the desired combination pattern.
It is easy to learn the operation of the machine and no requirement for skilled sewing machine operation, which reduce the dependence on skilled workers
Arbitrary design of sewing pattern,easy realization of special sewing process.
Good consistency of sewing stitches, with stable quality and low reject rate.
High working speed, accurate pattern.
The distance for punching and sewing head is 200MM, while the switching time for sewing and punching can be neglected to maximize work efficiency.
Sewing head and punching head are independent up and down, guarantee the actual working area, also make it convenient to open and reloading the templet.
Acquiescent type is lift-head, fixed-head is optional, lift-head is recommended.
It can be customized for multi-needle punching according to customer needs. Maximum 4 punching heads can work at the same time according to different materials of leather.

Certifications
Detailed Images

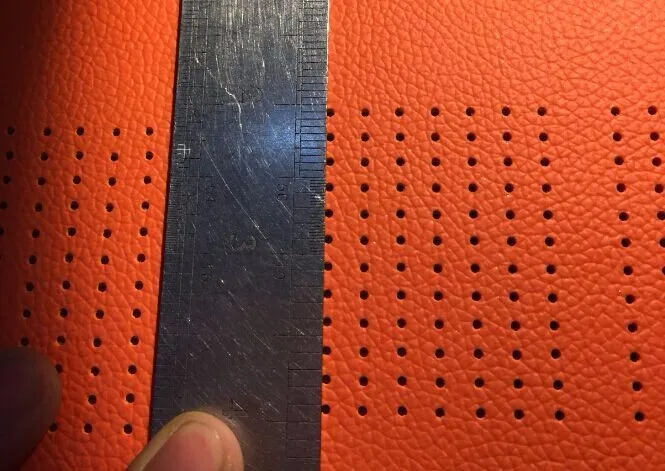

One perforation head, there are different perforation shapes and sizes for choose.

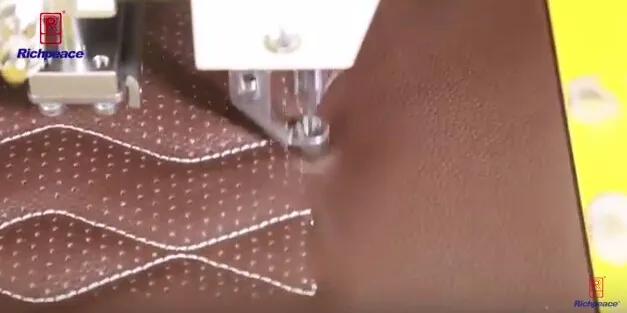

One sewing head, max can use No.15 thread, any patterns can be designed in software and sewing on machine

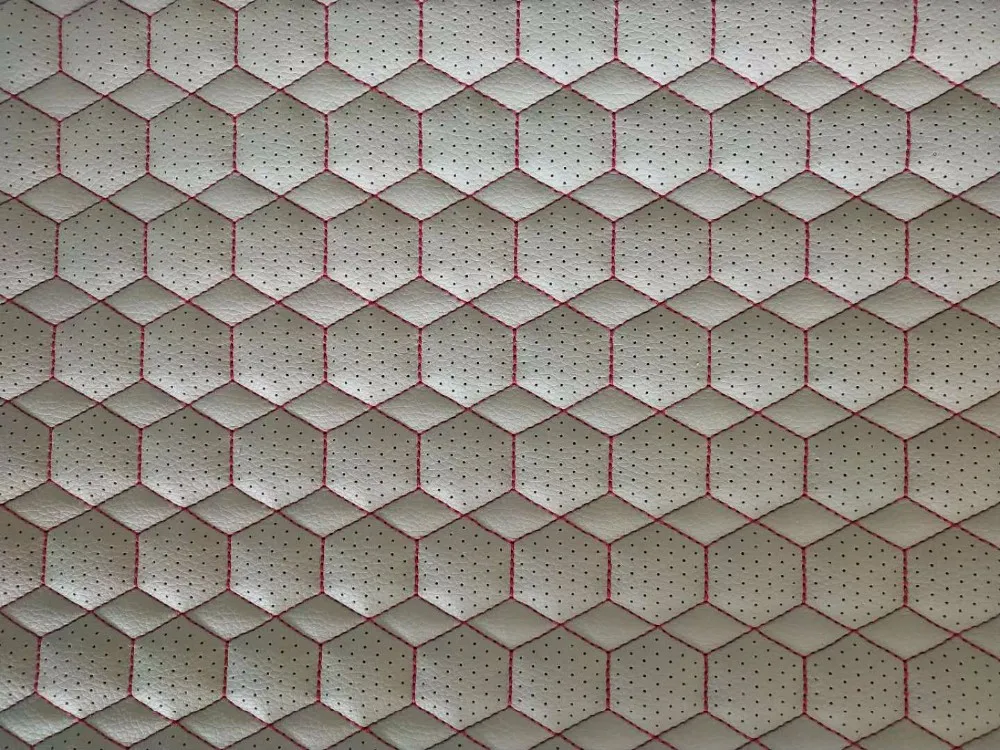

Any patterns can be designed in software

Any patterns can be designed in software

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
200 (L) * 180 (W) * 150 (D)
Weight
2.0T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
