SIM808,lower cost gsm gps module

Feedback Ratings
  • 5-99 Pieces
    US $8.00
  • >=100 Pieces
    US $7.50
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Product name:
smallest gps gsm module SIM808
Install Style:
Supply voltage range:
3.4V ~ 4.5V
GPRS mobile station:
Class B
Interface to external:
SIM 3V/1.8V
AT commands:
via GSM/GPRS serial interface
SIM card IC optional
Three separate antenna connectors:
for GSM/GPRS & GPS & Bluetooth
GPS Receiver:
20 channels, L1 1575.42 MHz

Packaging & Delivery

Selling Units:
Single item
Single package size:
1X2X1 cm
Single gross weight:
0.005 KG
Lead Time :


SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications. Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage


Product Description
                                                           Key  Features
ProductFrequency BandsData SpeedDemensionOther Features






*Control via AT commands



*GPSSIM808 Module

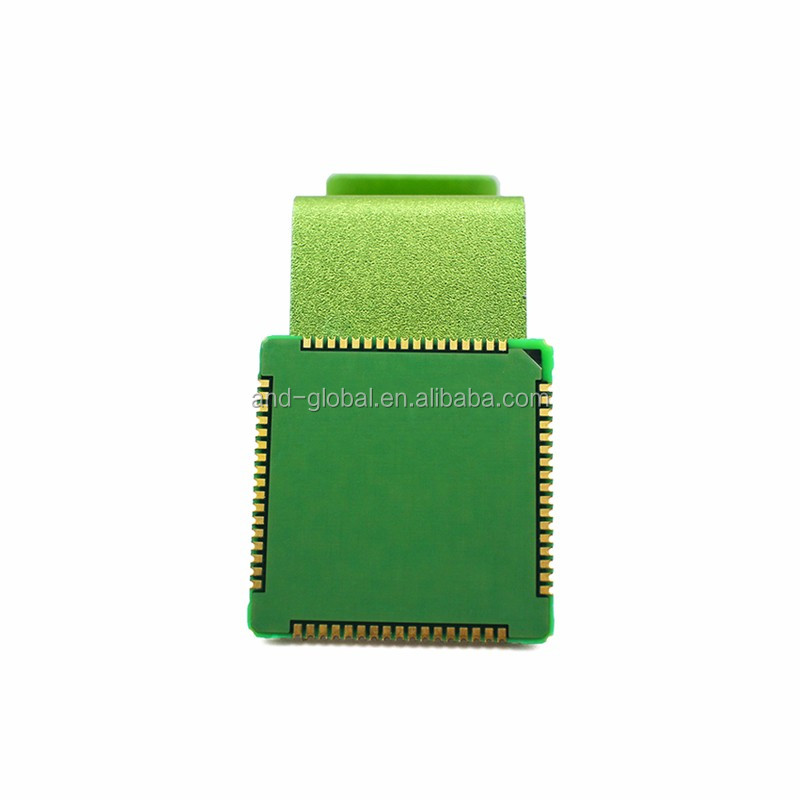

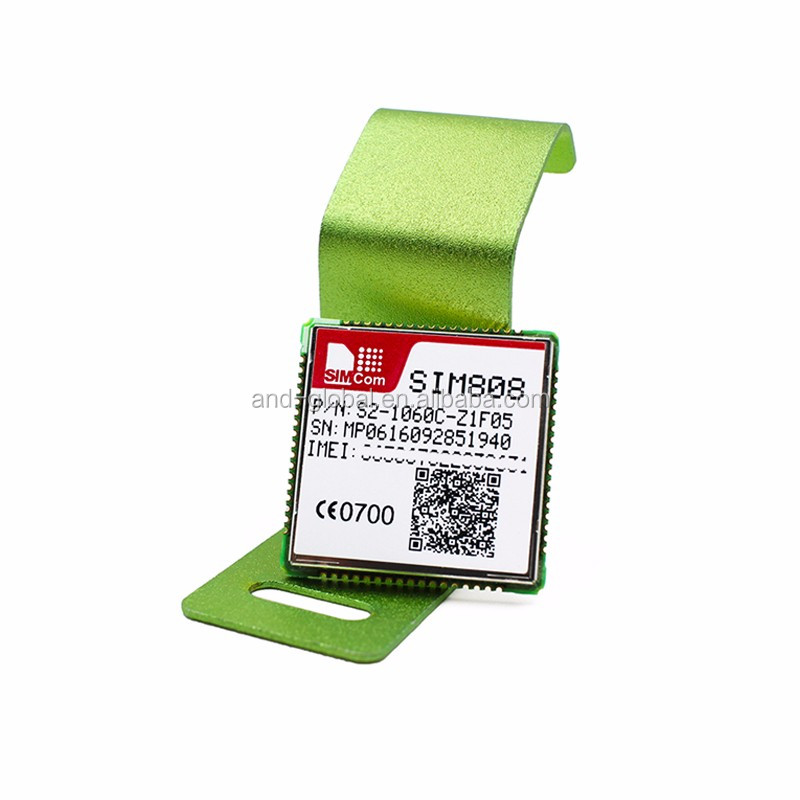

SIM808(BT) (1).jpgSIM808(BT) (2).jpg


More information

General features

•Quad-band 850/900/1800/1900MHz

•GPRS multi-slot class 12/10

•GPRS mobile station class B

•Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz)

•Bluetooth: compliant with 3.0+EDR

•Dimensions: 24*24*2.6mm

•Weight: 3.3g

•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

•Supply voltage range 3.4 ~ 4.4V

•Low power consumption

•Operation temperature:-40°C ~85°C


Specifications for GPRS Data

•GPRS class 12: max. 85.6 kbps (downlink/uplink)

•PBCCH support •Coding schemes CS 1, 2, 3, 4


•CSD up to 14.4 kbps

•USSD Specifications for SMS via GSM/GPRS

•Point to point MO and MT

•SMS cell broadcast

•Text and PDU mode Software features

•0710 MUX protocol

•Embedded TCP/UDP protocol





•Jamming Detection

•Audio Record

•TTS (optional)

•Embedded AT (optional) Compatibility

•AT cellular command interface


Specification for GPS Receiver type

-22 tracking /66 acquisition -channel -GPS L1 C/A code Sensitivity -Tracking: -165 dBm -Cold starts : -147 dBm Time-To-First-Fix -Cold starts: 30s (typ.) -Hot starts: 1s (typ.) -Warm starts: 28s (typ.) Accuracy -Horizontal position : <2.5m CEP



•68 SMT pads including

•Analog audio interface

•PCM interface(optional)

•SPI interface (optional)

•RTC backup

•Serial interface

•USB interface

•Interface to external SIM 3V/1.8V






•GSM Antenna pad

•Bluetooth Antenna pad

•GPS Antenna pad






Related Products

                                                        Quad Band GSM/GPRS+GNSS Module

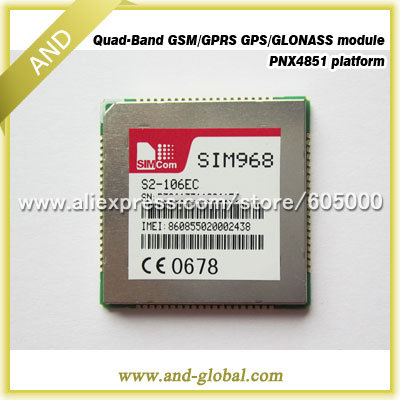

SIM928A-10 SIM968-12
