Sensor Shield V5.0 for Arduino Robotic controller

Feedback Ratings
US $7.15 / Piece |2 Pieces (Min. Order)
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping:
Please confirm the quantity of the goods.
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ALSRobot
Model Number:
RB-01C015A
Usage:
Arduino controller
Theory:
Arduino controller
Output:
Arduino controller


Sensor Shield allows you to connect to various modules like sensors, servos, relays, buttons, potentiometersEach functional module has buckled port with VCC, GND and Output, which has corresponding port on the Sensor Shield, connected with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.


You can easily connect with usual analog sensors by using this expansion board, such as ray sensor.if you support by this expansion board and corresponding circuit module,you only need to combine arduino and sensors module by using special cables, because concrete circuit details achieve by corresponding sensors module, so you only need to consider that how to read data coming from the sensor by program in arduino.


For Arduino beginners, you do not have a headache for the cumbersome and complex circuit connection, the sensor extends the true sense of the board to simplify the circuit which can easily connect the commonly used sensor, a sensor requires only a common 3P sensor cable (regardless of digital cable and analog cable), after the completion of the circuit connection, the preparation of the corresponding Arduino program downloaded to the Arduino Duemilanove controller reads the sensor data, or receive wireless module to return data after computing the final easy to complete your own interactive works.

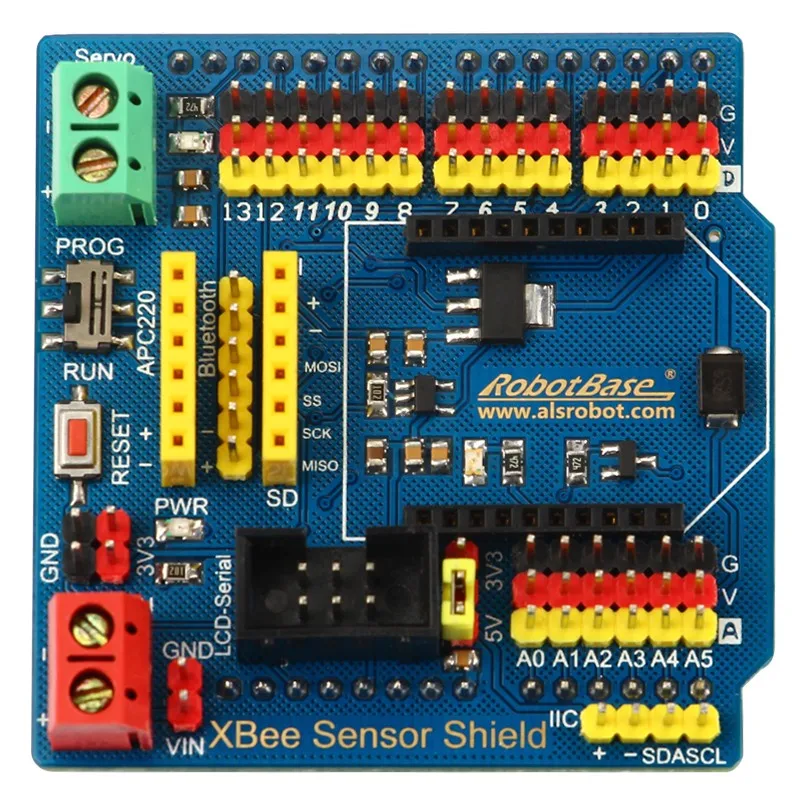

1.Product Name:XBee Sensor Shield
2.Product Number:RB-01C015A
3.Output Voltage:5.5V/9V-12V
4.Product Compatibility:UNO,DUE,LEONARDO and all the sensors in store.
5.Dimessions:56mm x 56mm

  • 1.D:Digital signal interface
  • 2.A:Analog signal interface
  • 3.V/+:VCC
  • 4.G/-:GND
  • 5.Others:APC220,Bluetooth,SPI,XBee,IIC,LCD1286

Zedoary process,Superior quality

Identify clear,Convenient operation

More interface,Cimple and useful

Attention to details,More beautiful
