Ship launching use marine rubber air bag marine airbag

$500.00 / Set | 1 Set (Min. Order)
Model Number:
marine airbag
$500.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
FLORESCENCE, Florescence
Part:
marine airbag
Material:
Rubber
Product Name:
marine airbag
Usage:
Ship launching, landing and slvage
Certificate:
CCS, BV, IOS etc.
Diameter:
1.0m
Effective Length:
5m
Packing:
As clients need
Quality:
Top
Color:
Black

Packaging & Delivery

Selling Units:
Single item
Single package size:
70X30X30 cm
Single gross weight:
100.000 kg
Package Type:
Pallet, wooden box etc.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description

Marine Airbags? A Most Unusual Way To Launch A Ship





History

 What were the first uses of airbags in the launching of ships?

The history of marine airbag ship launching dates back to 1981. Xiao Qinghe ship repair and building shipyard, located in Jinan city of Shangdong Province, launched a 60 DWT tank barge with airbag suspension on January 20, 1981. Seven airbags were deployed in that project. One was 2 meters in diameter and 6 meters long and used for elevating. The remaining six airbags were 0.8 meters x 6 meters long and acted as the rollers. The first intention of that trial launch was to develop a prompt, less landform limited ship launching method for warfare purposes.



How has the technology advanced since then?

Over the past twenty years, the airbag ship launching system has made advancements in not only the airbag, but also the ship launching/landing technology. The first generation airbags used a rubber dipped canvas as a reinforcement layer to form the air chamber trunk. Two cone-shaped molds were then used to make the ends and everything was stuck together.

With today’s airbags, the whole-enlacing-technology used for manufacturing is done together. Rubber dipped synthetic-tyre-cords are used as the reinforcement layers with the trunk and two cone-shaped ends made at the same time. Everything is then-laced together, so the airbag doesn’t have any joints. Due to the development of rubber chemistry, the performance of the rubber employed in the latest airbags is highly enhanced and about 15 times that of the first generation bag with the same specifications.

The launching and landing technology has also developed. In the beginning, only small and flat bottom ships located on a fabricated slope could be launched with airbags. Now this technology is more flexible and less limited by the ship and landform. Now any type of ship with a DWT below 55,000 and in a place with enough launching space can be launched using airbags. The launching slope even can be sloped upward. It has really developed into a cutting edge technology for launching ships, and especially useful for some marine emergencies.



They look very similar to Yokohama Fenders, how do they differ?

The main use of Yokohama fenders and Florescence marine airbags are definitely different. It is well known that Yokohoma fenders offer an effective fender system providing a soft and stable berthing condition to ships. Florescence marine airbags are widely used for ship launching, landing, heavy transport and air lifting. Due to the special use, structures of Florescence marine airbags are optimized for safety and built for heavy duty use. The surface layers are enhanced for anti-abrasion and are pierce resistant. Even if they are somewhat wounded, Florescence marine airbags can still work safely until repaired. The length of airbags are usually more than 10 meters and two cone-shaped ends make them look like huge sausages. Also, Florescence marine airbags never use tires and shackles.

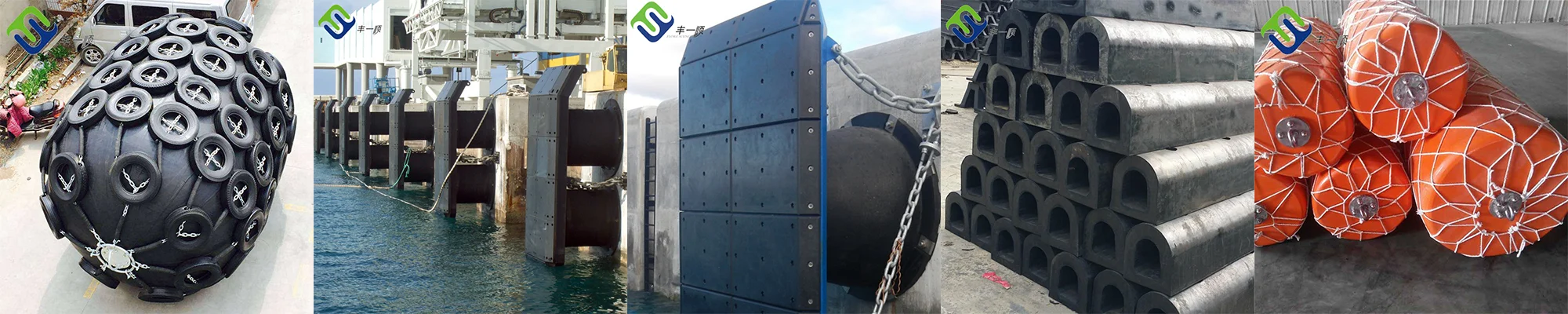

Other products we produce. You may click the picture to know more about Florescence Rubber Fenders.
Pneumatic Fenders       Cell Fenders                   Cone fenders                 D fenders                        Foam Fenders

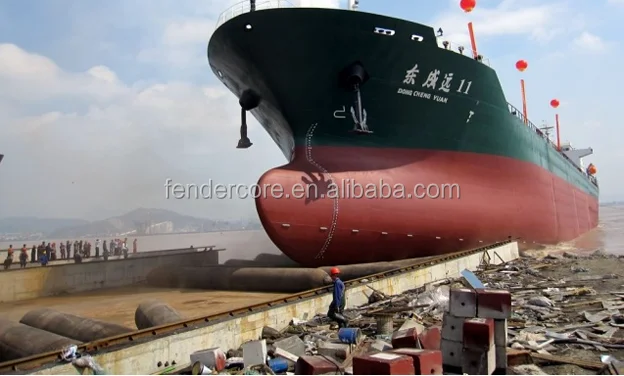

What are the advantageous to using this system over traditional ship launching techniques?

An marine airbag ship launching system does not need the traditional fabricated slipway so it saves time, investment, land, etc. Marine airbag need no extra maintenance and after use they can be cleaned and folded in the corner to wait for another mission. It is easy to find that airbags’ elasticity can give more protection to the launched ship. A remarkable character of airbags is that the working height can be changed to redirect the ship or object being launched by adjusting the inner air pressure. For this character it is peerless compared to traditional ship launching techniques.

So what are the other uses for this system?



Florescence marine airbag are not only used for ships, floating docks and caisson launching but they are also cutting edge for ship landing, heavy transport, marine salvage, etc. It is a versatile tool for many marine applications.

Introduce

Introduction of our marine airbag:

Marine airbag also known as marine airbag, ship launching airbag, ship salvage airbag, inflatable airbag, ship lifting bag, air balloon, made by natural rubber & multi layer of rubber-dipped tyre fabric.
Marine airbag are widely used in launching and landing ship/ boat/vessel, lifting and moving heavy goods, salvaging stranded boats.
Marine airbag are very popular with shipyard, ship owner, and marine supplies company now.
Product NameMarine airbag
Materials Natural Rubber
ApplicationMarine launching, landing, salvage
Life pan6-10 years
Gurateed working puressure of Florescence marine airbag.
Layers/Dimeter0.8m1.0m1.2m1.5m1.8m2.0m
3+1 ply0.13Mpa0.10Mpa0.09Mpa0.07Mpa0.06Mpa0.05Mpa
4+1 ply0.17Mpa0.13Mpa0.11Mpa0.09Mpa0.08Mpa0.07Mpa
5+1 ply0.21Mpa0.17Mpa0.14Mpa0.11Mpa0.09Mpa0.08Mpa
6+1 ply0.25Mpa0.20Mpa0.17Mpa0.13Mpa0.11Mpa0.10Mpa
FLORESCENCE TO BE YOUR BEST PARTENER
Structure

 The structure of Florescence marine airbag:



Structure of marine airbag
1. Terminal iron
2. Cylindrical airbag body
3. Cone airbag body
D: Diameter of airbag
L: Valid length of airbag
Loa: Total length of airba





Pipe accessories of air inflation end
1. Terminal iron
2. Three-limb tube
3. Manometer
4. Valve
5. Hose joint







For marine airbag price quotes - please answer the following questions:

1. Type of vessel?
2. LOA (length) of ship?
3. Width of vessel?
4. Vessel's actual launched weight (gravity weight)/weight without cargo?
5. What is the vessel's DWT?
6. Type of ground ship is built on? (Dirt, concrete, etc.)
7. Depth in meters of the water where the ship first enters the water?
8. What's the angle degree of slipway? (Land, not under water)
9. Please provide the low/high tide schedule at site.
10. The working height? (The block stand height under the vessel)
11. Distance from bottom of propeller to the water level?
12. Distance from back of vessel (in dry dock) to the water entry point?

*If possible, please provide photos of the launch area.
